Fein BLS 4.2 (50Hz 230V) / 72302400234 Spare Parts

Fein BLS 4.2 ⡐Hz 230V) / 72302400234 Spare Parts

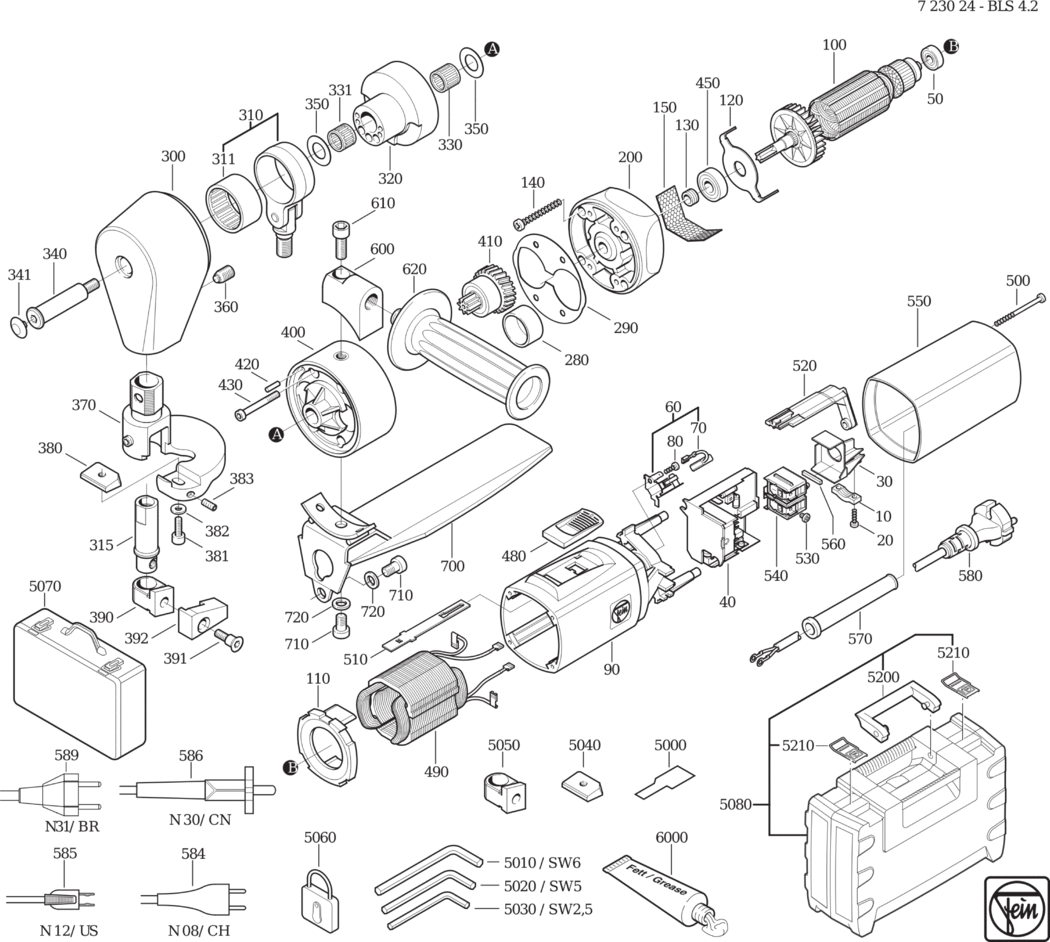

An exploded diagram and spare parts listing for the Fein BLS 4.2 (50Hz 230V) / 72302400234

	Ex VAT	Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A11 32431021007	£1.60	£1.92
20 - SCREW FEI-43070001006.A118 43070001006	£1.60	£1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A23 32431040006	£2.78	£3.33
40 - ELECTRONICS FEI-30762206997.A9 30762206997	£103.19	£123.83
50 - GROOVED BALL BEARING FEI-41701001260.A107 41701001260	£7.11	£8.53
60 - BRUSH HOLDER FEI-30712088013.A8 30712088013	£17.61	£21.13
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A6 30711132003	£10.52	£12.63
80 - SCREW FEI-43070018009.A37 43070018009	£1.60	£1.92
90 - MOTOR HOUSING FEI-31901114014.A30 31901114014	£46.03	£55.24
100 - ARMATURE 50/60HZ230V FEI-53273002236.A1 53273002236	£163.59	£196.31
110 - AIR GUIDE RING FEI-31428118007.A13 31428118007	£3.52	£4.22
120 - PLATE FEI-32416098005.A91 32416098005	£1.60	£1.92
130 - SEALING RING FEI-32612123008.A11 32612123008	£27.57	£33.08
140 - SCREW FEI-43070007002.A37 43070007002	£1.60	£1.92
150 - PROTECTIVE GRILLE FEI-32901046006.A0 32901046006	£7.17	£8.60
200 - INTERMEDIATE GEAR BOX FEI-31506352003.A2 31506352003	£69.88	£83.86
280 - PLUG FEI-31420110009.A6 31420110009	-
290 - SEAL FEI-30610030004.A0 30610030004	£4.88	£5.85
300 - HOUSING FEI-31309084002.A1 31309084002	£231.78	£278.13
310 - CON ROD FEI-31308088019.A3 31308088019	£308.40	£370.08
311 - NEEDLE SLEEVE FEI-41705031001.A13 41705031001	£38.51	£46.21
315 - PLUNGER FEI-31308094000.A0 31308094000	-
320 - HOLLOW WHEEL FEI-31308089004.A0 31308089004	£530.94	£637.13
330 - NEEDLE CAGE FEI-41715047005.A1 41715047005	£32.70	£39.24
331 - NEEDLE CAGE FEI-41715043006.A7 41715043006	£25.42	£30.51
340 - SHAFT FEI-31309089005.A9 31309089005	£84.76	£101.71
341 - CAP FEI-31309103001.A9 31309103001	£1.60	£1.92
350 - DISC FEI-31309090007.A2 31309090007	£1.60	£1.92
360 - BOLT FEI-31308090006.A3 31308090006	£44.09	£52.91
370 - CUTTING TABLE FEI-31308091014.A0 31308091014	£108.05	£129.66
380 - FIXED BLADE FEI-31308092008.A3 31308092008	£98.67	£118.40
381 - CYLINDER HEAD SCREW FEI-43035130062.A3 43035130062	£1.60	£1.92
382 - DISC FEI-42401018069.A7 42401018069	£1.60	£1.92
383 - SET SCREW FEI-43058005056.A0 43058005056	-
390 - PLUNGER BLADE FEI-31308096007.A3 31308096007	£157.89	£189.47
391 - SCREW FEI-33024067007.A0 33024067007	£36.28	£43.53
392 - PRESSURE PIECE FEI-32423004005.A1 32423004005	£57.27	£68.72
400 - INTERMEDIATE GEAR BOX FEI-31309085006.A9 31309085006	£260.64	£312.77
410 - GEAR-WHEEL FEI-31309086018.A1 31309086018	£283.12	£339.75
420 - PIN FEI-40242053007.A4 40242053007	£1.60	£1.92
430 - CYLINDER HEAD SCREW FEI-43064019053.A10 43064019053	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701210224.A18 41701210224	£15.09	£18.11
480 - SLIDE SWITCH FEI-32805156008.A11 32805156008	£2.76	£3.31
490 - STATOR FEI-51273001231.A13 51273001231	£103.33	£124.00
500 - SCREW FEI-43070017001.A33 43070017001	£1.60	£1.92
510 - CONTROL ROD FEI-32816055000.A21 32816055000	£3.29	£3.95
520 - CONTROL ROD FEI-32816052004.A11 32816052004	£2.73	£3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A134 43041039999	£1.60	£1.92
540 - SWITCH FEI-30701285000.A41 30701285000	£17.50	£21.00
550 - COVER FEI-31201100009.A16 31201100009	£9.43	£11.32
560 - PRESSURE PIECE FEI-31415082004.A11 31415082004	£1.60	£1.92
570 - CABLE GROMMET FEI-31413007007.A7 31413007007	£1.60	£1.92
580 - CABLE WITH PLUG FEI-30707386018.A5 30707386018	£24.62	£29.55
600 - HOLDER FEI-30240193002.A10 30240193002	£35.46	£42.55
610 - CYLINDER HEAD SCREW M8X22 FEI-43035074085.A11 43035074085	£1.60	£1.92
620 - SIDE HANDLE FEI-32119032002.A0 32119032002	£12.89	£15.47
700 - HAND GUARD FEI-30229300001.A2 30229300001	£151.10	£181.32
710 - CYLINDER HEAD SCREW FEI-43033046087.A0 43033046087	£1.60	£1.92
720 - DISC FEI-42401019085.A10 42401019085	£1.60	£1.92
5000 - GRINDING GAUGE FEI-64001010002.A1 64001010002	-
5010 - ALLEN KEY SW6 FEI-62907004005.A51 62907004005	£3.35	£4.02
5020 - ALLEN KEY SW5 FEI-62907011009.A1 62907011009	£3.29	£3.95
5030 - ALLEN KEY SW2.5 FEI-62907015008.A1 62907015008	£3.29	£3.95
5080 - TOOL CASE FEI-33901118010.A12 33901118010	£68.67	£82.40
5200 - HANDLE FEI-32119122000.A152 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A228 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 080KG FEI-32160003182.A11 32160003182	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A616 34130054061	-
