Fein FSN 400 E (50Hz 230V) / 72362800236 Spare Parts

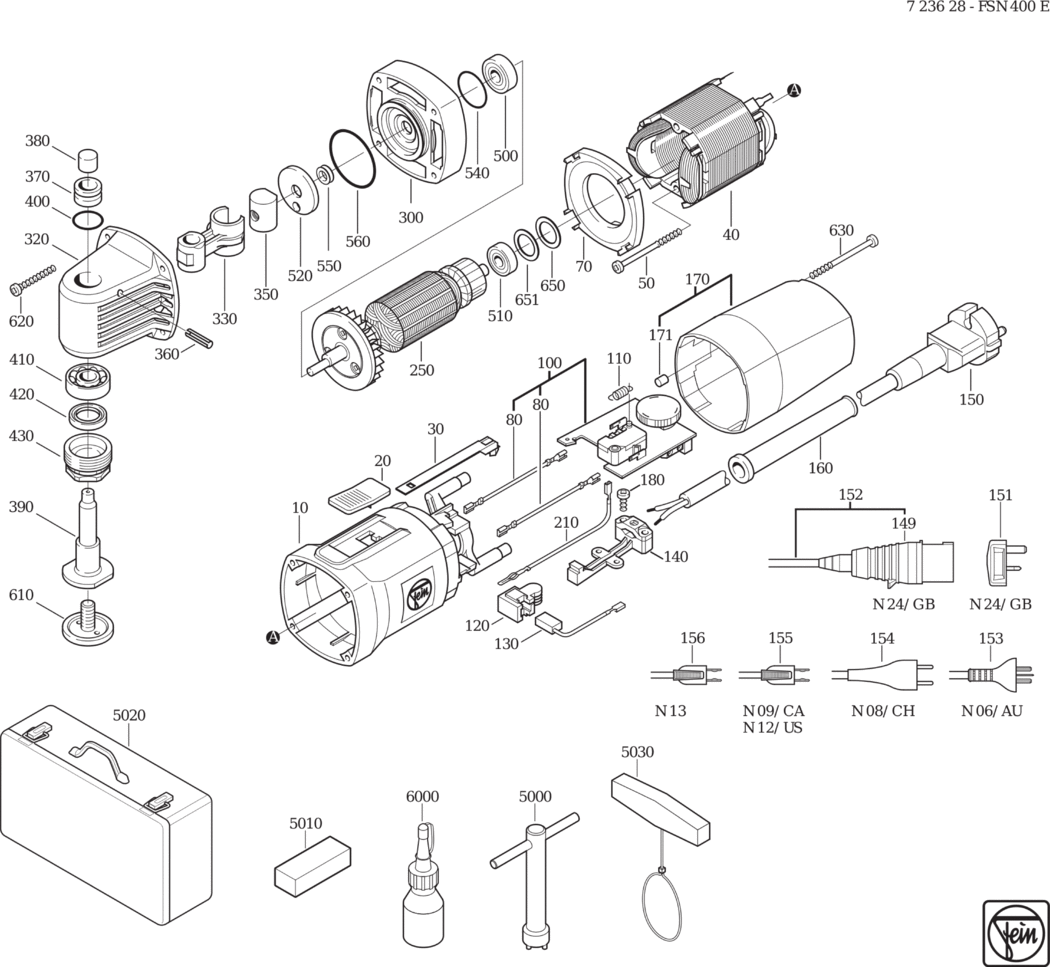

An exploded diagram and spare parts listing for the Fein FSN 400 E (50Hz 230V) / 72362800236

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901103008.A4 31901103008	£62.53	£75.04
20 - SLIDE SWITCH FEI-32805128003.A19 32805128003	£3.42	£4.10
30 - CONTROL ROD FEI-32816049000.A3 32816049000	£5.60	£6.72
40 - STATOR FEI-51268001238.A1 51268001238	£68.57	£82.28
50 - SCREW FEI-43072002002.A4 43072002002	£1.60	£1.92
70 - AIR GUIDE RING FEI-31428075007.A17 31428075007	£4.18	£5.01
80 - CONNECTING CABLE FEI-30719448017.A6 30719448017	£2.82	£3.38
100 - SPEED SETTING SWITCH FEI-30762217025.A1 30762217025	£142.15	£170.58
110 - SPIRAL SPRING FEI-30902040004.A20 30902040004	£3.17	£3.80
120 - BRUSH HOLDER FEI-30712086011.A12 30712086011	£8.42	£10.11
130 - CARBON BRUSH (SOLD SINGLY) FEI-30711140000.A3 30711140000	£13.45	£16.14
140 - CABLE CLAMPING PIECE FEI-32431036008.A7 32431036008	£3.75	£4.50
150 - CABLE WITH PLUG FEI-30707263019.A0 30707263019	£19.80	£23.76
160 - CABLE GROMMET FEI-31413007007.A62 31413007007	£1.60	£1.92
170 - COVER FEI-31201072014.A7 31201072014	£13.28	£15.94
171 - PRESSURE PIECE FEI-31415065002.A1 31415065002	£1.60	£1.92
180 - SCREW FEI-43070001006.A73 43070001006	£1.60	£1.92
210 - CONNECTING CABLE FEI-30719340024.A10 30719340024	£3.04	£3.65
250 - ARMATURE FEI-53268003237.A1 53268003237	£159.38	£191.26
300 - INTERMEDIATE GEAR BOX FEI-31506309003.A2 31506309003	£60.81	£72.97
320 - GEARBOX HOUSING FEI-31508227001.A6 31508227001	£78.52	£94.23
330 - LEVER FEI-33218057007.A2 33218057007	£64.80	£77.76
350 - PISTON FEI-32313045012.A3 32313045012	£58.38	£70.06
360 - CLAMPING SLEEVE FEI-40238017004.A9 40238017004	£1.60	£1.92
370 - BUSH FEI-30507180008.A4 30507180008	£17.32	£20.78
380 - BUSH FEI-41705022005.A3 41705022005	£6.20	£7.44
390 - SHAFT FEI-33406247004.A5 33406247004	£83.52	£100.23
400 - SEALING RING FEI-40612129001.A5 40612129001	£1.60	£1.92
410 - GROOVED BALL BEARING FEI-41701007038.A73 41701007038	£10.17	£12.20
420 - SEALING RING FEI-40608054009.A3 40608054009	£6.78	£8.13
430 - THREAD RING FEI-30509041000.A6 30509041000	£18.72	£22.46
500 - GROOVED BALL BEARING FEI-41701004246.A19 41701004246	£7.72	£9.27
510 - GROOVED BALL BEARING FEI-41701001172.A197 41701001172	£9.63	£11.56
520 - RING FEI-32603035002.A1 32603035002	£24.26	£29.11
540 - SEALING RING FEI-40612089006.A6 40612089006	£1.60	£1.92
550 - SEALING RING FEI-40608059002.A5 40608059002	-
560 - SEALING RING FEI-40612088002.A2 40612088002	£2.82	£3.38
610 - SCREW FEI-33024062004.A5 33024062004	£28.72	£34.47
620 - SCREW FEI-43070007002.A110 43070007002	£1.60	£1.92
630 - SCREW FEI-43070004001.A29 43070004001	£1.60	£1.92
650 - DISC FEI-32624034022.A40 32624034022	£1.60	£1.92
651 - DISC FEI-32624034038.A1 32624034038	£1.60	£1.92
5000 - BI-DIRECTIONAL NUT SPANNER FEI-62910031008.A0 62910031008	£15.25	£18.30
5010 - SHARPENING STONE FEI-63719010014.A14 63719010014	£18.00	£21.60
5020 - TOOL CASE FEI-33901067207.A3 33901067207	£86.77	£104.13
6000 - LUBRICANT BOTTLE FEI-32132023026.A5 32132023026	-
