Fein FSC 500 QSL (50/60Hz 220/230V) / 72295500230 Spare Parts

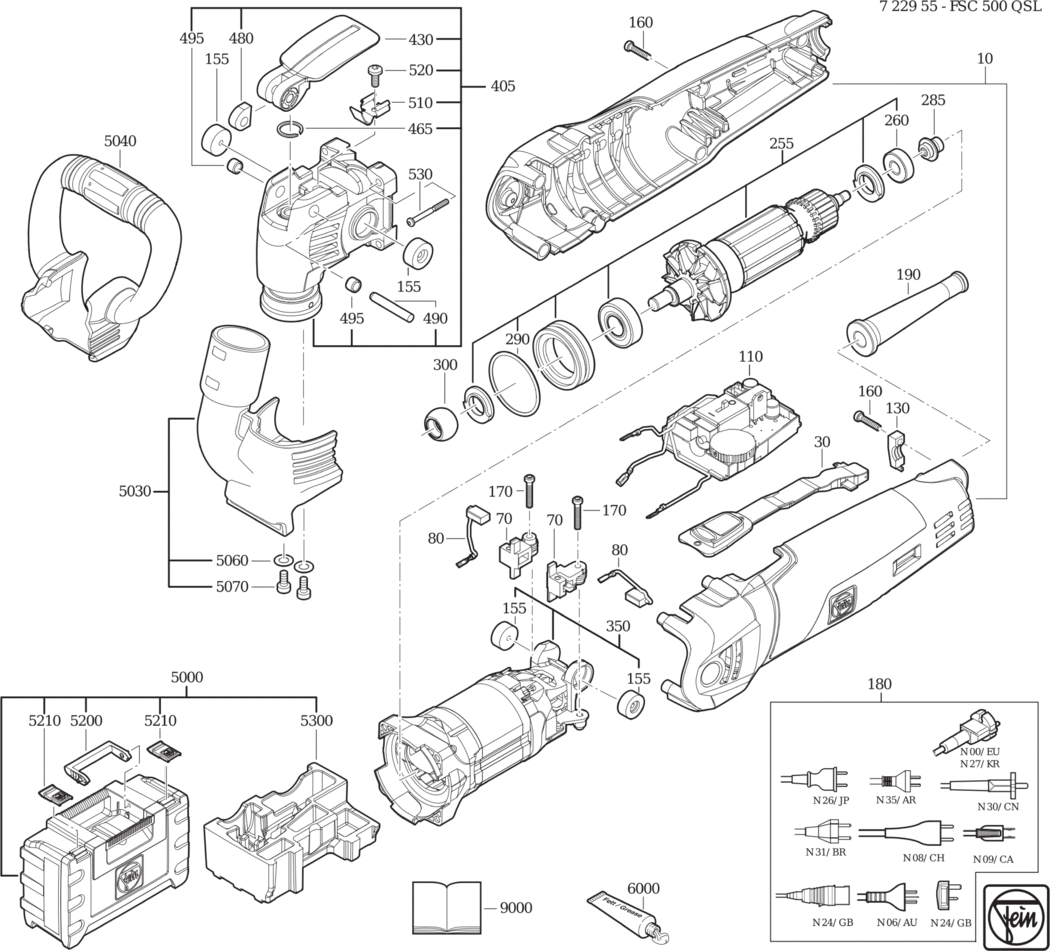

An exploded diagram and spare parts listing for the Fein FSC 500 QSL (50/60Hz 220/230V) / 72295500230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901180010.A3 31901180010	£54.08	£64.90
30 - SLIDE SWITCH FEI-32805315000.A9 32805315000	£3.88	£4.65
70 - BRUSH HOLDER FEI-30712087015.A38 30712087015	£7.02	£8.43
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711157000.A8 30711157000	£6.85	£8.22
110 - SPEED SETTING SWITCH FEI-30762453990.A11 30762453990	£73.42	£88.11
130 - CABLE CLAMPING PIECE FEI-32431045000.A68 32431045000	£1.60	£1.92
155 - PRESSURE PIECE FEI-31415110000.A7 31415110000	£2.69	£3.23
160 - SCREW FEI-43074010000.A64 43074010000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A20 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707343017.A13 30707343017	£20.96	£25.15
190 - CABLE GROMMET FEI-31413233000.A70 31413233000	£2.60	£3.12
255 - ARMATURE 50/60H220/230V FEI-53278008230.A1 53278008230	£164.77	£197.72
260 - GROOVED BALL BEARING FEI-41701001260.A401 41701001260	£7.11	£8.53
285 - MAGNET FEI-32172014020.A4 32172014020	£9.42	£11.31
290 - SEALING RING FEI-40612000004.A10 40612000004	£1.60	£1.92
300 - NEEDLE BEARING FEI-41706000001.A3 41706000001	£43.50	£52.20
350 - STATOR 50HZ230V FEI-52278051230.A1 52278051230	£100.37	£120.44
405 - TOOL HEAD FEI-31508299030.A3 31508299030	£183.67	£220.40
430 - LEVER FEI-34300000013.A4 34300000013	£15.67	£18.80
465 - CIRCLIP FEI-42615110009.A11 42615110009	£1.60	£1.92
480 - ECCENTRIC RING FEI-33218150000.A2 33218150000	£3.54	£4.25
490 - PIN FEI-40242043008.A2 40242043008	£2.52	£3.02
495 - BUSH FEI-30507220000.A13 30507220000	£2.60	£3.12
510 - LOCKING SPRING FEI-30907069000.A12 30907069000	£8.55	£10.26
520 - FILLISTER HEAD SCREW FEI-43064023045.A90 43064023045	£1.60	£1.92
530 - SCREW FEI-43082000000.A4 43082000000	£1.60	£1.92
5000 - PLASTIC TOOL CASES FEI-33901152050.A0 33901152050	£71.44	£85.73
5030 - DEVICE FOR DUST EXTRACT FEI-32133021010.A0 32133021010	£85.55	£102.66
5040 - ADDITIONAL HANDLE FEI-32119148020.A1 32119148020	£58.51	£70.21
5060 - CUP SPRING FEI-30905010006.A0 30905010006	-
5070 - CYLINDER HEAD SCREW FEI-43033061061.A1 43033061061	-
5300 - EPP INSERT FEI-33904572000.A1 33904572000	-
6000 - LUBRICANT TUBE 0 080KG FEI-32160005000.A10 32160005000	-
9000 - N.A. FEI-34101316060.A1 34101316060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A416 34130054061	-

Attribute Name	Value
Brand	Fein
