Fein FSC 2.0 (50/60Hz 220/230V) / 72363200234 Spare Parts

Fein FSC 2.0 ⡐/60Hz 220/230V) / 72363200234 Spare Parts

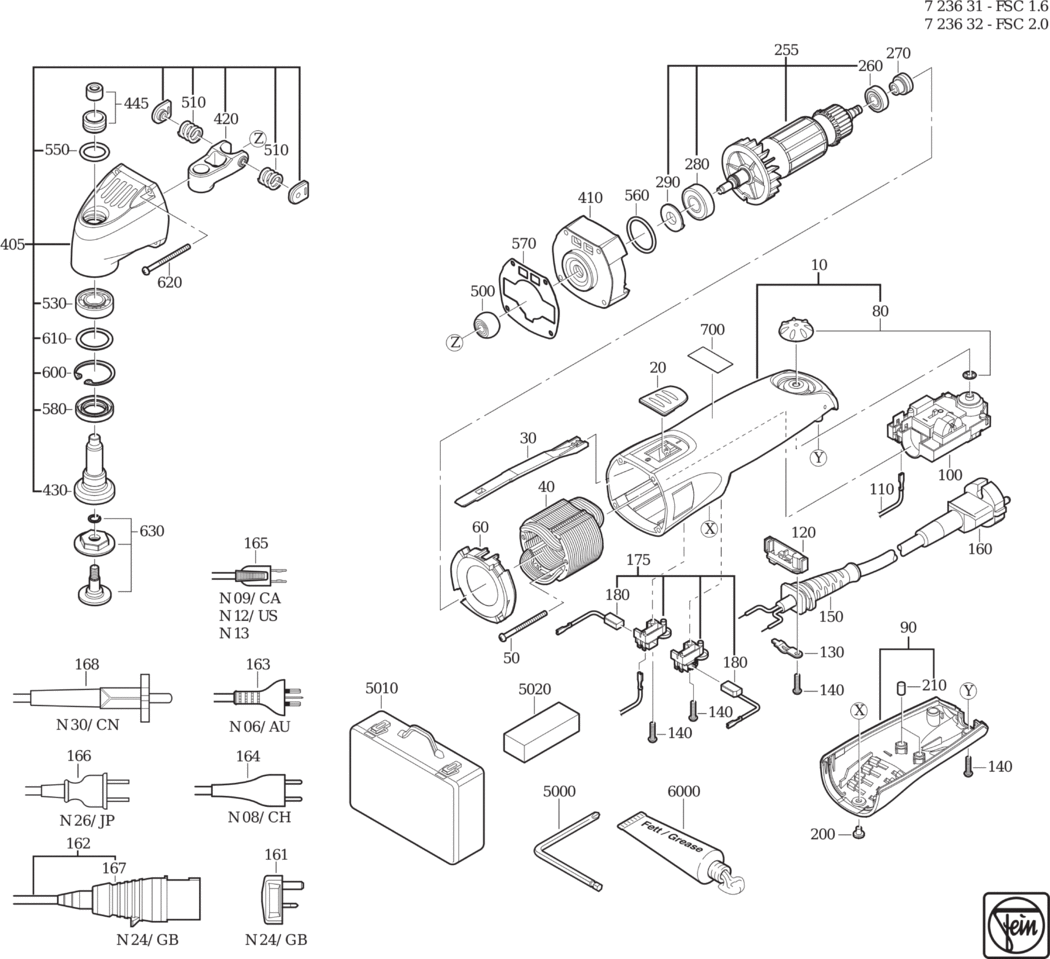

An exploded diagram and spare parts listing for the Fein FSC 2.0 (50/60Hz 220/230V) / 72363200234

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901139015.A10 31901139015	-
20 - SLIDE SWITCH FEI-32805195001.A17 32805195001	£3.36	£4.03
30 - CONTROL ROD FEI-32816060001.A19 32816060001	£10.15	£12.18
40 - STATOR FEI-51274006230.A3 51274006230	£84.94	£101.93
50 - SCREW FEI-43070014000.A102 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428151009.A12 31428151009	£4.35	£5.22
80 - ROTARY KNOB SET FEI-32805194016.A13 32805194016	£7.08	£8.50
90 - COVER FEI-32427120011.A12 32427120011	£13.28	£15.94
100 - SPEED SETTING SWITCH 220-240V/50 60HZ FEI-30762484990.A12 30762484990	£136.99	£164.39
110 - CONNECTING CABLE FEI-30719696010.A5 30719696010	£1.60	£1.92
120 - CABLE CLAMPING PIECE FEI-32431044000.A16 32431044000	-
130 - CABLE CLAMPING PIECE FEI-32431043002.A206 32431043002	£1.60	£1.92
140 - SCREW FEI-43070038007.A37 43070038007	£1.60	£1.92
150 - CABLE GROMMET FEI-31413229000.A33 31413229000	£2.25	£2.70
160 - CABLE WITH PLUG FEI-30707401010.A8 30707401010	£22.79	£27.35
175 - BRUSH HOLDER FEI-30712091024.A28 30712091024	£42.30	£50.76
180 - CARBON BRUSH (SOLD SINGLY) FEI-30711146001.A27 30711146001	£12.88	£15.46
200 - FILLISTER HEAD SCREW FEI-43041040048.A97 43041040048	£1.60	£1.92
210 - PRESSURE PIECE FEI-31415095009.A12 31415095009	£1.60	£1.92
255 - ARMATURE FEI-53274015230.A6 53274015230	£197.48	£236.97
260 - GROOVED BALL BEARING FEI-41701001260.A328 41701001260	£7.11	£8.53
270 - RING MAGNET FEI-31428152002.A17 31428152002	£25.65	£30.78
280 - GROOVED BALL BEARING FEI-41701007038.A127 41701007038	£10.17	£12.20
290 - RING FEI-32603037009.A13 32603037009	£32.26	£38.71
405 - GEARBOX HOUSING FEI-31508253018.A22 31508253018	£223.63	£268.36
410 - INTERMEDIATE GEAR BOX FEI-31506369022.A7 31506369022	-
445 - BUSH FEI-30507234010.A20 30507234010	-
500 - NEEDLE BEARING FEI-41706041005.A6 41706041005	£28.72	£34.46
550 - SEALING RING FEI-40612024009.A9 40612024009	£1.60	£1.92
560 - SEALING RING FEI-40612093004.A41 40612093004	£1.60	£1.92
570 - SEAL FEI-30610035002.A3 30610035002	£2.65	£3.18
620 - SCREW FEI-43074001000.A12 43074001000	£1.60	£1.92
630 - SCREW FEI-33001039017.A27 33001039017	£41.32	£49.59
5000 - ALLEN KEY FEI-62907037003.A21 62907037003	£4.06	£4.87
5010 - TOOL CASE FEI-33901118200.A19 33901118200	£63.76	£76.51
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A250 32160003014	-

Attribute Name	Value
Brand	Fein
