Fein FSC 1.7 Q (50/60Hz 220/230V) / 72294824230 Spare Parts

Fein FSC 1.7 Q ⡐/60Hz 220/230V) / 72294824230 Spare Parts

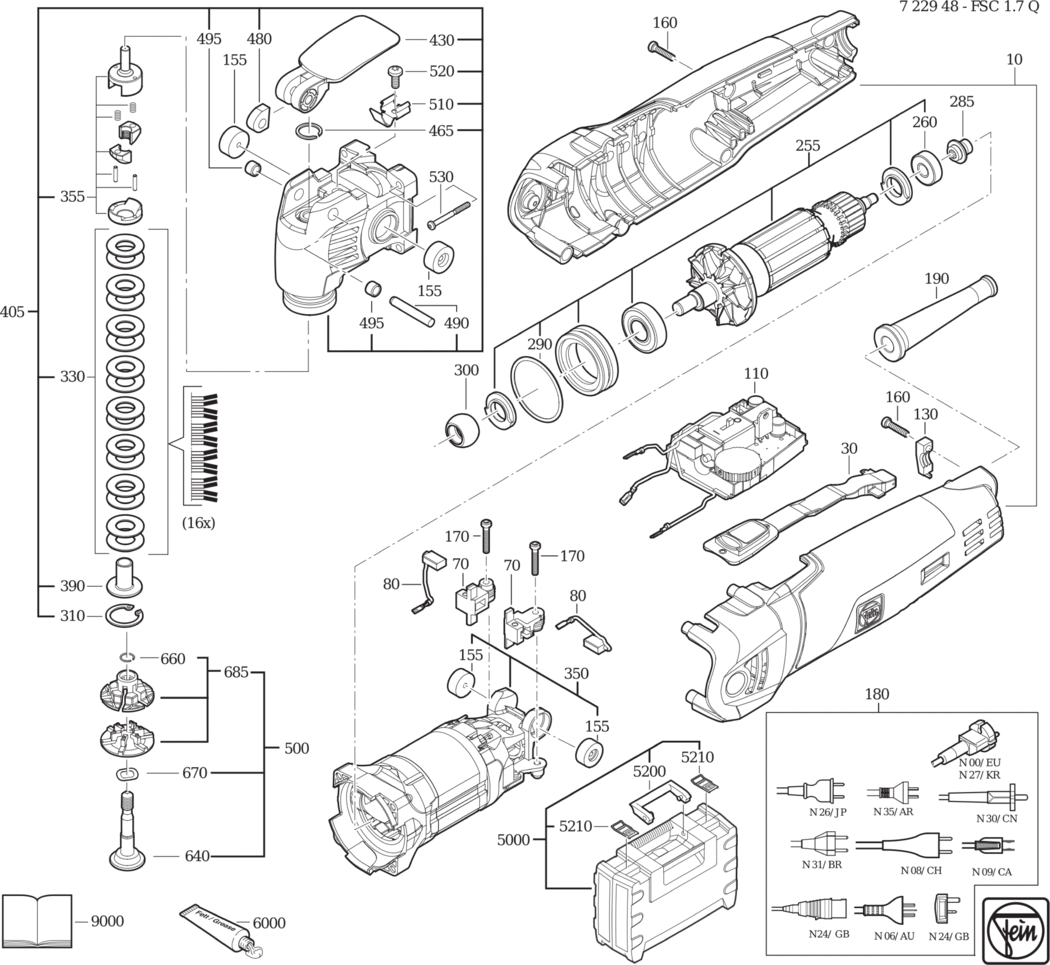

An exploded diagram and spare parts listing for the Fein FSC 1.7 Q (50/60Hz 220/230V) / 72294824230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901190010.A6 31901190010	£54.08	£64.90
30 - SLIDE SWITCH FEI-32805315000.A11 32805315000	£3.88	£4.65
70 - BRUSH HOLDER FEI-30712087015.A83 30712087015	£7.02	£8.43
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711157000.A13 30711157000	£6.85	£8.22
110 - SPEED SETTING SWITCH FEI-30762453990.A1 30762453990	£73.42	£88.11
130 - CABLE CLAMPING PIECE FEI-32431045000.A2 32431045000	£1.60	£1.92
155 - PRESSURE PIECE FEI-31415110000.A20 31415110000	£2.69	£3.23
160 - SCREW FEI-43074010000.A113 43074010000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A44 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707350010.A13 30707350010	£30.95	£37.14
190 - CABLE GROMMET FEI-31413233000.A19 31413233000	£2.60	£3.12
255 - ARMATURE 50H230V FEI-53278009230.A4 53278009230	£171.47	£205.76
260 - GROOVED BALL BEARING FEI-41701001260.A208 41701001260	£7.11	£8.53
285 - MAGNET FEI-32172014020.A13 32172014020	£9.42	£11.31
290 - SEALING RING FEI-40612000004.A2 40612000004	£1.60	£1.92
300 - NEEDLE BEARING FEI-41706000001.A15 41706000001	£43.50	£52.20
310 - CIRCLIP 20X1 FEI-42616077000.A3 42616077000	£1.60	£1.92
330 - CUP SPRING PACKAGE FEI-30905077010.A5 30905077010	£15.98	£19.17
350 - STATOR 50HZ230V FEI-52278051230.A7 52278051230	£100.37	£120.44
355 - PRESSURE PIECE FEI-30220067010.A7 30220067010	£35.42	£42.50
390 - SLEEVE FEI-30503158000.A0 30503158000	£7.24	£8.69
405 - TOOL HEAD QUICK IN FEI-31508299010.A2 31508299010	£187.06	£224.47
430 - LEVER FEI-32805316000.A1 32805316000	£17.23	£20.68
465 - CIRCLIP FEI-42615110009.A35 42615110009	£1.60	£1.92
480 - ECCENTRIC RING FEI-32636042000.A6 32636042000	£3.54	£4.25
490 - PIN FEI-40242043008.A11 40242043008	£2.52	£3.02
495 - BUSH FEI-30507220000.A66 30507220000	£2.60	£3.12
500 - CLAMPING UNIT SET FEI-30240277010.A8 30240277010	£53.94	£64.73
510 - LOCKING SPRING FEI-30907069000.A0 30907069000	£8.55	£10.26
520 - FILLISTER HEAD SCREW FEI-43064023045.A28 43064023045	£1.60	£1.92
530 - SCREW FEI-43082000000.A12 43082000000	£1.60	£1.92
640 - CLAMPING UNIT FEI-30240277000.A4 30240277000	£16.51	£19.81
660 - CIRCLIP FEI-42615092004.A12 42615092004	£1.60	£1.92
670 - SPRING WASHER FEI-42446023000.A30 42446023000	£1.60	£1.92
685 - SEAL FEI-30610036010.A3 30610036010	£40.58	£48.70
5000 - PLASTIC TOOL CASES FEI-33901154030.A1 33901154030	£60.17	£72.20
5200 - HANDLE FEI-32119122000.A34 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A97 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 080KG FEI-32160005000.A3 32160005000	-
9000 - N.A. FEI-34101317060.A3 34101317060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A12 34130054061	-
