Fein MShyo 852-3a (200Hz 72V) / 78243900120 Spare Parts

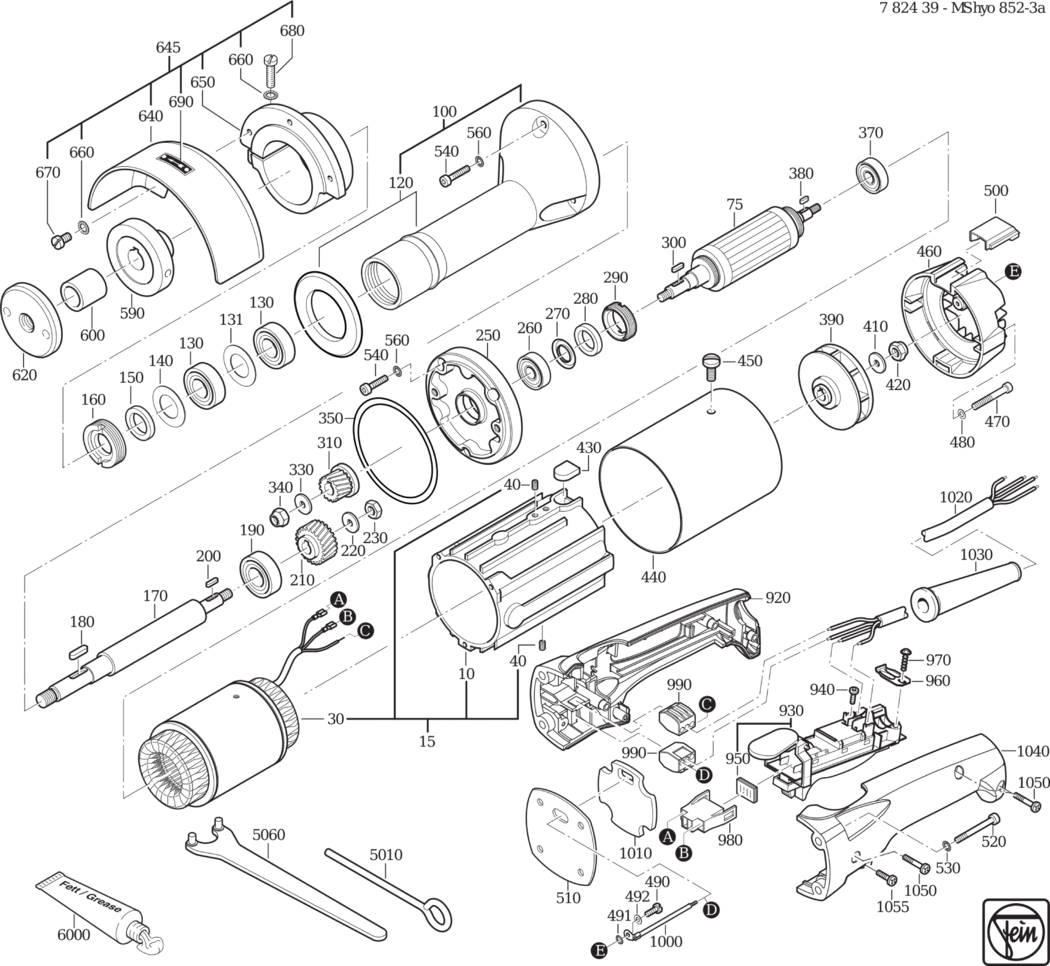

An exploded diagram and spare parts listing for the Fein MShyo 852-3a (200Hz 72V) / 78243900120

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903098002.A22 31903098002	£182.78	£219.33
15 - MOTOR HOUSING WITH STAT FEI-52810006360.A1 52810006360	-
30 - STATOR FEI-51810006360.A1 51810006360	-
40 - SET SCREW M5X10 FEI-43011005051.A7 43011005051	-
75 - ROTOR FEI-33502038012.A5 33502038012	£220.61	£264.73
100 - COLLAR BEARING FEI-31510043018.A5 31510043018	£308.08	£369.70
120 - RING FEI-31419024006.A3 31419024006	£17.85	£21.42
130 - GROOVED BALL BEARING FEI-41717002002.A6 41717002002	£85.76	£102.91
131 - DISC FEI-32624058013.A7 32624058013	£2.55	£3.06
140 - DISC FEI-32411053004.A2 32411053004	£7.11	£8.53
150 - FELT RING FEI-30601056003.A11 30601056003	£1.60	£1.92
160 - SEALING RING FEI-32613034007.A8 32613034007	£35.06	£42.07
170 - SHAFT FEI-33406105005.A2 33406105005	£83.84	£100.61
180 - FEATHER KEY FEI-40223027008.A12 40223027008	£1.60	£1.92
190 - GROOVED BALL BEARING FEI-41701010054.A133 41701010054	£8.25	£9.90
200 - FEATHER KEY FEI-40221015007.A2 40221015007	£2.34	£2.81
210 - GEAR-WHEEL FEI-33665003008.A5 33665003008	£161.82	£194.19
220 - DISC FEI-42401019085.A48 42401019085	£1.60	£1.92
230 - HEX NUT FEI-42001024007.A7 42001024007	£1.60	£1.92
250 - INTERMEDIATE GEAR BOX FEI-31506164002.A4 31506164002	£117.74	£141.29
260 - GROOVED BALL BEARING FEI-41701010010.A66 41701010010	£8.58	£10.30
270 - DISC FEI-32411065005.A3 32411065005	£4.22	£5.06
280 - FELT RING FEI-30601076001.A3 30601076001	£2.25	£2.70
290 - SEALING RING FEI-32613037008.A3 32613037008	£26.05	£31.26
300 - FEATHER KEY FEI-40221008003.A7 40221008003	£4.63	£5.56
310 - GEAR-WHEEL FEI-33665022011.A1 33665022011	£150.45	£180.54
330 - DISC FEI-42401018069.A29 42401018069	£1.60	£1.92
340 - HEX NUT FEI-42002007004.A16 42002007004	£2.66	£3.19
350 - ECCENTRIC RING FEI-32622009005.A6 32622009005	£58.82	£70.59
370 - GROOVED BALL BEARING FEI-41701007038.A14 41701007038	£10.17	£12.20
380 - FEATHER KEY FEI-40221003006.A42 40221003006	£1.60	£1.92
390 - FAN WHEEL FEI-31001085002.A7 31001085002	£147.12	£176.54
410 - DISC FEI-42402003067.A20 42402003067	£1.60	£1.92
420 - NUT FEI-42019008060.A14 42019008060	£1.60	£1.92
430 - SEAL FEI-30605014003.A2 30605014003	£5.40	£6.48
440 - SLEEVE FEI-30502059004.A6 30502059004	£84.98	£101.98
450 - FLAT HEADED SCREW M5X8 FEI-43003048058.A15 43003048058	£1.60	£1.92
460 - HOUSING FEI-31207047000.A16 31207047000	£50.70	£60.84
470 - CYLINDER HEAD SCREW FEI-43033016055.A7 43033016055	£1.60	£1.92
480 - CIRCLIP M5 FEI-42443004057.A172 42443004057	£1.60	£1.92
490 - FLAT HEADED SCREW FEI-43003032042.A19 43003032042	-
491 - LOCK WASHER FEI-42439013046.A98 42439013046	£1.60	£1.92
492 - DISC FEI-42404005048.A51 42404005048	£1.60	£1.92
500 - COVER FEI-32427036003.A23 32427036003	£4.38	£5.26
510 - INSULATION BOARD FEI-31408056000.A80 31408056000	£7.32	£8.79
520 - CYLINDER HEAD SCREW FEI-43033016055.A6 43033016055	£1.60	£1.92
530 - CIRCLIP M5 FEI-42443004057.A169 42443004057	£1.60	£1.92
540 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A59 43033012056	£1.60	£1.92
560 - CIRCLIP M5 FEI-42443004057.A170 42443004057	£1.60	£1.92
590 - INNER FLANGE FEI-63801096001.A4 63801096001	£55.86	£67.03
600 - SPACER SLEEVE FEI-30501242001.A2 30501242001	£11.92	£14.30
620 - THREADED FLANGE FEI-63802105000.A7 63802105000	£36.76	£44.11
640 - SAFETY HOOD FEI-31810107008.A1 31810107008	£61.85	£74.22
645 - SAFETY HOOD FEI-31810107023.A3 31810107023	£139.57	£167.48
650 - FLANGE FEI-31809038001.A7 31809038001	£85.88	£103.05
660 - CIRCLIP M5 FEI-42443004057.A171 42443004057	£1.60	£1.92
670 - CYLINDER HEAD SCREW FEI-43002053059.A8 43002053059	£1.60	£1.92
680 - CYLINDER HEAD SCREW FEI-43002057058.A3 43002057058	-
690 - INFORMATION SIGN FEI-32215026007.A12 32215026007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A41 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A43 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A102 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A48 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A77 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A72 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A59 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A63 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A58 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A90 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706341010.A4 30706341010	-
1030 - CABLE GROMMET FEI-31413094007.A79 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A60 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A77 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A79 43070038007	£1.60	£1.92
5010 - PIN FEI-62913005004.A7 62913005004	£10.36	£12.43
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A88 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A435 32160003014	-
9000 - OPERATING INSTRUCTIONS FEI-34101073060.A3 34101073060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A342 34130054061	-
