Fein MShyo 848-1z (300Hz 200V) / 78232100260 Spare Parts

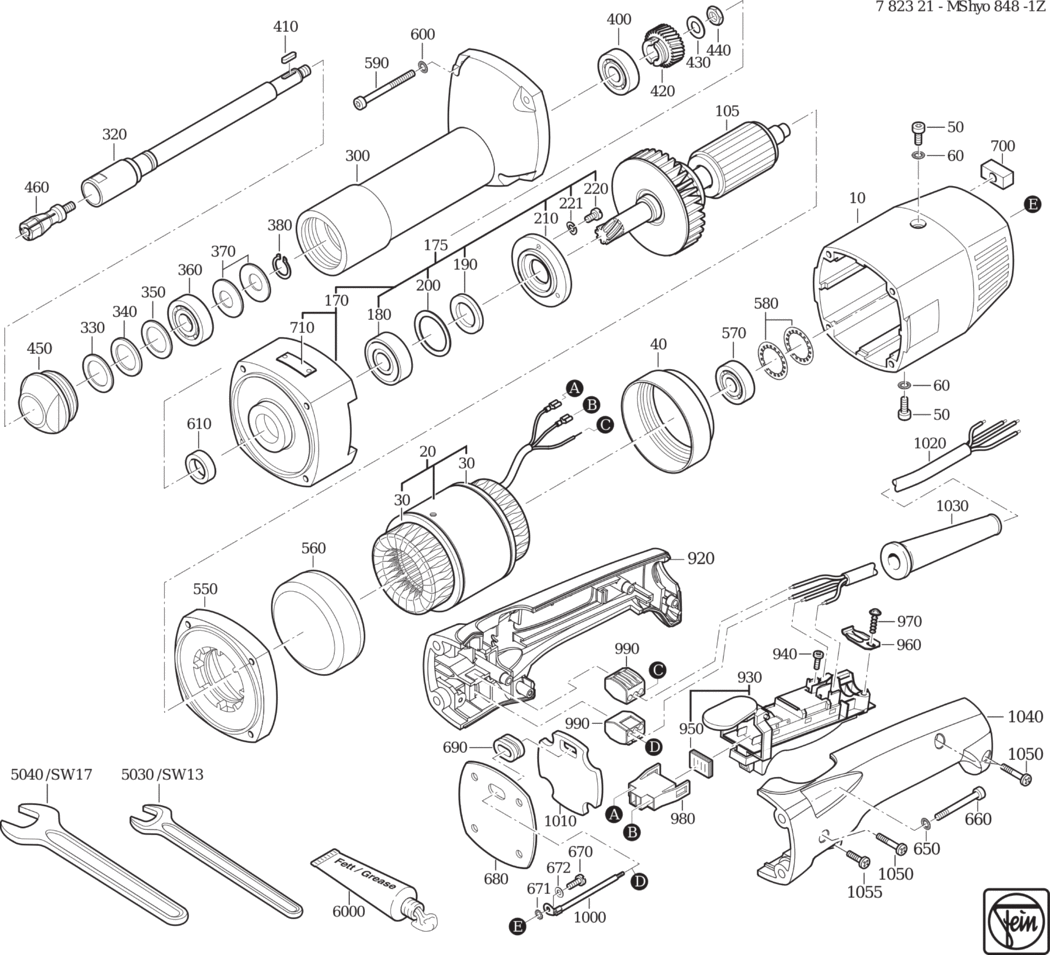

An exploded diagram and spare parts listing for the Fein MShyo 848-1z (300Hz 200V) / 78232100260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903135002.A1 31903135002	£198.64	£238.37
20 - STATOR FEI-51805008160.A0 51805008160	-
30 - RING FEI-31419033007.A5 31419033007	£3.82	£4.59
40 - SLEEVE FEI-30517007001.A6 30517007001	£37.59	£45.11
50 - CYLINDER HEAD SCREW FEI-43033007050.A6 43033007050	-
60 - CIRCLIP M5 FEI-42443004057.A410 42443004057	£1.60	£1.92
105 - ROTOR FEI-33508045018.A1 33508045018	£304.99	£365.99
170 - INTERMEDIATE GEAR BOX FEI-31506224002.A6 31506224002	£173.57	£208.28
175 - INTERMEDIATE GEAR BOX FEI-31506224011.A1 31506224011	-
180 - GROOVED BALL BEARING FEI-41701213027.A20 41701213027	£9.82	£11.79
190 - FELT RING FEI-30601050002.A41 30601050002	£1.60	£1.92
200 - DISC FEI-32411059005.A12 32411059005	£1.60	£1.92
210 - PLATE FEI-32416074008.A5 32416074008	£34.94	£41.93
220 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A21 43002033045	£1.60	£1.92
221 - SPRING WASHER FEI-42445001044.A3 42445001044	£1.60	£1.92
300 - COLLAR BEARING FEI-31510040003.A2 31510040003	£185.74	£222.89
320 - SHAFT FEI-33403049008.A0 33403049008	£206.32	£247.58
330 - DISC FEI-32408174006.A2 32408174006	£2.70	£3.24
340 - FELT RING FEI-30601063007.A0 30601063007	£1.60	£1.92
350 - DISC FEI-32411059005.A11 32411059005	£1.60	£1.92
360 - GROOVED BALL BEARING FEI-41701213096.A45 41701213096	£20.90	£25.08
370 - CUP SPRING FEI-30905020005.A4 30905020005	£1.60	£1.92
380 - CIRCLIP FEI-42616006007.A77 42616006007	£1.60	£1.92
400 - GROOVED BALL BEARING FEI-41701007050.A43 41701007050	£15.15	£18.18
410 - FEATHER KEY FEI-40221005008.A2 40221005008	£1.60	£1.92
420 - GEAR-WHEEL FEI-33663085004.A1 33663085004	£211.72	£254.07
430 - DISC FEI-42401018069.A34 42401018069	£1.60	£1.92
440 - HEX NUT FEI-42002007004.A9 42002007004	£2.66	£3.19
450 - SLEEVE FEI-30514085009.A0 30514085009	£27.40	£32.88
460 - COLLETS FEI-63207069005.A9 63207069005	£40.45	£48.54
550 - RING FEI-32602062002.A5 32602062002	£70.29	£84.35
560 - SLEEVE FEI-30517008009.A5 30517008009	£37.59	£45.11
570 - GROOVED BALL BEARING FEI-41701006028.A1 41701006028	£14.07	£16.88
580 - CUP SPRING FEI-30905034008.A27 30905034008	£1.60	£1.92
590 - CYLINDER HEAD SCREW FEI-43035026052.A8 43035026052	£1.60	£1.92
600 - SEALING RING FEI-40611001002.A30 40611001002	£1.60	£1.92
610 - SEALING RING FEI-32612083003.A1 32612083003	£27.51	£33.01
650 - CIRCLIP M5 FEI-42443004057.A409 42443004057	£1.60	£1.92
660 - CYLINDER HEAD SCREW FEI-43035020051.A28 43035020051	£1.60	£1.92
670 - FLAT HEADED SCREW FEI-43003029048.A49 43003029048	-
671 - LOCK WASHER FEI-42439013046.A65 42439013046	£1.60	£1.92
672 - DISC FEI-42404005048.A136 42404005048	£1.60	£1.92
680 - INSULATION BOARD FEI-31408056000.A2 31408056000	£7.32	£8.79
690 - INSULATING RING FEI-31406033009.A25 31406033009	£2.86	£3.43
700 - PLUG FEI-31415032009.A25 31415032009	£6.34	£7.61
710 - INFORMATION SIGN FEI-32215026007.A31 32215026007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A60 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A33 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A47 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A30 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A2 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A38 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A37 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A103 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A13 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A11 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A23 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A148 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A36 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A110 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A59 43070038007	£1.60	£1.92
5030 - JAW SPANNER SW13 FEI-62901007007.A79 62901007007	£11.61	£13.93
5040 - JAW SPANNER SW17 FEI-62903002009.A25 62903002009	£11.61	£13.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A436 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A359 34130054061	-
