Fein ASb 636 (50Hz 42V) / 72152900044 Spare Parts

Fein ASb 636 ⡐Hz 42V) / 72152900044 Spare Parts

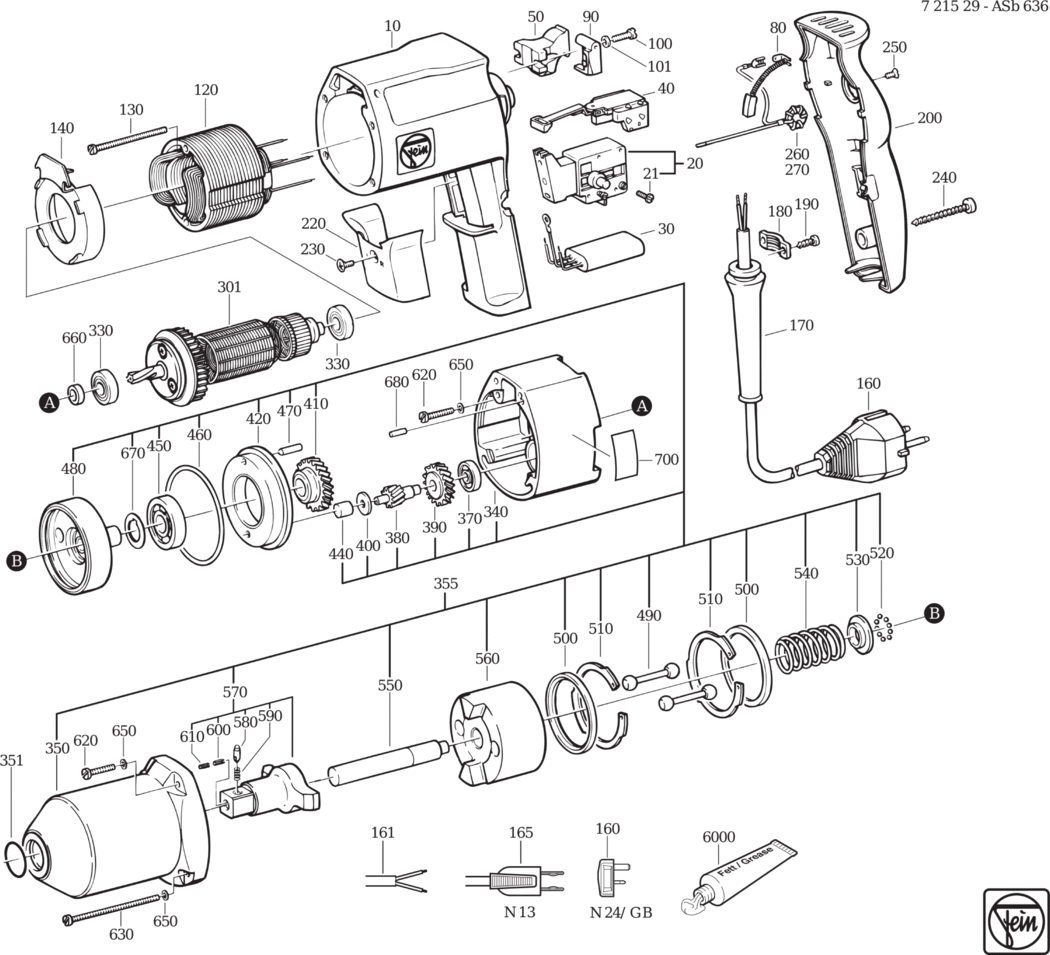

An exploded diagram and spare parts listing for the Fein ASb 636 (50Hz 42V) / 72152900044

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117015.A8 31901117015	£110.27	£132.32
20 - SWITCH FEI-30701240007.A2 30701240007	£27.23	£32.68
21 - CYLINDER HEAD SCREW FEI-43013052033.A2 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A16 30722161013	£17.85	£21.42
40 - TOGGLE SWITCH FEI-30701238001.A28 30701238001	£16.72	£20.06
50 - BRUSH HOLDER FEI-30712043001.A0 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A9 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A29 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A21 43002014998	-
101 - CIRCLIP FEI-42443002992.A52 42443002992	£1.60	£1.92
120 - STATOR 50HZ42V FEI-51203003046.A0 51203003046	-
130 - CYLINDER HEAD SCREW FEI-43002025991.A12 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A24 31428004000	£3.67	£4.40
161 - CABLE FEI-30706126011.A2 30706126011	-
170 - CABLE GROMMET FEI-31413164009.A0 31413164009	£2.59	£3.11
180 - CABLE CLAMPING PIECE FEI-32431021007.A104 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A14 43046002005	-
200 - COVER FEI-31201066005.A34 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805120000.A5 32805120000	£3.67	£4.40
230 - COUNTERSUNK SCREW FEI-43066006032.A34 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A21 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A39 43066002992	£1.60	£1.92
260 - CONNECTING CABLE FEI-30719117014.A0 30719117014	£3.78	£4.54
270 - CONNECTING CABLE FEI-30719118012.A15 30719118012	£3.78	£4.54
301 - ARMATURE 50HZ42V FEI-53203009049.A0 53203009049	£285.98	£343.17
330 - GROOVED BALL BEARING FEI-41701001172.A19 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506156000.A1 31506156000	£91.10	£109.32
350 - GEARBOX HOUSING FEI-31508109009.A1 31508109009	£149.53	£179.44
351 - SEALING RING FEI-40612052004.A2 40612052004	-
355 - GEARBOX HOUSING FEI-31508109024.A3 31508109024	-
370 - GROOVED BALL BEARING FEI-41701202018.A106 41701202018	£6.92	£8.30
380 - GEAR-WHEEL FEI-33757012005.A2 33757012005	-
390 - GEAR-WHEEL FEI-33657023009.A2 33657023009	£34.13	£40.96
400 - DISC FEI-32408159001.A2 32408159001	£3.15	£3.78
410 - GEAR-WHEEL FEI-33657024007.A2 33657024007	£46.99	£56.39
420 - INTERMEDIATE GEAR BOX FEI-31506157004.A3 31506157004	£84.98	£101.98
440 - BUSH FEI-41705005003.A19 41705005003	£5.62	£6.74
450 - GROOVED BALL BEARING FEI-41701010010.A59 41701010010	£8.58	£10.30
460 - SEALING RING FEI-40612004001.A3 40612004001	-
470 - STRAIGHT PIN FEI-40201037000.A1 40201037000	-
480 - DRIVE BLOCK FEI-30110009009.A4 30110009009	£149.74	£179.69
490 - BALL PIN FEI-30111007006.A2 30111007006	£18.31	£21.97
500 - RING FEI-32602036004.A3 32602036004	£37.51	£45.01
510 - CIRCLIP FEI-42644011003.A3 42644011003	-
520 - BALL FEI-41708014001.A24 41708014001	£1.60	£1.92
530 - RING FEI-31710025001.A3 31710025001	£9.04	£10.85
540 - SPIRAL SPRING FEI-30901188008.A0 30901188008	£4.97	£5.96
550 - SHAFT FEI-33406065000.A1 33406065000	£32.24	£38.69
560 - STRIKING BODY FEI-30112011003.A2 30112011003	£207.17	£248.60
570 - TOOL HOLDER FEI-30104043015.A1 30104043015	-
580 - BOLT FEI-30219031003.A5 30219031003	£4.02	£4.82
590 - SPIRAL SPRING FEI-30901074001.A4 30901074001	£1.60	£1.92
600 - CLAMPING SLEEVE FEI-40238004004.A4 40238004004	-
610 - CLAMPING SLEEVE FEI-40238002002.A3 40238002002	-
620 - CYLINDER HEAD SCREW FEI-43002017999.A9 43002017999	£1.60	£1.92
630 - CYLINDER HEAD SCREW FEI-43002029990.A13 43002029990	-
650 - CIRCLIP FEI-42443002992.A51 42443002992	£1.60	£1.92
660 - SEALING RING FEI-32612047006.A2 32612047006	£1.60	£1.92
670 - DISC FEI-32624029032.A19 32624029032	£2.25	£2.70
670 - DISC FEI-32624029026.A16 32624029026	£1.60	£1.92
680 - PIN FEI-40247003007.A2 40247003007	£1.60	£1.92
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003061.A2 32160003061	-
