Fein DSk 658-1 (50Hz 42V) / 72022600041 Spare Parts

Fein DSk 658-1 ⡐Hz 42V) / 72022600041 Spare Parts

Home Details Reviews Delivery

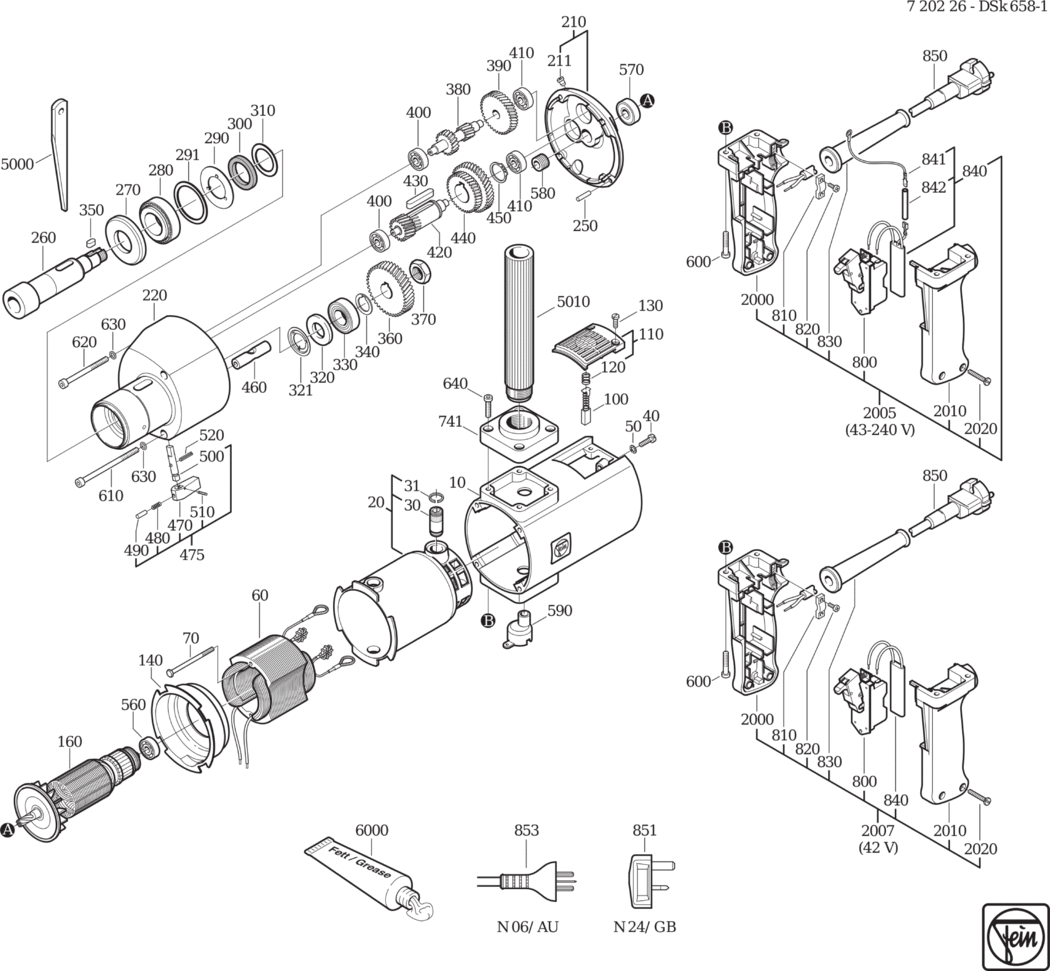

An exploded diagram and spare parts listing for the Fein DSk 658-1 (50Hz 42V) / 72022600041

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903101015.A3 31903101015	£245.13	£294.16
20 - HOUSING FEI-31913017026.A0 31913017026	-
30 - BRUSH HOLDER FEI-30712051003.A0 30712051003	-
31 - CIRCLIP FEI-42615135005.A6 42615135005	£1.60	£1.92
40 - CYLINDER HEAD SCREW FEI-43002105055.A3 43002105055	-
50 - CIRCLIP M5 FEI-42443004057.A214 42443004057	£1.60	£1.92
60 - STATOR FEI-51225008043.A0 51225008043	-
70 - HEXAGON SOCKET SCREW FEI-43001004042.A10 43001004042	£2.69	£3.23
100 - CARBON BRUSH (SOLD SINGLY) FEI-30711041000.A0 30711041000	£13.47	£16.16
110 - COVER FEI-32427037016.A3 32427037016	£19.12	£22.95
120 - SPIRAL SPRING FEI-30901199001.A8 30901199001	£1.60	£1.92
130 - CYLINDER HEAD SCREW FEI-43002034043.A6 43002034043	£1.60	£1.92
140 - AIR GUIDE RING FEI-31428052003.A8 31428052003	£6.23	£7.48
160 - ARMATURE FEI-53225006043.A0 53225006043	-
210 - INTERMEDIATE GEAR BOX FEI-31506169005.A3 31506169005	£127.08	£152.50
211 - NIPPLE FEI-32131028004.A3 32131028004	-
220 - GEARBOX HOUSING FEI-31508116002.A0 31508116002	£296.19	£355.43
250 - STRAIGHT PIN FEI-40201038008.A0 40201038008	-
260 - SHAFT FEI-33402038004.A3 33402038004	£192.48	£230.97
270 - SEALING RING FEI-32612050000.A3 32612050000	£29.77	£35.72
280 - TAPERED ROLLER BEARING FEI-41713003002.A3 41713003002	-
290 - DISC FEI-32408164007.A3 32408164007	£7.02	£8.42
291 - DISC FEI-32408175000.A6 32408175000	£3.29	£3.95
300 - FELT RING FEI-30601061000.A3 30601061000	-
310 - DISC FEI-32408173008.A3 32408173008	£1.60	£1.92
320 - FELT RING FEI-30601060001.A3 30601060001	£1.60	£1.92
321 - DISC FEI-32411067002.A6 32411067002	£1.60	£1.92
330 - GROOVED BALL BEARING FEI-41701015024.A0 41701015024	-
340 - DISC FEI-32408168006.A3 32408168006	£1.60	£1.92
350 - FEATHER KEY FEI-40221027003.A0 40221027003	£1.60	£1.92
360 - GEAR-WHEEL FEI-33665012003.A3 33665012003	£69.45	£83.34
370 - HEX NUT FEI-42003006001.A3 42003006001	£1.60	£1.92
380 - GEAR-WHEEL FEI-33811009002.A3 33811009002	-
390 - GEAR-WHEEL FEI-33657032004.A0 33657032004	£45.44	£54.53
400 - GROOVED BALL BEARING FEI-41701204010.A26 41701204010	£6.37	£7.64
410 - GROOVED BALL BEARING FEI-41701204010.A27 41701204010	£6.37	£7.64
420 - GEAR-WHEEL FEI-33765005009.A6 33765005009	-
430 - FEATHER KEY FEI-40221045004.A3 40221045004	-
440 - GEAR-WHEEL FEI-33811032004.A3 33811032004	-
450 - CIRCLIP FEI-42616009003.A68 42616009003	£1.60	£1.92
460 - BOLT FEI-30217186001.A6 30217186001	£24.43	£29.32
470 - LEVER FEI-32805052000.A3 32805052000	£32.78	£39.33
475 - LEVER FEI-32805052019.A3 32805052019	-
480 - SPIRAL SPRING FEI-30901202001.A7 30901202001	£1.60	£1.92
490 - BOLT FEI-30216086001.A6 30216086001	£7.56	£9.07
500 - BOLT FEI-30217191008.A0 30217191008	£33.74	£40.49
510 - CLAMPING SLEEVE FEI-40238007005.A27 40238007005	£1.60	£1.92
520 - CLAMPING SLEEVE FEI-40238011008.A3 40238011008	-
560 - GROOVED BALL BEARING FEI-41701204010.A25 41701204010	£6.37	£7.64
570 - GROOVED BALL BEARING FEI-41701207033.A29 41701207033	£10.15	£12.18
580 - SEALING RING FEI-32612057005.A1 32612057005	£10.81	£12.97
590 - SLEEVE FEI-31406028007.A8 31406028007	£5.05	£6.06
600 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A49 43033014058	£1.60	£1.92
610 - CYLINDER HEAD SCREW M5X80 FEI-43035027056.A4 43035027056	£2.82	£3.38
620 - CYLINDER HEAD SCREW FEI-43035024055.A9 43035024055	£1.60	£1.92
630 - SEALING RING FEI-40611001002.A41 40611001002	£1.60	£1.92
640 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A14 43033012056	£1.60	£1.92
741 - FLANGE FEI-32420020005.A11 32420020005	£40.01	£48.01
800 - SWITCH FEI-30701073005.A18 30701073005	£36.31	£43.57
810 - CABLE CLAMPING PIECE FEI-32431021007.A194 32431021007	£1.60	£1.92
820 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A11 43041001994	£1.60	£1.92
830 - CABLE GROMMET FEI-31413090003.A31 31413090003	£3.40	£4.08
840 - CAPACITOR FEI-30722032001.A1 30722032001	-
850 - CABLE FEI-30706068010.A0 30706068010	£53.32	£63.98
2000 - HANDLE HALF SHELL FEI-31204161004.A0 31204161004	£38.65	£46.38
2007 - HANDLE FEI-31204064066.A0 31204064066	-
2010 - HANDLE HALF SHELL FEI-31204163001.A28 31204163001	£40.17	£48.20
2020 - FILLISTER HEAD SCREW FEI-43041027045.A29 43041027045	£1.60	£1.92
5000 - DRIFT KEYS FEI-63305003003.A0 63305003003	£10.56	£12.67
5010 - HANDLE FEI-32119153010.A15 32119153010	£67.33	£80.80
6000 - LUBRICANT CAN 0.850 kg FEI-32132007033.A11 32132007033	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A687 34130054061	-
