Fein DS 648 (50Hz 110V) / 72020300114 Spare Parts

Fein DS 648 ⡐Hz 110V) / 72020300114 Spare Parts

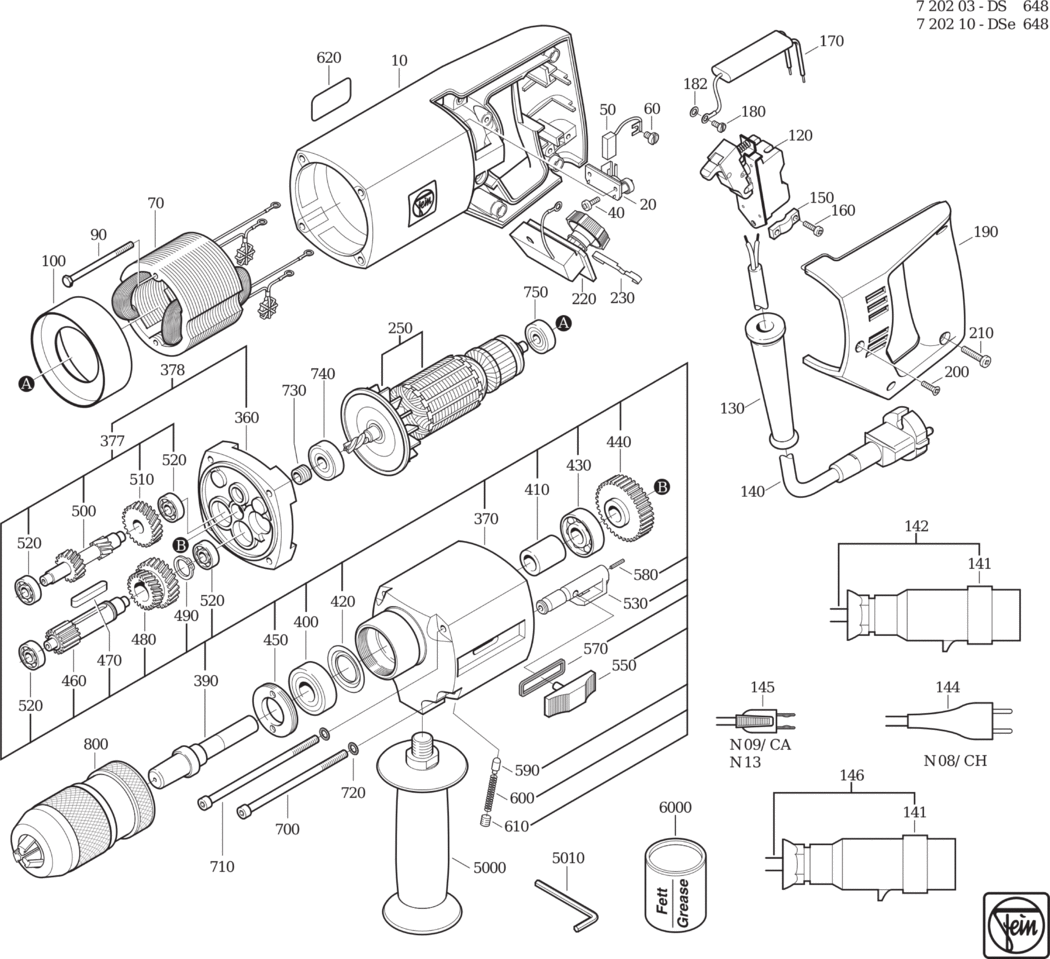

An exploded diagram and spare parts listing for the Fein DS 648 (50Hz 110V) / 72020300114

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31902022007.A4 31902022007	£124.58	£149.50
20 - BRUSH HOLDER FEI-30712067017.A24 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A6 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A9 30711067004	£7.87	£9.44
60 - FLAT HEADED SCREW FEI-43003029048.A20 43003029048	-
70 - STATOR 50HZ110V FEI-51213001119.A0 51213001119	£124.82	£149.78
90 - HEXAGON SOCKET SCREW FEI-43001004042.A36 43001004042	£2.69	£3.23
100 - AIR GUIDE RING FEI-31428010005.A9 31428010005	£7.53	£9.04
120 - SWITCH FEI-30701073005.A14 30701073005	£36.31	£43.57
130 - CABLE GROMMET FEI-31413090003.A29 31413090003	£3.40	£4.08
140 - CABLE FEI-30706154011.A1 30706154011	-
150 - CABLE CLAMPING PIECE FEI-32431021007.A190 32431021007	£1.60	£1.92
160 - FILLISTER HEAD SCREW FEI-43041011993.A2 43041011993	-
170 - CAPACITOR FEI-30722057002.A2 30722057002	£14.66	£17.59
180 - FLAT HEADED SCREW FEI-43003013991.A11 43003013991	£1.60	£1.92
190 - HANDLE HALF SHELL FEI-32428050007.A6 32428050007	£12.08	£14.50
200 - COUNTERSUNK SCREW FEI-43066003996.A16 43066003996	-
210 - FILLISTER HEAD SCREW FEI-43041013047.A18 43041013047	£1.60	£1.92
250 - ARMATURE 50HZ110V FEI-53213004116.A0 53213004116	-
360 - INTERMEDIATE GEAR BOX FEI-31506173003.A1 31506173003	£48.78	£58.54
370 - GEARBOX HOUSING FEI-31508125008.A1 31508125008	£152.17	£182.60
377 - GEARBOX HOUSING FEI-31508125017.A7 31508125017	-
378 - GEARBOX HOUSING FEI-31508125023.A1 31508125023	-
390 - SHAFT FEI-33401064008.A1 33401064008	£49.81	£59.77
400 - GROOVED BALL BEARING FEI-41701218024.A22 41701218024	£8.92	£10.70
410 - SLEEVE FEI-30501223007.A13 30501223007	£5.02	£6.03
420 - SEALING RING FEI-42639005000.A12 42639005000	-
430 - GROOVED BALL BEARING FEI-41701213011.A60 41701213011	£8.92	£10.70
440 - GEAR-WHEEL FEI-33613067001.A1 33613067001	£46.55	£55.86
450 - THREAD RING FEI-32618032006.A7 32618032006	£15.81	£18.97
460 - GEAR-WHEEL FEI-33713046008.A1 33713046008	-
470 - FEATHER KEY FEI-40221033003.A7 40221033003	-
480 - GEAR-WHEEL FEI-33811033008.A7 33811033008	-
490 - CIRCLIP FEI-42616036004.A1 42616036004	-
500 - GEAR-WHEEL FEI-33811010004.A1 33811010004	-
510 - GEAR-WHEEL FEI-33657033008.A7 33657033008	£37.43	£44.92
520 - GROOVED BALL BEARING FEI-41701001010.A17 41701001010	£7.35	£8.82
530 - BOLT FEI-30217194012.A1 30217194012	£79.26	£95.11
550 - SLIDE SWITCH FEI-30109058007.A7 30109058007	£15.46	£18.55
570 - FELT RING FEI-30604039003.A8 30604039003	£1.60	£1.92
580 - CLAMPING SLEEVE FEI-40238007005.A6 40238007005	£1.60	£1.92
590 - BOLT FEI-30216079008.A0 30216079008	£4.65	£5.58
600 - SPIRAL SPRING FEI-30901001003.A8 30901001003	£1.60	£1.92
610 - SET SCREW M6X6 FEI-43010015064.A7 43010015064	£1.60	£1.92
700 - CYLINDER HEAD SCREW FEI-43035091053.A1 43035091053	-
710 - CYLINDER HEAD SCREW FEI-43035092056.A7 43035092056	-
720 - CIRCLIP M5 FEI-42443004057.A327 42443004057	£1.60	£1.92
730 - SEALING RING FEI-32612060009.A7 32612060009	£10.05	£12.06
740 - GROOVED BALL BEARING FEI-41701207096.A22 41701207096	£18.38	£22.06
750 - GROOVED BALL BEARING FEI-41701204131.A9 41701204131	£9.10	£10.92
800 - QUICK-ACTION CHUCKS FEI-63204025003.A1 63204025003	£143.43	£172.12
5000 - SIDE HANDLE FEI-32119032002.A42 32119032002	£12.89	£15.47
6000 - LUBRICANT CAN 0.850 kg FEI-32132007011.A10 32132007011	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A688 34130054061	-
