Fein DDSk 672-1 (50/60Hz 220/230V) / 72050100228 Spare Parts

Fein DDSk 672-1 ⡐/60Hz 220/230V) / 72050100228 Spare Parts

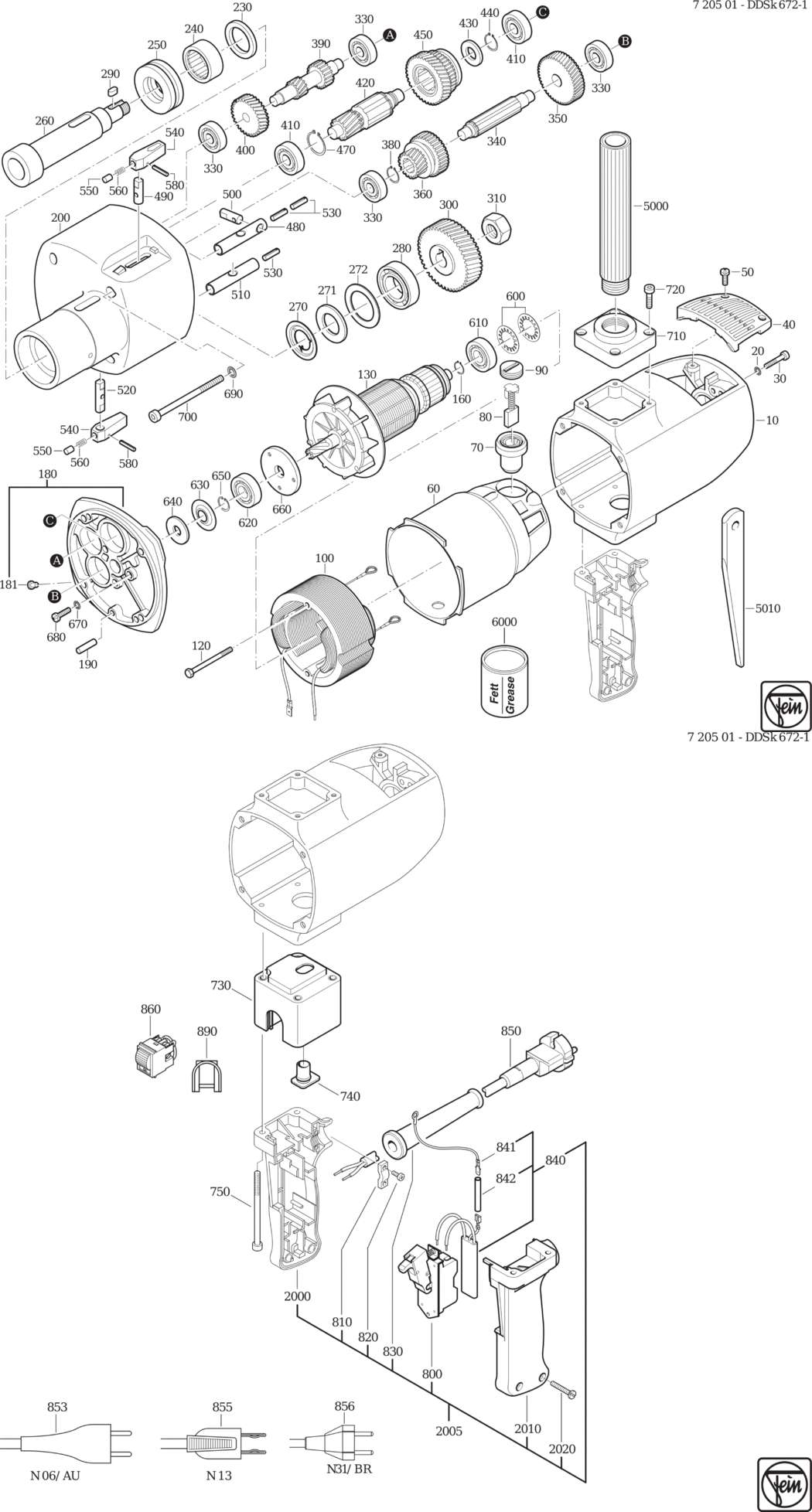

An exploded diagram and spare parts listing for the Fein DDSk 672-1 (50/60Hz 220/230V) / 72050100228

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903095007.A3 31903095007	£285.77	£342.92
20 - CIRCLIP M5 FEI-42443004057.A210 42443004057	£1.60	£1.92
30 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A19 43033014058	£1.60	£1.92
40 - COVER FEI-32427031001.A2 32427031001	£6.73	£8.08
50 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A4 43002033045	£1.60	£1.92
60 - HOUSING FEI-31913018009.A2 31913018009	£59.20	£71.04
70 - BRUSH HOLDER FEI-30712047047.A1 30712047047	£18.16	£21.79
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711061008.A6 30711061008	£14.39	£17.27
90 - CAP FEI-30713009007.A0 30713009007	£2.55	£3.06
100 - STATOR 50HZ220V FEI-51232003222.A0 51232003222	£189.86	£227.83
120 - HEXAGON SOCKET SCREW M5X55 FEI-43001007059.A10 43001007059	-
130 - ARMATURE 50HZ220V FEI-53232001227.A0 53232001227	£341.57	£409.88
160 - RING FEI-42628001006.A13 42628001006	£1.60	£1.92
180 - INTERMEDIATE GEAR BOX FEI-31506153005.A3 31506153005	£171.19	£205.43
181 - NIPPLE FEI-32131001002.A14 32131001002	£2.68	£3.21
190 - STRAIGHT PIN FEI-40201050003.A2 40201050003	-
200 - GEARBOX HOUSING FEI-31509058002.A6 31509058002	£458.56	£550.27
230 - SEALING RING FEI-40608021007.A2 40608021007	-
240 - NEEDLE BEARING FEI-41706016000.A1 41706016000	-
250 - GROOVED BALL BEARING FEI-41707011009.A2 41707011009	-
260 - SHAFT FEI-33402037006.A6 33402037006	£232.03	£278.44
270 - DISC FEI-32411056009.A3 32411056009	£2.25	£2.70
271 - FELT RING FEI-30601062003.A1 30601062003	£1.60	£1.92
272 - DISC FEI-32411057003.A4 32411057003	£5.21	£6.25
280 - GROOVED BALL BEARING FEI-41701017021.A5 41701017021	-
290 - FEATHER KEY FEI-40221040006.A15 40221040006	£1.60	£1.92
300 - GEAR-WHEEL FEI-33667007003.A4 33667007003	£99.59	£119.51
310 - HEX NUT M16X1 5 FEI-42003007005.A2 42003007005	-
330 - GROOVED BALL BEARING FEI-41701210015.A3 41701210015	£8.55	£10.26
340 - SELECTOR SHAFT FEI-33416005005.A5 33416005005	£98.96	£118.75
350 - GEAR-WHEEL FEI-33663019000.A9 33663019000	£60.58	£72.70
360 - GEAR-WHEEL FEI-33617056011.A1 33617056011	£175.10	£210.12
380 - CIRCLIP FEI-42616023000.A27 42616023000	-
390 - SHAFT TOOTHED FEI-33811023009.A1 33811023009	£133.92	£160.70
400 - GEAR-WHEEL FEI-33617054005.A2 33617054005	£53.13	£63.76
410 - GROOVED BALL BEARING FEI-41701213011.A29 41701213011	£8.92	£10.70
420 - SHAFT TOOTHED FEI-33767005005.A2 33767005005	-
430 - DISC M14 FEI-42401007142.A2 42401007142	£1.60	£1.92
440 - CIRCLIP FEI-42643003004.A7 42643003004	-
450 - GEAR-WHEEL FEI-33615025021.A1 33615025021	£193.08	£231.70
470 - CIRCLIP FEI-42616043008.A5 42616043008	-
480 - BOLT FEI-30217174005.A2 30217174005	£26.58	£31.90
490 - BOLT FEI-30217193005.A2 30217193005	£26.42	£31.70
500 - BOLT FEI-30217173007.A5 30217173007	£24.56	£29.47
510 - BOLT FEI-30217177006.A4 30217177006	£24.01	£28.81
520 - BOLT FEI-30217192001.A5 30217192001	£31.91	£38.29
530 - CLAMPING SLEEVE FEI-40238012001.A10 40238012001	-
540 - LEVER FEI-32805045007.A3 32805045007	£22.92	£27.50
550 - BOLT FEI-30216086001.A9 30216086001	£7.56	£9.07
560 - SPIRAL SPRING FEI-30901202001.A12 30901202001	£1.60	£1.92
580 - CLAMPING SLEEVE FEI-40238007005.A33 40238007005	£1.60	£1.92
600 - CUP SPRING FEI-30905019003.A10 30905019003	£1.60	£1.92
610 - GROOVED BALL BEARING FEI-41701210021.A12 41701210021	£8.89	£10.67
620 - GROOVED BALL BEARING FEI-41701213027.A25 41701213027	£9.82	£11.79
630 - DISC FEI-32411052000.A9 32411052000	£3.93	£4.72
640 - FELT RING FEI-30601055000.A4 30601055000	£1.60	£1.92
650 - CIRCLIP FEI-42643001007.A12 42643001007	£1.60	£1.92
660 - PLATE FEI-32410046001.A7 32410046001	£15.69	£18.83
670 - CIRCLIP M4 FEI-42443003043.A200 42443003043	£1.60	£1.92
680 - CYLINDER HEAD SCREW M4X25 FEI-43033006040.A5 43033006040	£1.60	£1.92
690 - CIRCLIP M6 FEI-42443005064.A38 42443005064	£1.60	£1.92
700 - CYLINDER HEAD SCREW M6X100 FEI-43035043068.A3 43035043068	£2.48	£2.97
710 - FLANGE FEI-32420020005.A2 32420020005	£40.01	£48.01
720 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A41 43033012056	£1.60	£1.92
730 - HOUSING FEI-31207204008.A2 31207204008	£61.58	£73.89
740 - SLEEVE FEI-31406031002.A8 31406031002	£5.10	£6.12
750 - CYLINDER HEAD SCREW M5X80 FEI-43035027056.A15 43035027056	£2.82	£3.38
800 - SWITCH FEI-30701073005.A2 30701073005	£36.31	£43.57
810 - CABLE CLAMPING PIECE FEI-32431021007.A89 32431021007	£1.60	£1.92
820 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A115 43041001994	£1.60	£1.92
830 - CABLE GROMMET FEI-31413090003.A47 31413090003	£3.40	£4.08
840 - CAPACITOR FEI-30722122026.A17 30722122026	£25.42	£30.51
841 - CONNECTING CABLE FEI-30719164018.A7 30719164018	£3.92	£4.70
842 - INSULATING HOSE FEI-31413188006.A19 31413188006	£1.60	£1.92
850 - CABLE WITH PLUG FEI-30707105011.A12 30707105011	£26.49	£31.79
860 - TOGGLE SWITCH FEI-30701210019.A13 30701210019	£53.20	£63.84
890 - SWITCH INSERT FEI-32414105002.A6 32414105002	£11.35	£13.62
2000 - HANDLE HALF SHELL FEI-31204161004.A17 31204161004	£38.65	£46.38
2005 - HANDLE FEI-31204064047.A6 31204064047	£120.45	£144.54
2010 - HANDLE HALF SHELL FEI-31204163001.A16 31204163001	£40.17	£48.20
2020 - FILLISTER HEAD SCREW FEI-43041027045.A3 43041027045	£1.60	£1.92
5000 - HANDLE FEI-32119153010.A6 32119153010	£67.33	£80.80
5010 - DRIFT KEYS FEI-63305004001.A2 63305004001	£12.32	£14.78
6000 - LUBRICANT CAN 0.850 kg FEI-32132007011.A22 32132007011	-
