Fein ASkeu 636 Kinetik (50/60Hz 220/230V) / 72053500226 Spare Parts

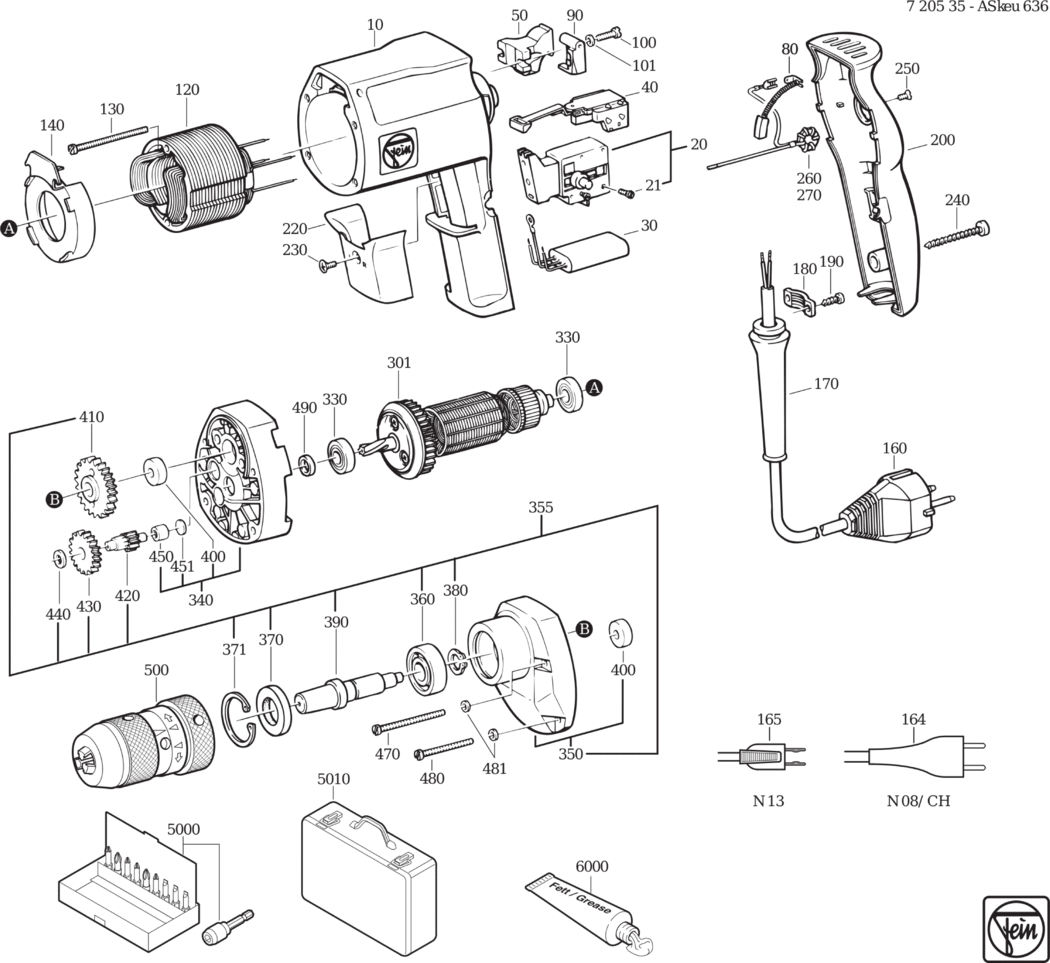

An exploded diagram and spare parts listing for the Fein ASkeu 636 Kinetik (50/60Hz 220/230V) / 72053500226

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901117021.A20 31901117021	-
20 - SWITCH FEI-30701228002.A43 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A74 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722161013.A15 30722161013	£17.85	£21.42
40 - TOGGLE SWITCH FEI-30701238001.A13 30701238001	£16.72	£20.06
50 - BRUSH HOLDER FEI-30712043001.A36 30712043001	£8.32	£9.98
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711059007.A22 30711059007	£7.74	£9.29
90 - CAP FEI-30713010009.A16 30713010009	£1.60	£1.92
100 - CYLINDER HEAD SCREW FEI-43002014998.A33 43002014998	-
101 - CIRCLIP FEI-42443002992.A70 42443002992	£1.60	£1.92
120 - STATOR 50HZ220V FEI-51203003227.A3 51203003227	£67.36	£80.83
130 - CYLINDER HEAD SCREW FEI-43002025991.A47 43002025991	£1.60	£1.92
140 - INSULATING RING FEI-31428004000.A8 31428004000	£3.67	£4.40
160 - CABLE WITH PLUG FEI-30707263019.A7 30707263019	£19.80	£23.76
170 - CABLE GROMMET FEI-31413142009.A41 31413142009	£1.60	£1.92
180 - CABLE CLAMPING PIECE FEI-32431021007.A200 32431021007	£1.60	£1.92
190 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A54 43046002005	-
200 - COVER FEI-31201066005.A14 31201066005	£11.06	£13.27
220 - SWITCH PUSHBUTTON FEI-32805120000.A26 32805120000	£3.67	£4.40
230 - COUNTERSUNK SCREW FEI-43066006032.A5 43066006032	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046024005.A8 43046024005	£1.60	£1.92
250 - COUNTERSUNK SCREW FEI-43066002992.A14 43066002992	£1.60	£1.92
260 - RING CORE CHOKE FEI-30764065010.A10 30764065010	£3.54	£4.25
301 - ARMATURE 50HZ220V FEI-53203009220.A3 53203009220	£147.18	£176.62
330 - GROOVED BALL BEARING FEI-41701001172.A168 41701001172	£9.63	£11.56
340 - INTERMEDIATE GEAR BOX FEI-31506307032.A1 31506307032	-
350 - GEARBOX HOUSING FEI-31508226106.A1 31508226106	-
355 - GEARBOX HOUSING FEI-31508226016.A0 31508226016	-
360 - GROOVED BALL BEARING FEI-41701007038.A109 41701007038	£10.17	£12.20
370 - SEALING RING FEI-30602008004.A1 30602008004	£8.50	£10.20
371 - CIRCLIP FEI-42616001005.A26 42616001005	£1.60	£1.92
380 - CIRCLIP FEI-42616013001.A7 42616013001	£1.60	£1.92
390 - SHAFT FEI-33401066005.A0 33401066005	£42.49	£50.99
400 - BUSH FEI-31601112006.A1 31601112006	£7.32	£8.79
410 - GEAR-WHEEL Z=42 FEI-33607042005.A1 33607042005	£33.98	£40.77
420 - GEAR-WHEEL FEI-33707021003.A1 33707021003	£47.68	£57.21
430 - GEAR-WHEEL Z=30 FEI-33657011003.A0 33657011003	£35.00	£42.00
440 - DISC FEI-32624069038.A0 32624069038	£1.60	£1.92
450 - BUSH FEI-31601111003.A0 31601111003	£4.42	£5.31
451 - DISC FEI-32407027006.A0 32407027006	£1.60	£1.92
470 - CYLINDER HEAD SCREW FEI-43002024997.A1 43002024997	£1.60	£1.92
480 - CYLINDER HEAD SCREW FEI-43002021992.A26 43002021992	£1.60	£1.92
481 - CIRCLIP FEI-42443002992.A72 42443002992	£1.60	£1.92
490 - SEALING RING FEI-32612047006.A9 32612047006	£1.60	£1.92
500 - QUICK-ACTION CHUCKS FEI-63204030004.A3 63204030004	£105.48	£126.58
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A149 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A700 34130054061	-

Attribute Name	Value
Brand	Fein
