Fein SCS 6.3-19 T (50Hz 110V) / 72109724110 Spare Parts

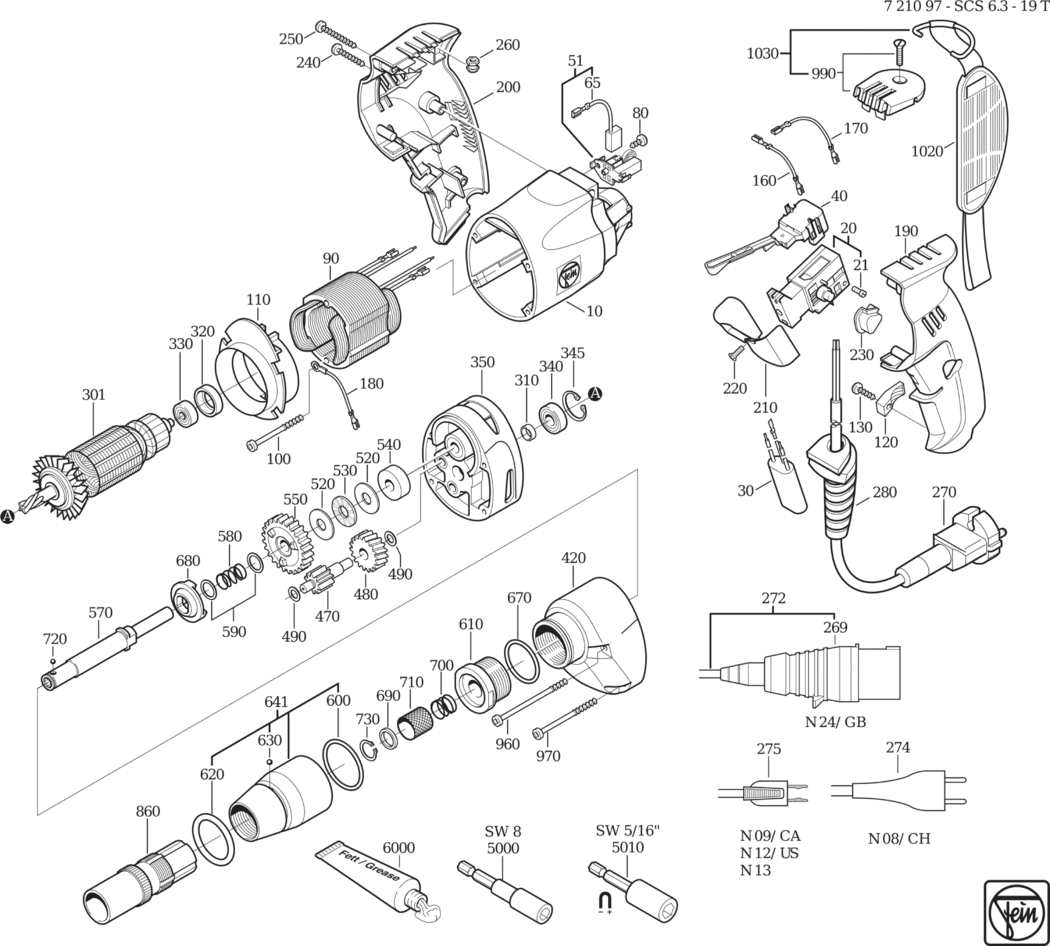

An exploded diagram and spare parts listing for the Fein SCS 6.3-19 T (50Hz 110V) / 72109724110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901123015.A6 31901123015	£38.20	£45.84
20 - SPEED SETTING SWITCH FEI-30701234002.A36 30701234002	£69.81	£83.77
21 - CYLINDER HEAD SCREW FEI-43013052033.A7 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722183018.A56 30722183018	£9.12	£10.95
40 - TOGGLE SWITCH FEI-30701227004.A5 30701227004	£21.77	£26.12
51 - BRUSH HOLDER FEI-30712089023.A3 30712089023	£29.69	£35.63
65 - CARBON BRUSH (SOLD SINGLY) 100-240V 50/60HZ FEI-30711165000.A4 30711165000	£12.84	£15.41
80 - SCREW FEI-43070018009.A47 43070018009	£1.60	£1.92
90 - STATOR FEI-51274008116.A1 51274008116	-
100 - SCREW FEI-43070014000.A53 43070014000	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428126004.A7 31428126004	£3.87	£4.64
130 - SCREW FEI-43070006008.A106 43070006008	£1.60	£1.92
160 - CONNECTING CABLE FEI-30719565016.A12 30719565016	£2.32	£2.79
170 - CONNECTING CABLE FEI-30719566019.A11 30719566019	£2.32	£2.79
180 - CONNECTING CABLE FEI-30719546011.A7 30719546011	£1.60	£1.92
190 - HANDLE HALF SHELL FEI-31201104003.A6 31201104003	£17.00	£20.40
200 - HANDLE HALF SHELL FEI-31201105007.A1 31201105007	£17.00	£20.40
210 - SWITCH PUSHBUTTON FEI-32805171004.A0 32805171004	£6.78	£8.13
220 - COUNTERSUNK SCREW FEI-43066006032.A37 43066006032	£1.60	£1.92
230 - STOP BUTTON FEI-32805168009.A7 32805168009	£3.83	£4.60
240 - SHEET METAL SCREW FEI-43046028004.A0 43046028004	-
250 - SCREW FEI-43070007002.A48 43070007002	£1.60	£1.92
260 - NUT FEI-42018019043.A1 42018019043	£1.60	£1.92
269 - PLUG CEE 16A/110V FEI-30728288004.A37 30728288004	£14.25	£17.10
272 - CABLE WITH PLUG FEI-30707396017.A0 30707396017	£41.68	£50.01
280 - CABLE GROMMET FEI-31413219003.A3 31413219003	£1.60	£1.92
301 - ARMATURE FEI-53274002117.A0 53274002117	-
310 - SEALING RING FEI-32612087002.A7 32612087002	£3.04	£3.65
320 - BEARING BUSH FEI-30507229007.A1 30507229007	£1.60	£1.92
330 - GROOVED BALL BEARING FEI-41701235033.A5 41701235033	£13.80	£16.56
340 - GROOVED BALL BEARING FEI-41701101031.A10 41701101031	£18.83	£22.60
345 - CIRCLIP FEI-42644002007.A1 42644002007	-
350 - INTERMEDIATE GEAR BOX FEI-31506355024.A1 31506355024	£88.37	£106.04
420 - GEARBOX HOUSING FEI-31508246036.A5 31508246036	-
470 - SHAFT TOOTHED FEI-33713067000.A0 33713067000	£70.03	£84.04
480 - GEAR-WHEEL FEI-33663164001.A1 33663164001	£53.76	£64.51
490 - DISC FEI-32408243007.A27 32408243007	£2.37	£2.84
520 - DISC FEI-41719032007.A4 41719032007	-
530 - NEEDLE CAGE FEI-41715042002.A4 41715042002	-
540 - DISC FEI-32601272002.A0 32601272002	£2.69	£3.23
550 - GEAR-WHEEL Z=38 FEI-33613126000.A1 33613126000	£61.87	£74.24
570 - TOOL HOLDER FEI-30104127006.A1 30104127006	-
580 - SPIRAL SPRING FEI-30901345009.A2 30901345009	£1.60	£1.92
590 - DISC FEI-32624119032.A2 32624119032	£1.60	£1.92
600 - SEALING RING FEI-40612165008.A1 40612165008	£1.60	£1.92
610 - SLEEVE FEI-31603046008.A5 31603046008	£71.88	£86.25
620 - SEALING RING FEI-40612163006.A4 40612163006	£1.60	£1.92
630 - BALL FEI-41708017002.A44 41708017002	£1.60	£1.92
641 - STOP SLEEVE FEI-30505068017.A5 30505068017	£54.84	£65.81
670 - SEALING RING FEI-40612093004.A84 40612093004	£1.60	£1.92
680 - CLUTCH RING FEI-30102102007.A4 30102102007	£18.30	£21.96
690 - RING FEI-32601242005.A14 32601242005	£6.76	£8.11
700 - SPIRAL SPRING FEI-30901315002.A15 30901315002	£3.92	£4.70
710 - SLEEVE FEI-30503144002.A3 30503144002	£10.39	£12.47
720 - BALL FEI-41708015005.A14 41708015005	£1.60	£1.92
730 - CIRCLIP FEI-42634002009.A2 42634002009	£1.60	£1.92
860 - STOP SLEEVE FEI-32127021113.A1 32127021113	£43.63	£52.36
960 - SCREW FEI-43072004004.A0 43072004004	-
970 - SCREW FEI-43072002002.A1 43072002002	£1.60	£1.92
990 - PRESSURE PIECE FEI-30240233013.A4 30240233013	£4.22	£5.06
1020 - HOLDER FEI-63901011015.A3 63901011015	-
1030 - HOLDER FEI-63901011037.A2 63901011037	-
5010 - BITS 1/4 IN FOR HEXAGON SOCKET SCREWS FEI-60505209006.A1 60505209006	£31.08	£37.29
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A63 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A482 34130054061	-
