Fein MSfo 852-1c (300Hz 200V) / 78207100260 Spare Parts

Fein MSfo 852-1c 𨌀Hz 200V) / 78207100260 Spare Parts

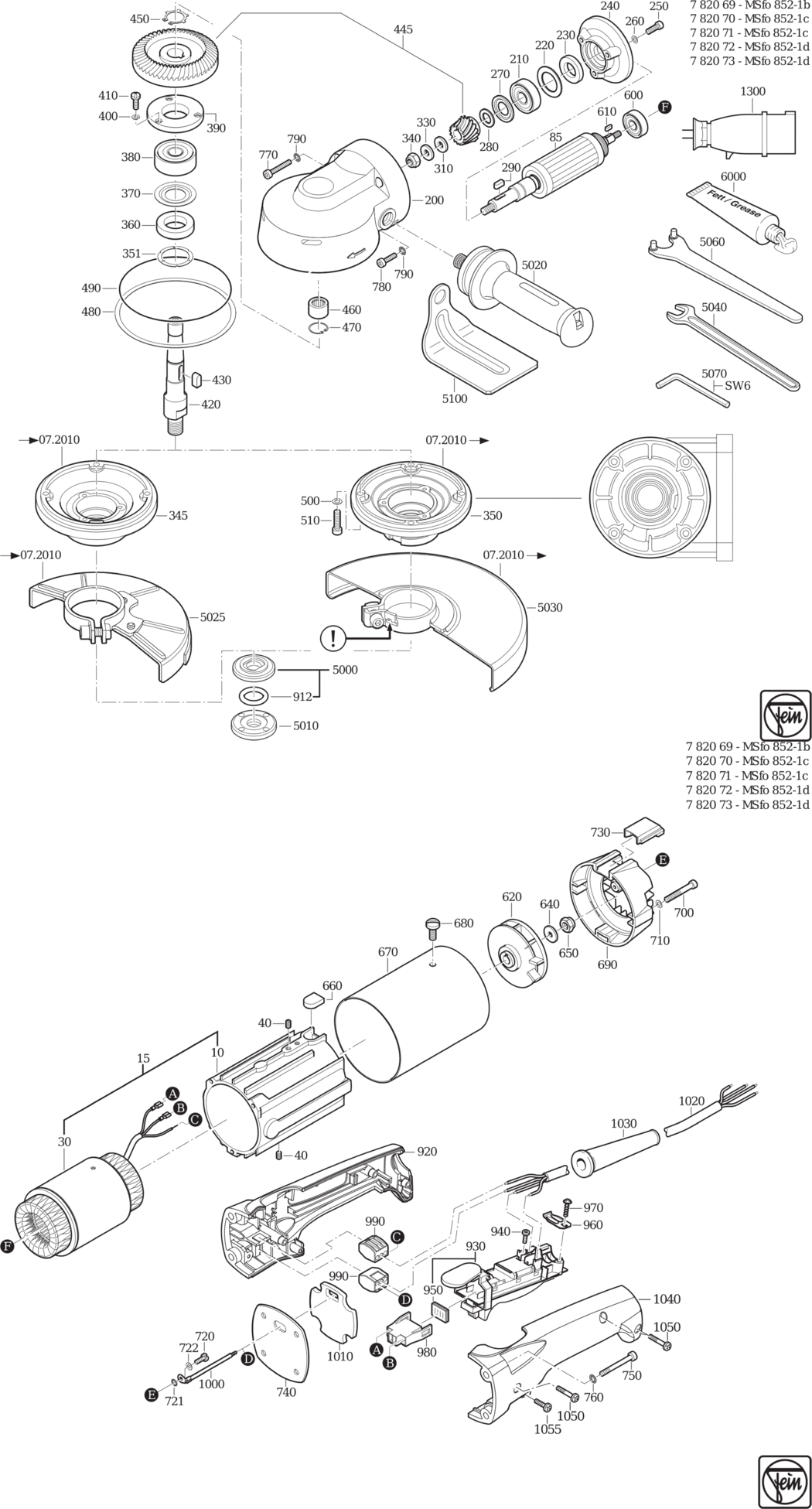

An exploded diagram and spare parts listing for the Fein MSfo 852-1c (300Hz 200V) / 78207100260

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903098002.A11 31903098002	£182.78	£219.33
15 - MOTOR HOUSING WITH STAT FEI-52810006160.A6 52810006160	£562.24	£674.69
30 - STATOR FEI-51810006160.A1 51810006160	£433.66	£520.39
40 - SET SCREW M5X10 FEI-43011005051.A12 43011005051	-
85 - ROTOR FEI-33502037014.A1 33502037014	£265.03	£318.04
200 - GEARBOX HOUSING FEI-31206025004.A3 31206025004	£194.23	£233.08
210 - GROOVED BALL BEARING FEI-41701213027.A35 41701213027	£9.82	£11.79
220 - DISC FEI-32411058001.A0 32411058001	£1.60	£1.92
230 - FELT RING FEI-30601050002.A18 30601050002	£1.60	£1.92
240 - CONNECTING PIECE FEI-32418022009.A3 32418022009	£58.98	£70.78
250 - CYLINDER HEAD SCREW FEI-43050006048.A2 43050006048	-
270 - SEALING RING FEI-42640011002.A19 42640011002	£5.35	£6.42
280 - DISC FEI-32624029026.A18 32624029026	£1.60	£1.92
280 - DISC FEI-32624029032.A17 32624029032	£2.25	£2.70
290 - FEATHER KEY FEI-40221016000.A26 40221016000	£1.60	£1.92
310 - RING FEI-32601106002.A0 32601106002	£10.98	£13.17
330 - DISC FEI-42404016081.A6 42404016081	-
340 - NUT FEI-42019001088.A34 42019001088	£9.49	£11.39
350 - BEARING PLATE FEI-32419143010.A3 32419143010	£87.36	£104.83
351 - DISC FEI-32411062009.A20 32411062009	£1.60	£1.92
360 - FELT RING FEI-30601049000.A18 30601049000	£1.60	£1.92
370 - SEALING RING FEI-42639008005.A27 42639008005	£5.02	£6.03
380 - GROOVED BALL BEARING FEI-41701224024.A17 41701224024	£12.19	£14.63
390 - PLATE FEI-32416058009.A6 32416058009	£19.56	£23.47
400 - CIRCLIP M4 FEI-42443003043.A157 42443003043	£1.60	£1.92
410 - CYLINDER HEAD SCREW M4X10 FEI-43002033045.A7 43002033045	£1.60	£1.92
420 - SHAFT FEI-33406082002.A1 33406082002	£80.98	£97.18
430 - FEATHER KEY FEI-40223026004.A14 40223026004	£2.34	£2.81
445 - BEVEL GEAR Z=18/50 FEI-33809081013.A0 33809081013	£328.18	£393.81
450 - CIRCLIP FEI-42641001002.A19 42641001002	£1.60	£1.92
460 - NEEDLE BEARING FEI-41706002002.A15 41706002002	£40.91	£49.09
470 - CIRCLIP FEI-42616020004.A28 42616020004	£1.60	£1.92
480 - DISC FEI-32624055030.A17 32624055030	£5.71	£6.85
480 - DISC FEI-32624055024.A1 32624055024	£6.80	£8.16
490 - SEALING RING FEI-40612002009.A9 40612002009	£4.26	£5.11
500 - SEALING RING FEI-40611001002.A19 40611001002	£1.60	£1.92
510 - CYLINDER HEAD SCREW M5X20 FEI-43033012056.A52 43033012056	£1.60	£1.92
600 - GROOVED BALL BEARING FEI-41701007038.A32 41701007038	£10.17	£12.20
610 - FEATHER KEY FEI-40221003006.A13 40221003006	£1.60	£1.92
620 - FAN WHEEL FEI-31001085002.A12 31001085002	£147.12	£176.54
640 - DISC FEI-42402003067.A24 42402003067	£1.60	£1.92
650 - NUT FEI-42019008060.A15 42019008060	£1.60	£1.92
660 - SEAL FEI-30605014003.A12 30605014003	£5.40	£6.48
670 - SLEEVE FEI-30502058000.A5 30502058000	£82.43	£98.92
680 - FLAT HEADED SCREW M5X8 FEI-43003048058.A9 43003048058	£1.60	£1.92
690 - HOUSING FEI-31207047000.A24 31207047000	£50.70	£60.84
700 - CYLINDER HEAD SCREW FEI-43033016055.A29 43033016055	£1.60	£1.92
710 - CIRCLIP M5 FEI-42443004057.A249 42443004057	£1.60	£1.92
720 - FLAT HEADED SCREW FEI-43003032042.A8 43003032042	-
721 - LOCK WASHER FEI-42439013046.A113 42439013046	£1.60	£1.92
722 - DISC FEI-42404005048.A78 42404005048	£1.60	£1.92
730 - COVER FEI-32427036003.A12 32427036003	£4.38	£5.26
740 - INSULATION BOARD FEI-31408056000.A86 31408056000	£7.32	£8.79
750 - CYLINDER HEAD SCREW FEI-43033016055.A28 43033016055	£1.60	£1.92
760 - CIRCLIP M5 FEI-42443004057.A251 42443004057	£1.60	£1.92
770 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A11 43033014058	£1.60	£1.92
780 - CYLINDER HEAD SCREW FEI-43033062051.A7 43033062051	£1.60	£1.92
790 - CIRCLIP M5 FEI-42443004057.A250 42443004057	£1.60	£1.92
912 - SEALING RING FEI-40612000007.A127 40612000007	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A45 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A38 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A83 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A61 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A68 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A78 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A69 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A51 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A42 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A73 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A1 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A65 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A53 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A63 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A95 43070038007	£1.60	£1.92
5000 - INNER FLANGE FEI-63801182010.A143 63801182010	£14.88	£17.86
5010 - THREADED FLANGE FEI-63802052000.A126 63802052000	£14.88	£17.86
5020 - ANTI-VIBRATION HANDLE FEI-32119117015.A29 32119117015	£58.22	£69.87
5030 - SAFETY HOOD FEI-31810271020.A11 31810271020	£76.62	£91.95
5040 - JAW SPANNER SW17 FEI-62903011005.A24 62903011005	£7.22	£8.67
5060 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A116 62910022002	£7.22	£8.67
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A3 32160003135	-
9000 - OPERATING INSTRUCTIONS FEI-34101066060.A2 34101066060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A280 34130054061	-
