Fein MSf 843-1b (200Hz 265V) / 78208400200 Spare Parts

Fein MSf 843-1b 𨈀Hz 265V) / 78208400200 Spare Parts

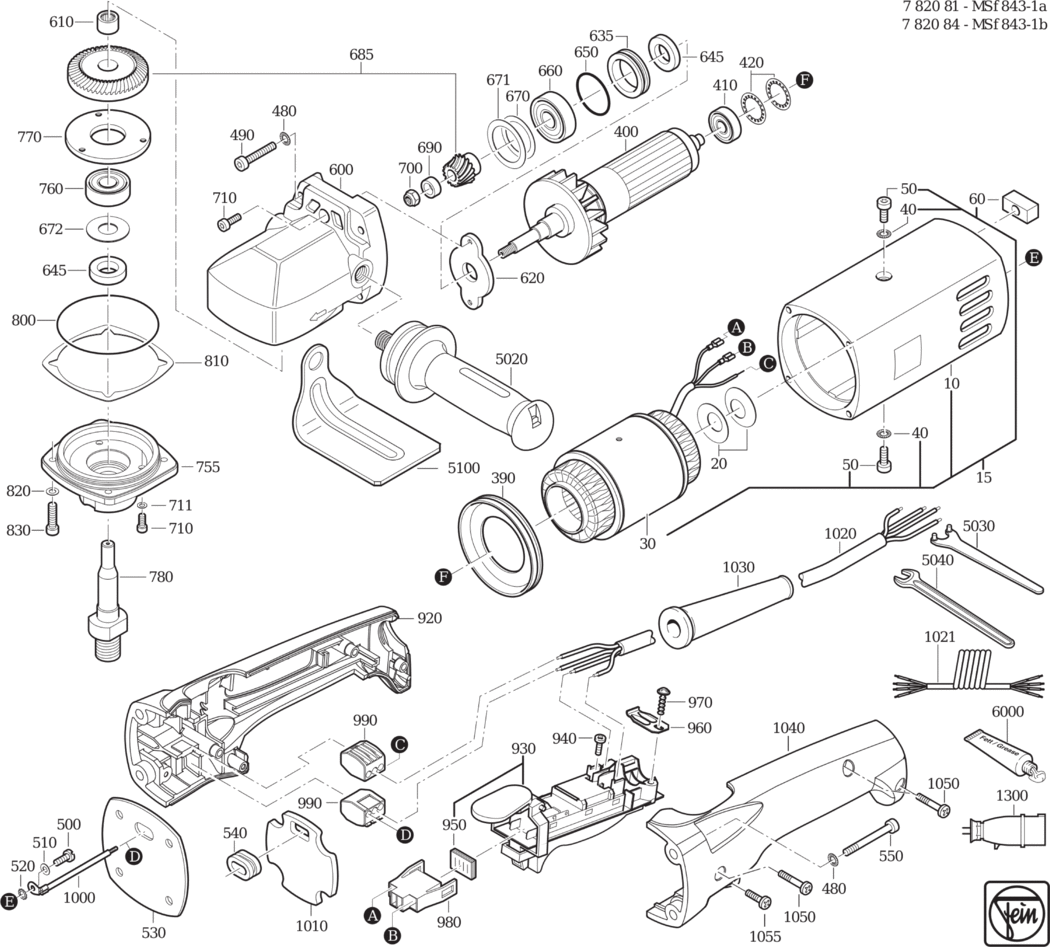

An exploded diagram and spare parts listing for the Fein MSf 843-1b (200Hz 265V) / 78208400200

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903178003.A13 31903178003	£181.17	£217.40
15 - MOTOR HOUSING WITH STAT FEI-52831004060.A1 52831004060	-
20 - SEALING RING FEI-30605076004.A13 30605076004	£3.58	£4.30
30 - STATOR FEI-51831004060.A2 51831004060	-
40 - CIRCLIP M4 FEI-42443003043.A159 42443003043	£1.60	£1.92
50 - CYLINDER HEAD SCREW FEI-43035003043.A10 43035003043	£1.60	£1.92
60 - PLUG FEI-31415032009.A43 31415032009	£6.34	£7.61
390 - AIR GUIDE RING FEI-31428065017.A8 31428065017	£30.80	£36.96
400 - ROTOR FEI-33502050017.A4 33502050017	£344.96	£413.95
410 - GROOVED BALL BEARING FEI-41701204026.A15 41701204026	£7.20	£8.64
420 - CUP SPRING FEI-30905039001.A10 30905039001	£1.60	£1.92
480 - CIRCLIP M5 FEI-42443004057.A245 42443004057	£1.60	£1.92
490 - CYLINDER HEAD SCREW FEI-43035018055.A0 43035018055	-
500 - FLAT HEADED SCREW FEI-43003029048.A67 43003029048	-
510 - DISC FEI-42404005048.A76 42404005048	£1.60	£1.92
520 - LOCK WASHER FEI-42439013046.A108 42439013046	£1.60	£1.92
530 - INSULATION BOARD FEI-31408056000.A82 31408056000	£7.32	£8.79
540 - INSULATING RING FEI-31406033009.A1 31406033009	£2.86	£3.43
550 - CYLINDER HEAD SCREW FEI-43035020051.A3 43035020051	£1.60	£1.92
600 - GEARBOX HOUSING FEI-31206094003.A3 31206094003	£176.12	£211.35
610 - NEEDLE SLEEVE FEI-41705026004.A7 41705026004	£12.35	£14.82
620 - PLATE FEI-32416086004.A4 32416086004	£9.53	£11.44
635 - RING FEI-32602090007.A1 32602090007	£48.01	£57.61
645 - SEALING RING FEI-40608071002.A2 40608071002	£39.55	£47.46
650 - SEALING RING FEI-40612038007.A0 40612038007	£10.08	£12.10
660 - GROOVED BALL BEARING FEI-41701210224.A11 41701210224	£15.09	£18.11
670 - DISC FEI-32624085021.A0 32624085021	£2.41	£2.89
671 - DISC FEI-32408019006.A5 32408019006	£7.76	£9.31
672 - DISC FEI-32624030034.A3 32624030034	£1.60	£1.92
685 - BEVEL GEAR Z=15/41 FEI-33809189010.A4 33809189010	£384.10	£460.92
690 - RING FEI-32601251001.A4 32601251001	£15.12	£18.14
700 - NUT FEI-42019002069.A0 42019002069	£4.84	£5.81
710 - CYLINDER HEAD SCREW FEI-43035004041.A10 43035004041	£1.60	£1.92
711 - SEALING RING FEI-40611007008.A10 40611007008	£4.05	£4.86
755 - PLATE FEI-32419147000.A1 32419147000	-
760 - GROOVED BALL BEARING FEI-41701010054.A146 41701010054	£8.25	£9.90
770 - PLATE FEI-32416087008.A1 32416087008	£27.65	£33.18
780 - SHAFT FEI-33406215000.A2 33406215000	£96.81	£116.17
800 - SEALING RING FEI-40612049000.A20 40612049000	£7.56	£9.07
810 - DISC FEI-32624110029.A1 32624110029	£4.09	£4.91
810 - DISC FEI-32624110035.A6 32624110035	£10.67	£12.80
820 - CIRCLIP M4 FEI-42443003043.A160 42443003043	£1.60	£1.92
830 - CYLINDER HEAD SCREW FEI-43035076041.A57 43035076041	£1.60	£1.92
920 - HANDLE HALF SHELL FEI-31204179010.A48 31204179010	£33.48	£40.17
930 - SWITCH FEI-30701316010.A37 30701316010	£83.94	£100.73
940 - FILLISTER HEAD SCREW FEI-43041035047.A81 43041035047	£1.60	£1.92
950 - SEAL FEI-31324121000.A63 31324121000	£9.47	£11.37
960 - CABLE CLAMPING PIECE FEI-32431042008.A65 32431042008	£1.60	£1.92
970 - SCREW FEI-43070035002.A81 43070035002	£1.60	£1.92
980 - HOUSING FEI-31324123000.A67 31324123000	£7.50	£9.00
990 - TERMINAL FEI-31412063000.A53 31412063000	£3.93	£4.72
1000 - CONNECTING CABLE FEI-30719640010.A41 30719640010	£2.66	£3.19
1010 - PLATE FEI-30605042008.A76 30605042008	£5.45	£6.54
1020 - CABLE FEI-30706338010.A2 30706338010	-
1030 - CABLE GROMMET FEI-31413094007.A63 31413094007	£3.04	£3.65
1040 - HANDLE HALF SHELL FEI-31204180000.A50 31204180000	£22.83	£27.40
1050 - SCREW FEI-43070031003.A60 43070031003	£1.60	£1.92
1055 - SCREW FEI-43070038007.A92 43070038007	£1.60	£1.92
5020 - ANTI-VIBRATION HANDLE FEI-32119118013.A7 32119118013	£58.22	£69.87
5030 - BIDIRECTIONAL NUT SPANNER FEI-62910022002.A110 62910022002	£7.22	£8.67
5040 - JAW SPANNER SW17 FEI-62903002009.A74 62903002009	£11.61	£13.93
5100 - SAFETY GUARD FEI-30229216005.A3 30229216005	£10.81	£12.97
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003135.A1 32160003135	-
9000 - OPERATING INSTRUCTIONS FEI-34101066060.A0 34101066060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A284 34130054061	-
