Fein DSeu 638 (50/60Hz 230V) / 72054000236 Spare Parts

Fein DSeu 638 ⡐/60Hz 230V) / 72054000236 Spare Parts

Home Details Reviews Delivery

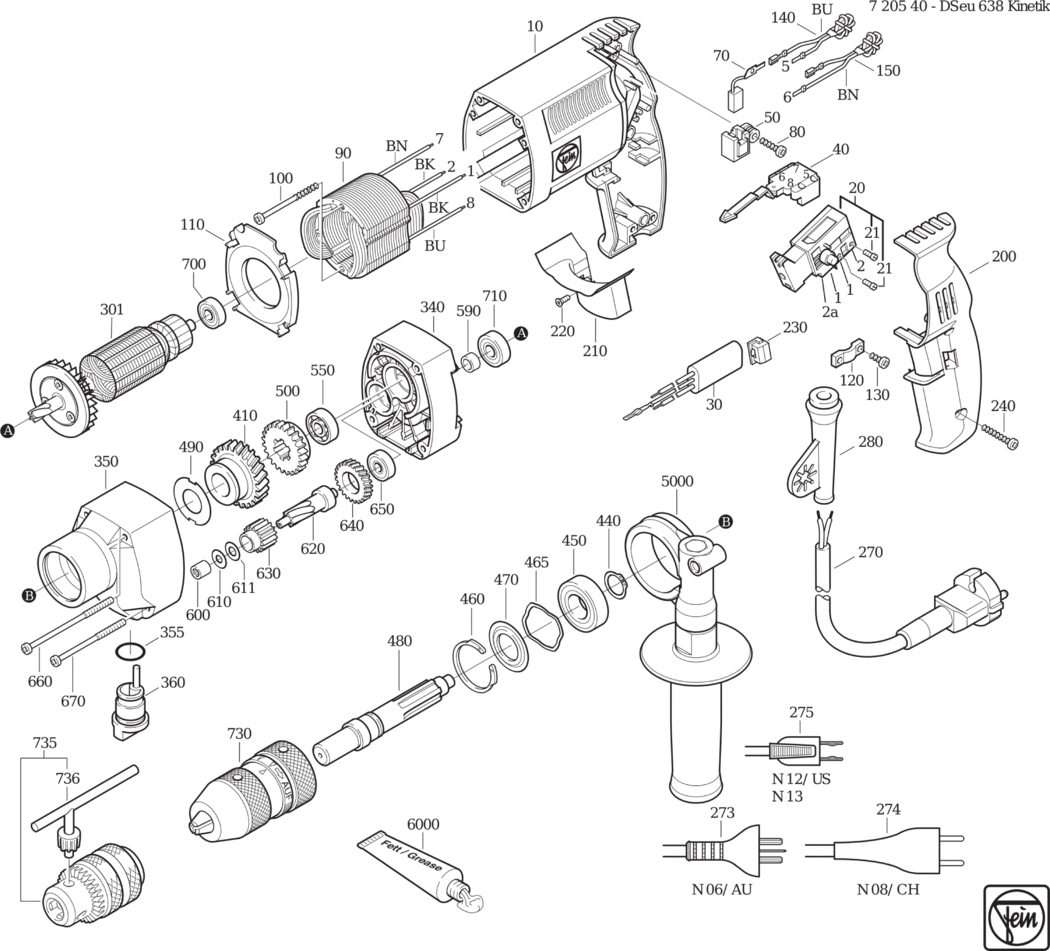

An exploded diagram and spare parts listing for the Fein DSeu 638 (50/60Hz 230V) / 72054000236

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901102004.A3 31901102004	£37.39	£44.87
20 - SWITCH FEI-30701228002.A33 30701228002	£54.05	£64.86
21 - CYLINDER HEAD SCREW FEI-43013052033.A111 43013052033	£1.60	£1.92
30 - CAPACITOR FEI-30722168017.A3 30722168017	£10.30	£12.36
40 - TOGGLE SWITCH FEI-30701239005.A3 30701239005	£19.08	£22.90
50 - BRUSH HOLDER FEI-30712086011.A8 30712086011	£8.42	£10.11
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711125000.A0 30711125000	£15.81	£18.97
80 - SHEET METAL SCREW FEI-43046016003.A13 43046016003	-
90 - STATOR FEI-51271005230.A0 51271005230	£75.80	£90.96
100 - SCREW FEI-43070004001.A24 43070004001	£1.60	£1.92
110 - AIR GUIDE RING FEI-31428097002.A3 31428097002	£3.17	£3.80
120 - CABLE CLAMPING PIECE FEI-32431021007.A85 32431021007	£1.60	£1.92
130 - SHEET METAL SCREW 3 5X13 FEI-43046002005.A23 43046002005	-
140 - RING CORE CHOKE FEI-30764099022.A0 30764099022	£3.36	£4.03
150 - RING CORE CHOKE FEI-30764100023.A1 30764100023	£3.36	£4.03
200 - COVER FEI-31201084006.A0 31201084006	£15.65	£18.78
210 - SWITCH PUSHBUTTON FEI-32805139006.A0 32805139006	£2.84	£3.41
220 - COUNTERSUNK SCREW FEI-43066006032.A31 43066006032	£1.60	£1.92
230 - STOP BUTTON FEI-32805140008.A3 32805140008	£1.60	£1.92
240 - SHEET METAL SCREW FEI-43046028004.A3 43046028004	-
270 - CABLE WITH PLUG FEI-30707263019.A16 30707263019	£19.80	£23.76
280 - CABLE GROMMET FEI-31413214000.A1 31413214000	£1.75	£2.10
301 - ARMATURE FEI-53270001239.A0 53270001239	£142.85	£171.42
340 - INTERMEDIATE GEAR BOX FEI-31506332005.A1 31506332005	£45.49	£54.59
350 - GEARBOX HOUSING FEI-31508231004.A2 31508231004	£63.26	£75.91
355 - SEALING RING FEI-40612129001.A1 40612129001	£1.60	£1.92
360 - SWITCH PUSHBUTTON FEI-32805141016.A0 32805141016	£10.87	£13.04
410 - GEAR-WHEEL FEI-33663154011.A2 33663154011	£52.03	£62.44
440 - CIRCLIP FEI-42616008009.A1 42616008009	-
450 - GROOVED BALL BEARING FEI-41701021052.A1 41701021052	-
460 - CIRCLIP FEI-42644005003.A1 42644005003	-
465 - DISC FEI-42446017007.A0 42446017007	-
470 - SEALING RING FEI-42639005000.A0 42639005000	-
480 - SHAFT FEI-33401089009.A0 33401089009	£69.82	£83.79
490 - DISC FEI-32408353002.A0 32408353002	£2.41	£2.89
500 - GEAR-WHEEL FEI-33613116001.A1 33613116001	£30.80	£36.96
550 - GROOVED BALL BEARING FEI-41701004015.A22 41701004015	£6.83	£8.20
590 - SEALING RING FEI-32612087002.A5 32612087002	£3.04	£3.65
600 - NEEDLE SLEEVE FEI-41705021002.A2 41705021002	-
610 - DISC FEI-32408185009.A32 32408185009	£2.94	£3.53
611 - DISC FEI-32624099035.A3 32624099035	£1.60	£1.92
611 - DISC FEI-32624099029.A0 32624099029	£1.60	£1.92
620 - SHAFT TOOTHED FEI-33763054002.A1 33763054002	-
630 - GEAR-WHEEL FEI-33613117005.A2 33613117005	£22.19	£26.63
640 - GEAR-WHEEL FEI-33660001009.A1 33660001009	£61.78	£74.13
650 - GROOVED BALL BEARING FEI-41701234023.A4 41701234023	£10.89	£13.07
660 - SCREW FEI-43071001005.A0 43071001005	-
670 - SCREW FEI-43071002008.A1 43071002008	£1.60	£1.92
700 - GROOVED BALL BEARING FEI-41701001172.A4 41701001172	£9.63	£11.56
710 - GROOVED BALL BEARING FEI-41701004177.A15 41701004177	£11.05	£13.26
730 - QUICK-ACTION CHUCKS FEI-63204032006.A0 63204032006	£130.66	£156.79
5000 - HANDLE FEI-32119103017.A3 32119103017	£49.40	£59.28
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A451 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A229 34130054061	-
