Fein ABOP 13-2 (18V) / 71050300940 Spare Parts

Fein ABOP 13-2 ⠘V) / 71050300940 Spare Parts

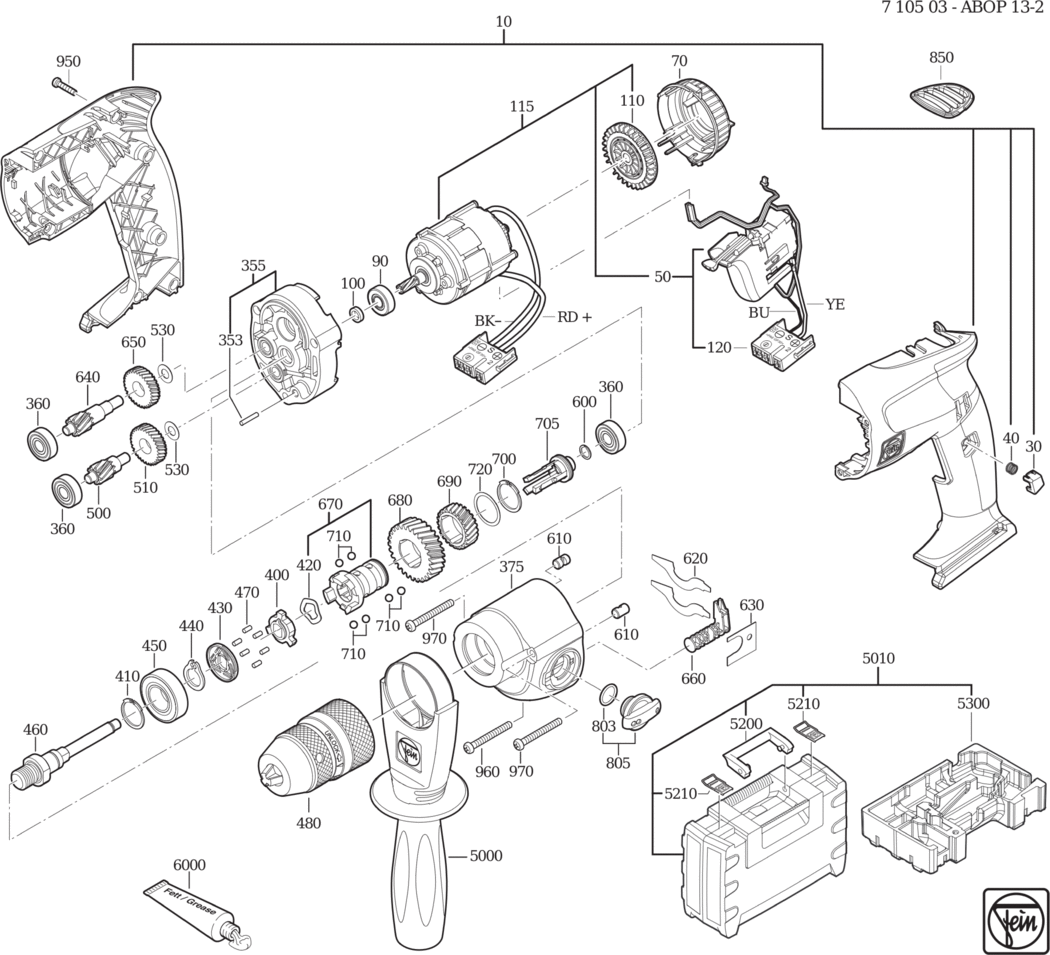

An exploded diagram and spare parts listing for the Fein ABOP 13-2 (18V) / 71050300940

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31912104020.A13 31912104020	£45.22	£54.27
30 - STOP BUTTON FEI-32816063000.A6 32816063000	£3.01	£3.61
40 - SPIRAL SPRING FEI-30901387000.A5 30901387000	-
50 - SWITCH 18V FEI-30701318990.A2 30701318990	-
70 - AIR GUIDE RING FEI-31428172000.A13 31428172000	-
90 - GROOVED BALL BEARING FEI-41701027250.A3 41701027250	£8.08	£9.69
100 - SEALING RING FEI-32612084001.A20 32612084001	£3.44	£4.13
110 - FAN WHEEL FEI-31004051000.A6 31004051000	-
115 - MOTOR FEI-54113029800.A3 54113029800	-
120 - PLUG 18V FEI-30703054000.A15 30703054000	£5.78	£6.94
353 - PIN FEI-40242051000.A10 40242051000	-
355 - INTERMEDIATE GEAR BOX FEI-31506378040.A0 31506378040	-
360 - GROOVED BALL BEARING FEI-41701118160.A21 41701118160	-
375 - GEARBOX HOUSING FEI-31508268010.A1 31508268010	-
400 - CLUTCH RING FEI-30103053000.A0 30103053000	£15.92	£19.10
410 - CIRCLIP FEI-42644018007.A32 42644018007	-
420 - SPRING WASHER FEI-42446023000.A10 42446023000	£1.60	£1.92
430 - DISC FEI-30109191000.A0 30109191000	£6.45	£7.74
440 - CIRCLIP FEI-42616006007.A112 42616006007	£1.60	£1.92
450 - GROOVED BALL BEARING FEI-41701010054.A84 41701010054	£8.25	£9.90
460 - SHAFT FEI-33403117000.A0 33403117000	-
470 - ROLLER FEI-41709005007.A18 41709005007	£1.60	£1.92
480 - QUICK-ACTION CHUCKS FEI-63205035010.A1 63205035010	£104.18	£125.02
500 - SHAFT TOOTHED Z=9 FEI-33763063000.A1 33763063000	-
510 - GEAR-WHEEL Z=30 FEI-33657172009.A29 33657172009	£42.74	£51.29
530 - DISC FEI-32408243007.A14 32408243007	£2.37	£2.84
600 - CIRCLIP FEI-42615090002.A40 42615090002	£1.60	£1.92
610 - BOLT FEI-30217356000.A0 30217356000	-
620 - LEAF SPRING FEI-30904045000.A8 30904045000	£1.60	£1.92
630 - PLATE FEI-30235024000.A19 30235024000	£1.60	£1.92
640 - SHAFT TOOTHED Z=8 FEI-33765021000.A0 33765021000	-
650 - GEAR-WHEEL Z=21 FEI-33663172000.A5 33663172000	-
660 - BOLT FEI-30217357000.A13 30217357000	£10.07	£12.08
670 - CLUTCH PART FEI-30103057020.A6 30103057020	£55.14	£66.17
680 - GEAR-WHEEL Z=28 FEI-33665057000.A7 33665057000	£35.07	£42.08
690 - GEAR-WHEEL Z=24 FEI-33663173000.A8 33663173000	£29.30	£35.16
700 - CIRCLIP FEI-42616026005.A7 42616026005	£1.60	£1.92
705 - DRAW KEY FEI-30109192010.A12 30109192010	£38.37	£46.04
710 - BALL FEI-41708017002.A51 41708017002	£1.60	£1.92
720 - DISC FEI-32408435000.A18 32408435000	£1.60	£1.92
803 - SEALING RING FEI-40612125002.A6 40612125002	-
805 - SWITCH PUSHBUTTON FEI-32805233010.A6 32805233010	£12.62	£15.14
850 - COVER FEI-30240284000.A0 30240284000	-
950 - SCREW FEI-43074010000.A2 43074010000	£1.60	£1.92
960 - SCREW FEI-43072013005.A22 43072013005	£1.60	£1.92
970 - SCREW FEI-43072012001.A26 43072012001	-
5000 - HANDLE FEI-32119123020.A1 32119123020	£39.94	£47.93
5010 - TOOL CASE FEI-33901131080.A4 33901131080	£78.68	£94.41
5200 - HANDLE FEI-32119122000.A165 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A238 30232050000	£10.78	£12.94
5300 - CASE INSERT FEI-33904432000.A5 33904432000	-
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A156 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A693 34130054061	-
