Fein ASbe 642 (60Hz 220V) / 72152800623 Spare Parts

Fein ASbe 642 ⡠Hz 220V) / 72152800623 Spare Parts

Home Details Reviews Delivery

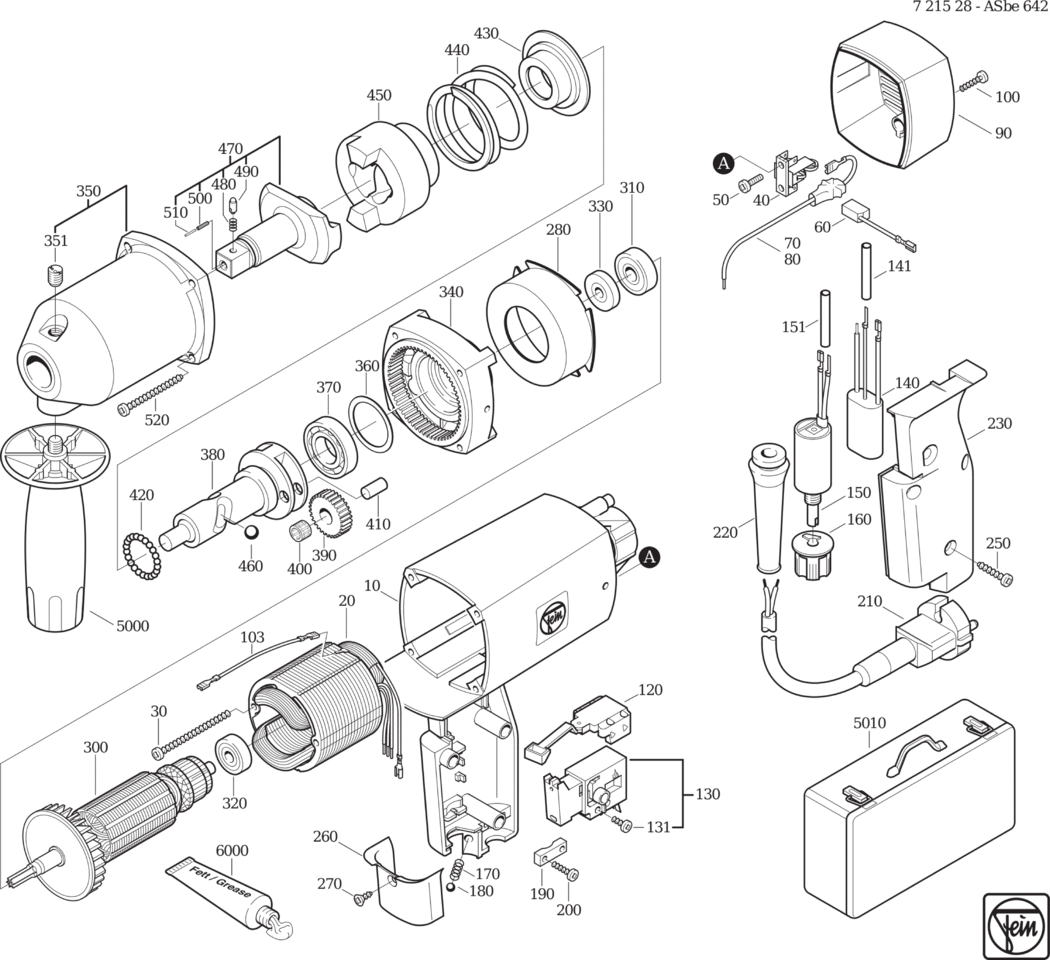

An exploded diagram and spare parts listing for the Fein ASbe 642 (60Hz 220V) / 72152800623

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31902041002.A1 31902041002	£64.92	£77.91
20 - STATOR FEI-51250007220.A0 51250007220	£137.44	£164.93
30 - SHEET METAL SCREW FEI-43046027006.A0 43046027006	£1.60	£1.92
40 - BRUSH HOLDER FEI-30712073008.A1 30712073008	£18.09	£21.71
50 - FILLISTER HEAD SCREW FEI-43041011993.A7 43041011993	-
60 - CARBON BRUSH (SOLD SINGLY) FEI-30711084001.A0 30711084001	£11.31	£13.57
70 - RING CORE CHOKE FEI-30764089017.A1 30764089017	£11.24	£13.49
80 - RING CORE CHOKE FEI-30764084014.A0 30764084014	£10.46	£12.55
90 - COVER FEI-32427076009.A1 32427076009	£13.80	£16.56
100 - SHEET METAL SCREW FEI-43046016003.A7 43046016003	-
103 - CONNECTING CABLE FEI-30719417012.A0 30719417012	£1.60	£1.92
120 - TOGGLE SWITCH FEI-30701238001.A11 30701238001	£16.72	£20.06
130 - SWITCH FEI-30701167013.A0 30701167013	£26.36	£31.63
131 - CYLINDER HEAD SCREW FEI-43013051030.A1 43013051030	-
140 - CAPACITOR FEI-30722153011.A0 30722153011	-
141 - INSULATING HOSE FEI-31413162007.A2 31413162007	£1.60	£1.92
150 - SPEED SETTING SWITCH FEI-30762047002.A1 30762047002	£167.55	£201.06
151 - INSULATING HOSE FEI-31413162007.A1 31413162007	£1.60	£1.92
160 - ROTARY KNOB FEI-32805096005.A0 32805096005	£9.08	£10.90
170 - SPIRAL SPRING FEI-30901003000.A0 30901003000	£1.60	£1.92
180 - BALL FEI-41708018000.A38 41708018000	£1.60	£1.92
190 - CABLE CLAMPING PIECE FEI-32431026009.A16 32431026009	£1.60	£1.92
200 - SCREW FEI-43070006008.A13 43070006008	£1.60	£1.92
210 - CABLE WITH PLUG FEI-30707204013.A0 30707204013	£17.71	£21.25
220 - CABLE GROMMET FEI-31413142009.A50 31413142009	£1.60	£1.92
230 - COVER FEI-32428071013.A0 32428071013	£16.92	£20.31
250 - SHEET METAL SCREW FEI-43046005001.A4 43046005001	-
260 - SWITCH PUSHBUTTON FEI-32805094008.A0 32805094008	£7.91	£9.49
270 - SCREW FEI-43070003003.A2 43070003003	£1.60	£1.92
280 - AIR GUIDE RING FEI-31428057006.A0 31428057006	£7.31	£8.77
300 - ARMATURE FEI-53250008220.A0 53250008220	£312.73	£375.28
310 - GROOVED BALL BEARING FEI-41701207033.A76 41701207033	£10.15	£12.18
320 - GROOVED BALL BEARING FEI-41701204026.A0 41701204026	£7.20	£8.64
330 - SEALING RING FEI-30602010000.A5 30602010000	£15.52	£18.63
340 - INTERMEDIATE GEAR BOX FEI-31506271002.A1 31506271002	£257.23	£308.68
350 - GEARBOX HOUSING FEI-31508210007.A1 31508210007	£110.86	£133.03
351 - NIPPLE FEI-32131037005.A0 32131037005	-
360 - DISC FEI-32624046034.A6 32624046034	£4.92	£5.90
360 - DISC FEI-32624046028.A15 32624046028	£1.60	£1.92
370 - GROOVED BALL BEARING FEI-41701603013.A0 41701603013	£13.72	£16.46
380 - SHAFT FEI-30110035007.A1 30110035007	£297.91	£357.49
390 - GEAR-WHEEL FEI-33607039001.A1 33607039001	£59.58	£71.50
400 - NEEDLE CAGE FEI-41715009001.A7 41715009001	£6.37	£7.64
410 - ROLLER FEI-41709006000.A0 41709006000	£1.60	£1.92
420 - BALL FEI-41708015005.A7 41708015005	£1.60	£1.92
430 - RING FEI-31710032004.A1 31710032004	£39.88	£47.86
440 - SPIRAL SPRING FEI-30901303001.A1 30901303001	£16.92	£20.31
450 - STRIKING BODY FEI-30112027008.A0 30112027008	£167.60	£201.12
460 - BALL FEI-41708025004.A71 41708025004	£1.60	£1.92
470 - TOOL HOLDER FEI-30104094024.A1 30104094024	£274.16	£328.99
480 - SPIRAL SPRING FEI-30901074001.A1 30901074001	£1.60	£1.92
490 - BOLT FEI-30219031003.A1 30219031003	£4.02	£4.82
500 - CLAMPING SLEEVE FEI-40238004004.A7 40238004004	-
510 - CLAMPING SLEEVE FEI-40238002002.A0 40238002002	-
520 - SHEET METAL SCREW FEI-43046026002.A1 43046026002	-
5000 - HANDLE FEI-32119107016.A16 32119107016	£10.15	£12.18
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A167 32160003014	-
