Fein FSC 2.0 X (50/60Hz 220/230V) / 72363824230 Spare Parts

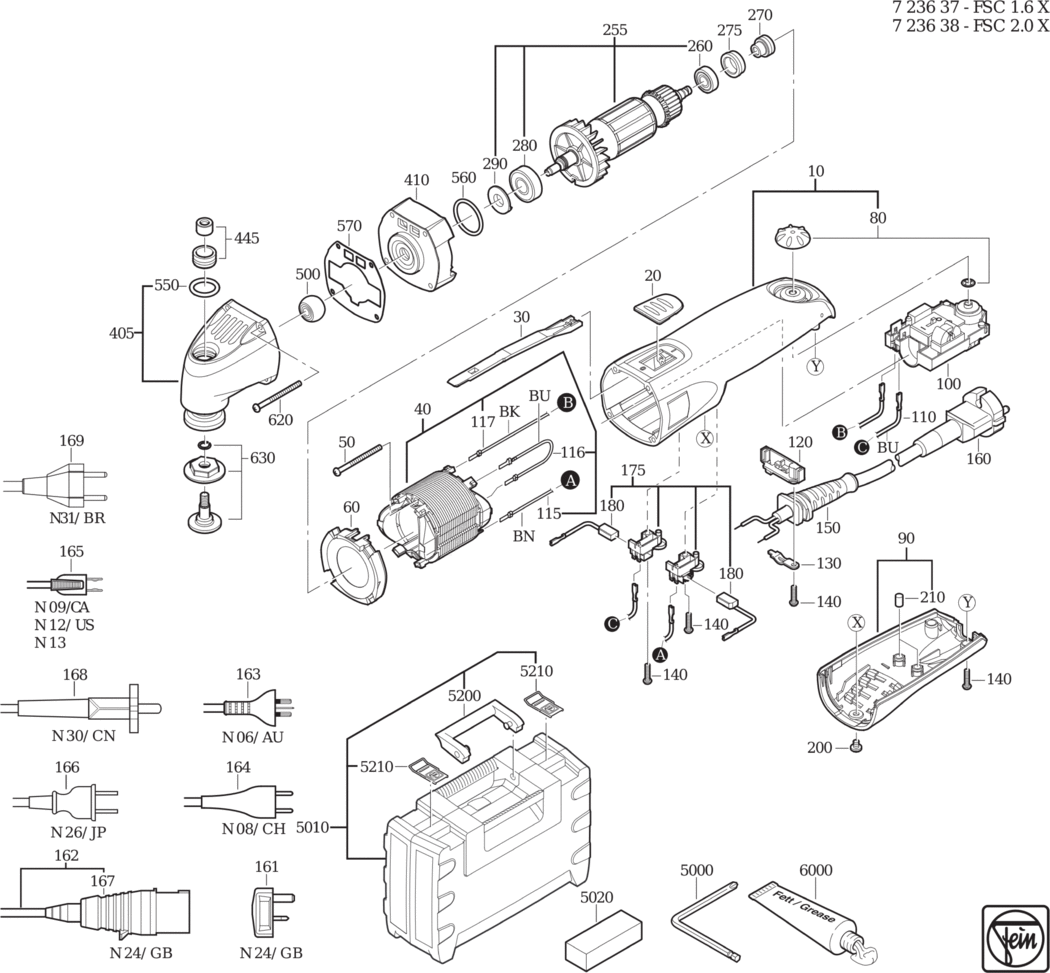

An exploded diagram and spare parts listing for the Fein FSC 2.0 X (50/60Hz 220/230V) / 72363824230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901150010.A6 31901150010	£45.19	£54.23
20 - SLIDE SWITCH FEI-32805195001.A9 32805195001	£3.36	£4.03
30 - CONTROL ROD FEI-32816060001.A4 32816060001	£10.15	£12.18
40 - STATOR FEI-51274010230.A3 51274010230	£72.00	£86.40
50 - SCREW FEI-43074005000.A39 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428151009.A20 31428151009	£4.35	£5.22
80 - ROTARY KNOB SET FEI-32805194016.A21 32805194016	£7.08	£8.50
90 - COVER FEI-32427120011.A30 32427120011	£13.28	£15.94
100 - SPEED SETTING SWITCH 220-240V/50 60HZ FEI-30762484990.A7 30762484990	£136.99	£164.39
110 - CONNECTING CABLE FEI-30719696010.A15 30719696010	£1.60	£1.92
115 - CONNECTING CABLE FEI-30719693010.A9 30719693010	£1.60	£1.92
116 - CONNECTING CABLE FEI-30719695010.A9 30719695010	£2.31	£2.77
117 - CONNECTING CABLE FEI-30719694010.A8 30719694010	£1.60	£1.92
120 - CABLE CLAMPING PIECE FEI-32431044000.A1 32431044000	-
130 - CABLE CLAMPING PIECE FEI-32431043002.A238 32431043002	£1.60	£1.92
140 - SCREW FEI-43070038007.A56 43070038007	£1.60	£1.92
150 - CABLE GROMMET FEI-31413229000.A19 31413229000	£2.25	£2.70
161 - CABLE WITH PLUG FEI-30707408014.A5 30707408014	£31.85	£38.22
175 - BRUSH HOLDER FEI-30712091024.A21 30712091024	£42.30	£50.76
180 - CARBON BRUSH (SOLD SINGLY) FEI-30711146001.A16 30711146001	£12.88	£15.46
200 - FILLISTER HEAD SCREW FEI-43041040048.A68 43041040048	£1.60	£1.92
210 - PRESSURE PIECE FEI-31415095009.A32 31415095009	£1.60	£1.92
255 - ARMATURE FEI-53274015230.A3 53274015230	£197.48	£236.97
260 - GROOVED BALL BEARING FEI-41701001260.A396 41701001260	£7.11	£8.53
270 - RING MAGNET FEI-31428152002.A8 31428152002	£25.65	£30.78
275 - RING FEI-32619024000.A11 32619024000	£3.78	£4.54
280 - GROOVED BALL BEARING FEI-41701007038.A75 41701007038	£10.17	£12.20
290 - RING FEI-32603037009.A0 32603037009	£32.26	£38.71
405 - GEARBOX HOUSING FEI-31508253018.A16 31508253018	£223.63	£268.36
410 - INTERMEDIATE GEAR BOX FEI-31506369022.A0 31506369022	-
445 - BUSH FEI-30507234010.A16 30507234010	-
500 - NEEDLE BEARING FEI-41706041005.A21 41706041005	£28.72	£34.46
550 - SEALING RING FEI-40612024009.A21 40612024009	£1.60	£1.92
560 - SEALING RING FEI-40612093004.A7 40612093004	£1.60	£1.92
570 - SEAL FEI-30610035002.A15 30610035002	£2.65	£3.18
620 - SCREW FEI-43074006000.A8 43074006000	£1.60	£1.92
630 - SCREW FEI-33001039017.A21 33001039017	£41.32	£49.59
5000 - ALLEN KEY FEI-62907037003.A50 62907037003	£4.06	£4.87
5010 - TOOL CASE FEI-33901118200.A7 33901118200	£63.76	£76.51
5200 - HANDLE FEI-32119122000.A138 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A129 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A0 32160003014	-
9000 - OPERATING INSTRUCTIONS FSC1.6X/2.0X FEI-34101112060.A1 34101112060	-
