Fein FSC 1.7 (50/60Hz 220/230V) / 72294924230 Spare Parts

Fein FSC 1.7 ⡐/60Hz 220/230V) / 72294924230 Spare Parts

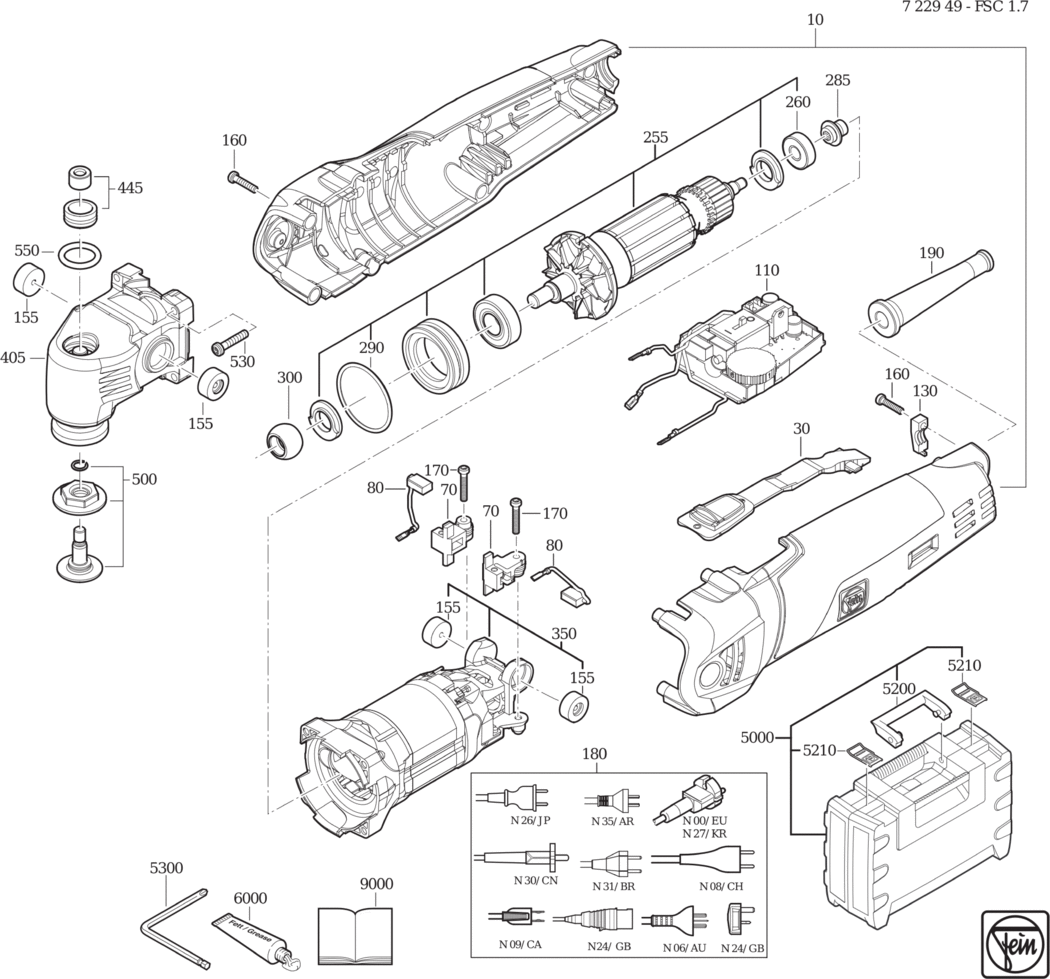

An exploded diagram and spare parts listing for the Fein FSC 1.7 (50/60Hz 220/230V) / 72294924230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901190010.A3 31901190010	£54.08	£64.90
30 - SLIDE SWITCH FEI-32805315000.A2 32805315000	£3.88	£4.65
70 - BRUSH HOLDER FEI-30712087015.A53 30712087015	£7.02	£8.43
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711157000.A1 30711157000	£6.85	£8.22
110 - SPEED SETTING SWITCH FEI-30762453990.A13 30762453990	£73.42	£88.11
130 - CABLE CLAMPING PIECE FEI-32431045000.A44 32431045000	£1.60	£1.92
155 - PRESSURE PIECE FEI-31415110000.A1 31415110000	£2.69	£3.23
160 - SCREW FEI-43074010000.A60 43074010000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A31 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707350010.A5 30707350010	£30.95	£37.14
190 - CABLE GROMMET FEI-31413233000.A60 31413233000	£2.60	£3.12
255 - ARMATURE 50H230V FEI-53278009230.A3 53278009230	£171.47	£205.76
260 - GROOVED BALL BEARING FEI-41701001260.A415 41701001260	£7.11	£8.53
285 - MAGNET FEI-32172014020.A8 32172014020	£9.42	£11.31
290 - SEALING RING FEI-40612000004.A12 40612000004	£1.60	£1.92
300 - NEEDLE BEARING FEI-41706000001.A11 41706000001	£43.50	£52.20
350 - STATOR 50HZ230V FEI-52278051230.A5 52278051230	£100.37	£120.44
405 - BEARING FEI-31508301010.A3 31508301010	-
445 - BUSH FEI-30507234010.A4 30507234010	-
500 - SCREW FEI-33001039017.A10 33001039017	£41.32	£49.59
530 - SCREW FEI-43082000000.A8 43082000000	£1.60	£1.92
550 - SEALING RING FEI-40612024009.A15 40612024009	£1.60	£1.92
5000 - PLASTIC TOOL CASES FEI-33901154030.A10 33901154030	£60.17	£72.20
5200 - HANDLE FEI-32119122000.A117 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A114 30232050000	£10.78	£12.94
5300 - ALLEN KEY FEI-62907037003.A30 62907037003	£4.06	£4.87
6000 - LUBRICANT TUBE 0 080KG FEI-32160005000.A5 32160005000	-
9000 - N.A. FEI-34101317060.A0 34101317060	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A396 34130054061	-
