Fein MSx 636 II (50Hz 230V) / 72292624233 Spare Parts

Fein MSx 636 II ⡐Hz 230V) / 72292624233 Spare Parts

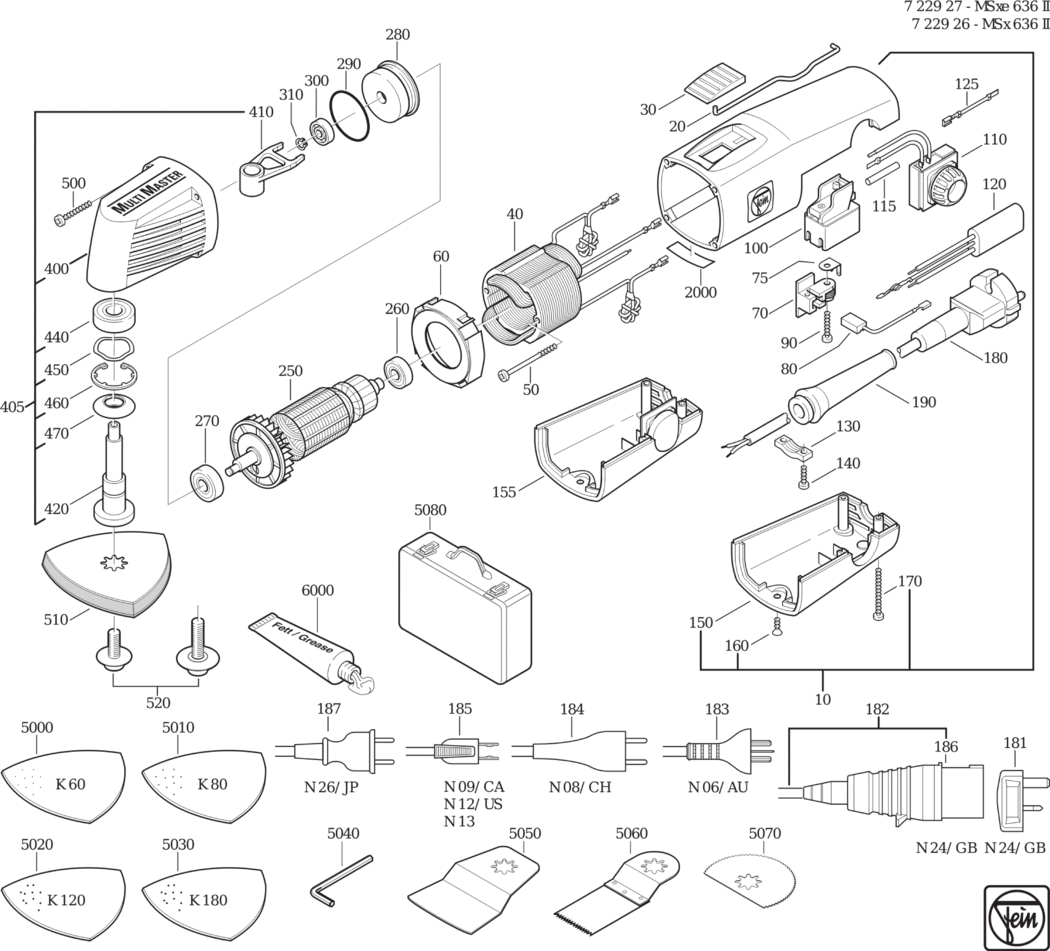

An exploded diagram and spare parts listing for the Fein MSx 636 II (50Hz 230V) / 72292624233

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A14 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A10 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A23 32805152009	£2.91	£3.49
40 - STATOR FEI-51272001230.A1 51272001230	£81.02	£97.23
50 - SCREW FEI-43070014000.A104 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A6 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A18 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A46 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A74 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A10 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A11 30701060000	£22.32	£26.78
115 - INSULATING HOSE FEI-31413187008.A1 31413187008	£1.60	£1.92
120 - CAPACITOR FEI-30722178016.A15 30722178016	£15.82	£18.98
125 - CONNECTING CABLE FEI-30719603013.A0 30719603013	-
130 - CABLE CLAMPING PIECE FEI-32431026009.A35 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A20 43070001006	£1.60	£1.92
155 - COVER FEI-32427108016.A19 32427108016	£14.08	£16.90
160 - SCREW FEI-43070036005.A36 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A40 43070016007	£1.60	£1.92
181 - CABLE WITH PLUG FEI-30707350010.A9 30707350010	£30.95	£37.14
190 - CABLE GROMMET FEI-31413142009.A33 31413142009	£1.60	£1.92
250 - ARMATURE FEI-53272001232.A3 53272001232	-
260 - GROOVED BALL BEARING FEI-41701001172.A137 41701001172	£9.63	£11.56
270 - GROOVED BALL BEARING FEI-41701004177.A11 41701004177	£11.05	£13.26
280 - BUSH FEI-30508036002.A5 30508036002	£26.08	£31.30
290 - SEALING RING FEI-40612121003.A15 40612121003	£1.60	£1.92
300 - GROOVED BALL BEARING FEI-41701000020.A19 41701000020	£13.58	£16.30
310 - CIRCLIP FEI-42616046003.A50 42616046003	£1.60	£1.92
400 - GEARBOX HOUSING FEI-31508237047.A11 31508237047	£66.45	£79.74
405 - GEARBOX HOUSING FEI-31508237053.A3 31508237053	£141.29	£169.55
410 - LEVER FEI-33218090008.A10 33218090008	£40.68	£48.82
420 - SHAFT FEI-33406277001.A4 33406277001	£38.23	£45.88
440 - GROOVED BALL BEARING FEI-41701007050.A11 41701007050	£15.15	£18.18
450 - DISC FEI-42446015000.A5 42446015000	£1.60	£1.92
460 - CIRCLIP FEI-42635003004.A12 42635003004	£1.60	£1.92
470 - SLEEVE FEI-30606040001.A5 30606040001	£1.60	£1.92
500 - SCREW FEI-43070013002.A2 43070013002	£1.60	£1.92
510 - SANDING PAD SET UNPERFORATED FEI-63806129220.A13 63806129220	£16.60	£19.92
520 - SET OF CLAMPING SCREWS FEI-43033087065.A13 43033087065	£12.99	£15.59
5000 - SANDING SHEETS FEI-63717082049.A1 63717082049	£6.50	£7.80
5010 - SANDING SHEETS FEI-63717083043.A5 63717083043	£6.50	£7.80
5020 - SANDING SHEETS FEI-63717085045.A1 63717085045	£6.50	£7.80
5030 - SANDING SHEETS FEI-63717088040.A5 63717088040	£6.50	£7.80
5040 - ALLEN KEY FEI-62907037003.A19 62907037003	£4.06	£4.87
5050 - FIXED SCRAPER BLADE FEI-63903226210.A7 63903226210	£22.34	£26.81
5060 - E-CUT STANDARD SAW BLADES FEI-63502133210.A5 63502133210	£15.38	£18.45
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A126 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A571 34130054061	-
