Elu OF97L Type 1 Router Spare Parts

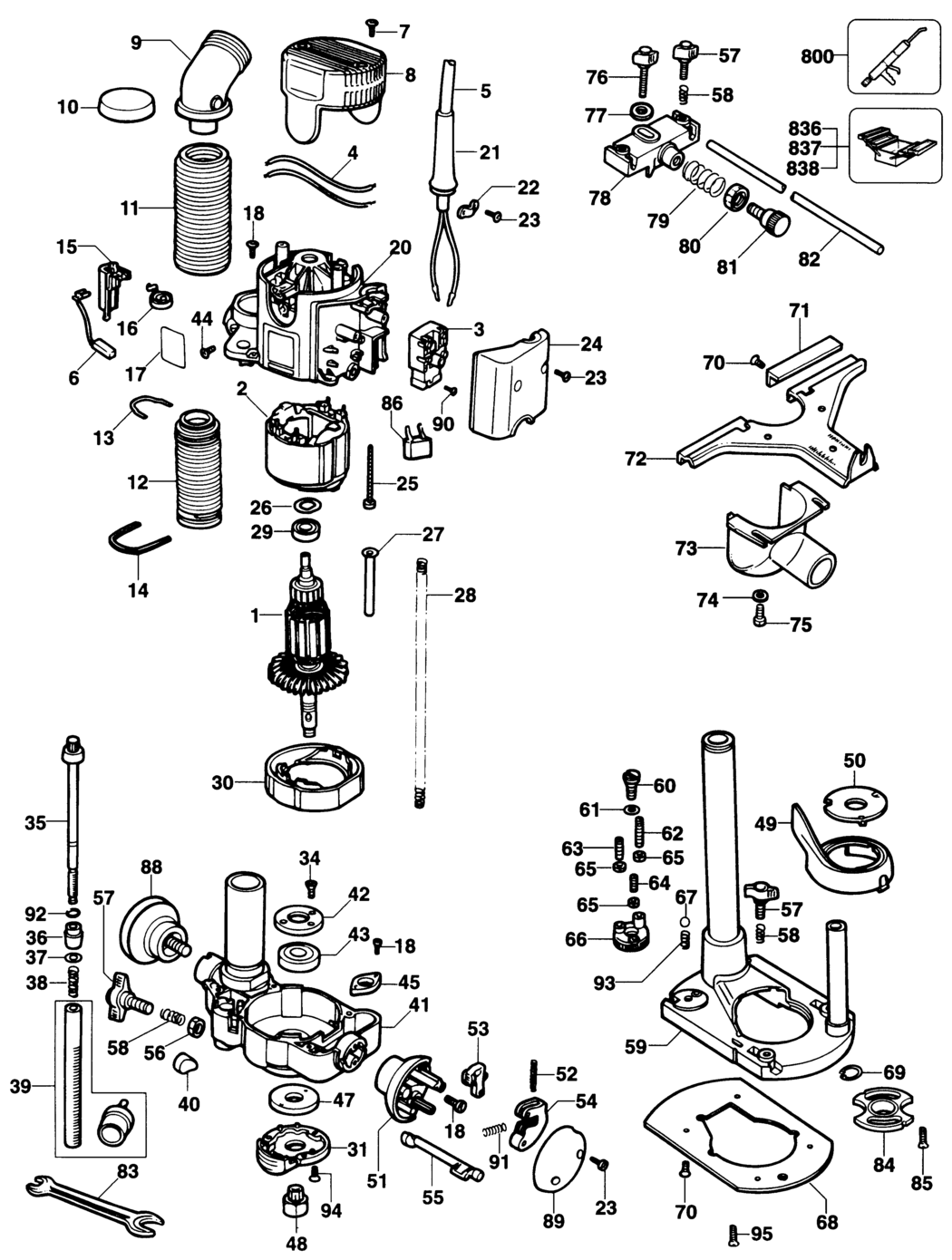

An exploded drawing and spare parts listing for the Elu OF97L Type 1 Router

	Ex VAT	Inc VAT
1 - ARMATURE 230V 240VGB BDE-328255-00.A0 328255-00	-
1 - NO LONGER AVAILABLE 115VGB BDE-000000-00.A50109 000000-00	-
2 - NO LONGER AVAILABLE 240VGB BDE-000000-00.A50110 000000-00	-
2 - NO LONGER AVAILABLE 115VGB BDE-000000-00.A50111 000000-00	-
3 - SWITCH BDE-323132-00.A3 323132-00	£14.57	£17.48
4 - NO LONGER AVAILABLE BDE-000000-00.A50112 000000-00	-
5 - CORDSET (M/PLUG) 240VGB BDE-330060-44.A39 330060-44	£14.57	£17.48
5 - CORDSET (M/PLUG) 115VGB BDE-330061-04.A30 330061-04	£12.17	£14.60
6 - BRUSH 230V 240VGB BDE-580017-00.A12 580017-00	£5.88	£7.06
6 - BRUSH 115V 115VGB BDE-580017-01.A3 580017-01	£5.88	£7.06
7 - SCREW BDE-330065-09.A82 330065-09	£1.66	£1.99
8 - NO LONGER AVAILABLE BDE-000000-00.A50113 000000-00	-
9 - VACUUM ADAPTOR BDE-N434647.A3 N434647	£3.80	£4.56
10 - CAP BDE-326287-00.A0 326287-00	£1.66	£1.99
11 - BELLOWS BDE-326268-00.A15 326268-00	£16.03	£19.24
12 - SPRING SA BDE-326283-00.A15 326283-00	£14.57	£17.48
13 - CLIP BDE-326279-00.A1 326279-00	£1.66	£1.99
14 - CLIP BDE-326607-00.A12 326607-00	£3.80	£4.56
15 - HOLDER BDE-326933-01.A6 326933-01	£3.30	£3.96
16 - BRUSH SPRING BDE-326667-00.A45 326667-00	£1.66	£1.99
17 - NO LONGER AVAILABLE BDE-000000-00.A50114 000000-00	-
18 - SCREW BDE-324006-00.A5 324006-00	£1.66	£1.99
20 - HOUSING MOTOR BDE-328252-01.A11 328252-01	£25.70	£30.84
21 - CORD PROTECTOR BDE-320785.A1182 320785	£1.66	£1.99
22 - CORD CLAMP BDE-821070.A753 821070	£1.66	£1.99
23 - SCREW BDE-330065-06.A87 330065-06	£1.66	£1.99
24 - NO LONGER AVAILABLE BDE-000000-00.A50115 000000-00	-
25 - SCREW BDE-330065-10.A22 330065-10	£1.66	£1.99
26 - WASHER SPRING BDE-326845-00.A11 326845-00	£1.66	£1.99
27 - GUIDE BDE-329016-00.A4 329016-00	£1.66	£1.99
28 - SPRING BDE-323395-13.A13 323395-13	£1.66	£1.99
29 - BEARING BDE-605040-63.A20 605040-63	£3.30	£3.96
30 - BAFFLE FAN BDE-326604-00.A10 326604-00	£3.80	£4.56
31 - SPINDLE LOCK BDE-326616-04.A2 326616-04	£14.57	£17.48
34 - SCREW.TEMP BDE-945121-00.A19 945121-00	£1.66	£1.99
35 - ADJUSTER BDE-326600-00.A5 326600-00	£4.69	£5.63
36 - SCALE BDE-326265-00.A1 326265-00	£3.30	£3.96
37 - WASHER BDE-321118.A1 321118	£1.66	£1.99
38 - SPRING BDE-323395-14.A2 323395-14	£1.66	£1.99
39 - ADJUSTER HEIGHT BDE-329023-49.A9 329023-49	£17.48	£20.97
40 - INSERT BDE-326602-00.A5 326602-00	£1.82	£2.19
41 - HOUSING LOWER BDE-328254-00.A3 328254-00	£80.98	£97.18
42 - CLAMP BDE-326285-00.A1 326285-00	£1.66	£1.99
43 - BEARING BDE-570936-00.A2 570936-00	£10.85	£13.02
44 - SCREW BDE-330065-04.A14 330065-04	£1.66	£1.99
45 - GUIDE BDE-326606-00.A5 326606-00	£1.66	£1.99
47 - LOCKING RING BDE-326673-00.A14 326673-00	£3.30	£3.96
48 - COLLET & NUT SA 115VGB BDE-326286-01.A7 326286-01	£24.39	£29.27
48 - COLLET & NUT SA 240VGB BDE-326286-01.A8 326286-01	£24.39	£29.27
49 - DUST GUARD BDE-326273-00.A13 326273-00	£1.82	£2.19
50 - CAP 21 MM BDE-326599-00.A2 326599-00	£1.66	£1.99
51 - HANDLE RH BDE-326598-01.A13 326598-01	£1.82	£2.19
52 - SPRING BDE-328202-01.A36 328202-01	£3.80	£4.56
53 - LOCKING KNOB BDE-328202-01.A10 328202-01	£3.80	£4.56
54 - ACTUATOR BDE-328202-01.A20 328202-01	£3.80	£4.56
55 - LEVER BDE-326256-00.A3 326256-00	£1.66	£1.99
56 - NUT BDE-949726-05.A61 949726-05	£1.66	£1.99
57 - SCREW WING BDE-326573-01.A33 326573-01	£1.82	£2.19
58 - SPRING BDE-868082-00.A44 868082-00	£1.66	£1.99
59 - BASEPLATE SA BDE-328253-00.A11 328253-00	£87.82	£105.39
60 - SCREW BDE-326610-00.A4 326610-00	£1.66	£1.99
61 - WASHER SPRING BDE-327012-00.A8 327012-00	£1.66	£1.99
62 - SCREW BDE-868109-00.A6 868109-00	£1.66	£1.99
63 - SCREW BDE-942931-01.A38 942931-01	£1.66	£1.99
64 - SCREW.TEMP BDE-942931-02.A19 942931-02	£1.66	£1.99
65 - NUT BDE-860083-02.A62 860083-02	£1.66	£1.99
66 - TURRET BDE-N547463.A5 N547463	£4.69	£5.63
67 - BALL BDE-720664-00.A49 720664-00	£1.66	£1.99
68 - BASEPLATE BDE-326270-00.A1 326270-00	£18.91	£22.69
69 - CIRCLIP BDE-324821-00.A3 324821-00	£1.66	£1.99
70 - SCREW.TEMP BDE-945121-00.A18 945121-00	£1.66	£1.99
71 - GUIDE BDE-249090-00.A5 249090-00	£1.82	£2.19
72 - NO LONGER AVAILABLE BDE-000000-00.A50116 000000-00	-
73 - EXHAUST BDE-326274-00.A1 326274-00	-
74 - WASHER BDE-937883.A14 937883	-
75 - SCREW BDE-949886-30.A5 949886-30	-
76 - SCREW WING BDE-326573-02.A11 326573-02	£2.26	£2.71
77 - WASHER BDE-330016-02.A37 330016-02	£1.66	£1.99
78 - BRACKET BDE-326237-00.A4 326237-00	-
79 - SPRING BDE-323395-21.A1 323395-21	£1.66	£1.99
80 - INDEX BDE-942918-00.A33 942918-00	£1.66	£1.99
81 - ADJUSTER BDE-326239-00.A14 326239-00	£3.80	£4.56
82 - ROD BDE-868080-00.A36 868080-00	£2.78	£3.34
83 - SPANNER BDE-31351301.A19 31351301	£2.78	£3.34
84 - GUIDE BUSH BDE-326276-03.A16 326276-03	£12.17	£14.60
85 - SCREW BDE-911141.A15 911141	£1.66	£1.99
86 - CAPACITOR BDE-949877-01.A37 949877-01	£1.66	£1.99
88 - KNOB SA BDE-326300-00.A13 326300-00	£10.85	£13.02
89 - COVER BDE-326313-01.A11 326313-01	£12.17	£14.60
90 - SCREW BDE-911026.A11 911026	£1.66	£1.99
91 - SPRING BDE-323395-22.A14 323395-22	£1.66	£1.99
92 - O RING BDE-323711-26.A94 323711-26	£1.66	£1.99
93 - SPRING BDE-868082-00.A45 868082-00	£1.66	£1.99
94 - SCREW.TEMP BDE-945121-00.A20 945121-00	£1.66	£1.99
95 - SCREW BDE-911058.A6 911058	-
800 - GREASE 90 GMS BDE-870889-02.A227 870889-02	£7.85	£9.42
836 - S.T.WRENCH BDE-559582-99.A1 559582-99	£107.82	£129.39
837 - S.T.ASSEMBLY JIG BDE-559585-98.A18 559585-98	£74.15	£88.98
838 - PIN BDE-559585-99.A2 559585-99	£19.40	£23.28

Attribute Name	Value
Brand	Elu
