Elu OF97EL Type 1 Router Spare Parts

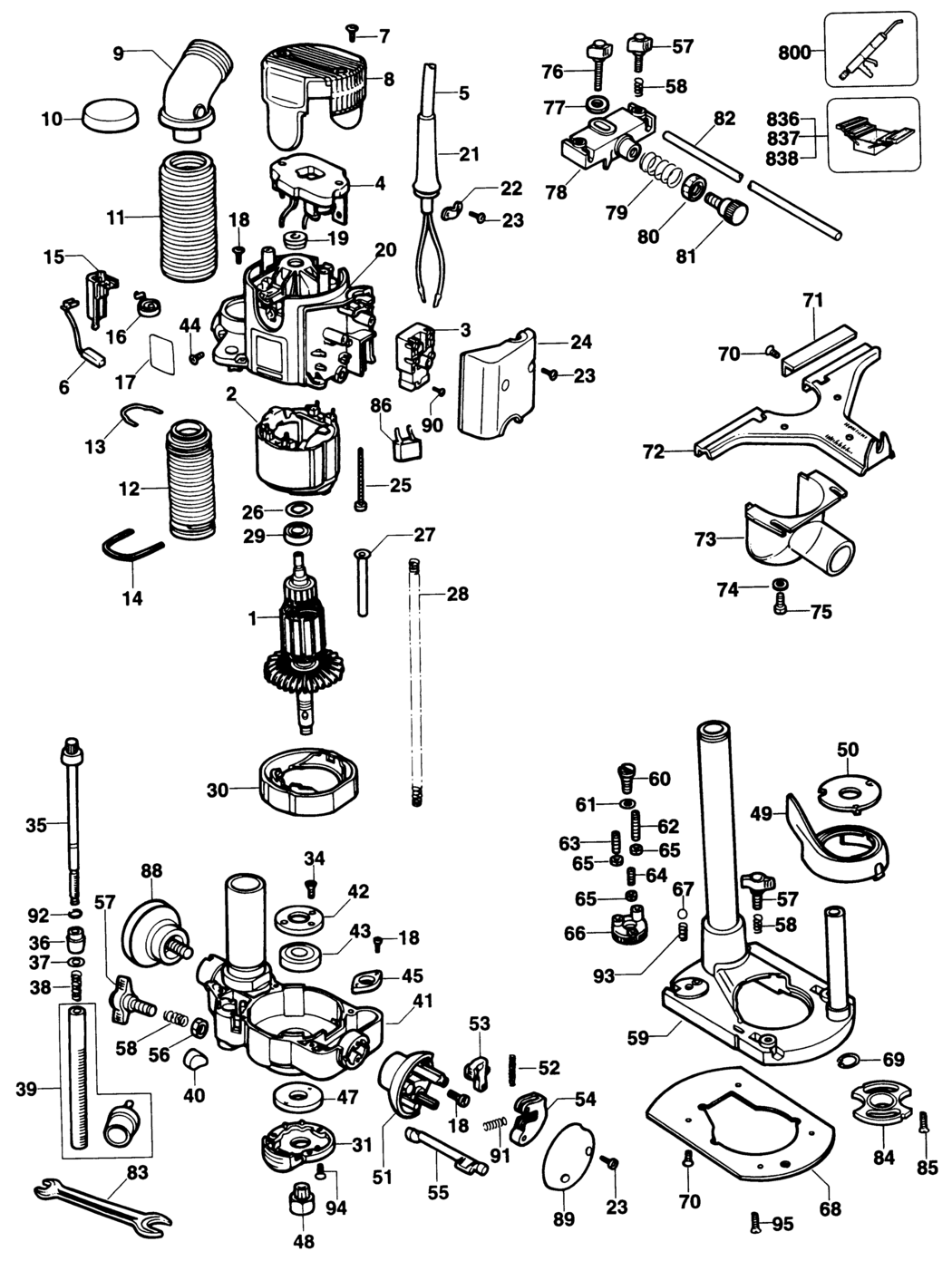

An exploded drawing and spare parts listing for the Elu OF97EL Type 1 Router

	Ex VAT	Inc VAT
1 - MOTOR SA 230V GB 240V BDE-N030339.A0 N030339	£206.80	£248.16
1 - MOTOR SA 115V GB 115V BDE-N030341.A6 N030341	£139.42	£167.30
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A50105 000000-00	-
2 - FIELD 230V GB 240V BDE-327429-10.A0 327429-10	-
3 - SWITCH BDE-323132-00.A2 323132-00	£15.01	£18.01
4 - ELECTRONIC 230V GB 240V BDE-326297-00.A7 326297-00	£73.58	£88.30
4 - ELECTRONIC 115V GB 115V BDE-326297-01.A2 326297-01	£67.48	£80.98
5 - CORDSET (M/PLUG) GB 115V BDE-330061-04.A29 330061-04	£12.53	£15.04
5 - CORDSET (M/PLUG) GB 240V BDE-330060-44.A40 330060-44	£14.57	£17.48
6 - BRUSH 115V GB 115V BDE-580017-01.A4 580017-01	£6.06	£7.27
6 - BRUSH 230V GB 240V BDE-580017-00.A11 580017-00	£6.06	£7.27
7 - SCREW BDE-330065-13.A85 330065-13	£1.66	£1.99
8 - END CAP BDE-326259-01.A10 326259-01	£6.06	£7.27
9 - VACUUM ADAPTOR BDE-N434647.A2 N434647	£7.40	£8.88
10 - CAP BDE-326287-00.A1 326287-00	£1.66	£1.99
11 - BELLOWS BDE-326268-00.A14 326268-00	£16.52	£19.82
12 - SPRING SA BDE-326283-00.A14 326283-00	£15.01	£18.01
13 - CLIP BDE-326279-00.A0 326279-00	£1.66	£1.99
14 - CLIP BDE-326607-00.A13 326607-00	£3.92	£4.70
15 - HOLDER BDE-326933-01.A5 326933-01	£3.30	£3.96
16 - BRUSH SPRING BDE-326667-01.A1 326667-01	£1.66	£1.99
17 - NO LONGER AVAILABLE BDE-000000-00.A50106 000000-00	-
18 - SCREW BDE-324006-00.A4 324006-00	£1.66	£1.99
19 - MAGNET BDE-326251-00.A6 326251-00	£8.08	£9.70
20 - HOUSING MOTOR BDE-328252-01.A10 328252-01	£26.47	£31.76
21 - CORD PROTECTOR BDE-320785.A1132 320785	£1.66	£1.99
22 - CORD CLAMP BDE-821070.A754 821070	£1.66	£1.99
23 - SCREW BDE-330065-06.A88 330065-06	£1.66	£1.99
24 - NO LONGER AVAILABLE BDE-000000-00.A50107 000000-00	-
25 - SCREW BDE-330065-10.A21 330065-10	£1.66	£1.99
26 - WASHER SPRING BDE-326845-00.A12 326845-00	£1.66	£1.99
27 - GUIDE BDE-329016-00.A3 329016-00	£1.66	£1.99
28 - SPRING BDE-323395-13.A14 323395-13	£1.66	£1.99
29 - BEARING BDE-605040-63.A21 605040-63	£3.39	£4.07
30 - BAFFLE FAN BDE-326604-00.A11 326604-00	£3.92	£4.70
31 - SPINDLE LOCK BDE-326616-04.A3 326616-04	£15.01	£18.01
34 - SCREW.TEMP BDE-945121-00.A24 945121-00	£1.66	£1.99
35 - ADJUSTER BDE-326600-00.A4 326600-00	£4.83	£5.80
36 - SCALE BDE-326265-00.A0 326265-00	£3.39	£4.07
37 - WASHER BDE-321118.A2 321118	£1.66	£1.99
38 - SPRING BDE-323395-14.A1 323395-14	£1.66	£1.99
39 - ADJUSTER HEIGHT BDE-329023-49.A10 329023-49	£18.00	£21.60
40 - INSERT BDE-326602-00.A4 326602-00	£1.88	£2.26
41 - HOUSING LOWER BDE-328254-00.A2 328254-00	£80.98	£97.18
42 - CLAMP BDE-326285-00.A0 326285-00	£1.66	£1.99
43 - BEARING BDE-570936-00.A3 570936-00	£11.18	£13.41
44 - SCREW BDE-330065-04.A13 330065-04	£1.66	£1.99
45 - GUIDE BDE-326606-00.A4 326606-00	£1.66	£1.99
47 - LOCKING RING BDE-326673-00.A13 326673-00	£3.39	£4.07
48 - COLLET & NUT SA GB 115V BDE-326286-01.A9 326286-01	£25.12	£30.15
48 - COLLET & NUT SA GB 240V BDE-326286-01.A10 326286-01	£25.12	£30.15
49 - DUST GUARD BDE-326273-00.A14 326273-00	£1.88	£2.26
50 - CAP 21 MM BDE-326599-00.A3 326599-00	£1.66	£1.99
51 - HANDLE RH BDE-326598-01.A12 326598-01	£1.88	£2.26
52 - SPRING BDE-328202-01.A31 328202-01	£3.92	£4.70
53 - LOCKING KNOB BDE-328202-01.A11 328202-01	£3.92	£4.70
54 - ACTUATOR BDE-328202-01.A19 328202-01	£3.92	£4.70
55 - LEVER BDE-326256-00.A4 326256-00	£1.66	£1.99
56 - NUT BDE-949726-05.A60 949726-05	£1.66	£1.99
57 - SCREW WING BDE-326573-01.A32 326573-01	£1.88	£2.26
58 - SPRING BDE-868082-00.A48 868082-00	£1.66	£1.99
59 - BASEPLATE SA BDE-328253-00.A12 328253-00	£90.46	£108.55
60 - SCREW BDE-326610-00.A3 326610-00	£1.66	£1.99
61 - WASHER SPRING BDE-327012-00.A9 327012-00	£1.66	£1.99
62 - SCREW BDE-868109-00.A5 868109-00	£1.66	£1.99
63 - SCREW BDE-942931-01.A39 942931-01	£1.66	£1.99
64 - SCREW.TEMP BDE-942931-02.A18 942931-02	£1.66	£1.99
65 - NUT BDE-860083-02.A63 860083-02	£1.66	£1.99
66 - TURRET BDE-N547463.A4 N547463	£4.83	£5.80
67 - BALL BDE-720664-00.A50 720664-00	£1.66	£1.99
68 - BASEPLATE BDE-326270-00.A0 326270-00	£19.48	£23.37
69 - CIRCLIP BDE-324821-00.A4 324821-00	£1.66	£1.99
70 - SCREW.TEMP BDE-945121-00.A21 945121-00	£1.66	£1.99
71 - GUIDE BDE-249090-00.A6 249090-00	£1.88	£2.26
72 - NO LONGER AVAILABLE BDE-000000-00.A50108 000000-00	-
73 - EXHAUST BDE-326274-00.A0 326274-00	-
74 - WASHER BDE-937883.A15 937883	-
75 - SCREW BDE-949886-30.A4 949886-30	-
76 - SCREW WING BDE-326573-02.A12 326573-02	£2.32	£2.78
77 - WASHER BDE-330016-02.A38 330016-02	£1.66	£1.99
78 - BRACKET BDE-326237-00.A2 326237-00	-
79 - SPRING BDE-323395-21.A3 323395-21	£1.66	£1.99
80 - INDEX BDE-942918-00.A28 942918-00	£1.66	£1.99
81 - ADJUSTER BDE-326239-00.A16 326239-00	£3.92	£4.70
82 - ROD BDE-868080-00.A34 868080-00	£2.87	£3.44
83 - SPANNER BDE-31351301.A20 31351301	£2.87	£3.44
84 - GUIDE BUSH BDE-326276-03.A17 326276-03	£12.53	£15.04
85 - SCREW BDE-911141.A14 911141	£1.66	£1.99
86 - CAPACITOR BDE-949877-01.A38 949877-01	£1.66	£1.99
88 - KNOB SA BDE-326300-00.A12 326300-00	£11.18	£13.41
89 - COVER BDE-326313-01.A12 326313-01	£12.53	£15.04
90 - SCREW BDE-911026.A10 911026	£1.66	£1.99
91 - SPRING BDE-323395-22.A12 323395-22	£1.66	£1.99
92 - O RING BDE-323711-26.A96 323711-26	£1.66	£1.99
93 - SPRING BDE-868082-00.A47 868082-00	£1.66	£1.99
94 - SCREW.TEMP BDE-945121-00.A22 945121-00	£1.66	£1.99
95 - SCREW BDE-911058.A7 911058	-
800 - GREASE 90 GMS BDE-870889-02.A228 870889-02	£8.08	£9.70
836 - S.T.WRENCH BDE-559582-99.A3 559582-99	£107.82	£129.39
837 - S.T.ASSEMBLY JIG BDE-559585-98.A16 559585-98	£76.38	£91.65
838 - PIN BDE-559585-99.A4 559585-99	£19.40	£23.28
