Elu OF97E Type 1 Router Spare Parts

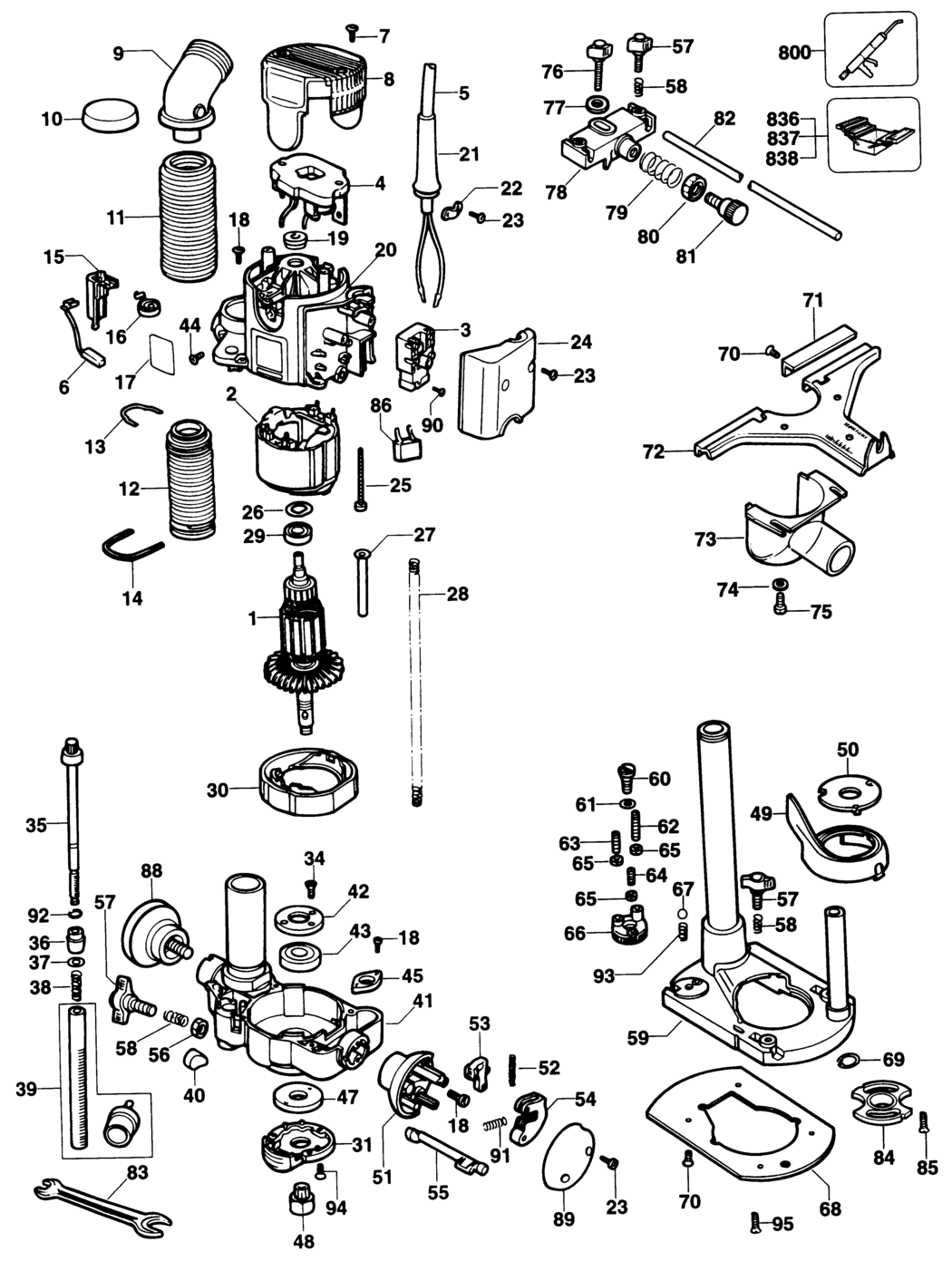

An exploded drawing and spare parts listing for the Elu OF97E Type 1 Router

	Ex VAT	Inc VAT
1 - MOTOR SA 230V GB 240V BDE-N030339.A6 N030339	£200.77	£240.92
1 - MOTOR SA 115V GB 115V BDE-N030341.A1 N030341	£135.36	£162.43
2 - FIELD 230V GB 240V BDE-327429-10.A41 327429-10	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A82637 000000-00	-
3 - SWITCH BDE-323132-00.A9 323132-00	£14.57	£17.48
4 - ELECTRONIC 230V GB 240V BDE-326297-00.A2 326297-00	£71.44	£85.73
4 - ELECTRONIC 115V GB 115V BDE-326297-01.A7 326297-01	£65.52	£78.62
5 - CORDSET (M/PLUG) GB 240V BDE-330060-44.A32 330060-44	£14.57	£17.48
5 - CORDSET (M/PLUG) GB 115V BDE-330061-04.A96 330061-04	£12.17	£14.60
6 - BRUSH 230V GB 240V BDE-580017-00.A5 580017-00	£5.88	£7.06
6 - BRUSH 115V GB 115V BDE-580017-01.A10 580017-01	£5.88	£7.06
7 - SCREW BDE-330065-13.A40 330065-13	£1.50	£1.80
8 - END CAP BDE-326259-01.A3 326259-01	£5.88	£7.06
9 - VACUUM ADAPTOR BDE-N434647.A10 N434647	£3.80	£4.56
10 - CAP BDE-326287-00.A5 326287-00	£1.50	£1.80
11 - BELLOWS BDE-326268-00.A5 326268-00	£16.03	£19.24
12 - SPRING SA BDE-326283-00.A1 326283-00	£14.57	£17.48
13 - CLIP BDE-326279-00.A13 326279-00	£1.50	£1.80
14 - CLIP BDE-326607-00.A5 326607-00	£3.80	£4.56
15 - HOLDER BDE-326933-01.A27 326933-01	£3.30	£3.96
16 - BRUSH SPRING BDE-326667-01.A5 326667-01	£1.50	£1.80
17 - NO LONGER AVAILABLE BDE-000000-00.A82638 000000-00	-
18 - SCREW BDE-324006-00.A138 324006-00	£1.50	£1.80
19 - MAGNET BDE-326251-00.A12 326251-00	£7.85	£9.42
20 - HOUSING MOTOR BDE-328252-01.A3 328252-01	£25.70	£30.84
21 - CORD PROTECTOR BDE-320785.A1154 320785	£1.50	£1.80
22 - CORD CLAMP BDE-821070.A367 821070	£1.50	£1.80
23 - SCREW BDE-330065-06.A175 330065-06	£1.50	£1.80
24 - NO LONGER AVAILABLE BDE-000000-00.A82639 000000-00	-
25 - SCREW BDE-330065-10.A37 330065-10	£1.50	£1.80
26 - WASHER SPRING BDE-326845-00.A8 326845-00	£1.50	£1.80
27 - GUIDE BDE-329016-00.A11 329016-00	£1.50	£1.80
28 - SPRING BDE-323395-13.A7 323395-13	£1.50	£1.80
29 - BEARING BDE-605040-63.A77 605040-63	£3.30	£3.96
30 - BAFFLE FAN BDE-326604-00.A5 326604-00	£3.80	£4.56
31 - SPINDLE LOCK BDE-326616-04.A14 326616-04	£14.57	£17.48
34 - SCREW.TEMP BDE-945121-00.A45 945121-00	£1.50	£1.80
35 - ADJUSTER BDE-326600-00.A7 326600-00	£4.69	£5.63
36 - SCALE BDE-326265-00.A11 326265-00	£3.30	£3.96
37 - WASHER BDE-321118.A8 321118	£1.50	£1.80
38 - SPRING BDE-323395-14.A8 323395-14	£1.50	£1.80
39 - ADJUSTER HEIGHT BDE-329023-49.A4 329023-49	£17.48	£20.97
40 - INSERT BDE-326602-00.A10 326602-00	£1.82	£2.19
41 - HOUSING LOWER BDE-328254-00.A8 328254-00	£80.98	£97.18
42 - CLAMP BDE-326285-00.A15 326285-00	£1.50	£1.80
43 - BEARING BDE-570936-00.A8 570936-00	£10.85	£13.02
44 - SCREW BDE-330065-04.A30 330065-04	£1.50	£1.80
45 - GUIDE BDE-326606-00.A10 326606-00	£1.50	£1.80
47 - LOCKING RING BDE-326673-00.A9 326673-00	£3.30	£3.96
48 - COLLET & NUT SA GB 115V BDE-326286-01.A56 326286-01	£24.39	£29.27
48 - COLLET & NUT SA GB 240V BDE-326286-01.A57 326286-01	£24.39	£29.27
49 - DUST GUARD BDE-326273-00.A5 326273-00	£1.82	£2.19
50 - CAP 21 MM BDE-326599-00.A14 326599-00	£1.50	£1.80
51 - HANDLE RH BDE-326598-01.A3 326598-01	£1.82	£2.19
52 - SPRING BDE-328202-01.A42 328202-01	£3.80	£4.56
53 - LOCKING KNOB BDE-328202-01.A5 328202-01	£3.80	£4.56
54 - ACTUATOR BDE-328202-01.A25 328202-01	£3.80	£4.56
55 - LEVER BDE-326256-00.A12 326256-00	£1.50	£1.80
56 - NUT BDE-949726-05.A18 949726-05	£1.50	£1.80
57 - SCREW WING BDE-326573-01.A104 326573-01	£1.82	£2.19
58 - SPRING BDE-868082-00.A177 868082-00	£1.50	£1.80
59 - BASEPLATE SA BDE-328253-00.A9 328253-00	£87.82	£105.39
60 - SCREW BDE-326610-00.A9 326610-00	£1.50	£1.80
61 - WASHER SPRING BDE-327012-00.A23 327012-00	£1.50	£1.80
62 - SCREW BDE-868109-00.A27 868109-00	£1.50	£1.80
63 - SCREW BDE-942931-01.A6 942931-01	£1.50	£1.80
64 - SCREW.TEMP BDE-942931-02.A48 942931-02	£1.50	£1.80
65 - NUT BDE-860083-02.A191 860083-02	£1.50	£1.80
66 - TURRET BDE-N547463.A12 N547463	£4.69	£5.63
67 - BALL BDE-720664-00.A1 720664-00	£1.50	£1.80
68 - BASEPLATE BDE-326270-00.A9 326270-00	£18.91	£22.69
69 - CIRCLIP BDE-324821-00.A10 324821-00	£1.50	£1.80
70 - SCREW.TEMP BDE-945121-00.A46 945121-00	£1.50	£1.80
71 - GUIDE BDE-249090-00.A27 249090-00	£1.82	£2.19
72 - NO LONGER AVAILABLE BDE-000000-00.A82640 000000-00	-
73 - EXHAUST BDE-326274-00.A8 326274-00	-
74 - WASHER BDE-937883.A9 937883	-
75 - SCREW BDE-949886-30.A7 949886-30	-
76 - SCREW WING BDE-326573-02.A1 326573-02	£2.26	£2.71
77 - WASHER BDE-330016-02.A8 330016-02	£1.50	£1.80
78 - BRACKET BDE-326237-00.A6 326237-00	-
79 - SPRING BDE-323395-21.A13 323395-21	£1.50	£1.80
80 - INDEX BDE-942918-00.A31 942918-00	£1.50	£1.80
81 - ADJUSTER BDE-326239-00.A5 326239-00	£3.80	£4.56
82 - ROD BDE-868080-00.A5 868080-00	£2.78	£3.34
83 - SPANNER BDE-31351301.A16 31351301	£2.78	£3.34
84 - GUIDE BUSH BDE-326276-03.A1 326276-03	£12.17	£14.60
85 - SCREW BDE-911141.A1 911141	£1.50	£1.80
86 - CAPACITOR BDE-949877-01.A233 949877-01	£1.50	£1.80
88 - KNOB SA BDE-326300-00.A5 326300-00	£10.85	£13.02
89 - COVER BDE-326313-01.A6 326313-01	£12.17	£14.60
90 - SCREW BDE-911026.A275 911026	£1.50	£1.80
91 - SPRING BDE-323395-22.A4 323395-22	£1.50	£1.80
92 - O RING BDE-323711-26.A28 323711-26	£1.50	£1.80
93 - SPRING BDE-868082-00.A176 868082-00	£1.50	£1.80
94 - SCREW.TEMP BDE-945121-00.A47 945121-00	£1.50	£1.80
95 - SCREW BDE-911058.A1 911058	-
800 - GREASE 90 GMS BDE-870889-02.A433 870889-02	£7.85	£9.42
836 - S.T.WRENCH BDE-559582-99.A7 559582-99	£107.82	£129.39
837 - S.T.ASSEMBLY JIG BDE-559585-98.A7 559585-98	£74.15	£88.98
838 - PIN BDE-559585-99.A12 559585-99	£19.40	£23.28
