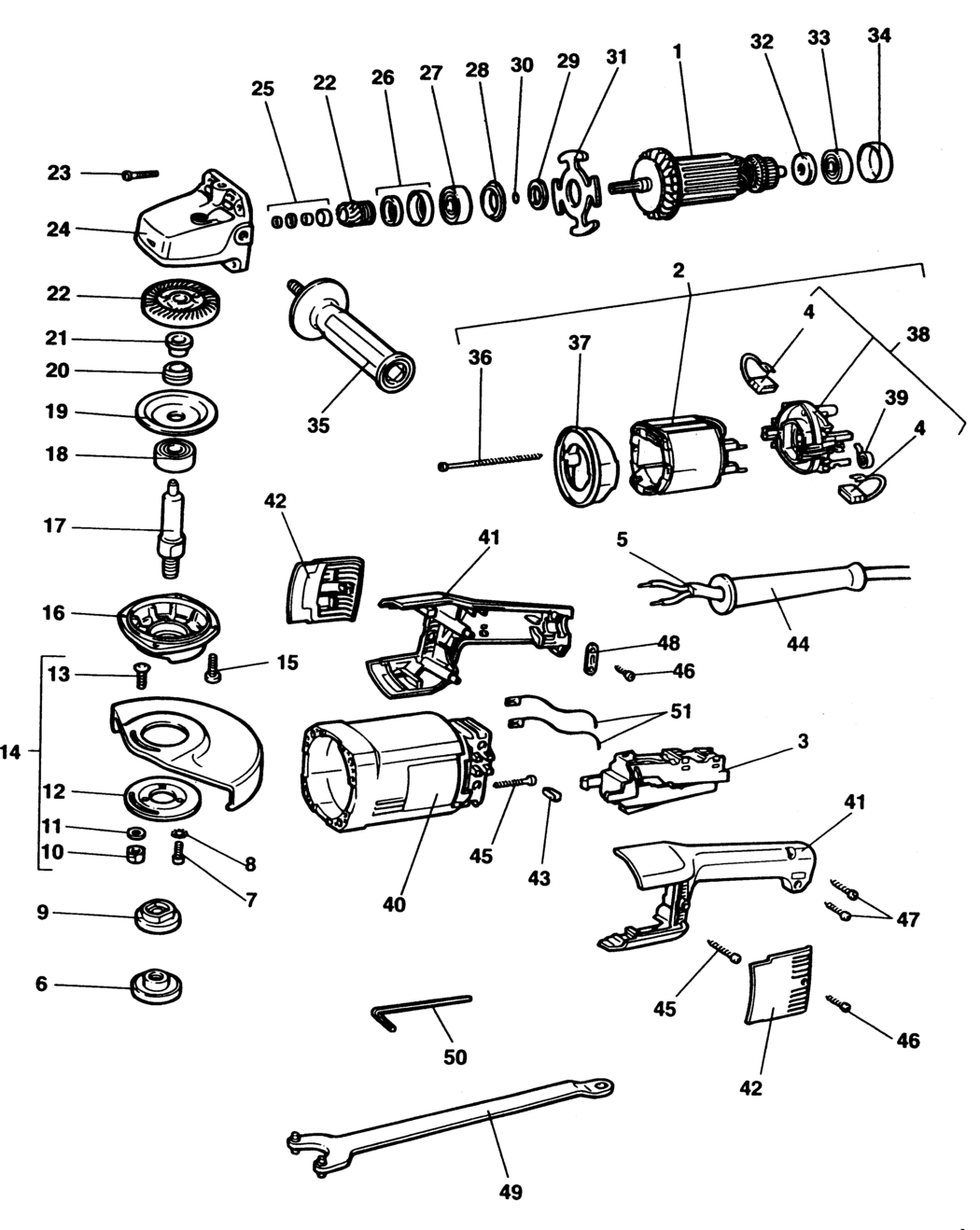

1 - NO LONGER AVAILABLE GB 240v
BDE-000000-00.A49522
000000-00
|
-
|
|
|
|
1 - NO LONGER AVAILABLE GB 115v
BDE-000000-00.A49523
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE GB 240v
BDE-000000-00.A49524
000000-00
|
-
|
|
|
|
2 - NO LONGER AVAILABLE GB 115v
BDE-000000-00.A49525
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE GB 115v
BDE-000000-00.A49526
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE GB 240v
BDE-000000-00.A49527
000000-00
|
-
|
|
|
|
4 - BRUSH CUT OFF 115V GB 115v
BDE-940160-02.A18
940160-02
|
-
|
|
|
|
4 - BRUSH CUT OFF 230V GB 240v
BDE-940160-03.A62
940160-03
|
£15.01
|
£18.01
|
|
|
5 - NO LONGER AVAILABLE GB 240v
BDE-000000-00.A49529
000000-00
|
-
|
|
|
|
5 - NO LONGER AVAILABLE GB 115v
BDE-000000-00.A49530
000000-00
|
-
|
|
|
|
6 - FLANGE
BDE-931771.A63
931771
|
£11.18
|
£13.41
|
|
|
7 - SCREW
BDE-933058-00.A37
933058-00
|
£1.66
|
£1.99
|
|
|
8 - WASHER
BDE-932369.A13
932369
|
-
|
|
|
|
9 - FLANGE
BDE-930927.A53
930927
|
-
|
|
|
|
10 - NUT
BDE-860083-03.A356
860083-03
|
£1.66
|
£1.99
|
|
|
11 - WASHER
BDE-930925.A78
930925
|
-
|
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A49531
000000-00
|
-
|
|
|
|
13 - SCREW
BDE-949892-07.A58
949892-07
|
£1.66
|
£1.99
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A49532
000000-00
|
-
|
|
|
|
15 - SCREW
BDE-949887-01.A61
949887-01
|
£1.66
|
£1.99
|
|
|
16 - GEARCASE COVER
BDE-947962-00.A30
947962-00
|
-
|
|
|
|
17 - SPINDLE
BDE-578243-00.A18
578243-00
|
£19.40
|
£23.28
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A49533
000000-00
|
-
|
|
|
|
19 - FLANGE
BDE-930924.A49
930924
|
-
|
|
|
|
20 - SEAL
BDE-930923.A50
930923
|
-
|
|
|
|
21 - SPACER
BDE-930922.A57
930922
|
£1.66
|
£1.99
|
|
|
22 - GEAR & PINION SA
BDE-932522.A28
932522
|
-
|
|
|
|
23 - NO LONGER AVAILABLE
BDE-000000-00.A49534
000000-00
|
-
|
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A49535
000000-00
|
-
|
|
|
|
25 - CLIP SA
BDE-937098-49.A51
937098-49
|
-
|
|
|
|
26 - SEAL SA
BDE-930909.A66
930909
|
-
|
|
|
|
27 - BEARING
BDE-330003-14.A78
330003-14
|
£8.08
|
£9.70
|
|
|
28 - SEAL SA
BDE-931067-00.A24
931067-00
|
£1.66
|
£1.99
|
|
|
29 - SPACER
BDE-931062.A133
931062
|
£1.66
|
£1.99
|
|
|
30 - O RING
BDE-930028-00.A191
930028-00
|
£1.66
|
£1.99
|
|
|
31 - FLANGE
BDE-931066-00.A133
931066-00
|
£1.82
|
£2.19
|
|
|
32 - SPACER
BDE-N174055.A127
N174055
|
£1.66
|
£1.99
|
|
|
33 - BEARING
BDE-577745-00.A161
577745-00
|
£8.08
|
£9.70
|
|
|
34 - SLEEVE
BDE-938332-00.A30
938332-00
|
£1.66
|
£1.99
|
|
|
35 - HANDLE SIDE SA
BDE-933499.A48
933499
|
-
|
|
|
|
36 - SCREW
BDE-931072.A70
931072
|
-
|
|
|
|
37 - BAFFLE
BDE-931073-00.A9
931073-00
|
£1.66
|
£1.99
|
|
|
38 - NO LONGER AVAILABLE GB 240v
BDE-000000-00.A49536
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE GB 115v
BDE-000000-00.A49537
000000-00
|
-
|
|
|
|
39 - SPRING
BDE-931076-00.A79
931076-00
|
£1.66
|
£1.99
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A49538
000000-00
|
-
|
|
|
|
41 - HANDLE & COVER
BDE-N097875.A44
N097875
|
-
|
|
|
|
42 - NO LONGER AVAILABLE
BDE-000000-00.A49539
000000-00
|
-
|
|
|
|
43 - SHOCK ABSORBER
BDE-930934-00.A59
930934-00
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR GB 115v
BDE-947964-00.A23
947964-00
|
£11.18
|
£13.41
|
|
|
44 - CORD PROTECTOR GB 240v
BDE-947964-01.A61
947964-01
|
£3.92
|
£4.70
|
|
|
45 - SCREW
BDE-931297-00.A253
931297-00
|
£1.66
|
£1.99
|
|
|
46 - SCREW
BDE-931469-02.A136
931469-02
|
£1.66
|
£1.99
|
|
|
47 - SCREW
BDE-930284-01.A10
930284-01
|
£1.66
|
£1.99
|
|
|
48 - CORD CLAMP
BDE-931477-00.A47
931477-00
|
£1.66
|
£1.99
|
|
|
49 - WRENCH PIN
BDE-938733.A25
938733
|
£7.40
|
£8.88
|
|
|
50 - WRENCH
BDE-807043.A88
807043
|
£1.66
|
£1.99
|
|
|
51 - NO LONGER AVAILABLE
BDE-000000-00.A49540
000000-00
|
-
|
|
|
