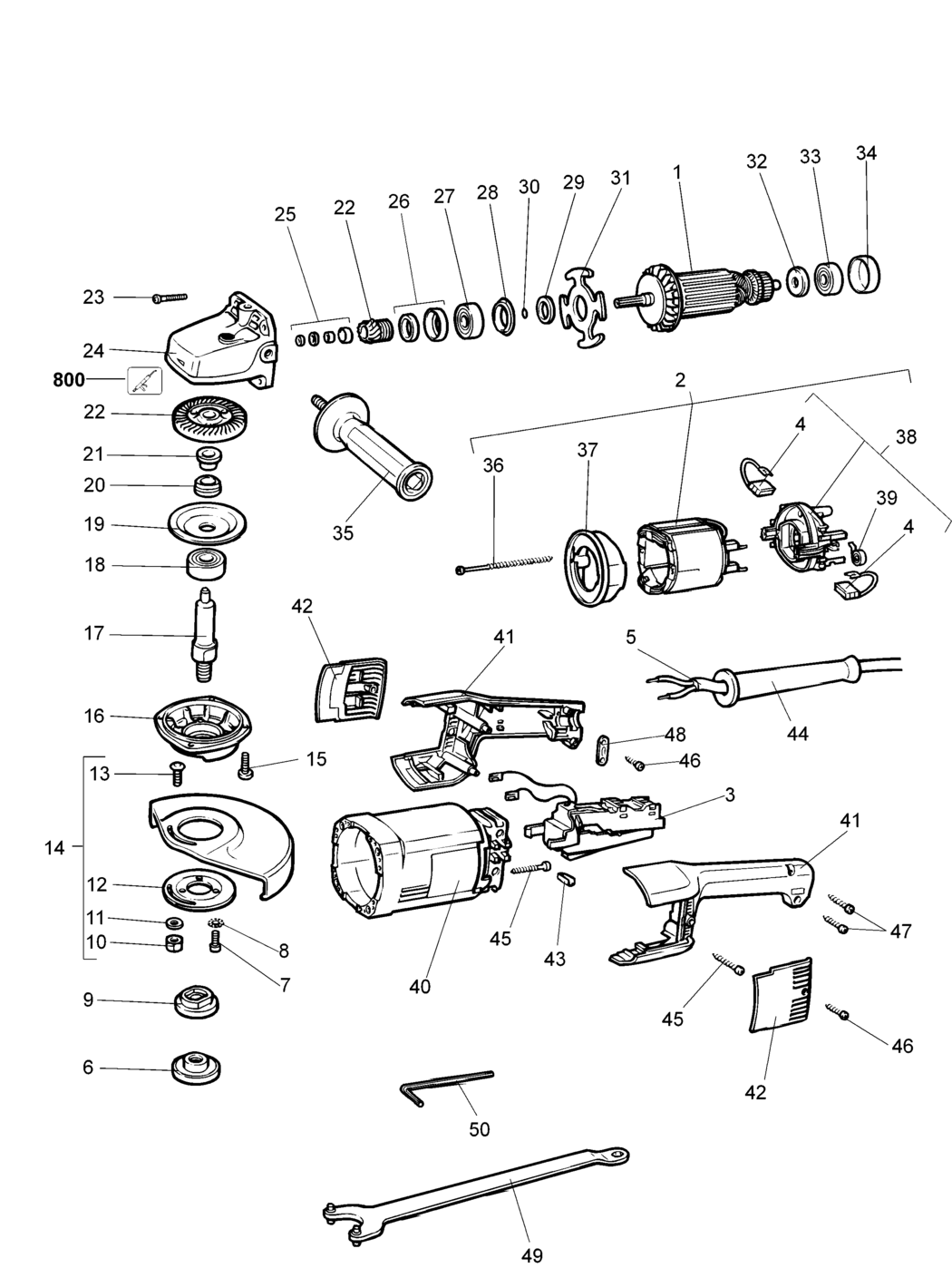

1 - ARMATURE 230V
BDE-574370-08.A11
574370-08
|
-
|
|
|
|
2 - NO LONGER AVAILABLE
BDE-000000-00.A16503
000000-00
|
-
|
|
|
|
3 - NO LONGER AVAILABLE
BDE-000000-00.A16504
000000-00
|
-
|
|
|
|
4 - BRUSH 230V
BDE-403485-03.A3
403485-03
|
£10.85
|
£13.02
|
|
|
5 - CABLE
BDE-330080-53.A1
330080-53
|
£9.17
|
£11.00
|
|
|
6 - FLANGE
BDE-931771.A29
931771
|
£10.85
|
£13.02
|
|
|
7 - SCREW
BDE-933058-00.A73
933058-00
|
£1.66
|
£1.99
|
|
|
8 - WASHER
BDE-932369.A42
932369
|
-
|
|
|
|
9 - FLANGE
BDE-930927.A24
930927
|
-
|
|
|
|
10 - NUT
BDE-860083-03.A281
860083-03
|
£1.66
|
£1.99
|
|
|
11 - WASHER
BDE-930925.A113
930925
|
-
|
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A16505
000000-00
|
-
|
|
|
|
13 - SCREW
BDE-949892-07.A7
949892-07
|
£1.66
|
£1.99
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A16506
000000-00
|
-
|
|
|
|
15 - SCREW
BDE-949887-01.A88
949887-01
|
£1.66
|
£1.99
|
|
|
16 - GEARCASE COVER
BDE-947962-00.A4
947962-00
|
-
|
|
|
|
17 - SPINDLE
BDE-578243-00.A44
578243-00
|
£19.40
|
£23.28
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A16507
000000-00
|
-
|
|
|
|
19 - FLANGE
BDE-930924.A16
930924
|
-
|
|
|
|
20 - SEAL
BDE-930923.A84
930923
|
-
|
|
|
|
21 - SPACER
BDE-930922.A23
930922
|
£1.66
|
£1.99
|
|
|
22 - GEAR & PINION SA
BDE-932522.A11
932522
|
-
|
|
|
|
23 - NO LONGER AVAILABLE
BDE-000000-00.A16508
000000-00
|
-
|
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A16509
000000-00
|
-
|
|
|
|
25 - CLIP SA
BDE-937098-49.A23
937098-49
|
-
|
|
|
|
26 - SEAL SA
BDE-930909.A99
930909
|
-
|
|
|
|
27 - BEARING
BDE-330003-14.A125
330003-14
|
£7.85
|
£9.42
|
|
|
28 - SEAL SA
BDE-931067-00.A59
931067-00
|
£1.66
|
£1.99
|
|
|
29 - SPACER
BDE-931062.A100
931062
|
£1.66
|
£1.99
|
|
|
30 - O RING
BDE-930028-00.A233
930028-00
|
£1.66
|
£1.99
|
|
|
31 - FLANGE
BDE-931066-00.A97
931066-00
|
£1.82
|
£2.19
|
|
|
32 - SPACER
BDE-N174055.A65
N174055
|
£1.66
|
£1.99
|
|
|
33 - BEARING
BDE-577745-00.A276
577745-00
|
£7.85
|
£9.42
|
|
|
34 - SLEEVE
BDE-938332-00.A48
938332-00
|
£1.66
|
£1.99
|
|
|
35 - HANDLE SIDE SA
BDE-933499.A80
933499
|
-
|
|
|
|
36 - SCREW
BDE-931072.A49
931072
|
-
|
|
|
|
37 - NO LONGER AVAILABLE
BDE-000000-00.A16510
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE
BDE-000000-00.A16511
000000-00
|
-
|
|
|
|
39 - NO LONGER AVAILABLE
BDE-000000-00.A16512
000000-00
|
-
|
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A16513
000000-00
|
-
|
|
|
|
41 - HANDLE & COVER
BDE-N097875.A49
N097875
|
-
|
|
|
|
42 - NO LONGER AVAILABLE
BDE-000000-00.A16514
000000-00
|
-
|
|
|
|
43 - SHOCK ABSORBER
BDE-930934-00.A92
930934-00
|
£1.66
|
£1.99
|
|
|
44 - CORD PROTECTOR
BDE-947964-01.A3
947964-01
|
£3.80
|
£4.56
|
|
|
45 - SCREW
BDE-931297-00.A160
931297-00
|
£1.66
|
£1.99
|
|
|
46 - SCREW
BDE-931469-02.A172
931469-02
|
£1.66
|
£1.99
|
|
|
47 - SCREW
BDE-930284-01.A114
930284-01
|
£1.66
|
£1.99
|
|
|
48 - CORD CLAMP
BDE-931477-00.A48
931477-00
|
£1.66
|
£1.99
|
|
|
49 - WRENCH PIN
BDE-938733.A26
938733
|
£7.18
|
£8.62
|
|
|
50 - WRENCH
BDE-807043.A87
807043
|
£1.66
|
£1.99
|
|
|
800 - GREASE 100 GMS
BDE-575762-02.A52
575762-02
|
£7.85
|
£9.42
|
|
