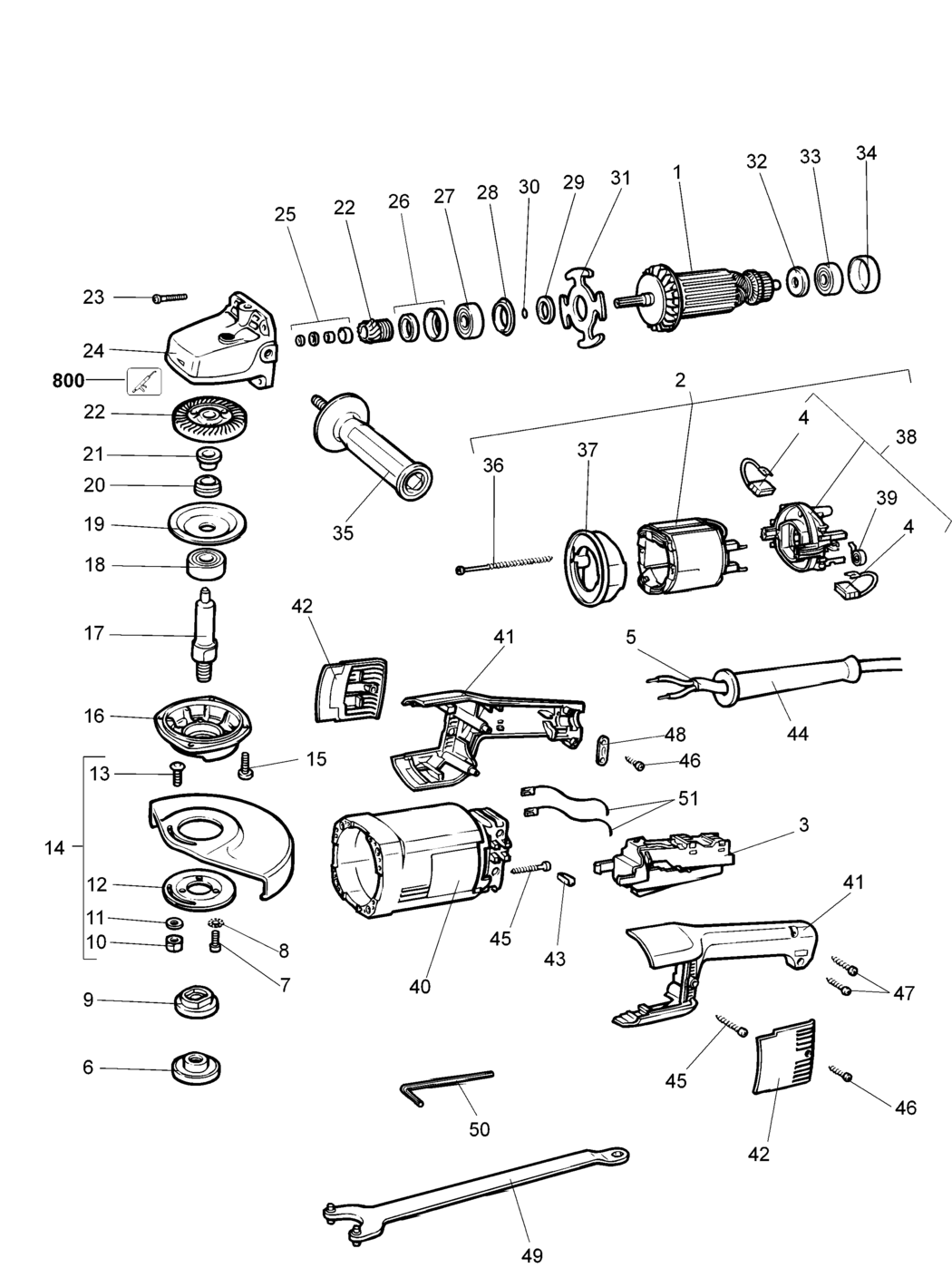

1 - ARMATURE 230V
BDE-574370-08.A3
574370-08
|
-
|
|
|
|
2 - NO LONGER AVAILABLE
BDE-000000-00.A81920
000000-00
|
-
|
|
|
|
3 - SWITCH LOCK-ON
BDE-949825-04.A10
949825-04
|
£40.21
|
£48.25
|
|
|
4 - BRUSH 230V
BDE-403485-03.A19
403485-03
|
£10.85
|
£13.02
|
|
|
5 - CABLE
BDE-330080-53.A12
330080-53
|
£9.17
|
£11.00
|
|
|
6 - FLANGE
BDE-931771.A78
931771
|
£10.85
|
£13.02
|
|
|
7 - SCREW
BDE-933058-00.A7
933058-00
|
£1.42
|
£1.70
|
|
|
8 - WASHER
BDE-932369.A65
932369
|
-
|
|
|
|
9 - FLANGE
BDE-930927.A73
930927
|
-
|
|
|
|
10 - NUT
BDE-860083-03.A129
860083-03
|
£1.50
|
£1.80
|
|
|
11 - WASHER
BDE-930925.A51
930925
|
-
|
|
|
|
12 - NO LONGER AVAILABLE
BDE-000000-00.A81921
000000-00
|
-
|
|
|
|
13 - SCREW
BDE-949892-07.A107
949892-07
|
£1.42
|
£1.70
|
|
|
14 - NO LONGER AVAILABLE
BDE-000000-00.A81922
000000-00
|
-
|
|
|
|
15 - SCREW
BDE-949887-01.A36
949887-01
|
£1.42
|
£1.70
|
|
|
16 - GEARCASE COVER
BDE-947962-00.A88
947962-00
|
-
|
|
|
|
17 - SPINDLE
BDE-578243-00.A111
578243-00
|
£19.40
|
£23.28
|
|
|
18 - NO LONGER AVAILABLE
BDE-000000-00.A81923
000000-00
|
-
|
|
|
|
19 - FLANGE
BDE-930924.A64
930924
|
-
|
|
|
|
20 - SEAL
BDE-930923.A91
930923
|
-
|
|
|
|
21 - SPACER
BDE-930922.A16
930922
|
£1.42
|
£1.70
|
|
|
22 - GEAR & PINION SA
BDE-932522.A16
932522
|
-
|
|
|
|
23 - NO LONGER AVAILABLE
BDE-000000-00.A16390
000000-00
|
-
|
|
|
|
24 - NO LONGER AVAILABLE
BDE-000000-00.A16391
000000-00
|
-
|
|
|
|
25 - CLIP SA
BDE-937098-49.A26
937098-49
|
-
|
|
|
|
26 - SEAL SA
BDE-930909.A106
930909
|
-
|
|
|
|
27 - BEARING
BDE-330003-14.A120
330003-14
|
£7.85
|
£9.42
|
|
|
28 - SEAL SA
BDE-931067-00.A52
931067-00
|
£1.50
|
£1.80
|
|
|
29 - SPACER
BDE-931062.A93
931062
|
£1.50
|
£1.80
|
|
|
30 - O RING
BDE-930028-00.A238
930028-00
|
£1.50
|
£1.80
|
|
|
31 - FLANGE
BDE-931066-00.A104
931066-00
|
£1.82
|
£2.19
|
|
|
32 - SPACER
BDE-N174055.A57
N174055
|
£1.50
|
£1.80
|
|
|
33 - BEARING
BDE-577745-00.A287
577745-00
|
£7.85
|
£9.42
|
|
|
34 - SLEEVE
BDE-938332-00.A45
938332-00
|
£1.50
|
£1.80
|
|
|
35 - HANDLE SIDE SA
BDE-933499.A78
933499
|
-
|
|
|
|
36 - SCREW
BDE-931072.A54
931072
|
-
|
|
|
|
37 - NO LONGER AVAILABLE
BDE-000000-00.A16392
000000-00
|
-
|
|
|
|
38 - NO LONGER AVAILABLE
BDE-000000-00.A16393
000000-00
|
-
|
|
|
|
39 - NO LONGER AVAILABLE
BDE-000000-00.A16394
000000-00
|
-
|
|
|
|
40 - NO LONGER AVAILABLE
BDE-000000-00.A16395
000000-00
|
-
|
|
|
|
41 - HANDLE & COVER
BDE-N097875.A53
N097875
|
-
|
|
|
|
42 - NO LONGER AVAILABLE
BDE-000000-00.A16396
000000-00
|
-
|
|
|
|
43 - SHOCK ABSORBER
BDE-930934-00.A99
930934-00
|
£1.50
|
£1.80
|
|
|
44 - CORD PROTECTOR
BDE-947964-01.A10
947964-01
|
£3.80
|
£4.56
|
|
|
45 - SCREW
BDE-931297-00.A153
931297-00
|
£1.50
|
£1.80
|
|
|
46 - SCREW
BDE-931469-02.A179
931469-02
|
£1.50
|
£1.80
|
|
|
47 - SCREW
BDE-930284-01.A107
930284-01
|
£1.50
|
£1.80
|
|
|
48 - CORD CLAMP
BDE-931477-00.A4
931477-00
|
£1.50
|
£1.80
|
|
|
49 - WRENCH PIN
BDE-938733.A52
938733
|
£7.18
|
£8.62
|
|
|
50 - WRENCH
BDE-807043.A115
807043
|
£1.50
|
£1.80
|
|
|
51 - NO LONGER AVAILABLE
BDE-000000-00.A16405
000000-00
|
-
|
|
|
|
800 - GREASE 100 GMS
BDE-575762-02.A29
575762-02
|
£7.85
|
£9.42
|
|
