Elu WS20180A Type 1 Angle Grinder Spare Parts

Home Details Reviews Delivery

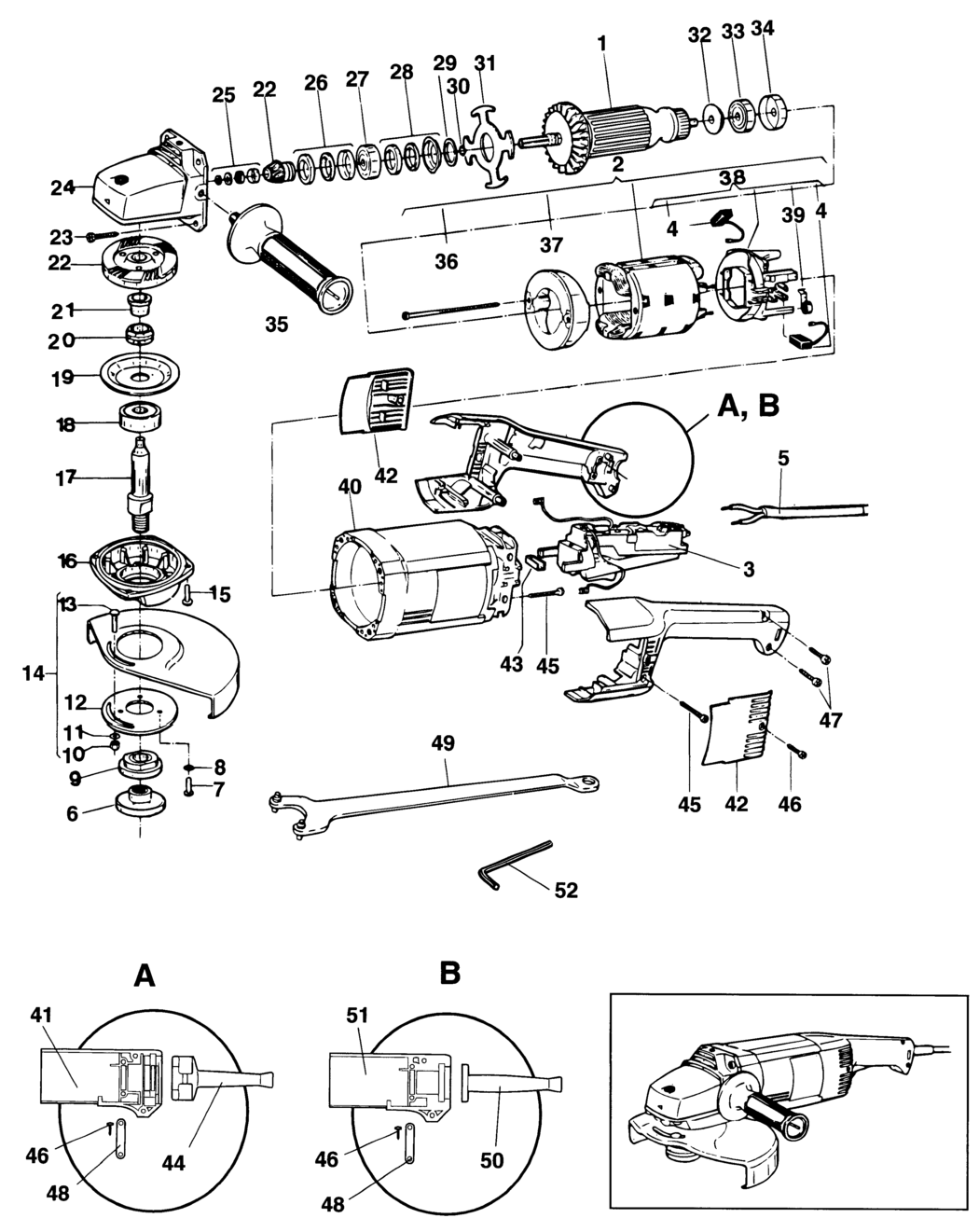

An exploded drawing and spare parts listing for the Elu WS20180A Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A81783 000000-00	-
2 - FIELD BDE-940480-49.A30 940480-49	£96.96	£116.35
4 - BRUSH CUT OFF 230V BDE-940160-03.A4 940160-03	£15.01	£18.01
6 - FLANGE BDE-931771.A77 931771	£11.18	£13.41
7 - SCREW BDE-869076-00.A41 869076-00	£1.66	£1.99
8 - WASHER BDE-932369.A58 932369	-
9 - FLANGE BDE-930927.A80 930927	-
10 - NUT BDE-860083-03.A150 860083-03	£1.66	£1.99
11 - WASHER BDE-930925.A44 930925	-
12 - NO LONGER AVAILABLE BDE-000000-00.A81784 000000-00	-
13 - SCREW BDE-949892-07.A114 949892-07	£1.66	£1.99
14 - GUARD 7" BDE-932525-02.A14 932525-02	-
15 - SCREW BDE-949887-01.A38 949887-01	£1.66	£1.99
16 - GEARCASE COVER BDE-947962-00.A81 947962-00	-
17 - SPINDLE BDE-578243-00.A109 578243-00	£19.40	£23.28
18 - NO LONGER AVAILABLE BDE-000000-00.A81785 000000-00	-
19 - FLANGE BDE-930924.A70 930924	-
20 - SEAL BDE-930923.A30 930923	-
21 - SPACER BDE-930922.A79 930922	£1.66	£1.99
22 - NO LONGER AVAILABLE BDE-000000-00.A81786 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A81787 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A81788 000000-00	-
25 - CLIP SA BDE-937098-49.A90 937098-49	-
26 - SEAL SA BDE-930909.A38 930909	-
27 - BEARING BDE-330003-14.A39 330003-14	£8.08	£9.70
28 - SEAL SA BDE-931067-00.A105 931067-00	£1.66	£1.99
29 - SPACER BDE-931062.A46 931062	£1.66	£1.99
30 - O RING BDE-930028-00.A110 930028-00	£1.66	£1.99
31 - FLANGE BDE-931066-00.A51 931066-00	£1.82	£2.19
32 - SPACER BDE-N174055.A6 N174055	£1.66	£1.99
33 - BEARING BDE-577745-00.A246 577745-00	£8.08	£9.70
34 - SLEEVE BDE-938332-00.A100 938332-00	£1.66	£1.99
35 - HANDLE SIDE SA BDE-933499.A0 933499	-
36 - SCREW BDE-931072.A27 931072	-
37 - BAFFLE BDE-931073-00.A71 931073-00	£1.66	£1.99
38 - NO LONGER AVAILABLE BDE-000000-00.A81789 000000-00	-
39 - SPRING BDE-931076-00.A31 931076-00	£1.66	£1.99
40 - NO LONGER AVAILABLE BDE-000000-00.A81790 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A81791 000000-00	-
42 - COVER BDE-933364-02.A82 933364-02	£1.66	£1.99
43 - SHOCK ABSORBER BDE-930934-00.A36 930934-00	£1.66	£1.99
44 - CORD PROTECTOR BDE-930981-00.A22 930981-00	£1.66	£1.99
45 - SCREW BDE-931297-00.A109 931297-00	£1.66	£1.99
46 - SCREW BDE-931469-02.A12 931469-02	£1.66	£1.99
47 - SCREW BDE-930284-01.A193 930284-01	£1.66	£1.99
48 - CORD CLAMP BDE-931477-00.A123 931477-00	£1.66	£1.99
49 - WRENCH PIN BDE-938733.A122 938733	£7.40	£8.88
50 - CORD PROTECTOR BDE-947964-01.A129 947964-01	£3.92	£4.70
51 - NO LONGER AVAILABLE BDE-000000-00.A81792 000000-00	-
52 - WRENCH BDE-807043.A25 807043	£1.66	£1.99

Attribute Name	Value
Brand	Elu
