Elu TGS173 Type 5 Combination Saw Spare Parts

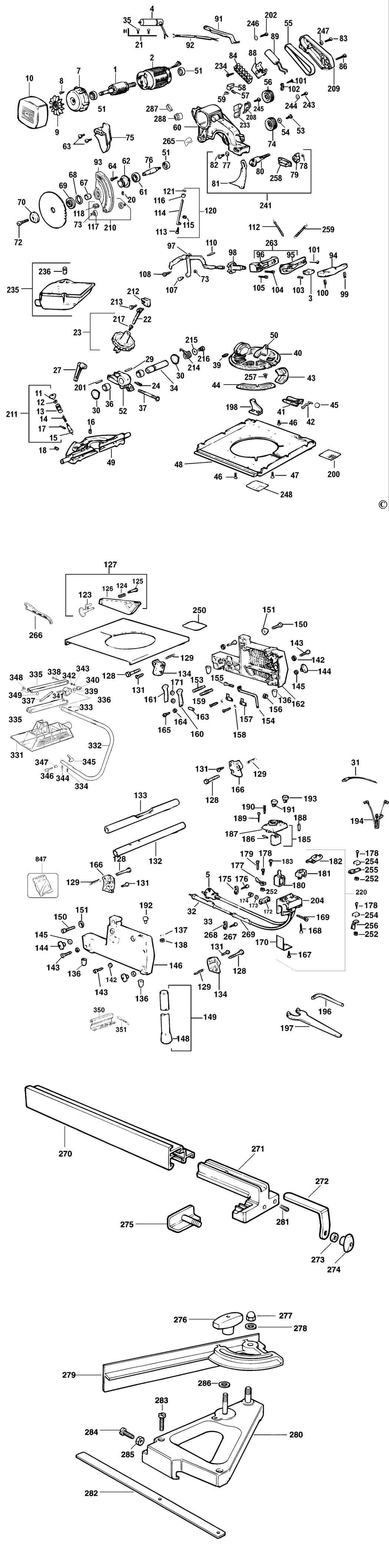

An exploded drawing and spare parts listing for the Elu TGS173 Type 5 Combination Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A22078 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A22079 000000-00	-
2 - STATOR 230V GB 240V BDE-868395-00.A5 868395-00	£174.63	£209.56
3 - SWITCH BDE-864720-05.A18 864720-05	-
4 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A22080 000000-00	-
5 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A22081 000000-00	-
5 - CORDSET (M/PLUG) GB GB 240V BDE-868551-01.A10 868551-01	£24.39	£29.27
7 - END CAP BDE-861085-04.A10 861085-04	£23.75	£28.50
8 - NO LONGER AVAILABLE BDE-000000-00.A22082 000000-00	-
9 - FAN BDE-942413-02.A25 942413-02	£4.69	£5.63
10 - END CAP BDE-861036-02.A21 861036-02	£10.85	£13.02
11 - KNOB BDE-942453-00.A36 942453-00	£3.80	£4.56
12 - NUT BDE-949726-05.A72 949726-05	£1.50	£1.80
13 - BARREL BDE-861069-00.A10 861069-00	£17.48	£20.97
14 - SPRING BDE-761054-00.A70 761054-00	£1.50	£1.80
15 - LOCKING PIN BDE-941798-00.A3 941798-00	£3.30	£3.96
16 - SCREW BDE-942329-00.A31 942329-00	£1.50	£1.80
17 - PIN BDE-761065-00.A8 761065-00	£1.50	£1.80
18 - SCREW BDE-941880-00.A76 941880-00	£1.50	£1.80
20 - PIN BDE-941549-00.A17 941549-00	-
21 - BRACKET GB 115V BDE-942885-00.A0 942885-00	£9.17	£11.00
22 - SPINDLE BDE-942363-00.A12 942363-00	£34.00	£40.80
23 - WHEEL BDE-861060-01.A10 861060-01	-
24 - SCREW BDE-860088-23.A20 860088-23	-
27 - LEVER BDE-949884-01.A13 949884-01	£5.88	£7.06
29 - NO LONGER AVAILABLE BDE-000000-00.A22083 000000-00	-
30 - WASHER LOCK BDE-941800-00.A25 941800-00	-
31 - NO LONGER AVAILABLE BDE-000000-00.A22084 000000-00	-
32 - PROTECTOR BDE-942277-00.A30 942277-00	£1.66	£1.99
33 - CABLE BDE-946845-00.A2 946845-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A22085 000000-00	-
35 - SCREW GB 115V BDE-760299-00.A18 760299-00	-
36 - BUSH BDE-941886-00.A0 941886-00	-
37 - SCREW BDE-860085-32.A1 860085-32	£4.69	£5.63
39 - SCREW BDE-949743-01.A29 949743-01	£1.50	£1.80
40 - ROTARY TABLE BDE-869230-01.A6 869230-01	-
41 - PLATE BDE-942364-00.A10 942364-00	-
42 - LOCKING PIN BDE-942234-00.A27 942234-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A22086 000000-00	-
44 - SCALE LH BDE-861065-00.A6 861065-00	-
45 - KNOB BDE-942450-00.A1 942450-00	£1.42	£1.70
46 - SCREW BDE-868256-00.A1 868256-00	£1.50	£1.80
47 - SCREW BDE-942272-00.A13 942272-00	-
48 - FIXED TABLE BDE-861062-00.A5 861062-00	-
49 - BACK FENCE BDE-868285-02.A12 868285-02	-
50 - CLAMP BDE-942400-01.A2 942400-01	-
51 - BEARING BDE-930563-00.A28 930563-00	£10.85	£13.02
52 - NO LONGER AVAILABLE BDE-000000-00.A22087 000000-00	-
53 - SCREW BDE-860085-28.A4 860085-28	£1.50	£1.80
54 - WASHER BDE-861983-01.A12 861983-01	£1.50	£1.80
55 - BELT BDE-861038-00.A13 861038-00	£10.85	£13.02
56 - PULLEY BDE-861040-00.A3 861040-00	-
57 - PIN BDE-760233-00.A7 760233-00	£1.50	£1.80
58 - KNOB BDE-941807-00.A0 941807-00	£1.78	£2.13
59 - SPRING BDE-860491-01.A15 860491-01	£1.50	£1.80
60 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A22088 000000-00	-
60 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A22089 000000-00	-
61 - BEARING BDE-860155-08.A23 860155-08	£7.85	£9.42
62 - FLANGE BDE-861055-01.A7 861055-01	£4.58	£5.49
63 - SCREW BDE-860084-11.A65 860084-11	£1.50	£1.80
64 - SCREW.TEMP BDE-860094-00.A49 860094-00	£1.50	£1.80
67 - BUSH BDE-942490-00.A30 942490-00	-
68 - CIRCLIP BDE-860079-05.A15 860079-05	£1.50	£1.80
69 - FLANGE SET SA BDE-868571-00.A54 868571-00	£34.00	£40.80
70 - FLANGE SET SA BDE-868571-00.A55 868571-00	£34.00	£40.80
72 - SCREW BDE-761295-00.A0 761295-00	-
73 - CIRCLIP SA BDE-861705-00.A2 861705-00	£16.03	£19.24
74 - PULLEY BDE-861039-01.A10 861039-01	-
75 - GUARD REAR BDE-942394-05.A1 942394-05	-
76 - SPINDLE BDE-942500-00.A19 942500-00	£24.39	£29.27
77 - WASHER BDE-941602-00.A163 941602-00	£1.50	£1.80
78 - CIRCLIP BDE-860322-00.A8 860322-00	£1.50	£1.80
79 - KNOB BDE-942263-01.A5 942263-01	£11.87	£14.24
80 - HOLDER BDE-945767-02.A8 945767-02	-
81 - RIVING KNIFE GB 240V BDE-945739-02.A10 945739-02	-
81 - RIVING KNIFE GB 115V BDE-945739-02.A11 945739-02	-
82 - SCREW BDE-949886-16.A24 949886-16	£1.50	£1.80
83 - SCREW BDE-860089-18.A89 860089-18	£1.50	£1.80
84 - TERMINAL BLOCK BDE-942508-00.A1 942508-00	£7.18	£8.62
86 - SCREW BDE-860089-13.A3 860089-13	£1.42	£1.70
88 - NO LONGER AVAILABLE BDE-000000-00.A22090 000000-00	-
89 - CAPACITOR GB 240V BDE-949772-43.A12 949772-43	£10.85	£13.02
91 - COVER BDE-942485-00.A2 942485-00	£3.80	£4.56
92 - LEAD SA GB 240V BDE-942467-00.A5 942467-00	-
92 - LEAD SA GB 115V BDE-942467-00.A6 942467-00	-
93 - GUARD SA BDE-861704-02.A12 861704-02	-
94 - NO LONGER AVAILABLE BDE-000000-00.A22091 000000-00	-
95 - HANDLE HALF BDE-942482-01.A9 942482-01	£10.85	£13.02
96 - HANDLE BDE-942498-01.A7 942498-01	-
97 - LEVER SA BDE-942108-02.A3 942108-02	-
98 - SEAL BDE-946646-00.A7 946646-00	-
99 - PIN BDE-949734-09.A3 949734-09	-
100 - PIN BDE-760233-00.A6 760233-00	£1.50	£1.80
101 - SCREW BDE-860084-13.A34 860084-13	-
102 - CABLE CLAMP BDE-941544-00.A4 941544-00	-
103 - SCREW BDE-861378-00.A2 861378-00	£1.42	£1.70
104 - SCREW BDE-860089-21.A0 860089-21	£1.42	£1.70
105 - SCREW BDE-860089-14.A10 860089-14	£1.42	£1.70
107 - PIN BDE-942493-00.A3 942493-00	£1.42	£1.70
108 - SCREW BDE-861054-01.A5 861054-01	-
110 - PIN BDE-942182-00.A9 942182-00	£10.57	£12.68
112 - NO LONGER AVAILABLE BDE-000000-00.A22092 000000-00	-
113 - SCREW BDE-860085-17.A34 860085-17	-
114 - NO LONGER AVAILABLE BDE-000000-00.A22093 000000-00	-
115 - NUT M6 BDE-860083-12.A15 860083-12	£1.50	£1.80
116 - NO LONGER AVAILABLE BDE-000000-00.A22094 000000-00	-
117 - ROLLER BDE-861096-01.A1 861096-01	£12.17	£14.60
118 - BUFFER BDE-861095-01.A34 861095-01	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A22095 000000-00	-
121 - WASHER BDE-860073-08.A26 860073-08	£1.50	£1.80
123 - PIVOT GB 115V BDE-N162670.A14 N162670	£3.80	£4.56
123 - PIVOT GB 240V BDE-N162670.A15 N162670	£3.80	£4.56
124 - SPRING GB 240V BDE-941622-00.A28 941622-00	£1.50	£1.80
124 - SPRING GB 115V BDE-941622-00.A29 941622-00	£1.50	£1.80
125 - SCREW GB 240V BDE-860084-20.A79 860084-20	£1.50	£1.80
125 - SCREW GB 115V BDE-860084-20.A80 860084-20	£1.50	£1.80
126 - GUARD UPPER GB 240V BDE-N162669.A20 N162669	£17.48	£20.97
126 - GUARD UPPER GB 115V BDE-N162669.A21 N162669	£17.48	£20.97
127 - GUARD SA GB 115V BDE-N164678.A22 N164678	£38.80	£46.56
127 - GUARD SA GB 240V BDE-N164678.A23 N164678	£38.80	£46.56
128 - BOLT BDE-860301-09.A15 860301-09	£1.50	£1.80
129 - SPRING BDE-761054-00.A71 761054-00	£1.50	£1.80
131 - SCREW BDE-330045-55.A64 330045-55	£1.50	£1.80
132 - NO LONGER AVAILABLE BDE-000000-00.A22096 000000-00	-
133 - NO LONGER AVAILABLE BDE-000000-00.A22097 000000-00	-
134 - NO LONGER AVAILABLE BDE-000000-00.A22098 000000-00	-
136 - FOOT BDE-942375-00.A28 942375-00	£1.50	£1.80
137 - WASHER BDE-860078-02.A9 860078-02	£1.50	£1.80
138 - NUT BDE-860083-15.A122 860083-15	£1.50	£1.80
142 - WASHER BDE-98197-08.A4 98197-08	£1.50	£1.80
143 - SCREW BDE-942447-00.A44 942447-00	£1.50	£1.80
144 - KNOB BDE-941756-00.A169 941756-00	£1.50	£1.80
145 - WASHER M8 BDE-860073-03.A447 860073-03	£1.50	£1.80
146 - SIDE LH BDE-861088-01.A3 861088-01	£93.62	£112.35
148 - FOOT BDE-861073-00.A10 861073-00	£10.85	£13.02
149 - LEG SA BDE-861076-00.A5 861076-00	£17.48	£20.97
150 - SCREW BDE-942041-00.A10 942041-00	-
151 - WASHER BDE-861068-00.A6 861068-00	£3.30	£3.96
153 - SPRING BDE-942522-00.A3 942522-00	£1.50	£1.80
154 - LOCKING DEVICE BDE-942098-00.A16 942098-00	£9.41	£11.29
155 - SCREW BDE-942185-00.A1 942185-00	£1.50	£1.80
156 - NUT M6 BDE-860083-12.A14 860083-12	£1.50	£1.80
157 - BRIDGE BDE-942104-00.A12 942104-00	£1.50	£1.80
158 - WASHER BDE-761035-00.A11 761035-00	£1.42	£1.70
159 - SCREW.TEMP BDE-860094-00.A48 860094-00	£1.50	£1.80
160 - CATCH BDE-861071-00.A14 861071-00	£2.26	£2.71
161 - LOCKING DEVICE BDE-861070-00.A7 861070-00	£2.26	£2.71
162 - SIDE RH BDE-861089-01.A3 861089-01	-
163 - PIN BDE-942365-00.A14 942365-00	£1.50	£1.80
164 - WASHER BDE-949876-08.A16 949876-08	£1.50	£1.80
165 - SCREW.TEMP BDE-860094-00.A47 860094-00	£1.50	£1.80
166 - NO LONGER AVAILABLE BDE-000000-00.A22099 000000-00	-
167 - SCREW BDE-860084-20.A78 860084-20	£1.50	£1.80
168 - NO LONGER AVAILABLE BDE-000000-00.A22100 000000-00	-
169 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A22101 000000-00	-
169 - SCREW GB 240V BDE-949701-12.A26 949701-12	£1.50	£1.80
170 - NO LONGER AVAILABLE BDE-000000-00.A22102 000000-00	-
171 - WASHER M6 BDE-860073-07.A39 860073-07	£1.50	£1.80
172 - NO LONGER AVAILABLE BDE-000000-00.A55303 000000-00	-
173 - WASHER BDE-860073-01.A30 860073-01	£1.50	£1.80
174 - NUT BDE-860083-02.A4 860083-02	£1.50	£1.80
175 - CABLE CLAMP BDE-861091-00.A30 861091-00	£1.50	£1.80
176 - SCREW BDE-949701-12.A6 949701-12	£1.50	£1.80
177 - NO LONGER AVAILABLE BDE-000000-00.A55304 000000-00	-
178 - NO LONGER AVAILABLE BDE-000000-00.A55305 000000-00	-
179 - SCREW BDE-760299-00.A5 760299-00	-
180 - NO LONGER AVAILABLE BDE-000000-00.A55306 000000-00	-
181 - NO LONGER AVAILABLE BDE-000000-00.A55307 000000-00	-
182 - SWITCH SUPPORT BDE-173164100.A1 173164100	£5.72	£6.87
183 - NO LONGER AVAILABLE BDE-000000-00.A55308 000000-00	-
185 - SWITCH SA BDE-864720-00.A4 864720-00	-
186 - SCREW BDE-861378-00.A9 861378-00	£1.42	£1.70
187 - SWITCH SUPPORT BDE-862415-00.A3 862415-00	£43.02	£51.63
188 - PIN BDE-942124-00.A3 942124-00	-
189 - SCREW BDE-720744-00.A0 720744-00	£1.42	£1.70
190 - NO LONGER AVAILABLE BDE-000000-00.A55309 000000-00	-
191 - BUTTON ON BDE-173163400.A1 173163400	-
192 - FOOT BDE-941614-00.A32 941614-00	£1.50	£1.80
193 - BUTTON OFF BDE-173163401.A7 173163401	-
194 - NO LONGER AVAILABLE LX BDE-000000-00.A55310 000000-00	-
194 - RECTIFIER GB BDE-861775-00.A0 861775-00	-
196 - WRENCH 6 MM BDE-860098-04.A9 860098-04	£1.50	£1.80
197 - SPANNER BDE-939072-00.A10 939072-00	£9.41	£11.29
198 - TABLE LATCH BDE-861063-00.A4 861063-00	£4.69	£5.63
200 - NO LONGER AVAILABLE BDE-000000-00.A55311 000000-00	-
201 - PIN BDE-942045-00.A4 942045-00	£1.42	£1.70
202 - SCREW BDE-860089-25.A47 860089-25	£1.50	£1.80
204 - NO LONGER AVAILABLE BDE-000000-00.A55312 000000-00	-
208 - NO LONGER AVAILABLE BDE-000000-00.A55313 000000-00	-
209 - BELT COVER BDE-861037-00.A7 861037-00	-
210 - GUARD SA BDE-861704-02.A4 861704-02	-
211 - LOCKING PIN SA BDE-861084-00.A16 861084-00	£25.70	£30.84
212 - NO LONGER AVAILABLE BDE-000000-00.A55314 000000-00	-
213 - PIN BDE-860649-01.A17 860649-01	-
214 - SPRING BDE-945619-00.A13 945619-00	-
215 - WASHER BDE-941602-00.A103 941602-00	£1.50	£1.80
216 - SCREW BDE-860085-18.A8 860085-18	-
217 - SCREW BDE-941606-00.A17 941606-00	-
233 - NO LONGER AVAILABLE BDE-000000-00.A55315 000000-00	-
234 - SCREW BDE-760299-00.A6 760299-00	-
235 - NO LONGER AVAILABLE BDE-000000-00.A55316 000000-00	-
236 - FASTENER BDE-946314-00.A8 946314-00	£1.50	£1.80
241 - RIVING KNIFE KIT GB 115V BDE-944902-01.A6 944902-01	-
241 - RIVING KNIFE KIT GB 240V BDE-944902-01.A7 944902-01	-
243 - NO LONGER AVAILABLE BDE-000000-00.A55317 000000-00	-
244 - WASHER BDE-933652-00.A62 933652-00	£1.50	£1.80
245 - SCREW BDE-860089-25.A48 860089-25	£1.50	£1.80
246 - WASHER BDE-941633-00.A17 941633-00	£1.50	£1.80
247 - WASHER BDE-860073-01.A29 860073-01	£1.50	£1.80
248 - LABEL RIVING KNIFE BDE-944603-00.A1 944603-00	£1.50	£1.80
250 - LABEL BDE-861099-00.A13 861099-00	£1.50	£1.80
252 - NO LONGER AVAILABLE BDE-000000-00.A55318 000000-00	-
254 - NO LONGER AVAILABLE BDE-000000-00.A55319 000000-00	-
255 - NO LONGER AVAILABLE BDE-000000-00.A55320 000000-00	-
256 - NO LONGER AVAILABLE BDE-000000-00.A55321 000000-00	-
257 - SCREW BDE-949795-01.A6 949795-01	£1.50	£1.80
258 - WEDGE BDE-946620-00.A10 946620-00	£37.35	£44.82
259 - SPRING 50MM BDE-949725-02.A5 949725-02	-
263 - NO LONGER AVAILABLE BDE-000000-00.A55322 000000-00	-
265 - SHOCK ABSORBER BDE-946315-00.A8 946315-00	£14.19	£17.03
266 - PUSHROD BDE-860610-01.A76 860610-01	£7.85	£9.42
267 - SCREW BDE-861090-00.A2 861090-00	£1.50	£1.80
268 - NO LONGER AVAILABLE BDE-000000-00.A55323 000000-00	-
269 - NO LONGER AVAILABLE BDE-000000-00.A55324 000000-00	-
270 - GUIDE BDE-942320-03.A12 942320-03	£38.80	£46.56
271 - FENCE BDE-861346-00.A12 861346-00	£25.70	£30.84
272 - CLAMPING BAR BDE-942316-01.A13 942316-01	£14.57	£17.48
273 - WASHER M8 BDE-860073-03.A589 860073-03	£1.50	£1.80
274 - KNOB BDE-941756-00.A141 941756-00	£1.50	£1.80
275 - BRACKET BDE-941819-01.A3 941819-01	£16.03	£19.24
276 - KNOB BDE-941756-00.A140 941756-00	£1.50	£1.80
277 - NUT BDE-860092-02.A28 860092-02	£1.50	£1.80
278 - WASHER M6 BDE-860073-07.A40 860073-07	£1.50	£1.80
279 - FENCE BDE-941578-01.A6 941578-01	£55.30	£66.36
280 - BASE BDE-942172-00.A13 942172-00	£12.17	£14.60
281 - SCREW BDE-949743-03.A17 949743-03	£7.85	£9.42
282 - RAIL BDE-942151-00.A8 942151-00	£30.08	£36.10
283 - SCREW.TEMP BDE-860089-00.A15 860089-00	£1.50	£1.80
284 - SCREW BDE-941518-00.A94 941518-00	£1.50	£1.80
285 - NUT M6 BDE-860083-12.A131 860083-12	£1.50	£1.80
286 - WASHER M8 BDE-860073-03.A594 860073-03	£1.50	£1.80
287 - BUNG BDE-860722-01.A2 860722-01	£1.50	£1.80
288 - REDUCER BDE-942308-00.A20 942308-00	£18.91	£22.69
847 - NO LONGER AVAILABLE BDE-000000-00.A55325 000000-00	-

Attribute Name	Value
Brand	Elu

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Elu TGS173 Type 5 Combination Saw Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)
