Elu ETS3151L Type A1 Site Saw Spare Parts

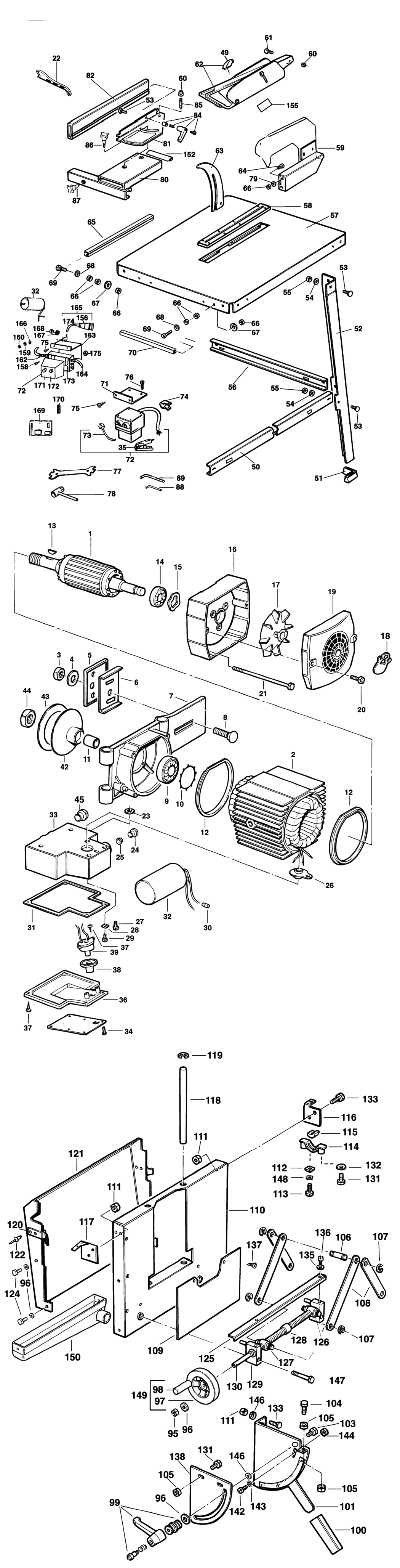

An exploded drawing and spare parts listing for the Elu ETS3151L Type A1 Site Saw

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116835 000000-00	-
1 - ROTOR 3 PH GB BDE-868496-00.A18 868496-00	£131.95	£158.34
2 - NO LONGER AVAILABLE GB BDE-000000-00.A116836 000000-00	-
2 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A116837 000000-00	-
3 - NUT RH BDE-860083-05.A7 860083-05	£1.50	£1.80
4 - WASHER BDE-860074-04.A103 860074-04	£1.50	£1.80
5 - PLATE BDE-944360-00.A15 944360-00	-
6 - PLATE BDE-944359-00.A0 944359-00	£1.50	£1.80
7 - HOUSING BDE-868661-00.A7 868661-00	£96.55	£115.86
8 - SCREW BDE-860301-15.A15 860301-15	£1.50	£1.80
9 - BEARING BDE-868768-10.A26 868768-10	£14.57	£17.48
10 - RING BDE-860806-01.A4 860806-01	£1.42	£1.70
11 - BUSH BDE-942490-00.A7 942490-00	-
12 - SEAL BDE-860718-00.A18 860718-00	£7.18	£8.62
13 - KEY BDE-860318-00.A64 860318-00	-
14 - BEARING BDE-861721-01.A42 861721-01	£7.85	£9.42
15 - RING BDE-860080-02.A175 860080-02	£1.50	£1.80
16 - HOUSING BDE-860701-00.A27 860701-00	-
17 - FAN BDE-945841-00.A12 945841-00	£2.78	£3.34
18 - CAP BDE-863112-00.A5 863112-00	£1.50	£1.80
19 - END CAP BDE-860687-04.A8 860687-04	£7.18	£8.62
20 - SCREW BDE-860094-01.A30 860094-01	£1.50	£1.80
21 - ROD BDE-860446-00.A6 860446-00	£1.50	£1.80
22 - PUSHROD BDE-860610-01.A19 860610-01	£7.85	£9.42
23 - GROMMET BDE-944653-00.A34 944653-00	£3.30	£3.96
24 - RETAINER GB BDE-944654-00.A27 944654-00	£1.50	£1.80
24 - CAP GB 115V BDE-949747-18.A26 949747-18	£1.50	£1.80
25 - NUT BDE-944590-00.A39 944590-00	£1.50	£1.80
26 - GROMMET BDE-944652-00.A36 944652-00	£4.69	£5.63
27 - SCREW.TEMP BDE-860094-00.A111 860094-00	£1.50	£1.80
28 - WASHER SPRING BDE-944650-00.A47 944650-00	£1.50	£1.80
29 - SCREW BDE-860094-01.A29 860094-01	£1.50	£1.80
30 - NO LONGER AVAILABLE BDE-000000-00.A116838 000000-00	-
31 - GASKET BDE-860708-00.A4 860708-00	-
32 - CAPACITOR GB 115V LX BDE-861329-00.A1 861329-00	-
32 - CONDENSOR GB BDE-944455-00.A6 944455-00	-
33 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17196 000000-00	-
33 - HOUSING GB BDE-860702-00.A13 860702-00	-
34 - RIVET BDE-860060-01.A23 860060-01	£1.42	£1.70
35 - SWITCH COVER GB BDE-N377168.A12 N377168	£14.57	£17.48
36 - COVER GB 115V BDE-862220-00.A8 862220-00	£7.64	£9.17
36 - COVER GB BDE-944454-00.A36 944454-00	£10.57	£12.68
37 - SCREW BDE-860094-03.A160 860094-03	£1.50	£1.80
38 - CAP BDE-860133-00.A15 860133-00	£1.42	£1.70
39 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17197 000000-00	-
39 - KLIXON GB BDE-860692-00.A29 860692-00	-
42 - FLANGE BDE-945842-00.A6 945842-00	-
43 - FLANGE BDE-945843-00.A28 945843-00	£7.18	£8.62
44 - NUT BDE-944460-00.A2 944460-00	£24.39	£29.27
45 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17198 000000-00	-
49 - SUCTION PIPE BDE-943582-01.A12 943582-01	£4.69	£5.63
50 - NO LONGER AVAILABLE BDE-000000-00.A17199 000000-00	-
51 - FEET BDE-862419-00.A12 862419-00	£9.41	£11.29
52 - NO LONGER AVAILABLE BDE-000000-00.A17200 000000-00	-
53 - SCREW BDE-860301-16.A36 860301-16	£1.50	£1.80
54 - WASHER BDE-860074-02.A75 860074-02	£1.50	£1.80
55 - NUT BDE-860083-03.A262 860083-03	£1.50	£1.80
56 - NO LONGER AVAILABLE BDE-000000-00.A17201 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A17202 000000-00	-
58 - INSERT BDE-944373-01.A1 944373-01	-
59 - SUPPORT BDE-945852-00.A12 945852-00	£57.22	£68.66
60 - NUT BDE-860092-00.A170 860092-00	£1.50	£1.80
61 - SCREW BDE-860093-20.A18 860093-20	£1.50	£1.80
62 - GUARD SA BDE-945853-00.A13 945853-00	-
63 - RIVING KNIFE BDE-944365-00.A18 944365-00	-
64 - BOLT BDE-860085-03.A68 860085-03	£1.50	£1.80
65 - NO LONGER AVAILABLE BDE-000000-00.A17203 000000-00	-
66 - NUT BDE-860083-04.A208 860083-04	£1.50	£1.80
67 - WASHER BDE-941602-00.A170 941602-00	£1.50	£1.80
68 - WASHER M8 BDE-860073-03.A316 860073-03	£1.50	£1.80
69 - SCREW BDE-860093-18.A31 860093-18	-
70 - NO LONGER AVAILABLE BDE-000000-00.A17204 000000-00	-
71 - BRACKET GB BDE-944341-00.A5 944341-00	£7.18	£8.62
72 - NO LONGER AVAILABLE GB BDE-000000-00.A17205 000000-00	-
72 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17206 000000-00	-
73 - NO LONGER AVAILABLE GB BDE-000000-00.A17207 000000-00	-
73 - CABLE GB BDE-861277-00.A0 861277-00	£16.03	£19.24
74 - CLIP BDE-945848-00.A5 945848-00	£1.50	£1.80
75 - SCREW BDE-860084-21.A1 860084-21	£1.50	£1.80
76 - SCREW BDE-930076-00.A80 930076-00	£1.50	£1.80
77 - SPANNER MULTI BDE-944463-00.A21 944463-00	£9.41	£11.29
78 - SPANNER BOX BDE-760601-00.A6 760601-00	£2.26	£2.71
79 - WASHER BDE-860074-03.A299 860074-03	£1.50	£1.80
80 - NO LONGER AVAILABLE BDE-000000-00.A17208 000000-00	-
81 - NO LONGER AVAILABLE BDE-000000-00.A17209 000000-00	-
82 - NO LONGER AVAILABLE BDE-000000-00.A17210 000000-00	-
84 - LEVER SA BDE-861840-01.A10 861840-01	£5.72	£6.87
85 - NO LONGER AVAILABLE BDE-000000-00.A17211 000000-00	-
86 - NO LONGER AVAILABLE BDE-000000-00.A17212 000000-00	-
87 - NO LONGER AVAILABLE BDE-000000-00.A17213 000000-00	-
88 - HEX KEY 5 MM BDE-930574-00.A27 930574-00	£1.50	£1.80
89 - HEX KEY 8 MM BDE-860098-05.A72 860098-05	£3.30	£3.96
95 - NUT BDE-860092-00.A169 860092-00	£1.50	£1.80
96 - WASHER BDE-860075-00.A134 860075-00	£1.50	£1.80
99 - HANDLE BDE-861840-00.A12 861840-00	£7.85	£9.42
100 - NO LONGER AVAILABLE BDE-000000-00.A17214 000000-00	-
101 - NO LONGER AVAILABLE BDE-000000-00.A17215 000000-00	-
103 - SCREW BDE-860301-16.A35 860301-16	£1.50	£1.80
104 - SCREW BDE-860085-10.A86 860085-10	£1.50	£1.80
105 - NUT BDE-860083-13.A26 860083-13	£1.50	£1.80
106 - PIN BDE-945844-00.A4 945844-00	£1.50	£1.80
107 - CIRCLIP BDE-860322-01.A32 860322-01	£1.50	£1.80
108 - ARM LINK BDE-944368-00.A14 944368-00	£1.50	£1.80
109 - PLATE BDE-944322-02.A10 944322-02	£11.87	£14.24
110 - NO LONGER AVAILABLE BDE-000000-00.A17216 000000-00	-
111 - NUT BDE-860083-04.A209 860083-04	£1.50	£1.80
112 - NO LONGER AVAILABLE BDE-000000-00.A17217 000000-00	-
113 - SCREW BDE-941518-00.A58 941518-00	£1.50	£1.80
114 - NO LONGER AVAILABLE BDE-000000-00.A17218 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A17219 000000-00	-
116 - NO LONGER AVAILABLE BDE-000000-00.A17220 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A17221 000000-00	-
118 - ADJUSTER HEIGHT BDE-944353-00.A14 944353-00	£3.80	£4.56
119 - CIRCLIP BDE-860322-05.A12 860322-05	£1.50	£1.80
120 - NO LONGER AVAILABLE BDE-000000-00.A17222 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A17223 000000-00	-
122 - NO LONGER AVAILABLE BDE-000000-00.A17224 000000-00	-
124 - SCREW BDE-860093-03.A4 860093-03	£1.50	£1.80
125 - PLATE BDE-944437-00.A0 944437-00	£1.42	£1.70
126 - BUSH BDE-944366-00.A1 944366-00	£1.42	£1.70
127 - BUSH BDE-944366-01.A14 944366-01	£1.42	£1.70
128 - NO LONGER AVAILABLE BDE-000000-00.A17225 000000-00	-
129 - NO LONGER AVAILABLE BDE-000000-00.A17226 000000-00	-
130 - NO LONGER AVAILABLE BDE-000000-00.A17227 000000-00	-
131 - SCREW BDE-860085-15.A5 860085-15	£1.50	£1.80
132 - WASHER BDE-860074-02.A77 860074-02	£1.50	£1.80
133 - SCREW BDE-860085-04.A21 860085-04	£1.50	£1.80
135 - WASHER BDE-860073-00.A97 860073-00	£1.50	£1.80
136 - NO LONGER AVAILABLE BDE-000000-00.A17228 000000-00	-
137 - SCREW BDE-860094-03.A158 860094-03	£1.50	£1.80
138 - NO LONGER AVAILABLE BDE-000000-00.A17232 000000-00	-
142 - SCREW.TEMP BDE-760992-00.A28 760992-00	£1.50	£1.80
143 - WASHER BDE-933652-00.A43 933652-00	£1.50	£1.80
144 - NUT BDE-860083-01.A46 860083-01	£1.50	£1.80
146 - WASHER M8 BDE-860073-03.A314 860073-03	£1.50	£1.80
147 - SCREW BDE-860086-09.A15 860086-09	£1.50	£1.80
148 - WASHER BDE-933055-00.A7 933055-00	£1.50	£1.80
149 - HANDLE SA BDE-946474-00.A29 946474-00	£18.91	£22.69
150 - NO LONGER AVAILABLE BDE-000000-00.A17229 000000-00	-
150 - NO LONGER AVAILABLE AFTER CE BDE-000000-00.A17230 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A17231 000000-00	-
156 - PLUG GB 115V BDE-865975-00.A11 865975-00	£10.85	£13.02
158 - SCREW GB 115V BDE-860089-18.A78 860089-18	£1.50	£1.80
159 - WASHER GB 115V BDE-941633-00.A12 941633-00	£1.50	£1.80
162 - INLET GB 115V BDE-947322-01.A0 947322-01	£3.30	£3.96
163 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17233 000000-00	-
164 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17234 000000-00	-
165 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17235 000000-00	-
166 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17236 000000-00	-
167 - WASHER GB 115V BDE-860078-02.A17 860078-02	£1.50	£1.80
168 - NUT GB 115V BDE-860083-15.A108 860083-15	£1.50	£1.80
169 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17237 000000-00	-
170 - TERMINAL BLOCK GB 115V BDE-942508-00.A5 942508-00	£7.18	£8.62
171 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17238 000000-00	-
173 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A17239 000000-00	-
174 - CABLE GB 115V BDE-949788-65.A2 949788-65	£25.05	£30.06
175 - NUT GB 115V BDE-947321-01.A7 947321-01	£1.50	£1.80
