Elu MWA71 Type 1 Bench Grinder Spare Parts

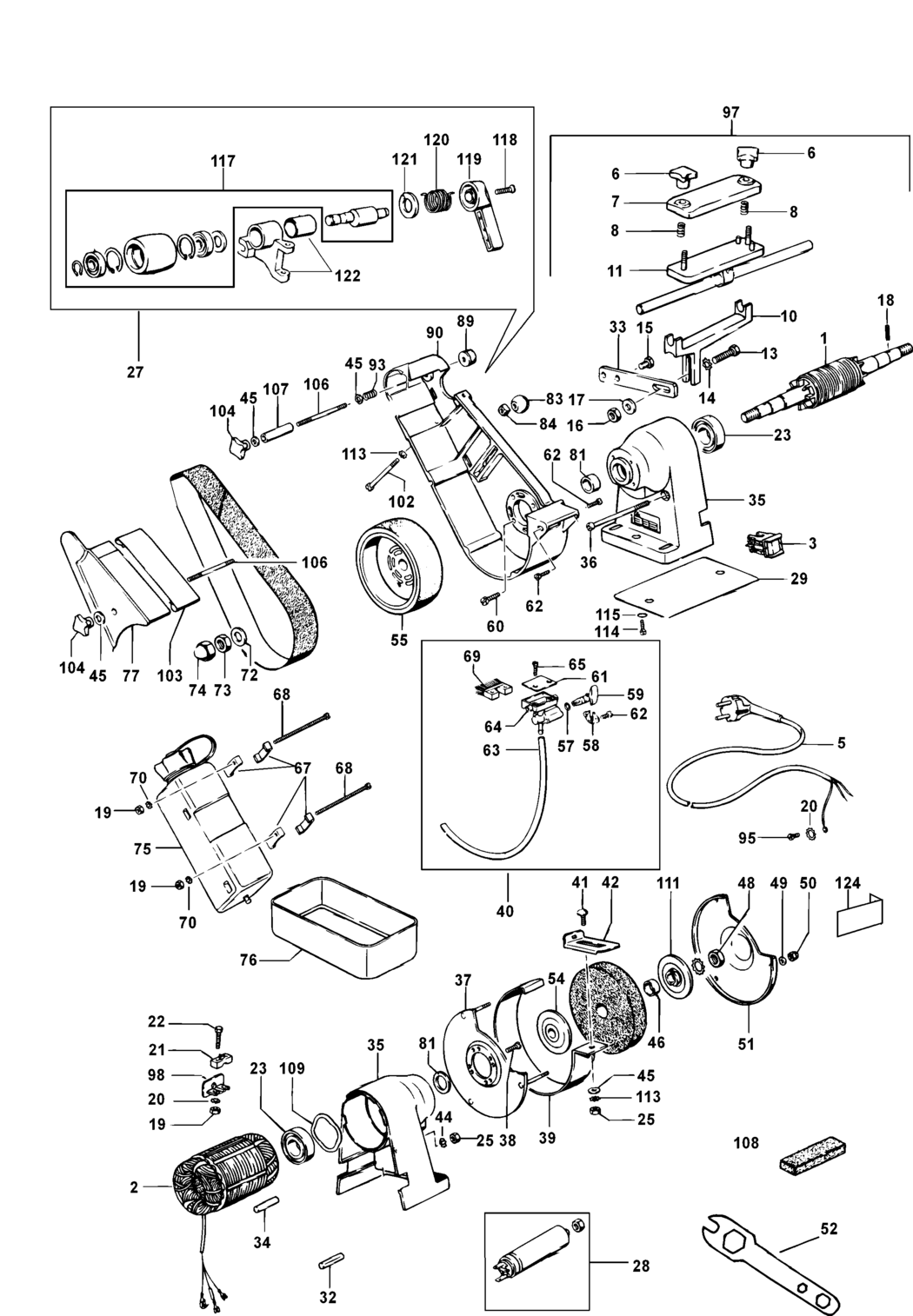

An exploded drawing and spare parts listing for the Elu MWA71 Type 1 Bench Grinder

	Ex VAT	Inc VAT
1 - ROTOR BDE-378881.A0 378881	£19.90	£23.88
2 - STATOR BDE-378891.A8 378891	£84.42	£101.30
3 - SWITCH BDE-378787-03.A7 378787-03	£17.03	£20.44
5 - CORDSET GB BDE-378893-01.A7 378893-01	£9.41	£11.29
6 - KNOB SA BDE-744324.A38 744324	£2.78	£3.34
7 - STRIP BDE-744231.A1 744231	£7.85	£9.42
8 - SPRING BDE-742243.A12 742243	£1.50	£1.80
10 - HOLDER BDE-744230.A17 744230	£10.85	£13.02
11 - SUPPORT BDE-744232.A17 744232	-
13 - SCREW BDE-742047.A3 742047	£1.50	£1.80
14 - WASHER M8 BDE-742046.A6 742046	£1.50	£1.80
15 - SCREW BDE-378908.A4 378908	£1.50	£1.80
16 - NUT BDE-725187.A8 725187	£1.50	£1.80
17 - WASHER BDE-742172.A39 742172	£1.50	£1.80
18 - PIN BDE-742053.A7 742053	£1.50	£1.80
19 - NUT BDE-725698.A16 725698	£1.50	£1.80
20 - WASHER BDE-725163.A9 725163	£1.50	£1.80
21 - NO LONGER AVAILABLE BDE-000000-00.A21535 000000-00	-
22 - SCREW BDE-742041.A14 742041	£1.50	£1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A21536 000000-00	-
25 - NUT BDE-725125.A31 725125	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A21537 000000-00	-
28 - CAPACITOR BDE-378892.A0 378892	£10.85	£13.02
29 - PLATE BDE-378841.A8 378841	£1.82	£2.19
30 - FOOT BDE-378738.A1 378738	£19.90	£23.88
32 - PIN BDE-742168.A2 742168	£2.78	£3.34
33 - SUPPORT BDE-744234.A1 744234	£3.30	£3.96
34 - PIN BDE-742168.A3 742168	£2.78	£3.34
35 - HOUSING BDE-378791-20.A7 378791-20	£55.30	£66.36
36 - SCREW BDE-378907.A0 378907	£1.50	£1.80
37 - PLATE BDE-744236.A4 744236	£19.90	£23.88
38 - NO LONGER AVAILABLE BDE-000000-00.A21538 000000-00	-
39 - GUARD BDE-744238.A5 744238	£14.57	£17.48
40 - HOSE SA BDE-742273.A1 742273	£44.14	£52.97
41 - SCREW BDE-725184.A18 725184	£1.50	£1.80
42 - BRACKET BDE-744188.A6 744188	£3.30	£3.96
44 - WASHER BDE-743415.A54 743415	£1.50	£1.80
45 - WASHER BDE-880391.A48 880391	£1.50	£1.80
46 - BUSH BDE-742134.A2 742134	£1.50	£1.80
48 - NUT BDE-742887.A19 742887	£1.82	£2.19
49 - WASHER BDE-725269.A22 725269	£1.50	£1.80
50 - LOCK-NUT BDE-146823100.A1 146823100	£1.50	£1.80
51 - GUARD BDE-744237.A9 744237	£14.57	£17.48
52 - SPANNER BDE-742511.A2 742511	£2.78	£3.34
54 - CLAMP BDE-742298.A18 742298	£3.30	£3.96
55 - NO LONGER AVAILABLE BDE-000000-00.A21539 000000-00	-
57 - SEAL BDE-742282.A3 742282	£1.50	£1.80
58 - FLANGE BDE-742279.A3 742279	£1.50	£1.80
59 - GRIP BDE-742275.A2 742275	£1.82	£2.19
60 - SCREW BDE-378788.A1 378788	£1.50	£1.80
61 - COVER BDE-742166.A3 742166	£1.50	£1.80
62 - SCREW BDE-742051.A0 742051	£1.50	£1.80
63 - TUBE BDE-742278.A2 742278	£9.41	£11.29
64 - HOLDER BDE-742280-00.A2 742280-00	£7.18	£8.62
65 - SCREW BDE-742050.A2 742050	£1.38	£1.65
67 - CLAMP BDE-742299.A2 742299	£1.50	£1.80
68 - SCREW BDE-742300.A4 742300	£1.50	£1.80
69 - BRUSH BDE-742276.A2 742276	£5.88	£7.06
70 - WASHER BDE-725163.A1 725163	£1.50	£1.80
72 - WASHER BDE-742054.A7 742054	£1.50	£1.80
73 - NUT LH BDE-742140.A19 742140	£1.82	£2.19
74 - NO LONGER AVAILABLE BDE-000000-00.A21540 000000-00	-
75 - RESERVOIR BDE-742274.A2 742274	£17.48	£20.97
76 - SCALE BDE-742283.A3 742283	£5.88	£7.06
77 - NO LONGER AVAILABLE BDE-000000-00.A21541 000000-00	-
81 - BUSH BDE-742153.A2 742153	£2.78	£3.34
83 - NO LONGER AVAILABLE BDE-000000-00.A21542 000000-00	-
84 - NUT BDE-742289.A11 742289	£1.78	£2.13
89 - NO LONGER AVAILABLE BDE-000000-00.A21543 000000-00	-
90 - NO LONGER AVAILABLE BDE-000000-00.A21544 000000-00	-
93 - SPRING BDE-760276-00.A13 760276-00	£1.50	£1.80
95 - SCREW BDE-378795-01.A3 378795-01	£1.50	£1.80
97 - CLAMP KIT SA BDE-744253.A6 744253	£55.30	£66.36
98 - CABLE CLAMP BDE-742125.A2 742125	£1.50	£1.80
102 - SCREW BDE-742231.A4 742231	£1.82	£2.19
103 - PLATE BDE-742290.A1 742290	£3.80	£4.56
104 - KNOB SA BDE-744324.A41 744324	£2.78	£3.34
106 - NO LONGER AVAILABLE BDE-000000-00.A21545 000000-00	-
107 - NO LONGER AVAILABLE BDE-000000-00.A21546 000000-00	-
108 - STONE BDE-742240.A6 742240	£16.03	£19.24
109 - WASHER BDE-113933000.A20 113933000	£1.50	£1.80
111 - CLAMP OUTER BDE-742066.A19 742066	£2.78	£3.34
112 - VISOR BDE-742133.A13 742133	£3.30	£3.96
113 - WASHER BDE-743415.A55 743415	£1.50	£1.80
114 - SCREW BDE-726430.A8 726430	£1.50	£1.80
115 - WASHER BDE-725165.A25 725165	£1.50	£1.80
117 - REPAIR KIT BDE-742212.A9 742212	£126.63	£151.96
118 - SCREW BDE-744308.A6 744308	£1.50	£1.80
119 - LEVER BDE-744245.A6 744245	£12.17	£14.60
120 - NO LONGER AVAILABLE BDE-000000-00.A21549 000000-00	-
121 - WASHER BDE-742218.A1 742218	£1.50	£1.80
122 - BRACKET SA BDE-743814.A6 743814	£14.57	£17.48
