Elu MWA61D Type 1 Bench Grinder Spare Parts

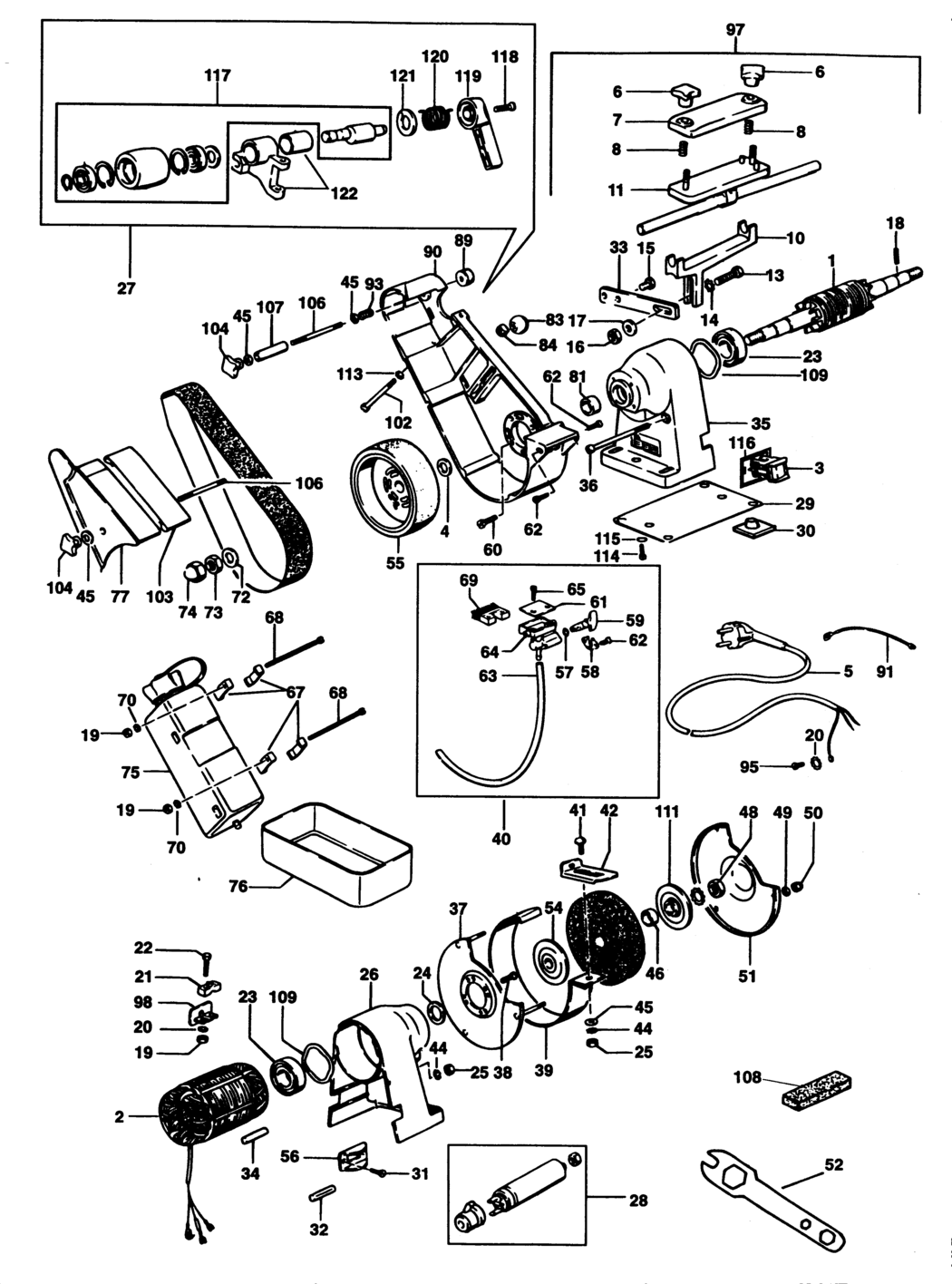

An exploded drawing and spare parts listing for the Elu MWA61D Type 1 Bench Grinder

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE MWA61D BDE-000000-00.A87477 000000-00	-
1 - NO LONGER AVAILABLE MWA61W TYPE 2 BDE-000000-00.A87478 000000-00	-
1 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87479 000000-00	-
2 - NO LONGER AVAILABLE MWA61D BDE-000000-00.A87480 000000-00	-
2 - NO LONGER AVAILABLE MWA61W TYPE 2 BDE-000000-00.A87481 000000-00	-
2 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87482 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A87483 000000-00	-
4 - BUSH BDE-742153.A26 742153	£2.78	£3.34
5 - NO LONGER AVAILABLE GB BDE-000000-00.A87485 000000-00	-
6 - KNOB SA BDE-744324.A9 744324	£2.78	£3.34
7 - NO LONGER AVAILABLE BDE-000000-00.A87484 000000-00	-
8 - SPRING BDE-742243.A3 742243	£1.66	£1.99
10 - HOLDER BDE-744230.A10 744230	£10.85	£13.02
11 - SUPPORT BDE-744232.A8 744232	-
13 - SCREW BDE-860085-19.A35 860085-19	£1.66	£1.99
14 - WASHER M8 BDE-742046.A12 742046	£1.66	£1.99
15 - NO LONGER AVAILABLE BDE-000000-00.A87486 000000-00	-
16 - NUT BDE-725187.A16 725187	£1.66	£1.99
17 - WASHER BDE-742172.A15 742172	£1.66	£1.99
18 - PIN BDE-742053.A10 742053	£1.66	£1.99
19 - NUT BDE-725698.A11 725698	£1.66	£1.99
20 - WASHER BDE-725163.A41 725163	£1.66	£1.99
21 - NO LONGER AVAILABLE BDE-000000-00.A87505 000000-00	-
22 - SCREW BDE-742041.A11 742041	£1.66	£1.99
23 - BEARING BDE-861721-01.A68 861721-01	£7.85	£9.42
24 - BUSH BDE-742153.A27 742153	£2.78	£3.34
25 - NUT BDE-725125.A13 725125	£1.66	£1.99
26 - NO LONGER AVAILABLE MWA61D BDE-000000-00.A87487 000000-00	-
26 - NO LONGER AVAILABLE MWA61W TYPE 2 BDE-000000-00.A87488 000000-00	-
26 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87489 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A87490 000000-00	-
28 - NO LONGER AVAILABLE MWA61W TYPE 2 BDE-000000-00.A87491 000000-00	-
28 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87492 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A87493 000000-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A87494 000000-00	-
31 - SCREW MWA61D BDE-249413-03.A7 249413-03	£1.66	£1.99
32 - PIN BDE-742168.A12 742168	£2.78	£3.34
33 - SUPPORT BDE-744234.A8 744234	£3.30	£3.96
34 - NO LONGER AVAILABLE *UPTO SER No 6101244 BDE-000000-00.A87495 000000-00	-
34 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87496 000000-00	-
34 - NO LONGER AVAILABLE *FROM SER No 6101245 BDE-000000-00.A87497 000000-00	-
34 - NO LONGER AVAILABLE MWA61D BDE-000000-00.A87498 000000-00	-
35 - NO LONGER AVAILABLE MWA61W TYPE 2 BDE-000000-00.A87499 000000-00	-
35 - NO LONGER AVAILABLE MWA61D BDE-000000-00.A87500 000000-00	-
35 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87501 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A87502 000000-00	-
37 - NO LONGER AVAILABLE MWA61D BDE-000000-00.A87503 000000-00	-
37 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87504 000000-00	-
37 - PLATE MWA61W TYPE 2 BDE-744236.A11 744236	£19.90	£23.88
38 - NO LONGER AVAILABLE BDE-000000-00.A87506 000000-00	-
39 - NO LONGER AVAILABLE MWA61D BDE-000000-00.A87507 000000-00	-
39 - GUARD MWA61W TYPE 2 BDE-744238.A11 744238	£14.57	£17.48
39 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87508 000000-00	-
40 - HOSE SA BDE-742273.A5 742273	£44.14	£52.97
41 - SCREW BDE-725184.A9 725184	£1.66	£1.99
42 - BRACKET BDE-744188.A16 744188	£3.30	£3.96
44 - WASHER BDE-743415.A19 743415	£1.66	£1.99
45 - WASHER BDE-880391.A3 880391	£1.66	£1.99
46 - BUSH BDE-742134.A15 742134	£1.66	£1.99
48 - NUT BDE-742887.A11 742887	£1.82	£2.19
49 - WASHER BDE-725269.A7 725269	£1.66	£1.99
50 - LOCK-NUT BDE-146823100.A14 146823100	£1.66	£1.99
51 - GUARD MWA61W TYPE 2 BDE-744237.A1 744237	£14.57	£17.48
51 - NO LONGER AVAILABLE MWA61W TYPE 1 BDE-000000-00.A87509 000000-00	-
51 - NO LONGER AVAILABLE MWA61D BDE-000000-00.A87510 000000-00	-
52 - SPANNER BDE-742511.A10 742511	£2.78	£3.34
54 - CLAMP BDE-742298.A0 742298	£3.30	£3.96
55 - PULLEY BDE-742199.A7 742199	£34.00	£40.80
57 - SEAL BDE-742282.A1 742282	£1.66	£1.99
58 - FLANGE BDE-742279.A1 742279	£1.66	£1.99
59 - GRIP BDE-742275.A4 742275	£1.82	£2.19
60 - NO LONGER AVAILABLE BDE-000000-00.A87511 000000-00	-
61 - COVER BDE-742166.A1 742166	£1.66	£1.99
62 - SCREW BDE-860084-11.A31 860084-11	£1.66	£1.99
63 - TUBE BDE-742278.A4 742278	£9.41	£11.29
64 - HOLDER BDE-742280-00.A4 742280-00	£7.18	£8.62
65 - SCREW BDE-949896-12.A36 949896-12	£1.66	£1.99
67 - CLAMP BDE-742299.A5 742299	£1.66	£1.99
68 - SCREW BDE-742300.A0 742300	£1.66	£1.99
69 - BRUSH BDE-742276.A1 742276	£5.88	£7.06
70 - WASHER BDE-725163.A50 725163	£1.66	£1.99
72 - WASHER BDE-742054.A5 742054	£1.66	£1.99
73 - NUT LH BDE-742140.A5 742140	£1.82	£2.19
74 - NO LONGER AVAILABLE BDE-000000-00.A87512 000000-00	-
75 - RESERVOIR BDE-742274.A1 742274	£17.48	£20.97
76 - SCALE BDE-742283.A4 742283	£5.88	£7.06
77 - NO LONGER AVAILABLE BDE-000000-00.A87513 000000-00	-
81 - BUSH BDE-742153.A16 742153	£2.78	£3.34
83 - NO LONGER AVAILABLE BDE-000000-00.A87514 000000-00	-
84 - NUT BDE-742289.A1 742289	£1.78	£2.13
89 - NO LONGER AVAILABLE BDE-000000-00.A87515 000000-00	-
90 - NO LONGER AVAILABLE BDE-000000-00.A87516 000000-00	-
91 - PULLEY MWA61W TYPE 2 BDE-742199.A8 742199	£34.00	£40.80
91 - PULLEY MWA61W TYPE 1 BDE-742199.A9 742199	£34.00	£40.80
93 - SPRING BDE-760276-00.A2 760276-00	£1.66	£1.99
95 - SCREW BDE-725183.A8 725183	-
97 - CLAMP KIT SA BDE-744253.A14 744253	£55.30	£66.36
98 - CABLE CLAMP BDE-742125.A13 742125	£1.66	£1.99
102 - SCREW BDE-742231.A11 742231	£1.82	£2.19
103 - PLATE BDE-742290.A4 742290	£3.80	£4.56
104 - KNOB SA BDE-744324.A3 744324	£2.78	£3.34
106 - NO LONGER AVAILABLE BDE-000000-00.A87517 000000-00	-
107 - NO LONGER AVAILABLE BDE-000000-00.A87518 000000-00	-
108 - STONE BDE-742240.A10 742240	£16.03	£19.24
109 - WASHER BDE-113933000.A11 113933000	£1.66	£1.99
111 - CLAMP OUTER BDE-742066.A7 742066	£2.78	£3.34
113 - WASHER BDE-743415.A20 743415	£1.66	£1.99
114 - SCREW MWA61W TYPE 2 BDE-726430.A14 726430	£1.66	£1.99
115 - WASHER MWA61W TYPE 2 BDE-725165.A7 725165	£1.66	£1.99
117 - REPAIR KIT BDE-742212.A4 742212	£126.63	£151.96
118 - SCREW BDE-744308.A0 744308	£1.66	£1.99
119 - LEVER BDE-744245.A0 744245	£12.17	£14.60
120 - NO LONGER AVAILABLE BDE-000000-00.A87526 000000-00	-
121 - WASHER BDE-742218.A6 742218	£1.66	£1.99
122 - BRACKET SA BDE-743814.A1 743814	£14.57	£17.48
