Elu MWA159 Type 1 Bench Grinder Spare Parts

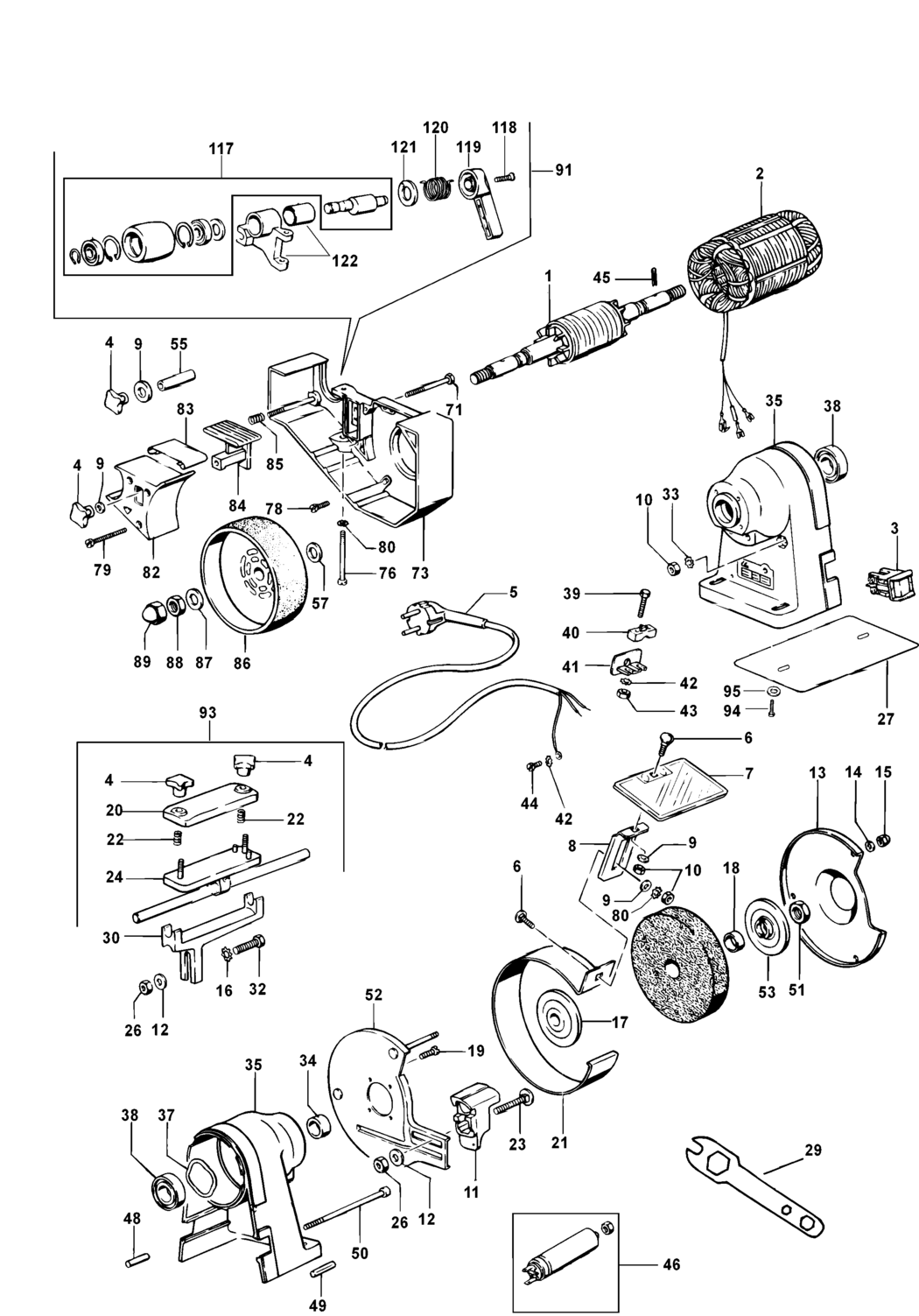

An exploded drawing and spare parts listing for the Elu MWA159 Type 1 Bench Grinder

	Ex VAT	Inc VAT
1 - ROTOR BDE-378881.A8 378881	£19.90	£23.88
2 - STATOR BDE-378891.A0 378891	£84.42	£101.30
3 - SWITCH BDE-378787-03.A0 378787-03	£17.03	£20.44
4 - KNOB SA BDE-744324.A26 744324	£2.78	£3.34
5 - CORDSET GB BDE-378893-01.A0 378893-01	£9.41	£11.29
6 - SCREW BDE-725184.A8 725184	£1.50	£1.80
7 - VISOR BDE-742133.A4 742133	£3.30	£3.96
8 - BRACKET BDE-744188.A11 744188	£3.30	£3.96
9 - WASHER BDE-880391.A28 880391	£1.50	£1.80
10 - NUT BDE-725125.A6 725125	£1.50	£1.80
11 - NO LONGER AVAILABLE BDE-000000-00.A119830 000000-00	-
12 - WASHER BDE-742172.A2 742172	£1.50	£1.80
13 - NO LONGER AVAILABLE BDE-000000-00.A119831 000000-00	-
14 - WASHER BDE-725269.A5 725269	£1.50	£1.80
15 - LOCK-NUT BDE-146823100.A21 146823100	£1.50	£1.80
16 - WASHER M8 BDE-742046.A23 742046	£1.50	£1.80
17 - CLAMP BDE-742298.A6 742298	£3.30	£3.96
18 - BUSH BDE-742134.A10 742134	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A119832 000000-00	-
20 - STRIP BDE-744231.A10 744231	£7.85	£9.42
21 - NO LONGER AVAILABLE BDE-000000-00.A119833 000000-00	-
22 - SPRING BDE-742243.A9 742243	£1.50	£1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A119834 000000-00	-
24 - SUPPORT BDE-744232.A1 744232	-
26 - NUT BDE-725187.A28 725187	£1.50	£1.80
27 - PLATE BDE-378841.A0 378841	£1.82	£2.19
28 - FOOT BDE-378738.A8 378738	£19.90	£23.88
29 - SPANNER BDE-742511.A23 742511	£2.78	£3.34
30 - HOLDER BDE-744230.A2 744230	£10.85	£13.02
32 - SCREW BDE-860085-19.A19 860085-19	£1.50	£1.80
33 - WASHER BDE-743415.A1 743415	£1.50	£1.80
34 - BUSH BDE-742153.A10 742153	£2.78	£3.34
35 - HOUSING BDE-378791-20.A0 378791-20	£55.30	£66.36
37 - WASHER BDE-113933000.A0 113933000	£1.50	£1.80
38 - NO LONGER AVAILABLE BDE-000000-00.A119835 000000-00	-
39 - SCREW BDE-742041.A0 742041	£1.50	£1.80
40 - NO LONGER AVAILABLE BDE-000000-00.A119836 000000-00	-
41 - CABLE CLAMP BDE-742125.A16 742125	£1.50	£1.80
42 - WASHER BDE-725163.A86 725163	£1.50	£1.80
43 - NUT BDE-725698.A6 725698	£1.50	£1.80
44 - SCREW BDE-378795-01.A16 378795-01	£1.50	£1.80
45 - NO LONGER AVAILABLE BDE-000000-00.A119837 000000-00	-
46 - CAPACITOR BDE-378892.A8 378892	£10.85	£13.02
48 - PIN BDE-742168.A21 742168	£2.78	£3.34
49 - PIN BDE-742168.A22 742168	£2.78	£3.34
50 - SCREW BDE-378907.A8 378907	£1.50	£1.80
51 - NUT BDE-742887.A6 742887	£1.82	£2.19
52 - COVER RH BDE-744228.A6 744228	£17.48	£20.97
53 - CLAMP OUTER BDE-742066.A6 742066	£2.78	£3.34
55 - NO LONGER AVAILABLE BDE-000000-00.A119969 000000-00	-
57 - WASHER BDE-743185.A2 743185	£2.78	£3.34
71 - SCREW BDE-742055.A2 742055	£1.50	£1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A119970 000000-00	-
76 - SCREW BDE-742231.A9 742231	£1.82	£2.19
78 - SCREW BDE-378788.A5 378788	£1.50	£1.80
79 - SCREW BDE-860089-13.A35 860089-13	£1.42	£1.70
80 - WASHER BDE-743415.A9 743415	£1.50	£1.80
82 - NO LONGER AVAILABLE BDE-000000-00.A119971 000000-00	-
83 - SPRING BDE-742232.A0 742232	£1.50	£1.80
84 - SUPPORT BDE-742227.A2 742227	£5.88	£7.06
85 - SPRING BDE-760276-00.A5 760276-00	£1.50	£1.80
86 - PULLEY BDE-742199.A12 742199	£34.00	£40.80
87 - WASHER BDE-742054.A3 742054	£1.50	£1.80
88 - NUT LH BDE-742140.A11 742140	£1.82	£2.19
89 - NO LONGER AVAILABLE BDE-000000-00.A119972 000000-00	-
91 - LEVER SA BDE-744371.A4 744371	£144.10	£172.92
93 - CLAMP KIT SA BDE-744253.A12 744253	£55.30	£66.36
94 - SCREW BDE-726430.A15 726430	£1.50	£1.80
95 - WASHER BDE-725165.A0 725165	£1.50	£1.80
117 - REPAIR KIT BDE-742212.A2 742212	£126.63	£151.96
118 - SCREW BDE-744308.A2 744308	£1.50	£1.80
119 - LEVER BDE-744245.A2 744245	£12.17	£14.60
120 - SPRING BDE-742222.A2 742222	£1.50	£1.80
121 - WASHER BDE-742218.A8 742218	£1.50	£1.80
122 - BRACKET SA BDE-743814.A2 743814	£14.57	£17.48

Attribute Name	Value
Brand	Elu
