Elu MWA149 Type 3 Bench Grinder Spare Parts

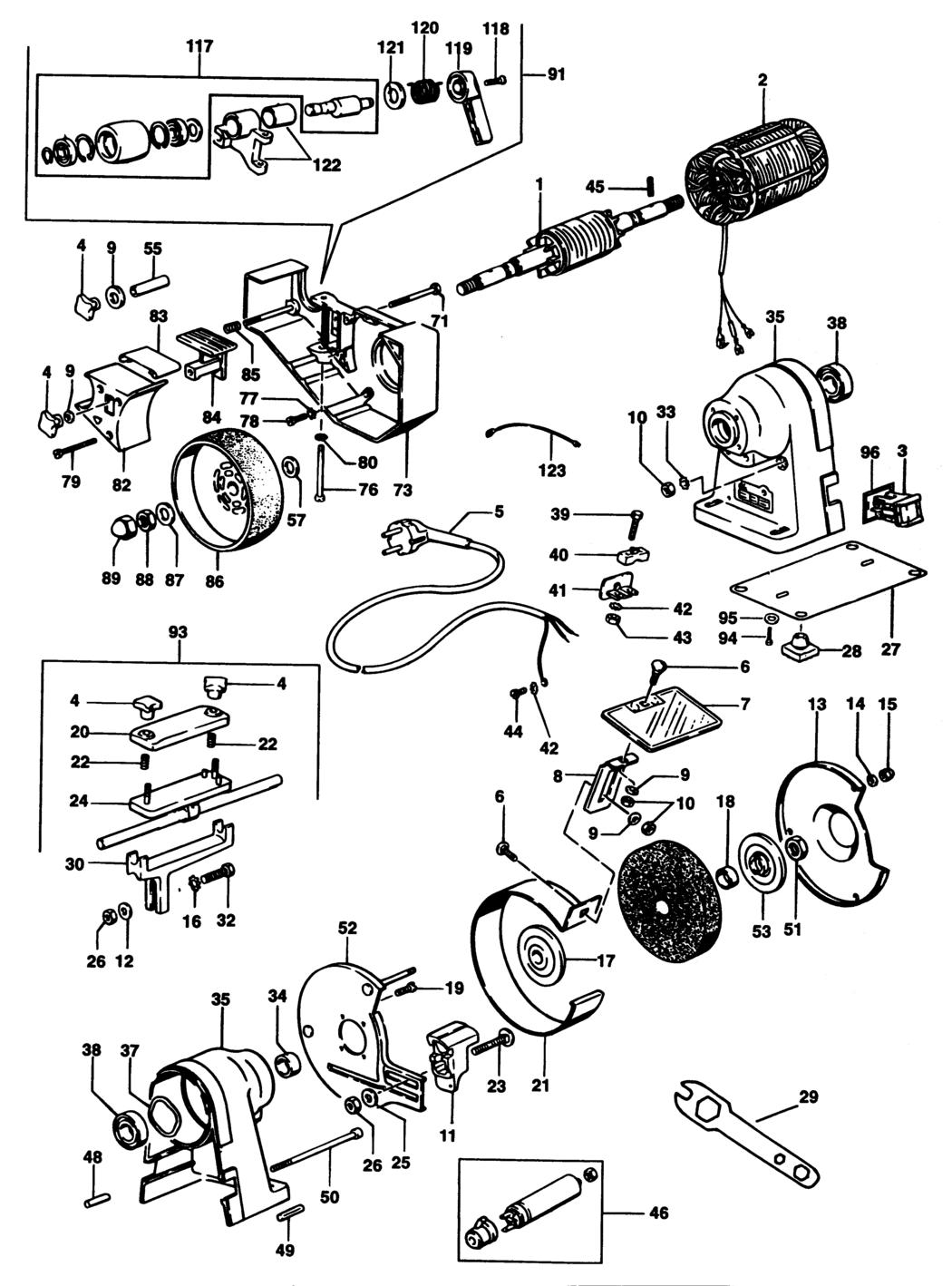

An exploded drawing and spare parts listing for the Elu MWA149 Type 3 Bench Grinder

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A119806 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A119807 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A119808 000000-00	-
4 - KNOB SA BDE-744324.A25 744324	£2.78	£3.34
5 - NO LONGER AVAILABLE GB BDE-000000-00.A119809 000000-00	-
6 - SCREW BDE-725184.A7 725184	£1.50	£1.80
7 - VISOR BDE-742133.A5 742133	£3.30	£3.96
8 - BRACKET BDE-744188.A10 744188	£3.30	£3.96
9 - WASHER BDE-880391.A27 880391	£1.50	£1.80
10 - NUT BDE-725125.A7 725125	£1.50	£1.80
11 - NO LONGER AVAILABLE BDE-000000-00.A119810 000000-00	-
12 - WASHER BDE-742172.A1 742172	£1.50	£1.80
13 - NO LONGER AVAILABLE BDE-000000-00.A119811 000000-00	-
14 - WASHER BDE-725269.A4 725269	£1.50	£1.80
15 - LOCK-NUT BDE-146823100.A20 146823100	£1.50	£1.80
16 - WASHER M8 BDE-742046.A22 742046	£1.50	£1.80
17 - CLAMP BDE-742298.A7 742298	£3.30	£3.96
18 - BUSH BDE-742134.A9 742134	£1.50	£1.80
19 - NO LONGER AVAILABLE BDE-000000-00.A119812 000000-00	-
20 - STRIP BDE-744231.A11 744231	£7.85	£9.42
21 - NO LONGER AVAILABLE BDE-000000-00.A119813 000000-00	-
22 - SPRING BDE-742243.A8 742243	£1.50	£1.80
23 - NO LONGER AVAILABLE BDE-000000-00.A119814 000000-00	-
24 - SUPPORT BDE-744232.A0 744232	-
25 - WASHER BDE-742172.A0 742172	£1.50	£1.80
26 - NUT BDE-725187.A29 725187	£1.50	£1.80
27 - NO LONGER AVAILABLE BDE-000000-00.A119815 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A119816 000000-00	-
29 - SPANNER BDE-742511.A22 742511	£2.78	£3.34
30 - HOLDER BDE-744230.A1 744230	£10.85	£13.02
32 - SCREW BDE-860085-19.A20 860085-19	£1.50	£1.80
33 - WASHER BDE-743415.A0 743415	£1.50	£1.80
34 - BUSH BDE-742153.A9 742153	£2.78	£3.34
35 - NO LONGER AVAILABLE BDE-000000-00.A119817 000000-00	-
37 - WASHER BDE-113933000.A1 113933000	£1.50	£1.80
38 - BEARING BDE-861721-01.A32 861721-01	£7.85	£9.42
39 - SCREW BDE-742041.A1 742041	£1.50	£1.80
40 - NO LONGER AVAILABLE BDE-000000-00.A119818 000000-00	-
41 - CABLE CLAMP BDE-742125.A15 742125	£1.50	£1.80
42 - WASHER BDE-725163.A75 725163	£1.50	£1.80
43 - NUT BDE-725698.A0 725698	£1.50	£1.80
44 - SCREW BDE-725183.A11 725183	-
45 - PIN BDE-742053.A16 742053	£1.50	£1.80
46 - NO LONGER AVAILABLE BDE-000000-00.A119819 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A119820 000000-00	-
49 - PIN BDE-742168.A23 742168	£2.78	£3.34
50 - NO LONGER AVAILABLE BDE-000000-00.A119821 000000-00	-
51 - NUT BDE-742887.A0 742887	£1.82	£2.19
52 - COVER RH BDE-744228.A5 744228	£17.48	£20.97
53 - CLAMP OUTER BDE-742066.A5 742066	£2.78	£3.34
55 - NO LONGER AVAILABLE BDE-000000-00.A119822 000000-00	-
57 - WASHER BDE-743185.A4 743185	£2.78	£3.34
71 - SCREW BDE-742055.A3 742055	£1.50	£1.80
73 - NO LONGER AVAILABLE BDE-000000-00.A119826 000000-00	-
76 - SCREW BDE-742231.A8 742231	£1.82	£2.19
77 - NO LONGER AVAILABLE BDE-000000-00.A119823 000000-00	-
78 - NO LONGER AVAILABLE BDE-000000-00.A119824 000000-00	-
79 - NO LONGER AVAILABLE BDE-000000-00.A119825 000000-00	-
80 - WASHER BDE-743415.A2 743415	£1.50	£1.80
82 - NO LONGER AVAILABLE BDE-000000-00.A119827 000000-00	-
83 - SPRING BDE-742232.A1 742232	£1.50	£1.80
84 - SUPPORT BDE-742227.A3 742227	£5.88	£7.06
85 - SPRING BDE-760276-00.A7 760276-00	£1.50	£1.80
86 - PULLEY BDE-742199.A15 742199	£34.00	£40.80
87 - WASHER BDE-742054.A2 742054	£1.50	£1.80
88 - NUT LH BDE-742140.A9 742140	£1.82	£2.19
89 - NO LONGER AVAILABLE BDE-000000-00.A119828 000000-00	-
91 - LEVER SA BDE-744371.A6 744371	£144.10	£172.92
93 - CLAMP KIT SA BDE-744253.A10 744253	£55.30	£66.36
94 - SCREW BDE-726430.A20 726430	£1.50	£1.80
95 - WASHER BDE-725165.A5 725165	£1.50	£1.80
117 - REPAIR KIT BDE-742212.A1 742212	£126.63	£151.96
118 - SCREW BDE-744308.A3 744308	£1.50	£1.80
119 - LEVER BDE-744245.A3 744245	£12.17	£14.60
120 - SPRING BDE-742222.A1 742222	£1.50	£1.80
121 - WASHER BDE-742218.A9 742218	£1.50	£1.80
122 - BRACKET SA BDE-743814.A3 743814	£14.57	£17.48
123 - NO LONGER AVAILABLE BDE-000000-00.A119829 000000-00	-

Attribute Name	Value
Brand	Elu
