Elu DT53E Type 1 Angle Grinder Spare Parts

Home Details Reviews Delivery

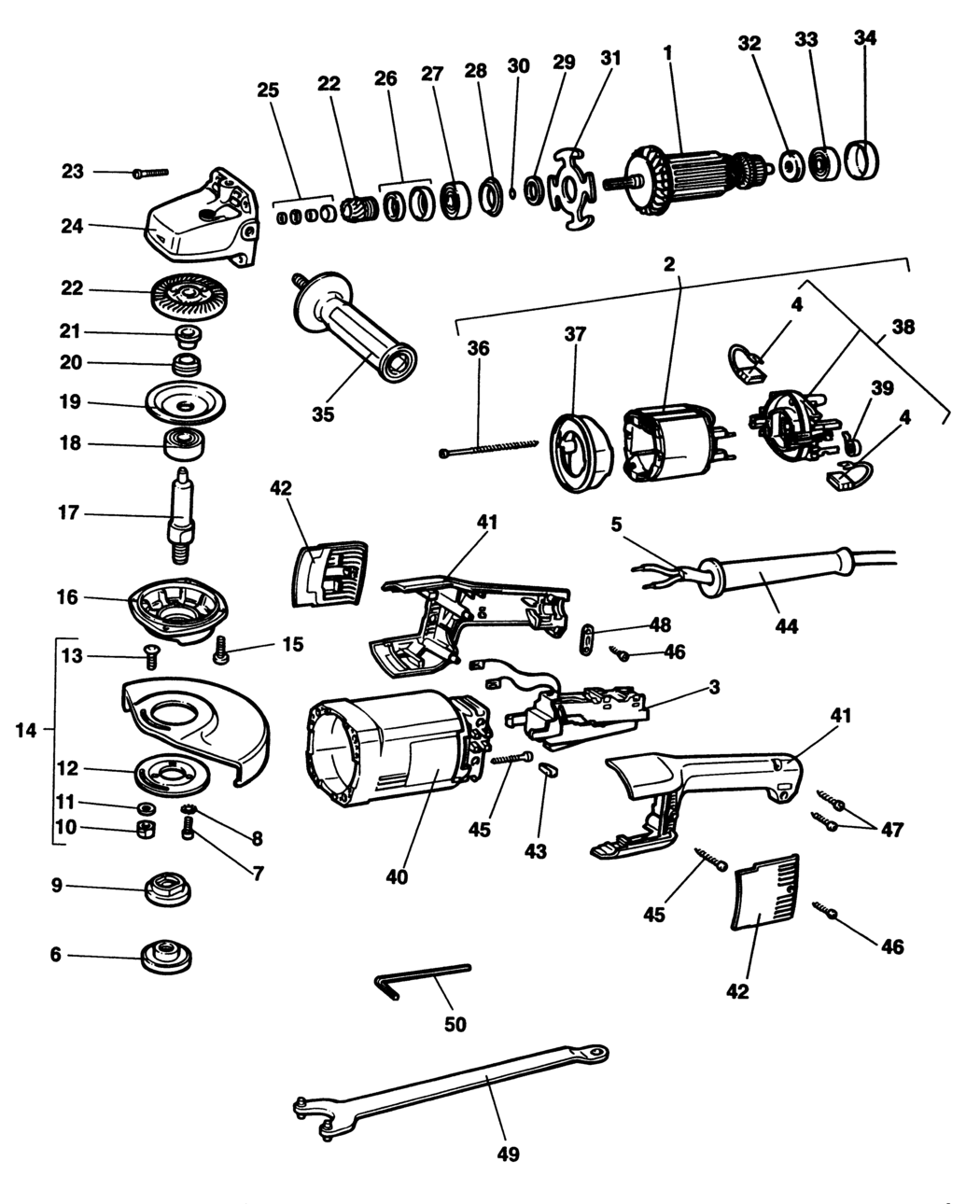

An exploded drawing and spare parts listing for the Elu DT53E Type 1 Angle Grinder

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A16175 000000-00	-
2 - FIELD BDE-940480-49.A4 940480-49	£96.96	£116.35
4 - BRUSH CUT OFF 230V BDE-940160-03.A60 940160-03	£15.01	£18.01
6 - FLANGE BDE-931771.A26 931771	£11.18	£13.41
7 - SCREW BDE-933058-00.A65 933058-00	£1.66	£1.99
8 - WASHER BDE-932369.A27 932369	-
9 - FLANGE BDE-930927.A31 930927	-
10 - NUT BDE-860083-03.A304 860083-03	£1.66	£1.99
11 - WASHER BDE-930925.A106 930925	-
12 - NO LONGER AVAILABLE BDE-000000-00.A16176 000000-00	-
13 - SCREW BDE-949892-07.A15 949892-07	£1.66	£1.99
14 - NO LONGER AVAILABLE BDE-000000-00.A16177 000000-00	-
15 - SCREW BDE-949887-01.A98 949887-01	£1.66	£1.99
16 - GEARCASE COVER BDE-947962-00.A19 947962-00	-
17 - SPINDLE BDE-578243-00.A30 578243-00	£19.40	£23.28
18 - NO LONGER AVAILABLE BDE-000000-00.A16178 000000-00	-
19 - FLANGE BDE-930924.A23 930924	-
20 - SEAL BDE-930923.A76 930923	-
21 - SPACER BDE-930922.A32 930922	£1.66	£1.99
22 - NO LONGER AVAILABLE BDE-000000-00.A16179 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A16180 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A16181 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A16182 000000-00	-
26 - SEAL SA BDE-930909.A90 930909	-
27 - BEARING BDE-330003-14.A111 330003-14	£8.08	£9.70
28 - SEAL SA BDE-931067-00.A42 931067-00	£1.66	£1.99
29 - SPACER BDE-931062.A83 931062	£1.66	£1.99
30 - O RING BDE-930028-00.A224 930028-00	£1.66	£1.99
31 - FLANGE BDE-931066-00.A114 931066-00	£1.82	£2.19
32 - SPACER BDE-N174055.A74 N174055	£1.66	£1.99
33 - BEARING BDE-577745-00.A132 577745-00	£8.08	£9.70
34 - SLEEVE BDE-938332-00.A59 938332-00	£1.66	£1.99
35 - HANDLE SIDE SA BDE-933499.A68 933499	-
36 - SCREW BDE-931072.A61 931072	-
37 - BAFFLE BDE-931073-00.A23 931073-00	£1.66	£1.99
38 - NO LONGER AVAILABLE BDE-000000-00.A16183 000000-00	-
39 - SPRING BDE-931076-00.A73 931076-00	£1.66	£1.99
40 - NO LONGER AVAILABLE BDE-000000-00.A16184 000000-00	-
41 - HANDLE & COVER BDE-N097875.A47 N097875	-
42 - NO LONGER AVAILABLE BDE-000000-00.A16185 000000-00	-
43 - SHOCK ABSORBER BDE-930934-00.A81 930934-00	£1.66	£1.99
44 - CORD PROTECTOR BDE-947964-01.A13 947964-01	£3.92	£4.70
45 - SCREW BDE-931297-00.A133 931297-00	£1.66	£1.99
46 - SCREW BDE-931469-02.A171 931469-02	£1.66	£1.99
47 - SCREW BDE-930284-01.A125 930284-01	£1.66	£1.99
48 - CORD CLAMP BDE-931477-00.A11 931477-00	£1.66	£1.99
49 - WRENCH PIN BDE-938733.A58 938733	£7.40	£8.88
50 - WRENCH BDE-807043.A100 807043	£1.66	£1.99
