Elu BH45E Type 1 Hammer Drill Spare Parts

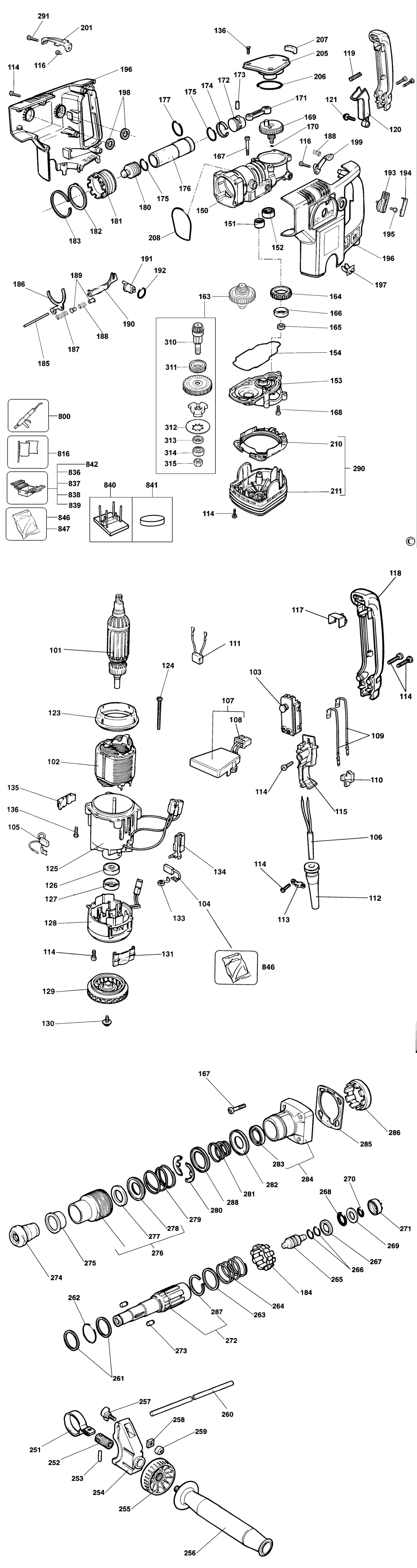

An exploded drawing and spare parts listing for the Elu BH45E Type 1 Hammer Drill

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A119615 000000-00	-
101 - ARMATURE 230V GB 240V BDE-571059-00.A4 571059-00	£135.41	£162.49
102 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A119616 000000-00	-
102 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A119617 000000-00	-
103 - SWITCH BDE-326087-00.A12 326087-00	-
104 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A119626 000000-00	-
104 - SERVICE BRUSH GB 240V BDE-326961-00.A22 326961-00	£17.03	£20.44
105 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A119618 000000-00	-
105 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A119619 000000-00	-
106 - CORDSET GB 240V BDE-324438-73.A1 324438-73	-
106 - CORDSET GB 115V BDE-330061-20.A16 330061-20	£50.60	£60.72
107 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A119620 000000-00	-
107 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A119621 000000-00	-
108 - NO LONGER AVAILABLE BDE-000000-00.A119622 000000-00	-
109 - NO LONGER AVAILABLE BDE-000000-00.A119623 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A119624 000000-00	-
111 - NO LONGER AVAILABLE BDE-000000-00.A119625 000000-00	-
112 - CORD PROTECTOR BDE-323091-01.A6 323091-01	£1.66	£1.99
113 - CORD CLAMP BDE-821070.A54 821070	£1.66	£1.99
114 - SCREW BDE-330065-08.A403 330065-08	£1.66	£1.99
115 - NO LONGER AVAILABLE BDE-000000-00.A119627 000000-00	-
116 - SCREW BDE-330065-05.A14 330065-05	£1.66	£1.99
117 - NO LONGER AVAILABLE BDE-000000-00.A119631 000000-00	-
118 - NO LONGER AVAILABLE BDE-000000-00.A119632 000000-00	-
119 - SPRING BDE-326438-00.A15 326438-00	-
120 - NO LONGER AVAILABLE BDE-000000-00.A119628 000000-00	-
121 - NO LONGER AVAILABLE BDE-000000-00.A119629 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A119630 000000-00	-
124 - SCREW BDE-330065-11.A0 330065-11	£1.66	£1.99
125 - NO LONGER AVAILABLE BDE-000000-00.A119633 000000-00	-
126 - BEARING BDE-577745-00.A43 577745-00	£8.08	£9.70
127 - SLEEVE BDE-325279-00.A48 325279-00	-
128 - COVER BDE-326934-01.A1 326934-01	-
129 - FAN BDE-577736-00.A21 577736-00	-
130 - SCREW BDE-324119-02.A98 324119-02	£1.66	£1.99
131 - SHUTTER BDE-326579-00.A20 326579-00	£2.26	£2.71
133 - BRUSH SPRING BDE-326667-00.A15 326667-00	£1.66	£1.99
134 - HOLDER BDE-326933-01.A57 326933-01	£3.30	£3.96
135 - NO LONGER AVAILABLE BDE-000000-00.A119634 000000-00	-
136 - SCREW TORX BDE-324007-11.A174 324007-11	£1.66	£1.99
150 - NO LONGER AVAILABLE BDE-000000-00.A119635 000000-00	-
151 - BEARING FROM DATE CODE 97-22 BDE-330004-32.A15 330004-32	£8.08	£9.70
151 - BEARING NEEDLE UPTO DATE CODE 97-21 BDE-918877-05.A24 918877-05	£18.42	£22.10
151 - NO LONGER AVAILABLE UPTO DATE CODE 96-12 BDE-000000-00.A119636 000000-00	-
152 - BEARING FROM DATE CODE 97-22 BDE-330004-33.A16 330004-33	-
152 - BEARING NEEDLE UPTO DATE CODE 97-21 BDE-918877-06.A1 918877-06	£14.19	£17.03
153 - NO LONGER AVAILABLE BDE-000000-00.A119637 000000-00	-
154 - SEAL BDE-325936-00.A2 325936-00	£3.70	£4.44
163 - REPAIR KIT BDE-496440-00.A2 496440-00	£105.49	£126.59
164 - GEAR BDE-492618-00.A1 492618-00	-
165 - SEAL BDE-327141-02.A1 327141-02	£2.87	£3.44
166 - BUSH BDE-325616-00.A25 325616-00	-
167 - SCREW BDE-918825-02.A67 918825-02	£1.66	£1.99
168 - NO LONGER AVAILABLE BDE-000000-00.A119638 000000-00	-
169 - NO LONGER AVAILABLE BDE-000000-00.A119639 000000-00	-
170 - O RING BDE-323711-26.A6 323711-26	£1.66	£1.99
171 - CON ROD BDE-325002-00.A22 325002-00	£3.39	£4.07
172 - NO LONGER AVAILABLE BDE-000000-00.A119640 000000-00	-
173 - PIN BDE-330041-22.A59 330041-22	£1.66	£1.99
174 - RETAINER BDE-325905-00.A33 325905-00	£1.66	£1.99
175 - O RING BDE-323711-11.A28 323711-11	£1.66	£1.99
176 - CYLINDER BDE-326098-03.A0 326098-03	£39.97	£47.96
177 - O RING BDE-323711-21.A27 323711-21	£1.66	£1.99
180 - RAM BDE-329319-00.A14 329319-00	-
181 - REPAIR KIT BDE-496440-00.A3 496440-00	£105.49	£126.59
182 - WASHER LARGE BDE-326085-00.A23 326085-00	£5.72	£6.87
183 - CIRCLIP BDE-323763-03.A26 323763-03	£1.66	£1.99
184 - SPINDLE LOCK BDE-1005697-00.A26 1005697-00	-
185 - SHAFT BDE-325880-02.A21 325880-02	£3.80	£4.56
186 - SELECTOR FORK BDE-325160-00.A46 325160-00	-
187 - SPRING BDE-323395-08.A47 323395-08	£1.82	£2.19
188 - SPRING BDE-323395-09.A1 323395-09	-
189 - SPACER BDE-326093-00.A3 326093-00	£1.82	£2.19
190 - NO LONGER AVAILABLE BDE-000000-00.A119649 000000-00	-
191 - NO LONGER AVAILABLE BDE-000000-00.A119650 000000-00	-
192 - O RING BDE-323711-07.A71 323711-07	£1.88	£2.26
193 - LEVER SA BDE-326507-00.A23 326507-00	-
194 - NO LONGER AVAILABLE BDE-000000-00.A119641 000000-00	-
195 - NO LONGER AVAILABLE BDE-000000-00.A119642 000000-00	-
196 - NO LONGER AVAILABLE BDE-000000-00.A119643 000000-00	-
197 - NO LONGER AVAILABLE BDE-000000-00.A119644 000000-00	-
198 - NO LONGER AVAILABLE BDE-000000-00.A119645 000000-00	-
199 - NO LONGER AVAILABLE BDE-000000-00.A119646 000000-00	-
201 - NO LONGER AVAILABLE BDE-000000-00.A119647 000000-00	-
205 - NO LONGER AVAILABLE BDE-000000-00.A119648 000000-00	-
206 - O RING BDE-323711-22.A1 323711-22	£1.66	£1.99
207 - FILTER BDE-326824-00.A31 326824-00	-
208 - O RING BDE-323711-17.A1 323711-17	£1.78	£2.13
210 - NO LONGER AVAILABLE BDE-000000-00.A119651 000000-00	-
211 - NO LONGER AVAILABLE BDE-000000-00.A119652 000000-00	-
251 - COLLAR BDE-326555-00.A21 326555-00	£6.06	£7.27
252 - BUSH BDE-326552-00.A38 326552-00	£7.40	£8.88
253 - PIN BDE-N079374.A43 N079374	£1.66	£1.99
254 - CLAMP BDE-N021108.A18 N021108	£9.41	£11.29
255 - LOCKING RING BDE-326553-00.A33 326553-00	£4.83	£5.80
256 - HANDLE BDE-N021120.A18 N021120	£14.57	£17.48
257 - SCREW WING BDE-326573-00.A14 326573-00	£6.06	£7.27
258 - NUT BDE-326556-00.A23 326556-00	£1.66	£1.99
259 - NUT BDE-330021-01.A54 330021-01	£1.66	£1.99
260 - DEPTH ROD BDE-326205-00.A0 326205-00	£3.70	£4.44
261 - WASHER BDE-323753-11.A3 323753-11	£3.92	£4.70
262 - O RING BDE-323711-14.A0 323711-14	£1.66	£1.99
263 - WASHER BDE-323753-14.A46 323753-14	£1.66	£1.99
264 - SPRING BDE-323395-07.A6 323395-07	£1.66	£1.99
265 - REPAIR KIT BDE-579580-00.A0 579580-00	£38.80	£46.56
266 - SEAL From date code 30-01 BDE-577484-00.A17 577484-00	£16.52	£19.82
266 - O RING Upto date code 29-01 BDE-323711-10.A2 323711-10	£1.66	£1.99
267 - WASHER BDE-582381-00.A49 582381-00	£5.88	£7.06
268 - O RING BDE-577744-02.A21 577744-02	£1.88	£2.26
269 - WASHER BDE-323753-16.A2 323753-16	£3.80	£4.56
270 - O RING BDE-N210233.A65 N210233	£1.66	£1.99
271 - CAP BDE-326044-00.A27 326044-00	£3.70	£4.44
272 - SPINDLE BDE-493133-00.A23 493133-00	£153.22	£183.86
273 - ROLLER BDE-325878-00.A32 325878-00	£1.66	£1.99
274 - LIP SEAL BDE-329816-00.A49 329816-00	£3.39	£4.07
275 - COLLAR BDE-326575-02.A8 326575-02	£1.66	£1.99
276 - SLEEVE SA BDE-479247-00.A51 479247-00	£7.40	£8.88
277 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A36 000000-03	-
278 - PART NLS ORDER SLEEVE SA 479247-00 BDE-000000-03.A37 000000-03	-
279 - SPRING BDE-323395-06.A57 323395-06	£1.66	£1.99
280 - HALF WASHER BDE-325929-00.A51 325929-00	£1.66	£1.99
281 - SPRING BDE-487118-00.A29 487118-00	£1.66	£1.99
282 - SPRING GUIDE BDE-325930-00.A0 325930-00	£1.66	£1.99
283 - SEAL BDE-327141-00.A48 327141-00	£1.88	£2.26
284 - CASTING SA BDE-326125-00.A26 326125-00	£65.52	£78.62
285 - GASKET BDE-325935-00.A31 325935-00	-
286 - SPINDLE LOCK BDE-588560-00.A3 588560-00	-
287 - RING BDE-323763-04.A23 323763-04	-
288 - GUIDE BDE-327208-00.A48 327208-00	£1.66	£1.99
290 - END CAP SA BDE-326784-01.A18 326784-01	£18.42	£22.10
291 - SCREW BDE-324007-10.A2 324007-10	£1.66	£1.99
310 - NO LONGER AVAILABLE BDE-000000-00.A119653 000000-00	-
311 - BEARING BDE-323872-02.A0 323872-02	-
312 - NO LONGER AVAILABLE BDE-000000-00.A119654 000000-00	-
313 - NO LONGER AVAILABLE BDE-000000-00.A119655 000000-00	-
314 - BEARING BDE-330003-39.A14 330003-39	£2.87	£3.44
315 - NO LONGER AVAILABLE BDE-000000-00.A119656 000000-00	-
800 - GREASE 100 GMS BDE-328771-02.A3 328771-02	£19.48	£23.37
816 - NO LONGER AVAILABLE SMALL 44MM X 49MM BDE-000000-00.A119657 000000-00	-
816 - NO LONGER AVAILABLE LARGE 70MM X 53MM BDE-000000-00.A119658 000000-00	-
836 - NO LONGER AVAILABLE UPTO DATE CODE 97-21 BDE-000000-00.A119659 000000-00	-
836 - SERVICE TOOL FROM DATE CODE 97-22 BDE-559508-98.A2 559508-98	£71.44	£85.73
837 - NO LONGER AVAILABLE FROM DATE CODE 97-22 BDE-000000-00.A119660 000000-00	-
837 - NO LONGER AVAILABLE UPTO DATE CODE 97-21 BDE-000000-00.A119661 000000-00	-
838 - S.T.PULLER BDE-559510-99.A26 559510-99	£87.82	£105.39
839 - S.T.SUPPORT JIG BDE-559656-99.A31 559656-99	£71.44	£85.73
840 - S.T.ASSEMBLY JIG BDE-559597-99.A4 559597-99	£38.80	£46.56
841 - S.T.BLOCK BDE-559598-99.A42 559598-99	-
842 - S.T.MANDREL FROM DATE CODE 97-22 BDE-559602-99.A3 559602-99	£47.08	£56.49
846 - BRUSH PAIR 120V GB 115V BDE-327148-03.A11 327148-03	-
846 - BRUSH PAIR 230V GB 240V BDE-N542573.A13 N542573	-
847 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A119662 000000-00	-
847 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A119663 000000-00	-
