Elu E38654 Type 1 Dust Bag Sa Spare Parts

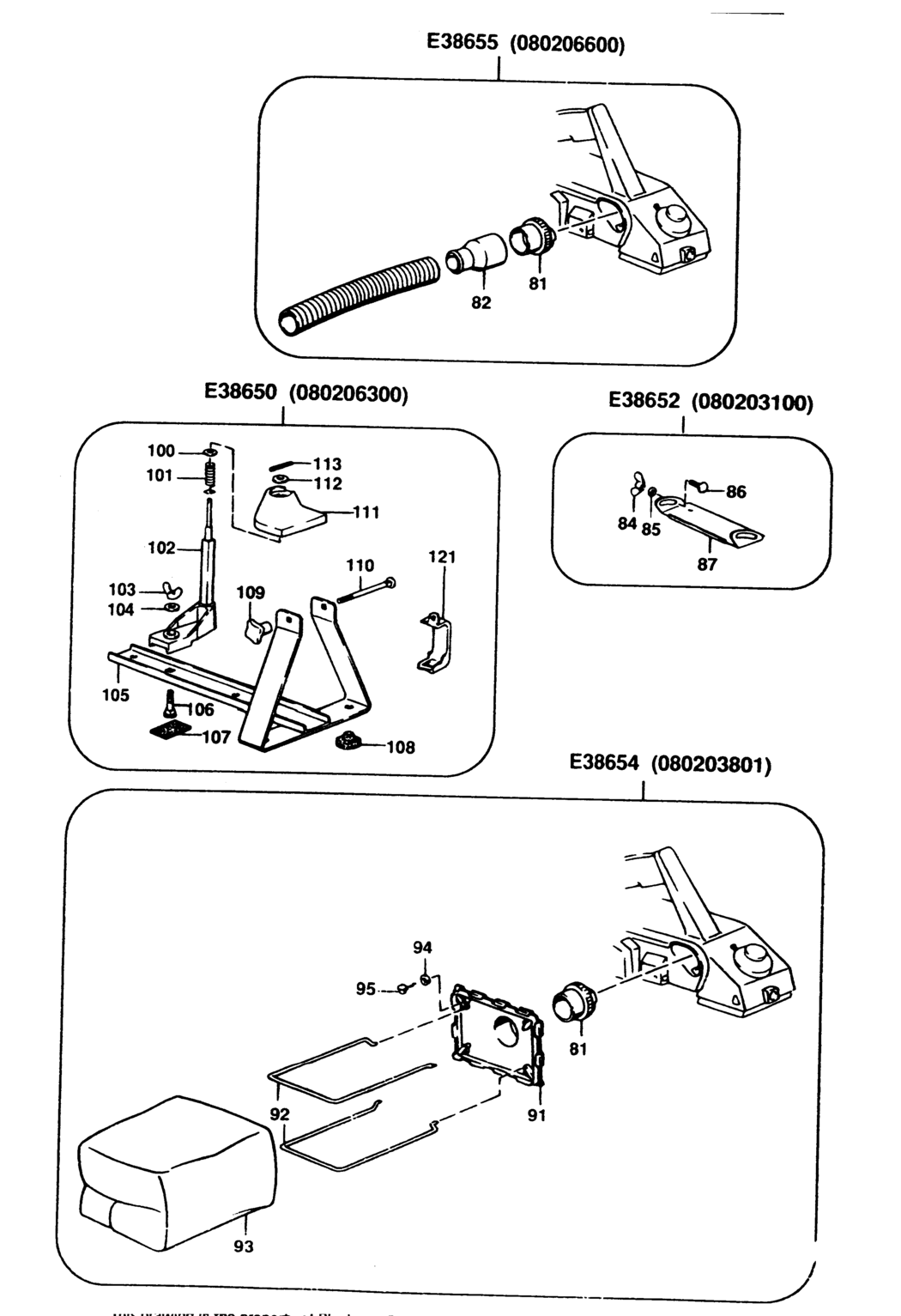

An exploded drawing and spare parts listing for the Elu E38654 Type 1 Dust Bag Sa

	Ex VAT	Inc VAT
81 - ADAPTOR E38655 BDE-248629-00.A15 248629-00	£5.88	£7.06
81 - ADAPTOR E38654 BDE-248629-00.A16 248629-00	£5.88	£7.06
82 - NO LONGER AVAILABLE E38655 BDE-000000-00.A85756 000000-00	-
84 - NO LONGER AVAILABLE E38652 BDE-000000-00.A85757 000000-00	-
85 - WASHER M6 E38652 BDE-249221-00.A10 249221-00	£1.50	£1.80
86 - SCREW E38652 BDE-860301-00.A193 860301-00	£1.50	£1.80
87 - NO LONGER AVAILABLE E38652 BDE-000000-00.A85758 000000-00	-
91 - NO LONGER AVAILABLE E38654 BDE-000000-00.A85759 000000-00	-
92 - NO LONGER AVAILABLE E38654 BDE-000000-00.A85760 000000-00	-
93 - NO LONGER AVAILABLE E38654 BDE-000000-00.A85761 000000-00	-
94 - WASHER E38654 BDE-249233-00.A45 249233-00	£1.50	£1.80
95 - SCREW E38654 BDE-249416-06.A84 249416-06	£1.42	£1.70
100 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85762 000000-00	-
101 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85763 000000-00	-
102 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85764 000000-00	-
103 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85765 000000-00	-
104 - WASHER M8 E38650 BDE-249223-00.A13 249223-00	£1.42	£1.70
105 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85766 000000-00	-
106 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85767 000000-00	-
107 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85768 000000-00	-
108 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85769 000000-00	-
109 - KNOB E38650 BDE-941536-01.A34 941536-01	-
110 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85770 000000-00	-
111 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85771 000000-00	-
112 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85772 000000-00	-
113 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85773 000000-00	-
121 - NO LONGER AVAILABLE E38650 BDE-000000-00.A85774 000000-00	-

Attribute Name	Value
Brand	Elu
