Elu 157206501 Type 1 Sanding Frame Spare Parts

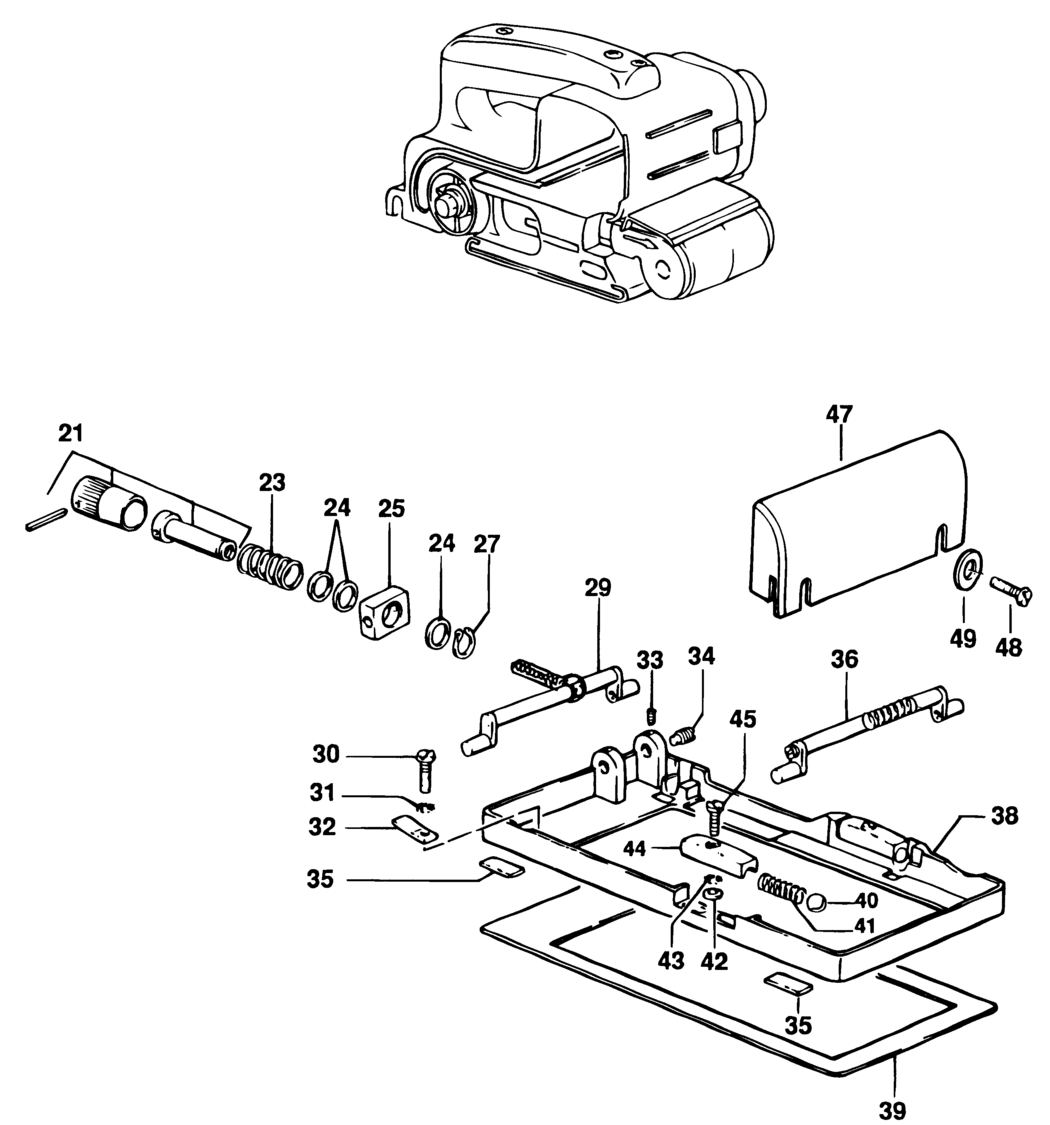

An exploded drawing and spare parts listing for the Elu 157206501 Type 1 Sanding Frame

	Ex VAT	Inc VAT
21 - NO LONGER AVAILABLE BDE-000000-00.A85670 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A85671 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A85672 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A85673 000000-00	-
27 - CIRCLIP BDE-860079-03.A74 860079-03	£1.66	£1.99
29 - NO LONGER AVAILABLE BDE-000000-00.A85674 000000-00	-
30 - SCREW BDE-249424-01.A6 249424-01	£1.66	£1.99
31 - WASHER BDE-725163.A47 725163	£1.66	£1.99
32 - NO LONGER AVAILABLE BDE-000000-00.A85657 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A85658 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A85659 000000-00	-
35 - NO LONGER AVAILABLE BDE-000000-00.A85660 000000-00	-
36 - NO LONGER AVAILABLE BDE-000000-00.A85661 000000-00	-
38 - NO LONGER AVAILABLE E36050 TYPE 2 BDE-000000-00.A85662 000000-00	-
38 - NO LONGER AVAILABLE E36070 BDE-000000-00.A85663 000000-00	-
38 - NO LONGER AVAILABLE E36050 TYPE 1 BDE-000000-00.A85664 000000-00	-
39 - NO LONGER AVAILABLE E36050 TYPE 2 BDE-000000-00.A85665 000000-00	-
39 - NO LONGER AVAILABLE E36050 TYPE 1 BDE-000000-00.A85666 000000-00	-
39 - NO LONGER AVAILABLE E36070 BDE-000000-00.A85667 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A85668 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A85669 000000-00	-
42 - WASHER BDE-860073-01.A285 860073-01	£1.66	£1.99
43 - WASHER BDE-761035-00.A59 761035-00	£1.66	£1.99
44 - NO LONGER AVAILABLE BDE-000000-00.A85675 000000-00	-
45 - SCREW BDE-249424-21.A5 249424-21	£1.66	£1.99
47 - NO LONGER AVAILABLE E36050 TYPE 2 BDE-000000-00.A85684 000000-00	-
48 - SCREW E36050 TYPE 2 BDE-249424-01.A7 249424-01	£1.66	£1.99
49 - WASHER E36050 TYPE 2 BDE-725163.A48 725163	£1.66	£1.99

Attribute Name	Value
Brand	Elu
