Elu 040203100 Type 1 Planer Accs Spare Parts

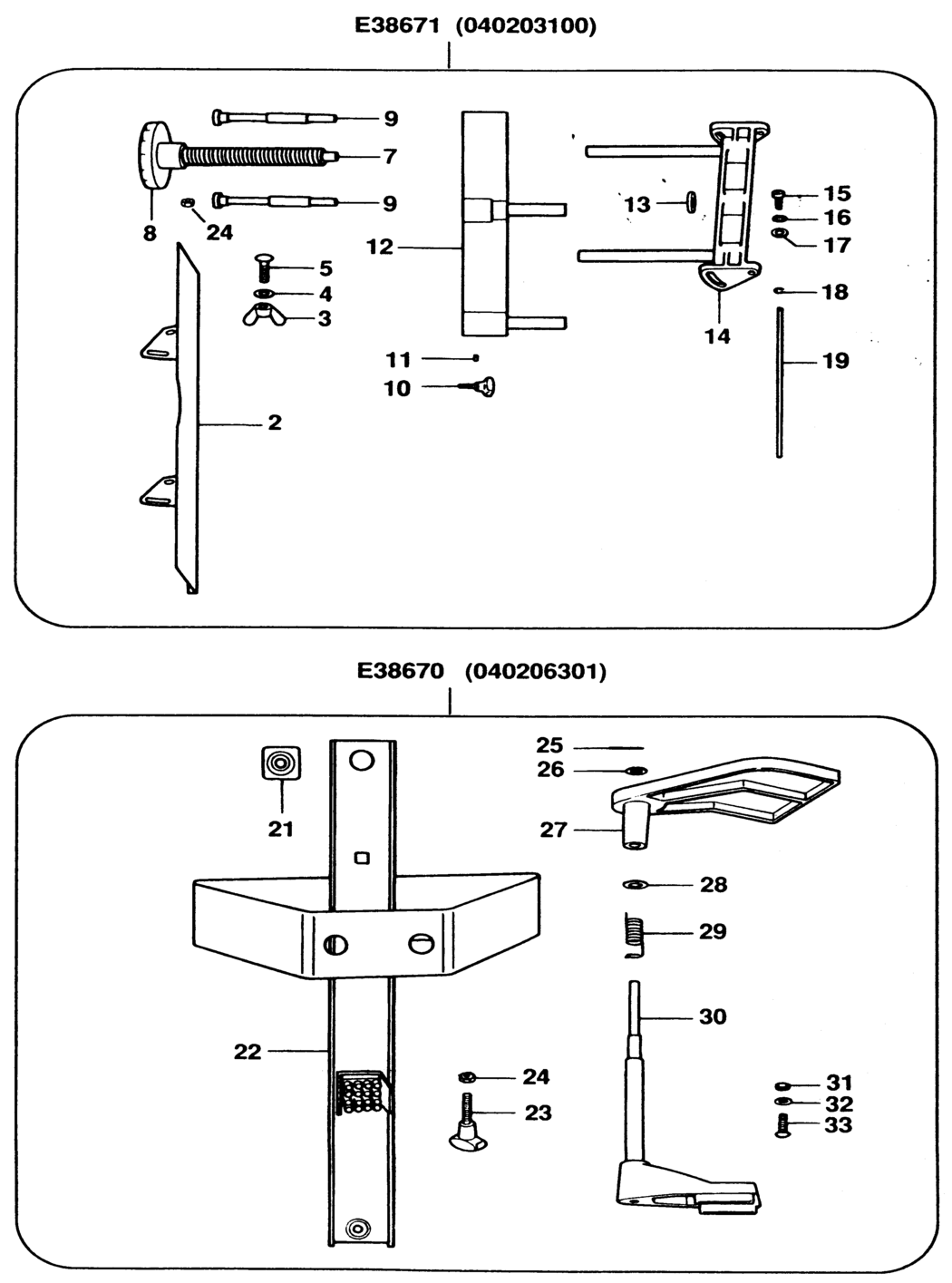

An exploded drawing and spare parts listing for the Elu 040203100 Type 1 Planer Accs

	Ex VAT	Inc VAT
2 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19324 000000-00	-
3 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19325 000000-00	-
4 - WASHER M6 E38671 BDE-249221-00.A132 249221-00	£1.50	£1.80
5 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19327 000000-00	-
7 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19328 000000-00	-
8 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19329 000000-00	-
9 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19330 000000-00	-
10 - KNOB E38671 BDE-025922908.A161 025922908	-
11 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19331 000000-00	-
12 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19332 000000-00	-
13 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19333 000000-00	-
14 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19334 000000-00	-
15 - SCREW E38671 BDE-941606-00.A2 941606-00	-
16 - WASHER E38671 BDE-743415.A45 743415	£1.50	£1.80
17 - WASHER M6 E38671 BDE-249221-00.A131 249221-00	£1.50	£1.80
18 - CIRCLIP E38671 BDE-036820700.A0 036820700	£1.42	£1.70
19 - NO LONGER AVAILABLE E38671 BDE-000000-00.A19336 000000-00	-
21 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19337 000000-00	-
22 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19338 000000-00	-
23 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19339 000000-00	-
24 - NUT M6 E38670 BDE-860083-12.A42 860083-12	£1.50	£1.80
25 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19340 000000-00	-
26 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19341 000000-00	-
27 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19342 000000-00	-
28 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19343 000000-00	-
29 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19344 000000-00	-
30 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19345 000000-00	-
31 - NUT E38670 BDE-249411-10.A12 249411-10	-
32 - WASHER M8 E38670 BDE-249223-00.A67 249223-00	£1.42	£1.70
33 - NO LONGER AVAILABLE E38670 BDE-000000-00.A19346 000000-00	-

Attribute Name	Value
Brand	Elu
