Festool RO 150 FEQ 230V / 492160 Spare Parts

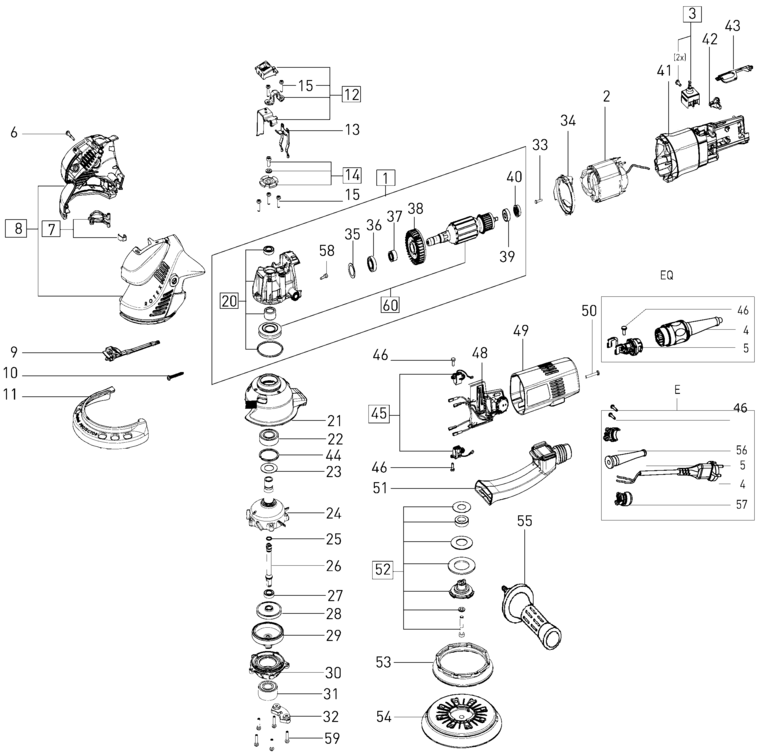

An exploded diagram and spare parts listing for the Festool RO 150 FEQ 230V / 492160

	Ex VAT	Inc VAT
1 - ANCHOR WITH RING GEAR FSP-497770.A2 497770	£115.15	£138.18
2 - FIELD ASSEMBLY 230 V FSP-494074.A0 494074	£42.88	£51.45
3 - SWITCH FSP-494387.A1 494387	£24.46	£29.35
4 - PLUG IT-CABLE FSP-203914.A90 203914	-
5 - SOCKET HOUSING 230V FSP-489927.A8 489927	£7.92	£9.51
6 - RAISED-HEAD SCREW 3.5 X 22 MM FSP-400174.A22 400174	£2.00	£2.40
7 - PUSHER FSP-494064.A4 494064	£12.85	£15.42
8 - HOUSING FSP-494089.A5 494089	£26.82	£32.19
9 - KNOB FSP-465465.A0 465465	£2.00	£2.40
10 - RAISED-HEAD SCREW 4.0 X 30 MM FSP-400528.A61 400528	£2.00	£2.40
11 - PROTECTOR FSP-493913.A1 493913	£13.24	£15.89
12 - CATCH FSP-494066.A1 494066	£21.46	£25.75
13 - PLATE SPRING FSP-465559.A4 465559	£2.00	£2.40
14 - TOOTH DISC FSP-494067.A4 494067	£13.86	£16.63
15 - RAISED-HEAD SCREW M4 X 16 FSP-219075.A131 219075	£2.00	£2.40
21 - GEAR COVER FSP-465174.A1 465174	£30.68	£36.81
22 - BALL BEARING FSP-400743.A5 400743	£10.06	£12.07
23 - COVER DISC FSP-472770.A5 472770	£2.00	£2.40
24 - ECCENTRIC DISK FSP-465175.A4 465175	£41.16	£49.39
25 - O-RING FSP-200920.A5 200920	£2.00	£2.40
26 - SHAFT FSP-465171.A4 465171	£24.77	£29.72
27 - BALL BEARING FSP-400748.A5 400748	£13.15	£15.78
28 - GEAR FSP-465112.A1 465112	£8.97	£10.76
29 - RING GEAR FSP-465113.A4 465113	£17.68	£21.22
30 - BEARING HOUSING FSP-465176.A1 465176	£31.09	£37.31
31 - BALL BEARING FSP-479745.A0 479745	£32.47	£38.96
32 - COUNTER BALANCE FSP-701217.A5 701217	£5.17	£6.20
33 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A47 219069	£2.00	£2.40
34 - AIR GUIDE WASHER FSP-465360.A4 465360	£2.00	£2.40
40 - SOLENOID RING FSP-444018.A20 444018	£2.00	£2.40
41 - MOTOR HOUSING FSP-465469.A4 465469	£10.54	£12.65
42 - LEVER FSP-465565.A4 465565	£2.00	£2.40
43 - SWITCH LINKAGE FSP-465561.A1 465561	£2.46	£2.95
44 - SNAP RING FSP-400827.A1 400827	£2.00	£2.40
45 - BRUSH (PAIR) 100-230V FSP-494062.A2 494062	£17.85	£21.42
46 - RAISED-HEAD SCREW 3.5 X 10 MM FSP-219031.A21 219031	£2.00	£2.40
48 - ELECTRONIC 230 V FSP-493405.A1 493405	£50.82	£60.99
49 - CAP FSP-465470.A1 465470	£11.01	£13.21
50 - RAISED-HEAD SCREW 3.5 X 25 MM FSP-219068.A2 219068	£2.00	£2.40
51 - EXTRACTOR TUBE CLEANTEC FSP-10025000.A4 10025000	£13.26	£15.91
52 - BAYONET NUT CONNECTOR FSP-494063.A2 494063	£34.32	£41.18
53 - COLLAR FSP-479703.A3 479703	£6.75	£8.10
54 - SANDING PAD FSP-202461.A4 202461	£34.44	£41.33
55 - AUXILIARY HANDLE FSP-487865.A31 487865	£7.94	£9.53
59 - RAISED-HEAD SCREW M4 X 18 FSP-400904.A9 400904	£2.00	£2.40
61 - NAMEPLATE FSP-466250.A2 466250	£2.00	£2.40

Attribute Name	Value
Brand	Festool
