Black & Decker GXC1000 Type H1 Power Weeder Spare Parts

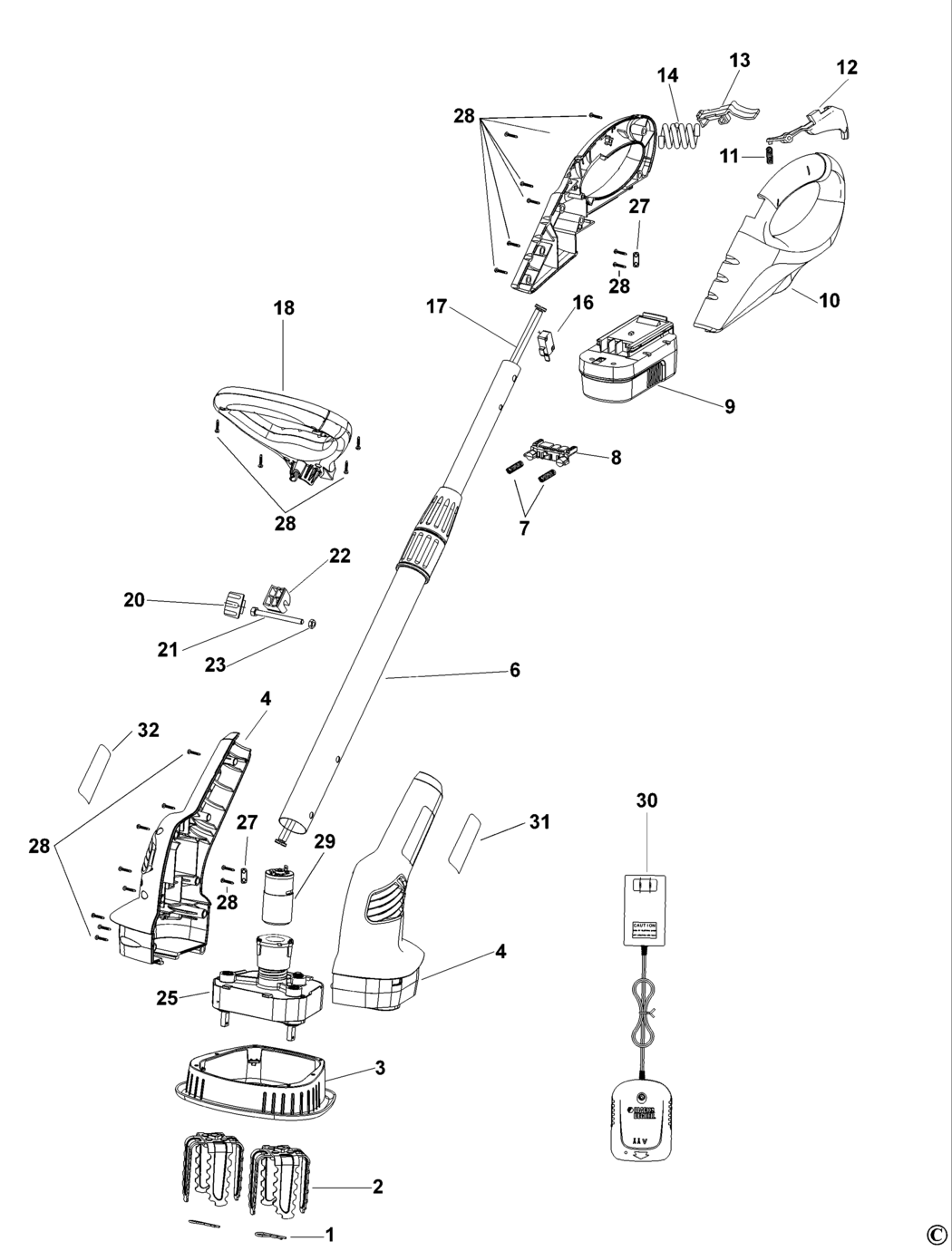

An exploded drawing and spare parts listing for the Black & Decker GXC1000 Type H1 Power Weeder

	Ex VAT	Inc VAT
1 - SPRING CLIP BDE-90506985.A1 90506985	£1.42	£1.70
2 - BLADE SA BDE-90505847.A3 90505847	£11.87	£14.24
3 - NO LONGER AVAILABLE BDE-000000-00.A95089 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A95090 000000-00	-
6 - NO LONGER AVAILABLE BDE-000000-00.A95091 000000-00	-
7 - SPRING BDE-5100035-03.A90 5100035-03	£1.50	£1.80
8 - TERMINAL BLOCK BDE-5100034-00.A7 5100034-00	£1.42	£1.70
9 - BATTERY 18V - 1.5AH - 27WH GXC1000 GB BDE-5103553-00.A12 5103553-00	-
9 - BATTERY 18V - 1.7AH GXC1000P GB BDE-90511682.A2 90511682	-
10 - NO LONGER AVAILABLE BDE-000000-00.A95092 000000-00	-
11 - SPRING BDE-5104136-00.A16 5104136-00	£1.42	£1.70
12 - NO LONGER AVAILABLE BDE-000000-00.A95093 000000-00	-
13 - NO LONGER AVAILABLE BDE-000000-00.A95094 000000-00	-
14 - SPRING BDE-5104138-00.A26 5104138-00	£1.50	£1.80
16 - SWITCH BDE-5104141-00.A14 5104141-00	£9.17	£11.00
17 - NO LONGER AVAILABLE BDE-000000-00.A95101 000000-00	-
18 - LOWER HANDLE BDE-90511888 90511888	£7.01	£8.41
20 - NO LONGER AVAILABLE BDE-000000-00.A95095 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A95096 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A95097 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A95098 000000-00	-
25 - NO LONGER AVAILABLE BDE-000000-00.A95099 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A95100 000000-00	-
28 - SCREW BDE-5103541-00.A20 5103541-00	£1.42	£1.70
29 - NO LONGER AVAILABLE BDE-000000-00.A95102 000000-00	-
30 - CHARGER GB BDE-90613804.A27 90613804	-
31 - NO LONGER AVAILABLE GB BDE-000000-00.A95103 000000-00	-
32 - NO LONGER AVAILABLE GB BDE-000000-00.A95104 000000-00	-
33 - NO LONGER AVAILABLE BDE-000000-00.A95105 000000-00	-
34 - NO LONGER AVAILABLE BDE-000000-00.A62281 000000-00	-
