Fein KBB 30 Rev. X / 72721124110 Spare Parts

Home Details Reviews Delivery

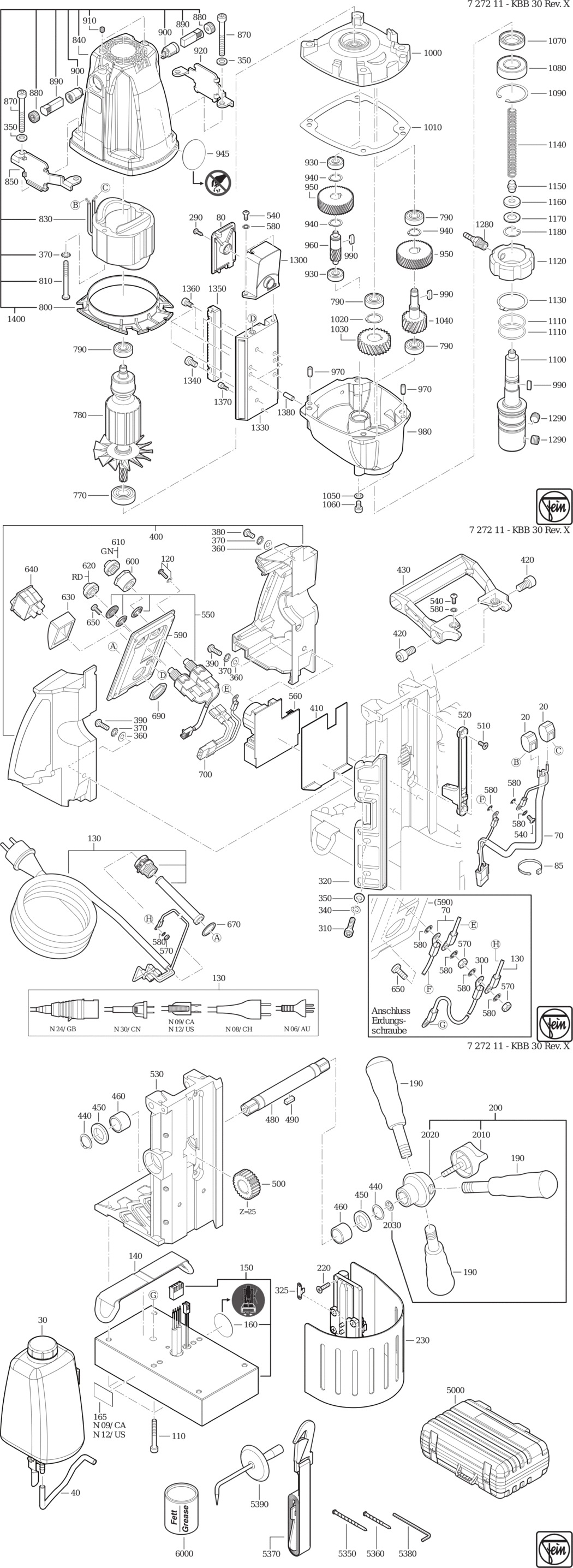

An exploded diagram and spare parts listing for the Fein KBB 30 Rev. X / 72721124110

	Ex VAT	Inc VAT
20 - TERMINAL FEI-31412064000.A1 31412064000	-
30 - CONTAINER FEI-32198190010.A5 32198190010	£25.49	£30.59
40 - HOSE FEI-31498760060.A9 31498760060	-
70 - CABLE FEI-30798591130.A4 30798591130	£46.03	£55.24
80 - COVER FEI-31998630020.A2 31998630020	£1.60	£1.92
85 - CABLE TIE FEI-30798757100.A11 30798757100	£1.60	£1.92
110 - SCREW FEI-43098705585.A3 43098705585	-
120 - SCREW FEI-43098703230.A1 43098703230	-
130 - CABLE WITH PLUG GB FEI-30798592070.A2 30798592070	£90.57	£108.68
140 - BELT FEI-32198121000.A6 32198121000	£24.88	£29.85
150 - MAGNETIC FOOT FEI-33298492025.A0 33298492025	£399.20	£479.04
160 - STICKER FEI-32217407000.A17 32217407000	-
190 - HANDLE FEI-32198114000.A10 32198114000	£18.38	£22.06
200 - CONNECTING PIECE FEI-31698391000.A9 31698391000	£44.05	£52.86
220 - SCREW FEI-43098705120.A9 43098705120	-
230 - PROTECTIVE GRILLE FEI-63998611060.A6 63998611060	£41.76	£50.11
290 - SCREW FEI-43098710070.A6 43098710070	-
300 - CONNECTING CABLE FEI-30798591095.A0 30798591095	£14.24	£17.09
310 - SCREW FEI-43098706480.A0 43098706480	-
320 - GUIDE FEI-31298332820.A6 31298332820	£13.75	£16.50
340 - DISC FEI-42498720630.A12 42498720630	-
350 - DISC FEI-42498720600.A0 42498720600	£1.60	£1.92
360 - LOCK WASHER FEI-42498720500.A8 42498720500	-
370 - DISC FEI-42498720540.A1 42498720540	-
380 - SCREW FEI-43098705060.A9 43098705060	-
390 - SCREW FEI-43098705370.A5 43098705370	-
400 - HOUSING FEI-31298392600.A6 31298392600	-
410 - COVER FEI-30798510130.A3 30798510130	-
420 - SCREW FEI-43098708100.A21 43098708100	-
430 - HANDLE FEI-31298330020.A1 31298330020	£19.50	£23.40
440 - CIRCLIP FEI-42616023000.A6 42616023000	-
450 - DISC FEI-31698320055.A7 31698320055	-
460 - BUSH FEI-31698320040.A8 31698320040	£3.54	£4.25
480 - SHAFT FEI-33298320040.A8 33298320040	£38.13	£45.76
490 - FEATHER KEY FEI-40298745000.A8 40298745000	-
500 - GEAR-WHEEL FEI-33698682000.A15 33698682000	£36.42	£43.70
510 - SCREW FEI-43098705055.A2 43098705055	-
520 - GUIDE FEI-31298332540.A7 31298332540	£3.19	£3.83
530 - HOUSING FEI-31298330140.A5 31298330140	£209.06	£250.87
540 - SCREW FEI-43098704060.A25 43098704060	£1.60	£1.92
550 - SWITCH MODULE FEI-30798591058.A8 30798591058	£58.83	£70.60
560 - ELECTRONICS FEI-30798550095.A0 30798550095	£150.59	£180.71
570 - HEX NUT FEI-42001027045.A12 42001027045	£1.60	£1.92
580 - DISC FEI-42498720440.A15 42498720440	£1.60	£1.92
590 - PLATE FEI-30798591110.A5 30798591110	£30.00	£36.00
600 - PROTECTIVE CAP FEI-32498520090.A5 32498520090	£3.95	£4.74
610 - PUSHBUTTON FEI-30798755270.A19 30798755270	£8.29	£9.95
620 - PUSHBUTTON FEI-30798755275.A1 30798755275	£8.29	£9.95
630 - COVER FEI-31498531020.A1 31498531020	£5.54	£6.65
640 - SWITCH FEI-30798755410.A19 30798755410	£33.88	£40.66
650 - SCREW FEI-43098704330.A12 43098704330	£2.24	£2.69
670 - SEAL FEI-30610034008.A34 30610034008	£1.60	£1.92
690 - NUT FEI-30798757544.A0 30798757544	£3.04	£3.65
700 - CABLE FEI-30798591085.A9 30798591085	£30.90	£37.08
770 - GROOVED BALL BEARING FEI-41798730390.A29 41798730390	£35.33	£42.40
780 - ARMATURE SET 120V FEI-53298653020.A3 53298653020	£161.38	£193.66
790 - GROOVED BALL BEARING FEI-41798730200.A15 41798730200	£18.80	£22.56
800 - AIR GUIDE RING FEI-31998633060.A3 31998633060	£4.09	£4.91
810 - SCREW FEI-43098705600.A6 43098705600	-
830 - STATOR FEI-51298653020.A3 51298653020	£67.10	£80.52
840 - MOTOR HOUSING FEI-31998633010.A6 31998633010	-
850 - ADAPTER FEI-32498610180.A6 32498610180	£7.29	£8.75
870 - SCREW FEI-43098706660.A0 43098706660	-
880 - CAP FEI-30798653080.A7 30798653080	£1.60	£1.92
890 - CARBON BRUSH (SOLD SINGLY) FEI-30798653100.A2 30798653100	£6.23	£7.48
900 - BRUSH HOLDER FEI-30798653120.A7 30798653120	£9.67	£11.61
910 - SCREW FEI-43098705010.A5 43098705010	-
920 - ADAPTER FEI-32498610160.A3 32498610160	£7.37	£8.84
930 - GROOVED BALL BEARING FEI-41798730120.A1 41798730120	-
940 - RING FEI-42698740120.A14 42698740120	-
945 - STICKER FEI-32217406002.A62 32217406002	£1.60	£1.92
950 - GEAR-WHEEL FEI-33698681030.A9 33698681030	-
970 - PIN FEI-40298742003.A2 40298742003	-
980 - GEARBOX HOUSING FEI-31998633040.A3 31998633040	£64.03	£76.84
990 - FEATHER KEY FEI-40298745040.A8 40298745040	£3.12	£3.75
1000 - COVER FEI-31998633020.A3 31998633020	£50.82	£60.98
1010 - SEAL FEI-32498613000.A5 32498613000	£10.40	£12.48
1020 - RING FEI-42698740080.A5 42698740080	-
1030 - PINION FEI-33698681050.A4 33698681050	-
1040 - SHAFT TOOTHED FEI-33698681020.A7 33698681020	-
1050 - DISC FEI-42498720560.A7 42498720560	-
1060 - SCREW FEI-43098705040.A7 43098705040	-
1070 - SEALING RING FEI-40698763020.A2 40698763020	-
1080 - GROOVED BALL BEARING FEI-41798730450.A1 41798730450	-
1090 - RING FEI-42698741350.A9 42698741350	-
1100 - PRESSURE SPINDLE FEI-33498621020.A5 33498621020	£98.01	£117.61
1110 - RING FEI-40698763560.A1 40698763560	£3.70	£4.44
1120 - RING FEI-31998633080.A6 31998633080	£71.03	£85.24
1130 - RING FEI-42698740320.A2 42698740320	-
1140 - SPRING FEI-30998744240.A1 30998744240	£4.51	£5.41
1150 - PLUNGER FEI-33498223340.A6 33498223340	£3.52	£4.22
1160 - DISC FEI-42498726030.A5 42498726030	£1.60	£1.92
1170 - DISC FEI-42498726060.A9 42498726060	£1.60	£1.92
1180 - CIRCLIP FEI-42698741190.A8 42698741190	£1.60	£1.92
1280 - HOSE SOCKET FEI-31498761020.A0 31498761020	£7.27	£8.72
1290 - SCREW FEI-43098709000.A0 43098709000	£1.60	£1.92
1300 - COVER FEI-31998630010.A5 31998630010	£2.82	£3.38
1330 - GUIDE FEI-31998631130.A3 31998631130	£56.76	£68.11
1340 - SCREW FEI-43098706050.A9 43098706050	-
1350 - GEAR RACK FEI-33698680020.A9 33698680020	£40.58	£48.70
1360 - SCREW FEI-43098705220.A6 43098705220	-
1370 - SCREW FEI-43098704120.A4 43098704120	-
1380 - PIN FEI-40298742020.A15 40298742020	-
1400 - STATOR UNIT 120V FEI-52298690350.A0 52298690350	-
2010 - CLAMPING UNIT FEI-64298120140.A3 64298120140	-
2020 - CONNECTING PIECE FEI-31698321000.A7 31698321000	£39.75	£47.70
2030 - DISC FEI-42098746000.A1 42098746000	-
5000 - PLASTIC TOOL CASES FEI-33998140022.A4 33998140022	£120.72	£144.87
5350 - CENTERING PIN FEI-63134998310.A52 63134998310	£25.18	£30.21
5360 - CENTERING PIN FEI-63134998300.A14 63134998300	£25.18	£30.21
5370 - BELT FEI-32198131000.A14 32198131000	£50.73	£60.88
5380 - WRENCH FEI-62998780030.A14 62998780030	£3.35	£4.02
5390 - SWARF HOOK FEI-64298160400.A20 64298160400	-
6000 - LUBRICANT TUBE 100G FEI-32198766050.A13 32198766050	-

Attribute Name	Value
Brand	Fein
