Festool CTL 48 E LE EC/B22 R1 / 202204 Spare Parts

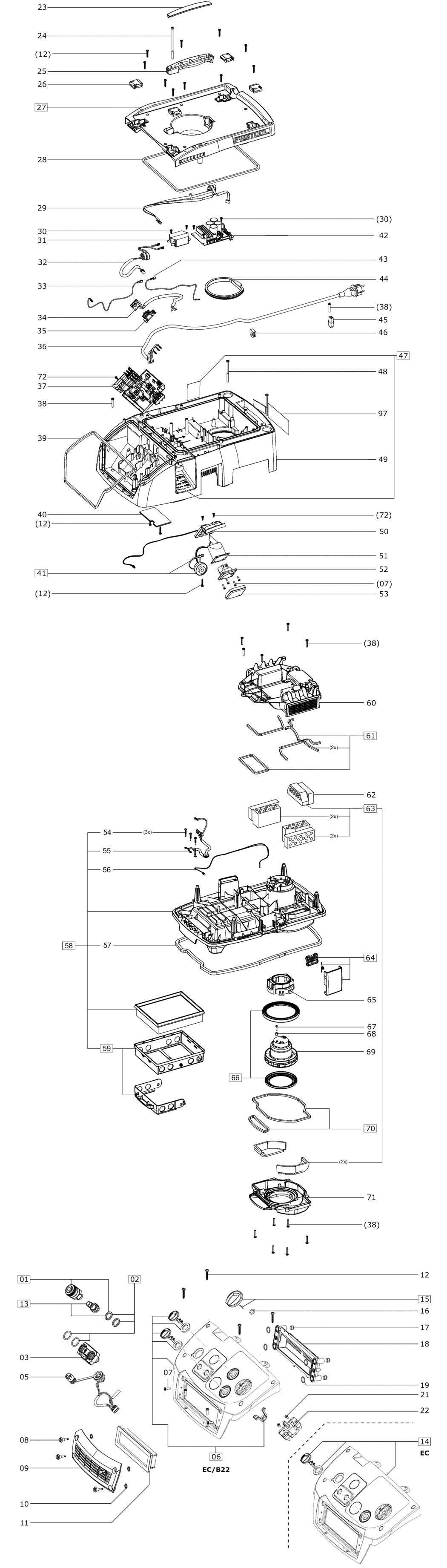

An exploded diagram and spare parts listing for the Festool CTL 48 E LE EC/B22 R1 / 202204

	Ex VAT	Inc VAT
1 - QUICK-COUPLING SOCKET FSP-200473.A10 200473	£31.57	£37.88
2 - SEALING SET FSP-496573.A9 496573	£17.09	£20.51
3 - DISTRIBUTORS FSP-499289.A6 499289	£42.02	£50.43
5 - CABLE HARNESS FSP-498680.A14 498680	£77.63	£93.16
6 - CONVERSION KIT FSP-203982.A17 203982	£107.88	£129.45
7 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A32 452450	£2.00	£2.40
8 - TURN LOCK FASTENER FSP-200896.A2 200896	£13.61	£16.33
9 - AIR VENT FSP-203163.A2 203163	£12.98	£15.57
10 - RETAINING DISC FSP-460025.A4 460025	£2.00	£2.40
11 - AIR FILTER FSP-200816.A19 200816	£41.75	£50.10
12 - RAISED-HEAD SCREW 4.0 X 25 MM FSP-400695.A14 400695	£2.00	£2.40
13 - COUPLING PIECE FSP-200846.A1 200846	£18.97	£22.76
15 - ROTARY KNOB AUTO/MAN/OFF FSP-496247.A161 496247	£18.84	£22.61
16 - O-RING FSP-10737044.A57 10737044	£2.00	£2.40
17 - NO LONGER AVAILABLE FSP-00000.A3261 00000	-
18 - FILTER ADAPTER FSP-201313.A10 201313	£18.84	£22.61
19 - O-RING FSP-702479.A12 702479	£5.90	£7.08
21 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A20 10737121	£2.00	£2.40
22 - SWITCH FSP-496246.A4 496246	£21.53	£25.84
23 - HANDLE COVER FSP-200581.A2 200581	£11.92	£14.30
24 - CHEESE HEAD SCREW 5.0 X 119 MM FSP-10739634.A22 10739634	£2.00	£2.40
25 - GRIP FSP-204111.A17 204111	£18.22	£21.86
26 - LOCKING LATCH FSP-200873.A36 200873	£11.92	£14.30
27 - COVER FSP-10021262.A3 10021262	£68.34	£82.01
28 - COVER SEAL FSP-200820.A12 200820	£15.98	£19.17
29 - RIBBON CABLE FSP-498671.A7 498671	£65.99	£79.19
30 - RAISED-HEAD SCREW 4.0 X 12 MM FSP-219071.A46 219071	£2.00	£2.40
31 - INTERFERENCE FILTER FSP-498672.A13 498672	£81.70	£98.04
32 - CABLE FSP-498673.A7 498673	£38.18	£45.81
33 - FLEXIBLE LEAD FSP-200840.A2 200840	£16.48	£19.77
34 - CABLE HARNESS FSP-200837.A18 200837	£28.58	£34.29
35 - CABLE HARNESS FSP-200628.A133 200628	£9.42	£11.31
36 - CABLE WITH PLUG FSP-200639.A104 200639	£64.02	£76.83
37 - CONVERSION KIT FSP-203982.A18 203982	£107.88	£129.45
38 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A204 452447	£2.00	£2.40
39 - GASKET FSP-200603.A23 200603	£20.09	£24.11
40 - END CAP FSP-200882.A7 200882	£44.05	£52.86
41 - SIGNAL GENERATOR FSP-498674.A33 498674	£44.92	£53.90
42 - CONTROL ELECTRONICS 220-240V FSP-498779.A13 498779	£342.74	£411.29
43 - FLEXIBLE LEAD FSP-200841.A17 200841	£16.35	£19.62
44 - GASKET FSP-200821.A2 200821	£23.82	£28.59
45 - CABLE CLAMP FSP-200536.A15 200536	£13.73	£16.48
46 - RUBBER SLEEVE FSP-200819.A2 200819	£21.33	£25.60
47 - STICKER FSP-498675.A8 498675	£34.44	£41.33
48 - RAISED-HEAD SCREW 5.0 X 80 MM FSP-452448.A3 452448	£2.00	£2.40
49 - HOUSING FSP-10021263.A10 10021263	£116.45	£139.74
50 - SIDE PANEL FSP-201314.A1 201314	£19.68	£23.61
51 - CUP SEAL FSP-200848.A15 200848	£21.97	£26.36
52 - SOCKET FSP-201316.A6 201316	£73.45	£88.14
53 - COVER FSP-200504.A150 200504	£12.85	£15.42
54 - RAISED-HEAD SCREW FSP-467456.A3 467456	£2.00	£2.40
55 - CABLE HARNESS FSP-498678.A6 498678	£39.46	£47.35
56 - CABLE HARNESS CT/CTL FSP-496252.A67 496252	£22.58	£27.10
57 - CONTAINER SEAL FSP-201007.A139 201007	£26.55	£31.86
58 - FILTER HOUSING FSP-201794.A70 201794	£80.35	£96.42
59 - FILTER HOLDER FSP-496255.A17 496255	£27.65	£33.18
60 - HOOD FSP-496257.A1 496257	£32.94	£39.53
61 - SUCTION HOOD FSP-496250.A149 496250	£39.98	£47.97
62 - NOISE-DAMPING ELEMENT FSP-200879.A3 200879	£12.85	£15.42
63 - NOISE INSULATION FSP-496258.A110 496258	£39.34	£47.21
64 - CLAMP FSP-496262.A62 496262	£20.09	£24.11
65 - GASKET FSP-200858.A18 200858	£39.55	£47.46
66 - SEALING SET FSP-496263.A27 496263	£26.14	£31.37
67 - CHEESE HEAD SCREW FSP-702520.A12 702520	£2.00	£2.40
68 - SLEEVE FSP-200897.A11 200897	£14.60	£17.52
69 - TURBINE 220-240V FSP-498780.A6 498780	£303.75	£364.50
70 - SEAL KIT FSP-496256.A153 496256	£22.58	£27.10
72 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A95 228713	£2.00	£2.40
76 - BRACKET FSP-500314.A10 500314	£17.98	£21.57
77 - HOLDER FSP-200591.A41 200591	£7.87	£9.44
78 - GASKET FSP-200574.A109 200574	£4.06	£4.87
79 - CONTACT FSP-496221.A15 496221	£24.46	£29.35
80 - SLEEVE FSP-200568.A15 200568	£12.42	£14.90
81 - RAISED-HEAD SCREW FSP-467456.A6 467456	£2.00	£2.40
82 - SCREEN CT36 FSP-496267.A79 496267	£20.09	£24.11
86 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A207 452447	£2.00	£2.40
87 - SUPPORT FSP-200593.A91 200593	£9.80	£11.76
87 - SUPPORT FSP-200824.A38 200824	£7.99	£9.59
88 - ROLLER FSP-452840.A71 452840	£19.35	£23.22
89 - CONTAINER CT B22/EC FSP-498669.A7 498669	£216.36	£259.63
90 - PIPE FSP-200823.A3 200823	£21.08	£25.30
91 - WHEEL FSP-496230.A4 496230	£33.93	£40.72
92 - TOOTH RING FSP-202484.A136 202484	£2.87	£3.44
93 - WHEEL COVER FSP-200570.A75 200570	£9.49	£11.39
94 - BLANKING PLUG FSP-452899.A18 452899	£12.72	£15.27
95 - DESCRIPTION UNAVAILABLE FSP-000000.A407 000000	-
96 - HANDLE FSP-500253.A15 500253	£58.72	£70.47
97 - WARNING PLATE FSP-10737100.A74 10737100	£2.00	£2.40
98 - ROTARY KNOB FSP-201662.A10 201662	£22.25	£26.70
99 - COVER FSP-201975.A22 201975	£45.25	£54.30
100 - PEDAL FSP-500317.A183 500317	£26.82	£32.19
101 - CONTAINER FSP-202342.A10 202342	£197.48	£236.97
9999 - NO LONGER AVAILABLE FSP-00000.A3266 00000	-
