Festool CTL 36 E AC HD / 202213 Spare Parts

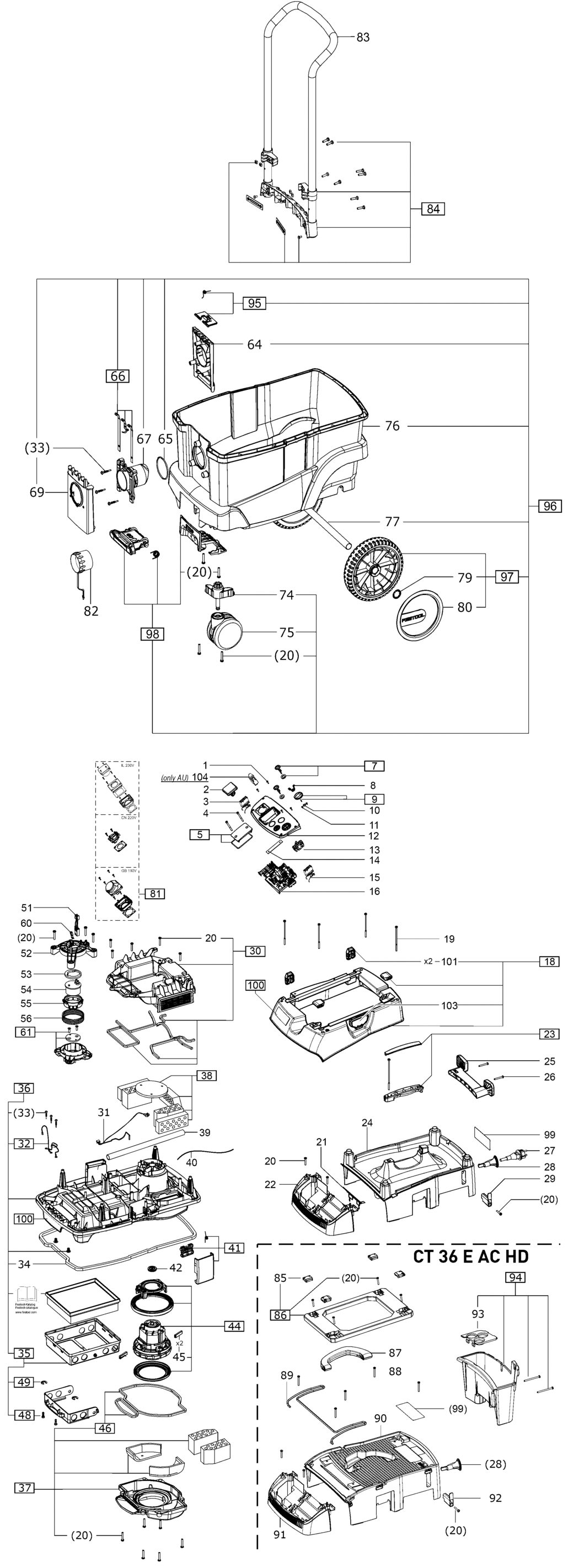

An exploded diagram and spare parts listing for the Festool CTL 36 E AC HD / 202213

	Ex VAT	Inc VAT
1 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-452450.A31 452450	£2.00	£2.40
2 - SOCKET FSP-200531.A53 200531	£24.33	£29.20
3 - CABLE HARNESS FSP-201717.A41 201717	£7.37	£8.84
4 - CHEESE HEAD SCREW FSP-10737236.A76 10737236	£2.00	£2.40
5 - COVER FSP-496234.A147 496234	£21.08	£25.30
7 - ROTARY KNOB CT/CTL/CTM/CTH FSP-496249.A4 496249	£20.22	£24.26
9 - ROTARY KNOB AUTO/MAN/OFF FSP-496247.A164 496247	£18.84	£22.61
10 - O-RING FSP-10737044.A59 10737044	£2.00	£2.40
11 - FLAT HEAD SCREW M4 X 8 FSP-10737121.A21 10737121	£2.00	£2.40
12 - SCREEN FSP-500566.A2 500566	£22.46	£26.95
13 - SWITCH AC FSP-498082.A19 498082	£21.53	£25.84
14 - BOARD SEGMENT FSP-200599.A56 200599	£4.24	£5.09
15 - CABLE HARNESS FSP-200628.A136 200628	£9.42	£11.31
16 - CONVERSION KIT FSP-203961.A4 203961	£103.48	£124.18
17 - CLAMP FSP-496236.A5 496236	£21.97	£26.36
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A200 452447	£2.00	£2.40
20 - RAISED-HEAD SCREW 5.0 X 30 MM FSP-452447.A201 452447	£2.00	£2.40
27 - CABLE WITH PLUG FSP-200639.A103 200639	£64.02	£76.83
27 - NO LONGER AVAILABLE FSP-00000.A3258 00000	-
28 - INLET BUSH FSP-205776.A7 205776	£8.12	£9.74
30 - HOOD FSP-205777.A4 205777	£42.45	£50.94
31 - CABLE HARNESS CT/CTL FSP-496252.A65 496252	£22.58	£27.10
32 - FLEXIBLE LEAD PACK AUS / USA FSP-496773.A42 496773	£23.08	£27.70
33 - RAISED-HEAD SCREW FSP-467456.A12 467456	£2.00	£2.40
34 - CONTAINER SEAL FSP-201007.A137 201007	£26.55	£31.86
35 - FILTER HOLDER FSP-496255.A19 496255	£27.65	£33.18
36 - FILTER HOUSING FSP-201806.A24 201806	£105.38	£126.46
37 - COVER FSP-201975.A20 201975	£45.25	£54.30
38 - NOISE INSULATION FSP-496258.A112 496258	£39.34	£47.21
39 - CABLE BUSHING FSP-200584.A133 200584	£15.60	£18.72
40 - CABLE HARNESS FSP-200890.A33 200890	£28.75	£34.50
41 - CLAMP FSP-496262.A59 496262	£20.09	£24.11
44 - TURBINE 220-240V FSP-10494016.A50 10494016	£172.12	£206.55
45 - CARBON SET 220-240V FSP-496268.A49 496268	£38.81	£46.57
46 - SEAL KIT FSP-496256.A150 496256	£22.58	£27.10
51 - CABLE HARNESS FSP-200889.A89 200889	£24.95	£29.94
52 - HOLDER FSP-200855.A75 200855	£14.72	£17.67
52 - HOLDER FSP-200887.A67 200887	£40.42	£48.50
53 - DAMPENING RING FSP-200854.A71 200854	£19.35	£23.22
54 - SOLENOID FSP-200852.A62 200852	£55.30	£66.36
55 - MAGNETIC HOLDER FSP-200853.A77 200853	£12.42	£14.90
55 - NO LONGER AVAILABLE FSP-00000.A3257 00000	-
56 - SPRING FSP-201004.A130 201004	£18.57	£22.28
60 - SPRING PLATE FSP-200528.A78 200528	£17.98	£21.57
61 - VALVE COLLAR FSP-498827.A47 498827	£32.74	£39.29
64 - HOLDER FSP-200591.A40 200591	£7.87	£9.44
65 - GASKET FSP-200574.A106 200574	£4.06	£4.87
66 - CONTACT FSP-496221.A18 496221	£24.46	£29.35
67 - SLEEVE FSP-200568.A20 200568	£12.42	£14.90
69 - SCREEN CT36 FSP-496267.A75 496267	£20.09	£24.11
74 - SUPPORT FSP-200593.A92 200593	£9.80	£11.76
75 - ROLLER FSP-452840.A68 452840	£19.35	£23.22
76 - CONTAINER CT36 FSP-496232.A68 496232	£68.04	£81.65
77 - PIPE FSP-200571.A59 200571	£17.35	£20.82
79 - TOOTH RING FSP-202484.A138 202484	£2.87	£3.44
80 - WHEEL COVER FSP-200570.A70 200570	£9.49	£11.39
82 - BLANKING PLUG FSP-452899.A21 452899	£12.72	£15.27
83 - DESCRIPTION UNAVAILABLE FSP-000000.A401 000000	-
84 - HANDLE FSP-500253.A18 500253	£58.72	£70.47
85 - LOCKING LATCH FSP-200873.A38 200873	£11.92	£14.30
86 - DESCRIPTION UNAVAILABLE FSP-000000.A402 000000	-
87 - GRIP FSP-500318.A8 500318	£16.84	£20.21
88 - RAISED-HEAD SCREW 5.0 X 40 MM FSP-452449.A108 452449	£1.75	£2.10
89 - BRACKET FSP-35000546.A108 35000546	-
90 - HOUSING FSP-500320.A8 500320	£81.14	£97.37
91 - HOUSING INSERT FSP-496238.A184 496238	£36.42	£43.71
92 - CABLE CLAMP FSP-201023.A105 201023	£11.73	£14.08
93 - CONTAINER FSP-500321.A123 500321	£34.93	£41.92
94 - CONTAINER FSP-35000553.A18 35000553	-
95 - BRACKET FSP-500314.A6 500314	£17.98	£21.57
96 - CONTAINER FSP-500315.A57 500315	£128.52	£154.22
97 - WHEEL FSP-500316.A7 500316	£36.93	£44.32
98 - PEDAL FSP-500317.A185 500317	£26.82	£32.19
99 - WARNING PLATE FSP-10737100.A70 10737100	£2.00	£2.40
100 - NAMEPLATE FSP-705487.A1 705487	£2.00	£2.40

Attribute Name	Value
Brand	Festool
