Elu MASB120 Type 1 Cordless Drill Spare Parts

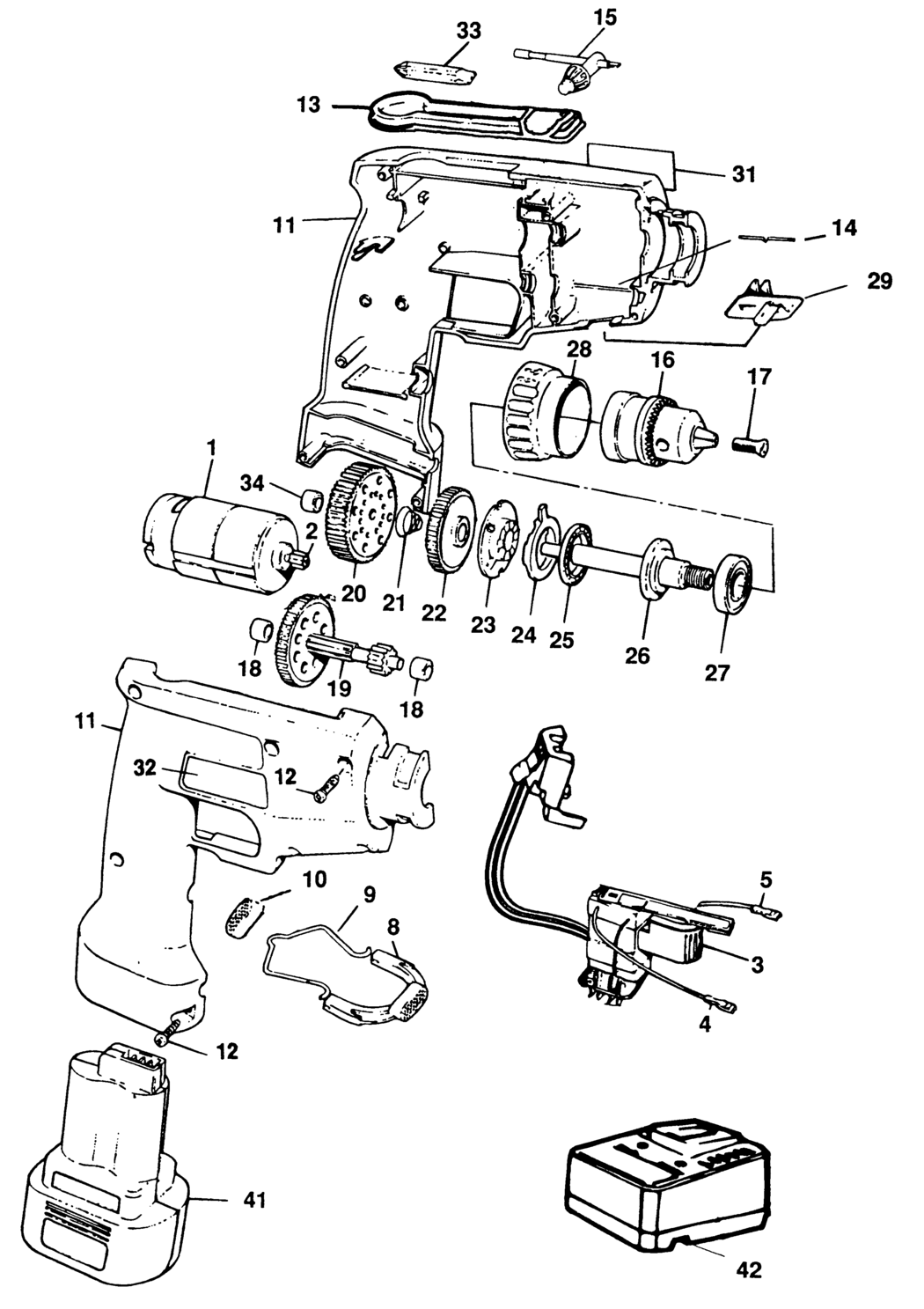

An exploded drawing and spare parts listing for the Elu MASB120 Type 1 Cordless Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A114217 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A114218 000000-00	-
4 - NO LONGER AVAILABLE BDE-000000-00.A114219 000000-00	-
5 - NO LONGER AVAILABLE BDE-000000-00.A114220 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A114221 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A114222 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A114223 000000-00	-
12 - SCREW BDE-330013-04.A47 330013-04	-
13 - NO LONGER AVAILABLE BDE-000000-00.A114228 000000-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A114229 000000-00	-
15 - CHUCK KEY CHUCK S2A BDE-330034-07.A99 330034-07	£1.66	£1.99
15 - CHUCK KEY 10MM CHUCK NON S2A BDE-330034-00.A111 330034-00	-
16 - CHUCK 10MM CHUCK S2A BDE-330033-15.A123 330033-15	-
16 - NO LONGER AVAILABLE CHUCK NON S2A BDE-000000-00.A114244 000000-00	-
17 - SCREW.SPECIAL BDE-805434.A124 805434	£1.50	£1.80
18 - NO LONGER AVAILABLE BDE-000000-00.A114230 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A114231 000000-00	-
20 - NO LONGER AVAILABLE BDE-000000-00.A114232 000000-00	-
21 - NO LONGER AVAILABLE BDE-000000-00.A114233 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A114234 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A114235 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A114236 000000-00	-
25 - BEARING BDE-892261.A64 892261	-
26 - NO LONGER AVAILABLE BDE-000000-00.A114237 000000-00	-
27 - NO LONGER AVAILABLE BDE-000000-00.A114238 000000-00	-
28 - NO LONGER AVAILABLE BDE-000000-00.A114239 000000-00	-
29 - NO LONGER AVAILABLE BDE-000000-00.A114240 000000-00	-
33 - BIT PHILLIPS BDE-297757-02.A52 297757-02	£1.82	£2.19
34 - NO LONGER AVAILABLE BDE-000000-00.A114241 000000-00	-

Attribute Name	Value
Brand	Elu
