Elu BSA31K Type 2 Cordless Drill Spare Parts

Home Details Reviews Delivery

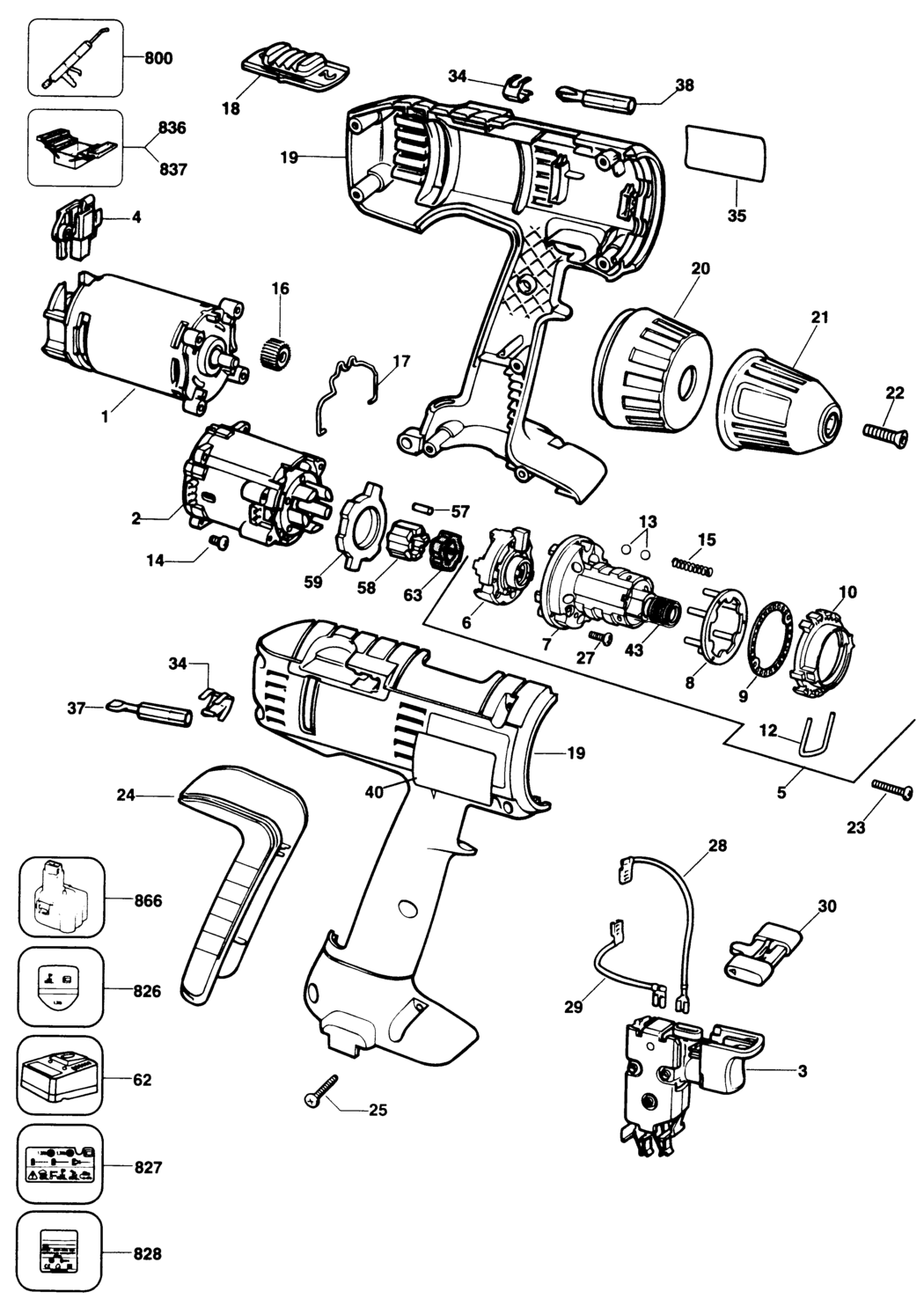

An exploded drawing and spare parts listing for the Elu BSA31K Type 2 Cordless Drill

	Ex VAT	Inc VAT
1 - NO LONGER AVAILABLE BDE-000000-00.A80497 000000-00	-
2 - NO LONGER AVAILABLE BDE-000000-00.A80498 000000-00	-
3 - NO LONGER AVAILABLE BDE-000000-00.A80499 000000-00	-
4 - BRUSH PAIR SA BDE-373091-02.A153 373091-02	-
5 - CLUTCH MODULE BDE-573121-00.A14 573121-00	£37.82	£45.38
6 - NO LONGER AVAILABLE BDE-000000-00.A80501 000000-00	-
7 - NO LONGER AVAILABLE BDE-000000-00.A80502 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A80503 000000-00	-
9 - NO LONGER AVAILABLE BDE-000000-00.A80504 000000-00	-
10 - NO LONGER AVAILABLE BDE-000000-00.A80505 000000-00	-
12 - CLIP BDE-798959-00.A86 798959-00	£1.82	£2.19
13 - BALL BDE-386690-00.A116 386690-00	£1.66	£1.99
14 - NO LONGER AVAILABLE BDE-000000-00.A80507 000000-00	-
15 - NO LONGER AVAILABLE BDE-000000-00.A80508 000000-00	-
16 - PINION BDE-380325-02.A8 380325-02	£1.78	£2.13
17 - SPRING BDE-799024.A14 799024	-
18 - NO LONGER AVAILABLE BDE-000000-00.A80513 000000-00	-
19 - NO LONGER AVAILABLE BDE-000000-00.A80514 000000-00	-
20 - RING BDE-799019-00.A16 799019-00	£3.22	£3.86
21 - NO LONGER AVAILABLE BDE-000000-00.A80509 000000-00	-
22 - NO LONGER AVAILABLE BDE-000000-00.A80510 000000-00	-
23 - NO LONGER AVAILABLE BDE-000000-00.A80511 000000-00	-
24 - NO LONGER AVAILABLE BDE-000000-00.A80512 000000-00	-
25 - SCREW BDE-747329.A803 747329	£1.66	£1.99
27 - SCREW BDE-808821.A55 808821	£1.66	£1.99
28 - BRUSH PAIR SA BDE-373091-02.A139 373091-02	-
29 - BRUSH PAIR SA BDE-373091-02.A140 373091-02	-
30 - SLIDER BDE-806057-01.A38 806057-01	-
34 - RETAINER BDE-798453.A12 798453	£3.70	£4.44
35 - NO LONGER AVAILABLE BDE-000000-00.A80515 000000-00	-
37 - NO LONGER AVAILABLE GB BDE-000000-00.A80516 000000-00	-
38 - NO LONGER AVAILABLE GB BDE-000000-00.A80517 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A80518 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A80519 000000-00	-
57 - NEEDLE ROLLER BDE-809740.A38 809740	£1.66	£1.99
58 - ANVIL BDE-372061.A4 372061	-
59 - LOCKING RING BDE-371983.A39 371983	£1.66	£1.99
62 - CHARGER 7.2V - 18V GB BDE-572576-00.A197 572576-00	£110.62	£132.74
63 - DAMPER BDE-372063.A39 372063	£3.70	£4.44
800 - GREASE 100 GMS BDE-808386-00.A125 808386-00	£56.97	£68.36
826 - NO LONGER AVAILABLE BDE-000000-00.A80520 000000-00	-
827 - NO LONGER AVAILABLE BDE-000000-00.A80521 000000-00	-
828 - NO LONGER AVAILABLE BDE-000000-00.A80522 000000-00	-
836 - NO LONGER AVAILABLE BDE-000000-00.A80523 000000-00	-
837 - NO LONGER AVAILABLE BDE-000000-00.A80524 000000-00	-
866 - NO LONGER AVAILABLE GB BDE-000000-00.A80525 000000-00	-
