Elu BM43E Type 1 Drill Spare Parts

Home Details Reviews Delivery

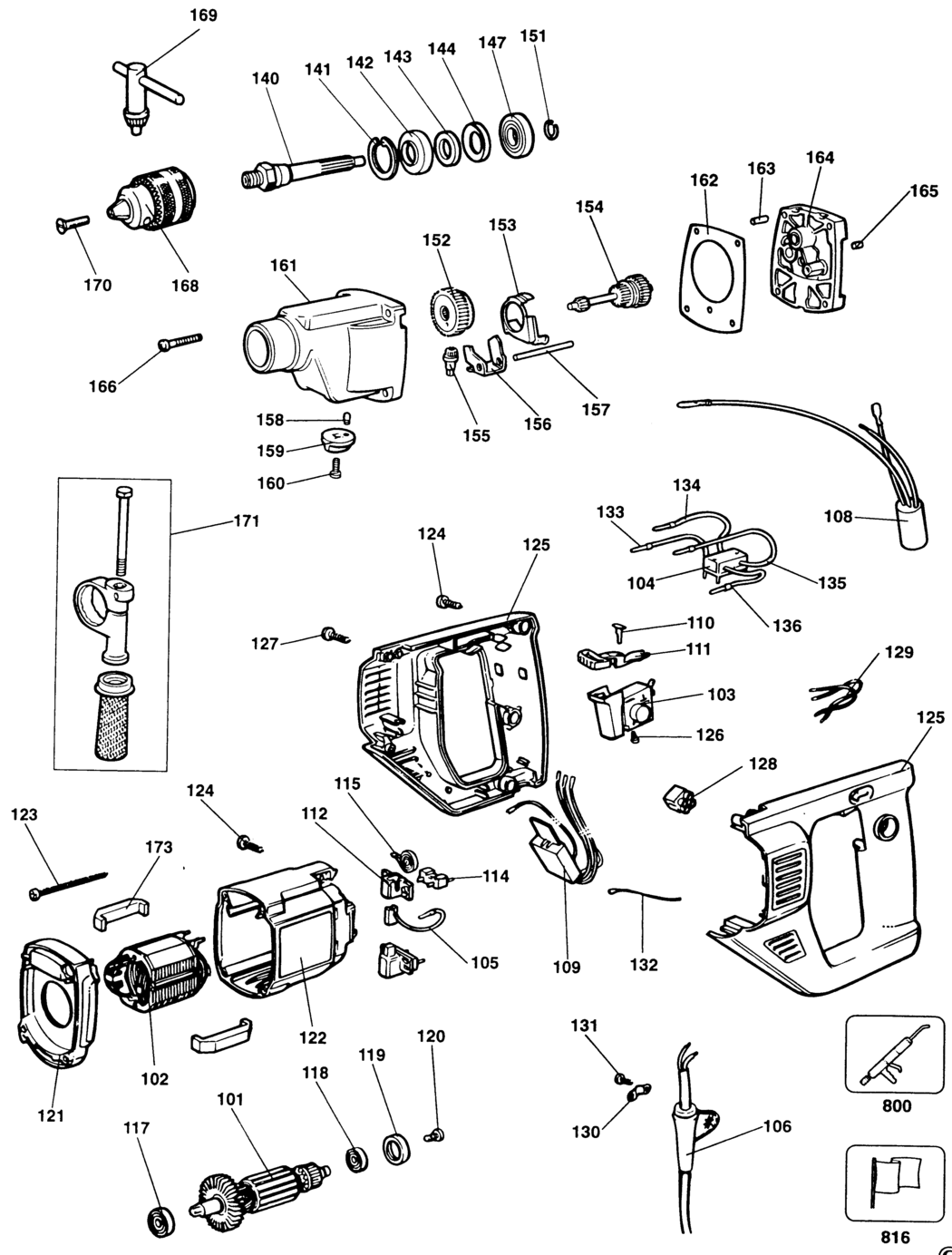

An exploded drawing and spare parts listing for the Elu BM43E Type 1 Drill

	Ex VAT	Inc VAT
101 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A48446 000000-00	-
101 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A48447 000000-00	-
102 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A48448 000000-00	-
102 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A48449 000000-00	-
103 - NO LONGER AVAILABLE BDE-000000-00.A48450 000000-00	-
104 - SWITCH REVERSE BDE-324400-00.A74 324400-00	-
105 - BRUSH GB 240V BDE-323660-08.A11 323660-08	-
105 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A48451 000000-00	-
106 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A48452 000000-00	-
106 - CORDSET GB 240V BDE-324438-73.A52 324438-73	-
108 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A48453 000000-00	-
108 - CAPACITOR GB 115V BDE-320842-03.A104 320842-03	-
109 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A48454 000000-00	-
109 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A48455 000000-00	-
110 - NO LONGER AVAILABLE BDE-000000-00.A48456 000000-00	-
111 - LEVER BDE-323490-08.A67 323490-08	-
112 - BRUSH HOLDER BDE-323496-02.A0 323496-02	-
114 - NO LONGER AVAILABLE GB 240V BDE-000000-00.A48457 000000-00	-
114 - NO LONGER AVAILABLE GB 115V BDE-000000-00.A48458 000000-00	-
115 - NO LONGER AVAILABLE BDE-000000-00.A48459 000000-00	-
117 - NO LONGER AVAILABLE BDE-000000-00.A48460 000000-00	-
118 - BEARING BDE-330003-19.A160 330003-19	£2.87	£3.44
119 - SLEEVE BDE-870052.A163 870052	£1.66	£1.99
120 - SCREW BDE-911276.A55 911276	£1.66	£1.99
121 - NO LONGER AVAILABLE BDE-000000-00.A48461 000000-00	-
122 - NO LONGER AVAILABLE BDE-000000-00.A48462 000000-00	-
123 - NO LONGER AVAILABLE BDE-000000-00.A48463 000000-00	-
124 - NO LONGER AVAILABLE BDE-000000-00.A48464 000000-00	-
125 - NO LONGER AVAILABLE BDE-000000-00.A48465 000000-00	-
126 - SCREW BDE-911026.A25 911026	£1.66	£1.99
127 - NO LONGER AVAILABLE BDE-000000-00.A48466 000000-00	-
128 - CONNECTOR BDE-323534-00.A11 323534-00	£1.66	£1.99
129 - NO LONGER AVAILABLE BDE-000000-00.A48467 000000-00	-
130 - CORD CLAMP BDE-821070.A730 821070	£1.66	£1.99
131 - SCREW BDE-323924-08.A122 323924-08	£1.66	£1.99
132 - LEAD 360MM BDE-878846.A9 878846	£1.66	£1.99
133 - NO LONGER AVAILABLE BDE-000000-00.A48468 000000-00	-
134 - NO LONGER AVAILABLE BDE-000000-00.A48469 000000-00	-
135 - NO LONGER AVAILABLE BDE-000000-00.A48470 000000-00	-
136 - NO LONGER AVAILABLE BDE-000000-00.A48471 000000-00	-
140 - NO LONGER AVAILABLE BDE-000000-00.A48472 000000-00	-
141 - NO LONGER AVAILABLE BDE-000000-00.A48473 000000-00	-
142 - NO LONGER AVAILABLE BDE-000000-00.A48474 000000-00	-
143 - NO LONGER AVAILABLE BDE-000000-00.A48475 000000-00	-
144 - NO LONGER AVAILABLE BDE-000000-00.A48476 000000-00	-
147 - NO LONGER AVAILABLE BDE-000000-00.A48477 000000-00	-
152 - NO LONGER AVAILABLE BDE-000000-00.A48478 000000-00	-
153 - NO LONGER AVAILABLE BDE-000000-00.A48479 000000-00	-
154 - NO LONGER AVAILABLE BDE-000000-00.A48480 000000-00	-
155 - NO LONGER AVAILABLE BDE-000000-00.A48481 000000-00	-
156 - NO LONGER AVAILABLE BDE-000000-00.A48482 000000-00	-
157 - NO LONGER AVAILABLE BDE-000000-00.A48483 000000-00	-
158 - DETENT BDE-326467-00.A115 326467-00	£1.66	£1.99
159 - NO LONGER AVAILABLE BDE-000000-00.A48484 000000-00	-
160 - SCREW BDE-323924-08.A121 323924-08	£1.66	£1.99
161 - NO LONGER AVAILABLE BDE-000000-00.A48485 000000-00	-
162 - NO LONGER AVAILABLE BDE-000000-00.A48486 000000-00	-
163 - NO LONGER AVAILABLE BDE-000000-00.A48487 000000-00	-
164 - NO LONGER AVAILABLE BDE-000000-00.A48488 000000-00	-
165 - NO LONGER AVAILABLE BDE-000000-00.A48489 000000-00	-
166 - SCREW BDE-330065-11.A46 330065-11	£1.66	£1.99
168 - CHUCK 13MM BDE-5140071-68.A87 5140071-68	£15.01	£18.01
169 - CHUCK KEY BDE-330034-07.A259 330034-07	£1.66	£1.99
170 - NO LONGER AVAILABLE BDE-000000-00.A48490 000000-00	-
171 - HANDLE SIDE SA BDE-939794-02.A234 939794-02	£15.01	£18.01
173 - NO LONGER AVAILABLE BDE-000000-00.A48491 000000-00	-
800 - NO LONGER AVAILABLE BDE-000000-00.A48492 000000-00	-
816 - NO LONGER AVAILABLE BDE-000000-00.A48493 000000-00	-
