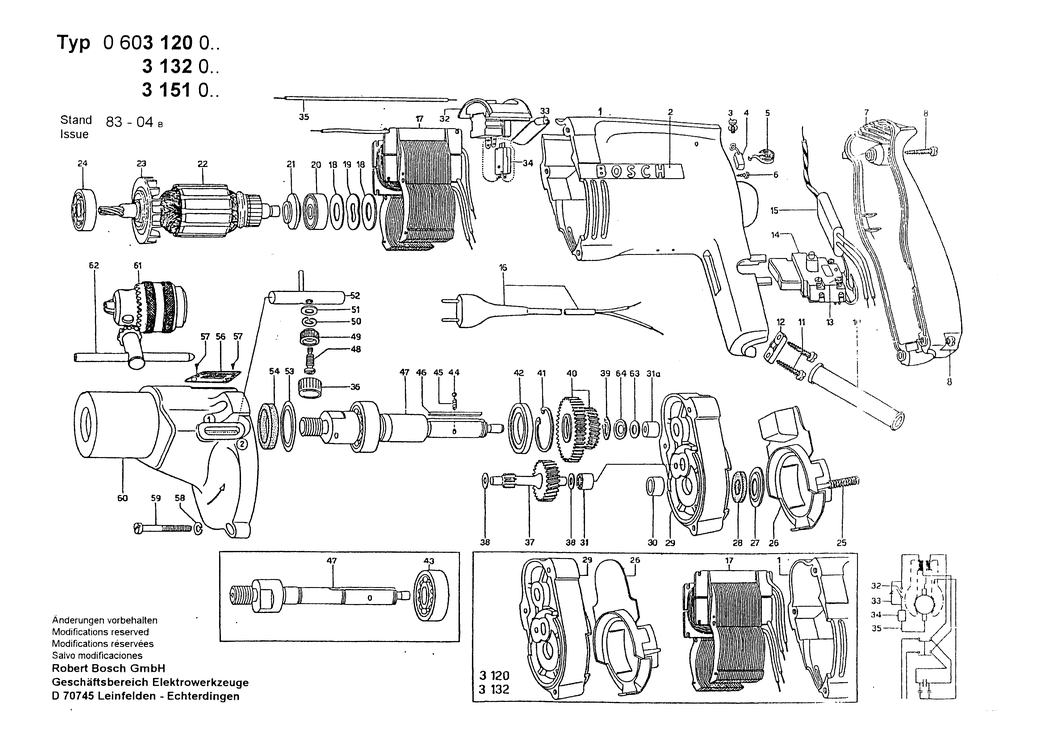

1 - MOTOR HOUSING
BSD-2605104901.A6
2605104901
|
-
|
|
|
|
2 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A343
2601007003
|
-
|
|
|
|
3 - SOCKET HEAD CAP SCREW
BSD-2603410010.A292
2603410010
|
-
|
|
|
|
4 - CARBON-BRUSH SET
BSD-2604320906.A73
2604320906
|
-
|
|
|
|
5 - SPIRAL SPRING
BSD-2604652002.A6
2604652002
|
-
|
|
|
|
6 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A301
2910211004
|
-
|
|
|
|
7 - HOUSING COVER
BSD-2605132031.A12
2605132031
|
-
|
|
|
|
8 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A547
2910211021
|
£1.75
|
£2.10
|
|
|
10 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A763
2600703011
|
£2.94
|
£3.53
|
|
|
10 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A392
2600703012
|
£2.94
|
£3.53
|
|
|
10 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A726
2600703013
|
£2.74
|
£3.29
|
|
|
11 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1073
2910211019
|
£1.84
|
£2.21
|
|
|
12 - CABLE CLIP
BSD-2601035001.A2074
2601035001
|
£1.84
|
£2.21
|
|
|
13 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A198
2603410023
|
-
|
|
|
|
14 - ON-OFF SWITCH
BSD-2607200043.A141
2607200043
|
-
|
|
|
|
15 - SUPPRESSION FILTER
BSD-2607329051.A159
2607329051
|
-
|
|
|
|
17 - POLE SHOE 110-115V
BSD-2604222227.A6
2604222227
|
-
|
|
|
|
18 - SHIM 0.2 MM
BSD-2600101022.A3
2600101022
|
£1.84
|
£2.21
|
|
|
18 - SHIM 0.3 MM
BSD-2600101023.A505
2600101023
|
£1.84
|
£2.21
|
|
|
18 - SHIM 0.5 MM
BSD-2600101020.A625
2600101020
|
£1.84
|
£2.21
|
|
|
19 - SHIM
BSD-2600150004.A607
2600150004
|
£2.27
|
£2.72
|
|
|
20 - BALL BEARING 7x22x7
BSD-1900905018.A9
1900905018
|
£19.91
|
£23.89
|
|
|
21 - ARMATURE PLATE
BSD-2600121002.A100
2600121002
|
-
|
|
|
|
22 - ARMATURE WITH FAN 110-115V
BSD-2604010441.A13
2604010441
|
-
|
|
|
|
23 - FAN
BSD-2606610032.A14
2606610032
|
-
|
|
|
|
24 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A6
2600905007
|
-
|
|
|
|
25 - COMPRESSION SPRING
BSD-2604611026.A67
2604611026
|
-
|
|
|
|
26 - COVER DISC
BSD-2601328018.A52
2601328018
|
-
|
|
|
|
27 - CUPPED WASHER
BSD-2600500008.A127
2600500008
|
-
|
|
|
|
28 - FELT DISC
BSD-2600108020.A37
2600108020
|
-
|
|
|
|
29 - INTERMEDIATE FLANGE
BSD-2605700902.A5
2605700902
|
-
|
|
|
|
30 - RECEPTACLE
BSD-2600400020.A66
2600400020
|
-
|
|
|
|
31 - NEEDLE BEARING
BSD-2600914004.A175
2600914004
|
£4.26
|
£5.11
|
|
|
32 - ON-OFF SWITCH
BSD-2607200053.A8
2607200053
|
-
|
|
|
|
33 - SILICON DIODE
BSD-2607320008.A82
2607320008
|
-
|
|
|
|
34 - OVERLOAD SWITCH
BSD-2607202900.A17
2607202900
|
-
|
|
|
|
35 - CONNECTING CABLE
BSD-2604411519.A13
2604411519
|
-
|
|
|
|
35 - SUPPRESSOR BOX
BSD-2604465000.A9
2604465000
|
-
|
|
|
|
36 - SEALING CAP
BSD-2600508029.A8
2600508029
|
-
|
|
|
|
37 - TOOTHED SHAFT Z=27/9
BSD-2603160900.A11
2603160900
|
-
|
|
|
|
38 - SHIM 0.3 MM
BSD-2600100570.A108
2600100570
|
£1.84
|
£2.21
|
|
|
39 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A178
2916650003
|
£1.75
|
£2.10
|
|
|
40 - TOOTHED GEAR Z=46/27
BSD-2606328036.A9
2606328036
|
-
|
|
|
|
41 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A592
2916660013
|
£2.16
|
£2.59
|
|
|
42 - SHIM WASHER
BSD-2600114025.A12
2600114025
|
-
|
|
|
|
43 - GROOVE BALL BEARING 12x32x10
BSD-1900900302.A0
1900900302
|
-
|
|
|
|
44 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A104
1903230006
|
£2.27
|
£2.72
|
|
|
45 - COMPRESSION SPRING
BSD-2604611016.A1
2604611016
|
-
|
|
|
|
46 - FLAT KEY
BSD-2602300014.A69
2602300014
|
-
|
|
|
|
47 - DRILLING SPINDLE
BSD-2603122019.A10
2603122019
|
-
|
|
|
|
47 - DRILLING SPINDLE
BSD-2603122900.A9
2603122900
|
-
|
|
|
|
48 - PAN HEAD SCREW
BSD-2603413020.A26
2603413020
|
-
|
|
|
|
49 - SHIFT-LEVER KNOB
BSD-2603340015.A9
2603340015
|
-
|
|
|
|
50 - SPRING LOCK WASHER DIN 128-A5-FST
BSD-2916690004.A11
2916690004
|
£1.75
|
£2.10
|
|
|
51 - PLAIN WASHER DIN 433-5.3-ST
BSD-2916011011.A10
2916011011
|
£1.75
|
£2.10
|
|
|
52 - SWITCHING PIN
BSD-2603103017.A30
2603103017
|
-
|
|
|
|
53 - CUPPED WASHER
BSD-2600500033.A33
2600500033
|
£2.74
|
£3.29
|
|
|
54 - FELT WASHER
BSD-2600108033.A87
2600108033
|
£1.84
|
£2.21
|
|
|
55 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A3
1903201042
|
£2.27
|
£2.72
|
|
|
56 - NAMEPLATE
BSD-160111A3H3.A4671
160111A3H3
|
£2.74
|
£3.29
|
|
|
57 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST
BSD-2917724031.A61
2917724031
|
-
|
|
|
|
58 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1226
2916690003
|
£1.75
|
£2.10
|
|
|
59 - PAN HEAD SCREW
BSD-2603410025.A24
2603410025
|
-
|
|
|
|
60 - GEAR HOUSING
BSD-2605806902.A1
2605806902
|
-
|
|
|
|
61 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A300
1608571069
|
£25.05
|
£30.06
|
|
|
62 - CHUCK WRENCH SG2
BSD-2607950007.A239
2607950007
|
£6.85
|
£8.22
|
|
|
63 - SHIM
BSD-2600100565.A12
2600100565
|
-
|
|
|
|
64 - CUPPED WASHER
BSD-2600500001.A6
2600500001
|
-
|
|
|
