Bosch GR.54 / 0602128004 / --- 135 Volt Spare Parts

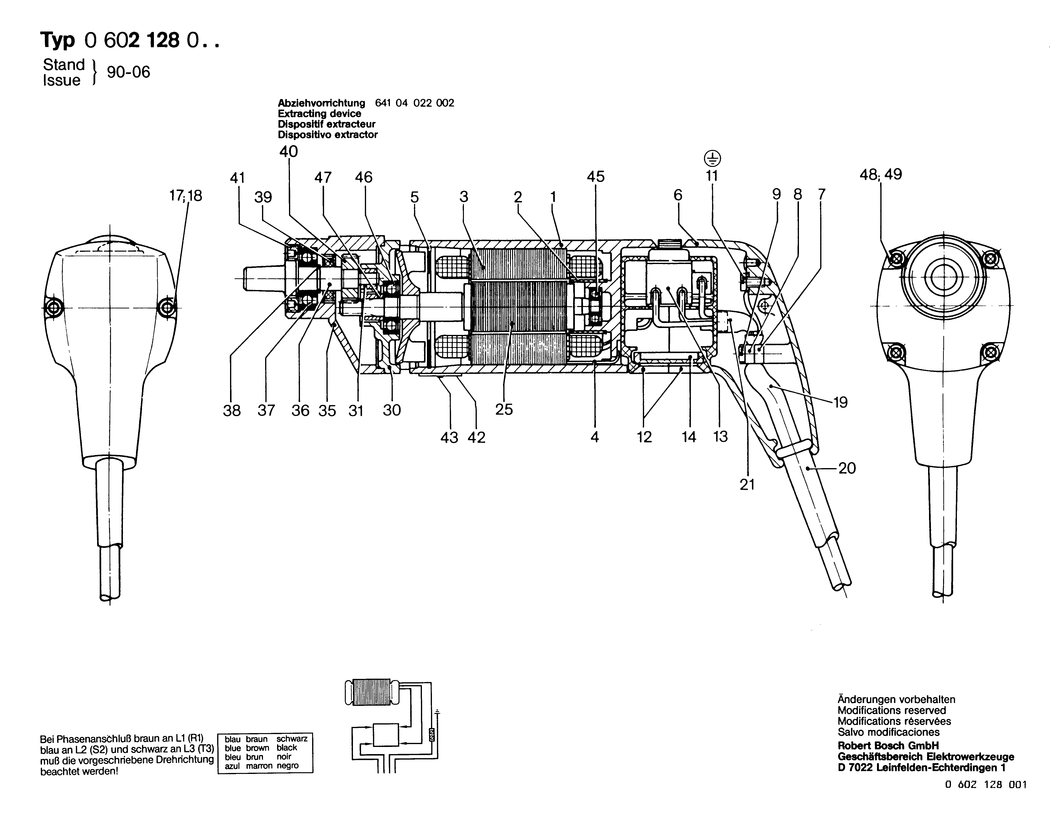

An exploded drawing and listing for the Bosch GR.54 / 0602128004 / --- 135 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-3609200030.A1 3609200030	-
2 - STOP RING BSD-3609200031.A1 3609200031	-
3 - STATOR 135V/200HZ BSD-3609200052.A0 3609200052	-
4 - JOINING BAR BSD-3609200033.A1 3609200033	-
5 - COVER DISC BSD-3609200034.A1 3609200034	-
6 - HANDLE BSD-3609200035.A1 3609200035	-
7 - CLAMPING PIECE BSD-3609200036.A1 3609200036	-
8 - CLAMPING PIECE BSD-3609200006.A4 3609200006	-
9 - PAN HEAD SCREW BSD-2910091092.A2 2910091092	-
11 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A339 2910110116	£1.84	£2.21
12 - SWITCH HOUSING BSD-3609200037.A1 3609200037	-
13 - ON-OFF SWITCH BSD-3609200038.A1 3609200038	-
14 - COVER PLATE BSD-3609200039.A1 3609200039	-
17 - HEX SOCKET HEAD CAP SCREW M 4x30 DIN 912-8.8 BSD-2910141134.A3 2910141134	-
18 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A2 2916060005	£1.84	£2.21
19 - POWER SUPPLY CORD BSD-3609200225.A0 3609200225	-
20 - PROTECTIVE SHEATH BSD-3609200041.A1 3609200041	-
21 - INSULATION TUBING BSD-3609200042.A1 3609200042	-
25 - ROTOR BSD-3609200043.A1 3609200043	-
30 - INTERMEDIATE BEARING BSD-3609200044.A1 3609200044	-
31 - BUSHING BSD-3609200045.A1 3609200045	-
35 - SPINDLE BEARING BSD-3609200046.A1 3609200046	-
36 - DRILLING SPINDLE BSD-3609200047.A1 3609200047	-
37 - GROOVE BALL BEARING 6000 Z DIN 625 BSD-1900905100.A40 1900905100	-
38 - SPRING RETAINING RING 22x1.2 DIN 471 BSD-2916650012.A3 2916650012	-
39 - SEAL KIT BSD-3609200048.A1 3609200048	-
40 - CYLINDRICAL GEAR BSD-3609200049.A1 3609200049	-
41 - THREADED RING BSD-3609200050.A1 3609200050	-
42 - NAMEPLATE BSD-3601100004.A15 3601100004	-
43 - GROOVED NAIL BSD-3609200222.A6 3609200222	-
45 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A39 1900905015	£30.42	£36.51
46 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A894 1600905011	£5.87	£7.04
47 - SEAL RING BSD-3609200051.A1 3609200051	-
48 - HEX SOCKET HEAD CAP SCREW M 4x30 DIN 912-8.8 BSD-2910141134.A0 2910141134	-
49 - SPRING WASHER DIN 137-A 4-ST BSD-2916060005.A5 2916060005	£1.84	£2.21
