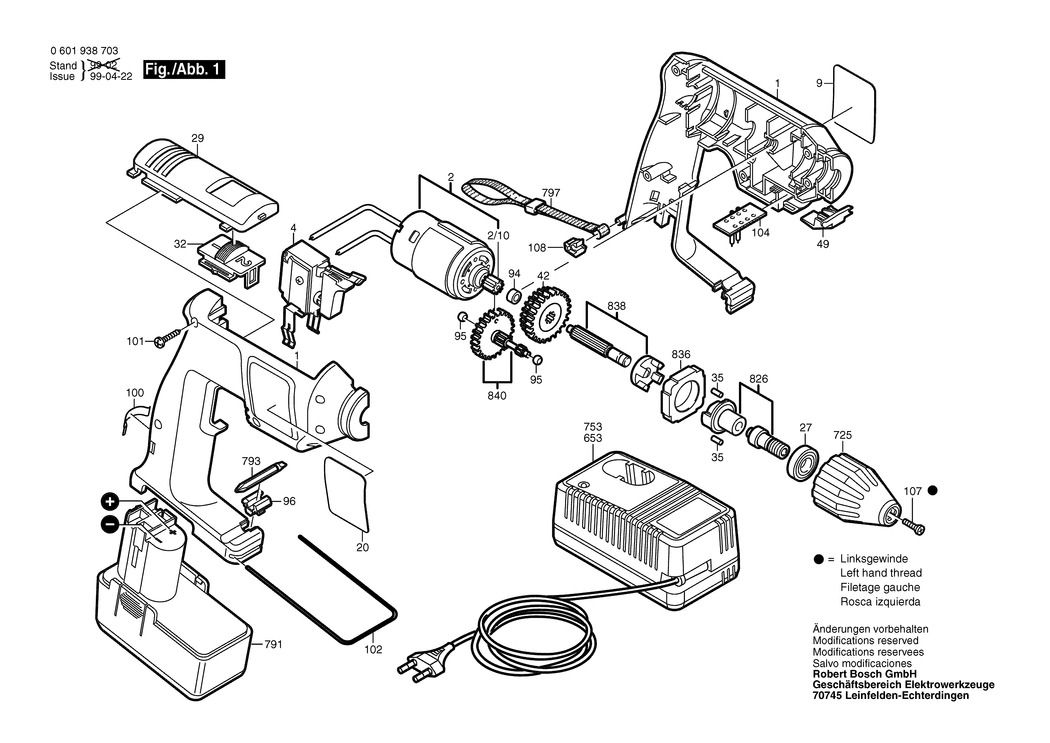

1 - HOUSING SECTION
BSD-2605104612.A1
2605104612
|
-
|
|
|
|
2 - DC MOTOR 9.6-12V
BSD-2607022928.A42
2607022928
|
-
|
|
|
|
2/10 - PINION Z=11
BSD-2606316112.A10
2606316112
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-2607200393.A30
2607200393
|
£63.50
|
£76.20
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118536.A15
2601118536
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-2601118537.A1
2601118537
|
-
|
|
|
|
27 - GROOVE BALL BEARING 10x26x8
BSD-1900905120.A84
1900905120
|
-
|
|
|
|
29 - INSERT PIECE
BSD-2605510136.A50
2605510136
|
-
|
|
|
|
32 - ADJUSTING SLIDE
BSD-2601099056.A57
2601099056
|
-
|
|
|
|
35 - ROLLER BODY
BSD-2602329024.A72
2602329024
|
-
|
|
|
|
42 - SET OF GEARS Z=58/67
BSD-1609340007.A245
1609340007
|
£14.91
|
£17.89
|
|
|
49 - INSERT PIECE
BSD-2605510117.A202
2605510117
|
£1.75
|
£2.10
|
|
|
94 - SINTERED-METAL BUSHING
BSD-2600301011.A346
2600301011
|
£1.75
|
£2.10
|
|
|
95 - SINTERED-METAL BUSHING
BSD-2600302002.A252
2600302002
|
£1.75
|
£2.10
|
|
|
96 - SUPPORT
BSD-2608040131.A214
2608040131
|
£1.95
|
£2.34
|
|
|
100 - CLAMP SPRING
BSD-2601322016.A103
2601322016
|
£2.52
|
£3.02
|
|
|
101 - SCREW 4x16
BSD-2603490022.A6
2603490022
|
£1.75
|
£2.10
|
|
|
102 - RETAINING BRACKET
BSD-2601329041.A334
2601329041
|
£2.33
|
£2.80
|
|
|
104 - CONTACT RETAINER
BSD-2608018004.A202
2608018004
|
£5.58
|
£6.70
|
|
|
107 - COUNTERSUNK-HEAD SCREW M5x20
BSD-2609110721.A246
2609110721
|
£2.16
|
£2.59
|
|
|
725 - KEYLESS CHUCK
BSD-2608572214.A124
2608572214
|
£45.67
|
£54.80
|
|
|
753 - FAST CHARGER GB 230/7.2-24V. 1h
BSD-2607224427.A49
2607224427
|
£103.14
|
£123.77
|
|
|
753 - FAST CHARGER GB 230/7.2-14.4V. 30 MIN.
BSD-2607224703.A174
2607224703
|
£116.15
|
£139.38
|
|
|
791 - ACCUMULATOR BATTERY 7.2V.2.0Ah.NiCd
BSD-2607335150.A0
2607335150
|
-
|
|
|
|
793 - SCREWDRIVER BLADE
BSD-2608521018.A224
2608521018
|
£5.01
|
£6.01
|
|
|
797 - CARRYING LOOP
BSD-2601398009.A264
2601398009
|
-
|
|
|
|
826 - DRILLING SPINDLE 3/8
BSD-2606135917.A15
2606135917
|
-
|
|
|
|
836 - RING
BSD-2600202025.A75
2600202025
|
-
|
|
|
|
838 - SPLINED SHAFT
BSD-2606309914.A23
2606309914
|
-
|
|
|
|
840 - TOOTHED SHAFT Z=10/19/81
BSD-1609340005.A47
1609340005
|
£16.74
|
£20.09
|
|
|
899 - CORDLESS DRILL 7.2V
BSD-0601938723.A15
0601938723
|
-
|
|
|
